Southbend (Middleby)

Southbend Platinum 36-Inch Heavy Duty Gas Sectional Range with Full-Width Thermostatic Griddle and Cabinet Base

SKU: P36C-TTT
$11,702.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum 36-Inch Heavy Duty Gas Sectional Range with Full-Width Thermostatic Griddle and Cabinet Base

36" Wide, 1" Thick Plate, Stainless Steel, 96,000 BTU

Built for high-volume kitchens, this 36-inch Platinum sectional range combines a full-width thermostatic griddle, rugged stainless steel construction, and a cabinet base in one durable footprint.

  • Full-width 36-inch thermostatic griddle for precise surface temperature control.
  • 1-inch thick griddle plate is built for heavy-duty commercial use.
  • 96,000 BTU gas output delivers fast recovery and strong cooking performance.
  • Stainless steel front, sides, rear, and exterior bottom for lasting durability.
  • Cabinet base with center-opening doors adds convenient under-range storage.
  • Battery spark ignition supports quick, reliable startup.
  • Removable grease drawer and splashers help contain drips and messes.

Overall Dimensions:

36.0"W x 37.5"D x 41.0"H

Product Weight:

560.0 lb

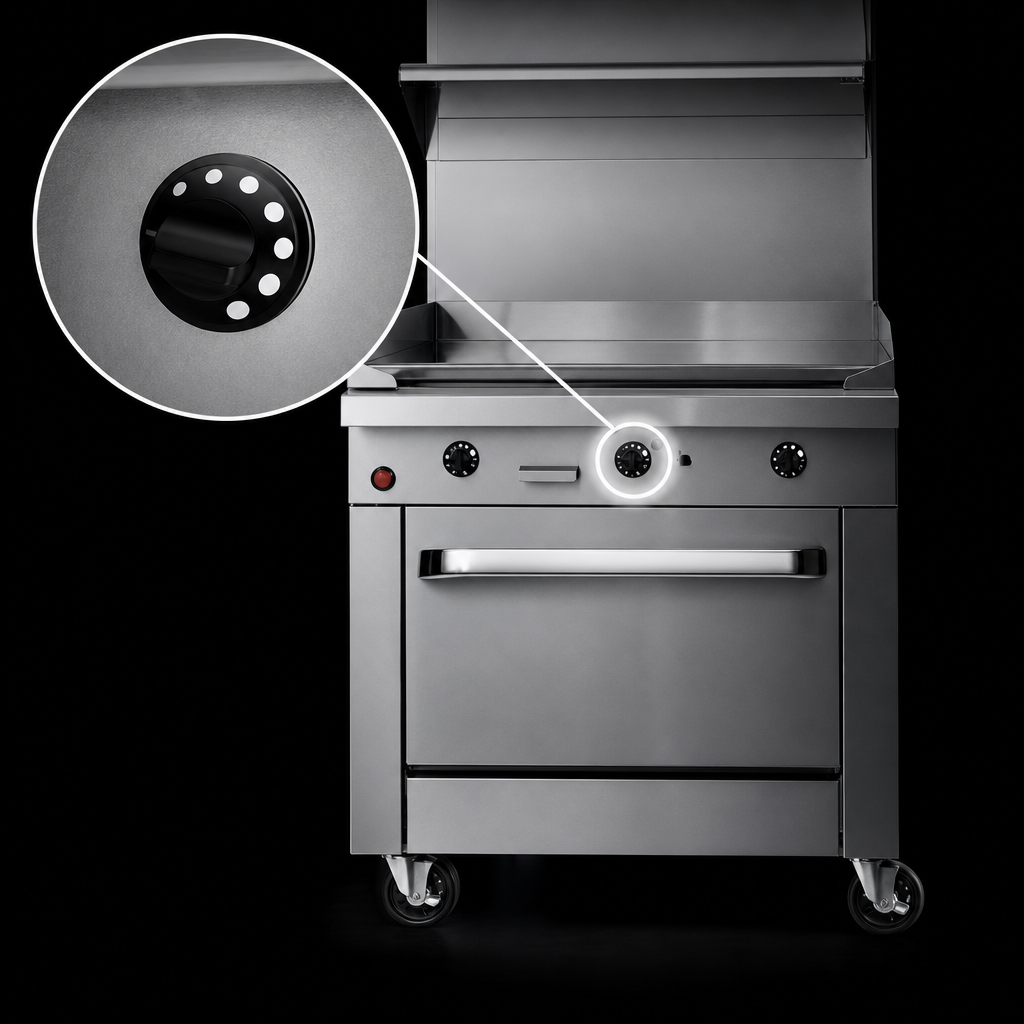

Thermostatic Griddle Control

Insta-On thermostatic control maintains griddle surface temperatures from 180°F to 400°F.

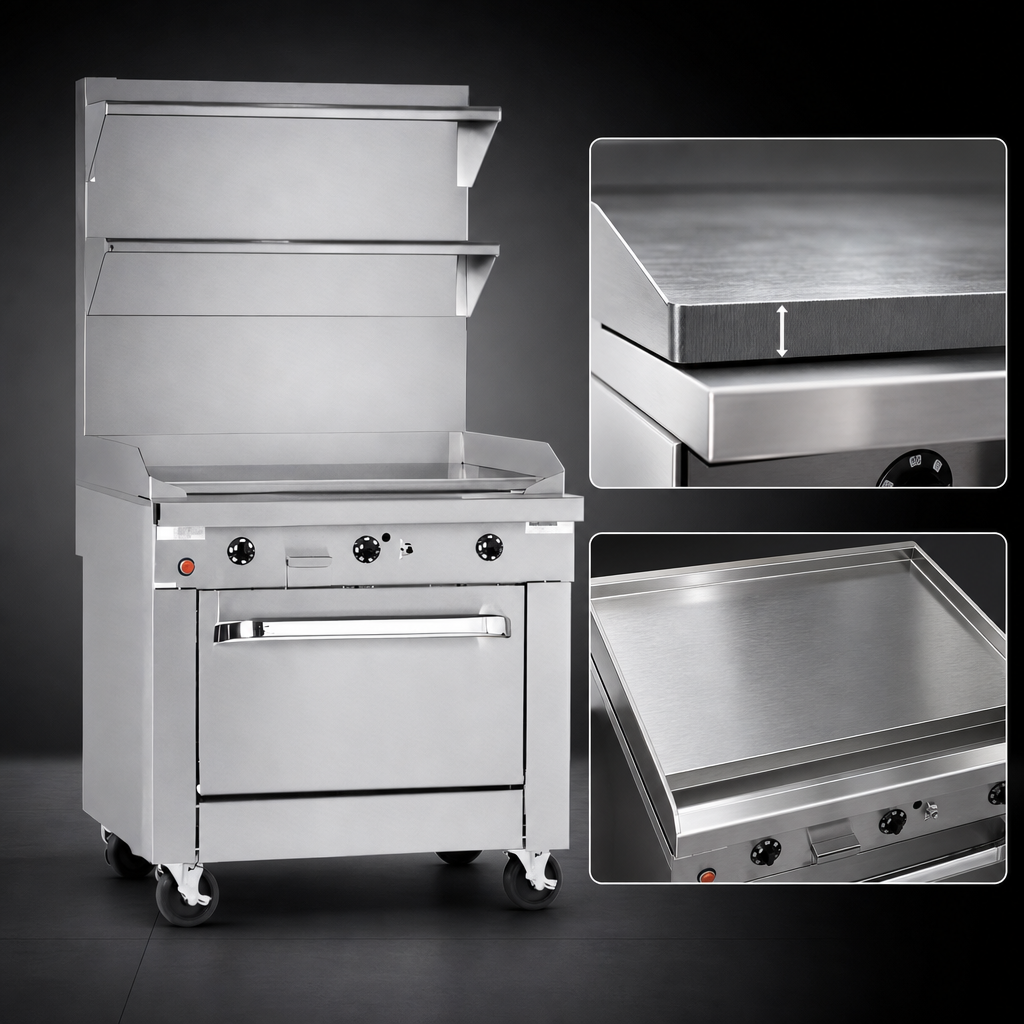

1-Inch Thick Griddle Plate

Heavy-duty stainless steel griddle plate provides durability and even heat distribution.

Full-Width Gas Griddle

36-inch full-width griddle is rated at 96,000 BTU for high-output cooking.

Battery Spark Ignition

Battery spark ignition supports dependable start-up without pilot lighting.

Stainless Steel Exterior

Front, sides, rear, and exterior bottom are constructed of stainless steel for durability and easy cleaning.

Cabinet Base Storage

Stainless steel cabinet base includes removable doors that open from the center.

Grease Management

Removable stainless steel grease drawer helps collect drippings for easier cleanup.

Adjustable Legs

6-inch stainless steel adjustable legs are standard for leveling during installation.

Type Sectional Range
Style Thermostatic Griddle
Controls Thermostatic
Installation Type Floor Model
Material Stainless Steel
Finish Polished Stainless Steel
BTU 96,000 BTU
Gas Type Natural Gas
Gas Connection Size 1-1/4 Inch Front Manifold; 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C. Natural Gas / 11 Inches W.C. Propane
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 41 Inches
Shipping Weight 560 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and 1 year labor

Documents

PDF Cutsheet PDF Download PDF Product configurator PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The thermostatic griddle controls surface temperature from 180°F to 400°F.
This model includes a stainless steel cabinet base with removable center-opening doors.
It uses a 1-1/4 inch front manifold and a 1 inch rear gas connection, and it requires a regulated gas supply.
Yes, installation under a vented hood is recommended.
The warranty is one year on operational parts and one year labor.
