Southbend (Middleby)  |  Platinum  |  SKU: P36C-TTC

Southbend (Middleby) P36C-TTC Platinum Gas Ranges

$13,782.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Product configurator Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

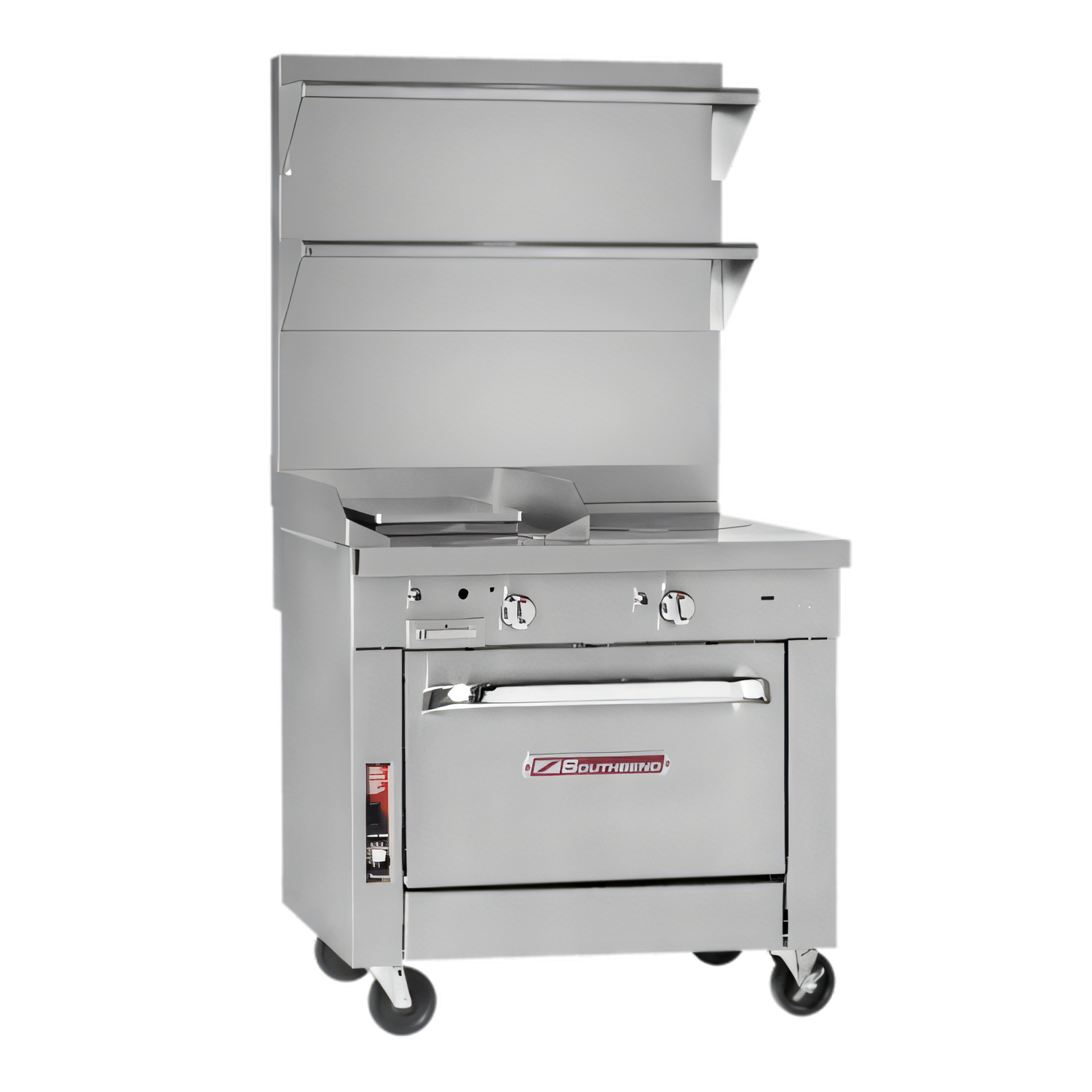

Southbend Platinum 36" Heavy-Duty Gas Range

24" Thermostatic Griddle • 12" Charbroiler • Cabinet Base • 96,000 BTU

Built for the busiest kitchens, the Southbend Platinum Series combination range merges a precision-controlled griddle and a high-heat charbroiler in one ultra-durable 36" platform. Rugged stainless-steel construction, battery spark ignition and industry-leading performance make it the go-to solution for chefs who refuse to compromise.

Key advantages

  • Two cooking zones in one footprint—flip breakfast on the 24" griddle while the 12" charbroiler handles steaks, burgers and vegetables.

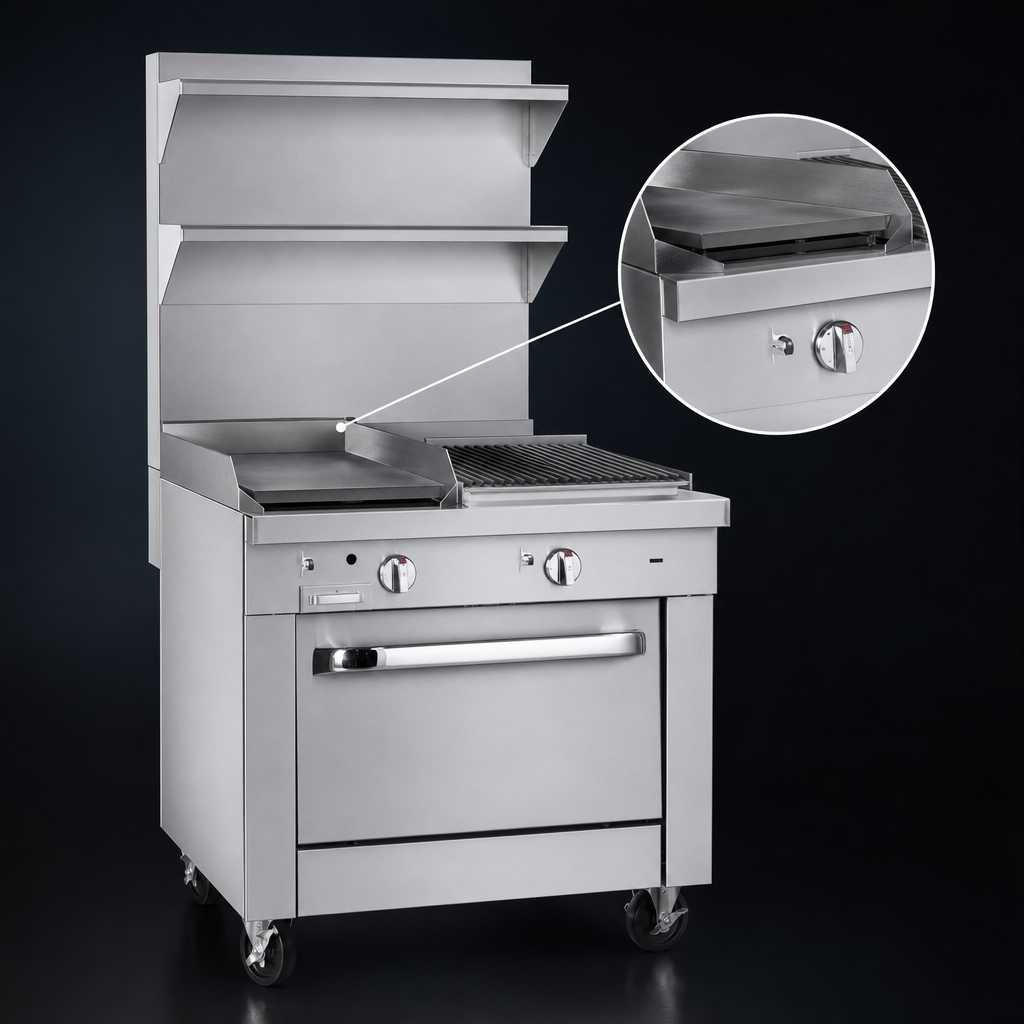

  • Thermostatic griddle control (180 °F–400 °F) maintains spot-on temps for consistent results service after service.
  • Battery spark ignition eliminates standing pilots to save gas and simplify start-up.
  • Heavy-gauge 1" griddle plate with welded splashers and extra-large stainless grease drawer.

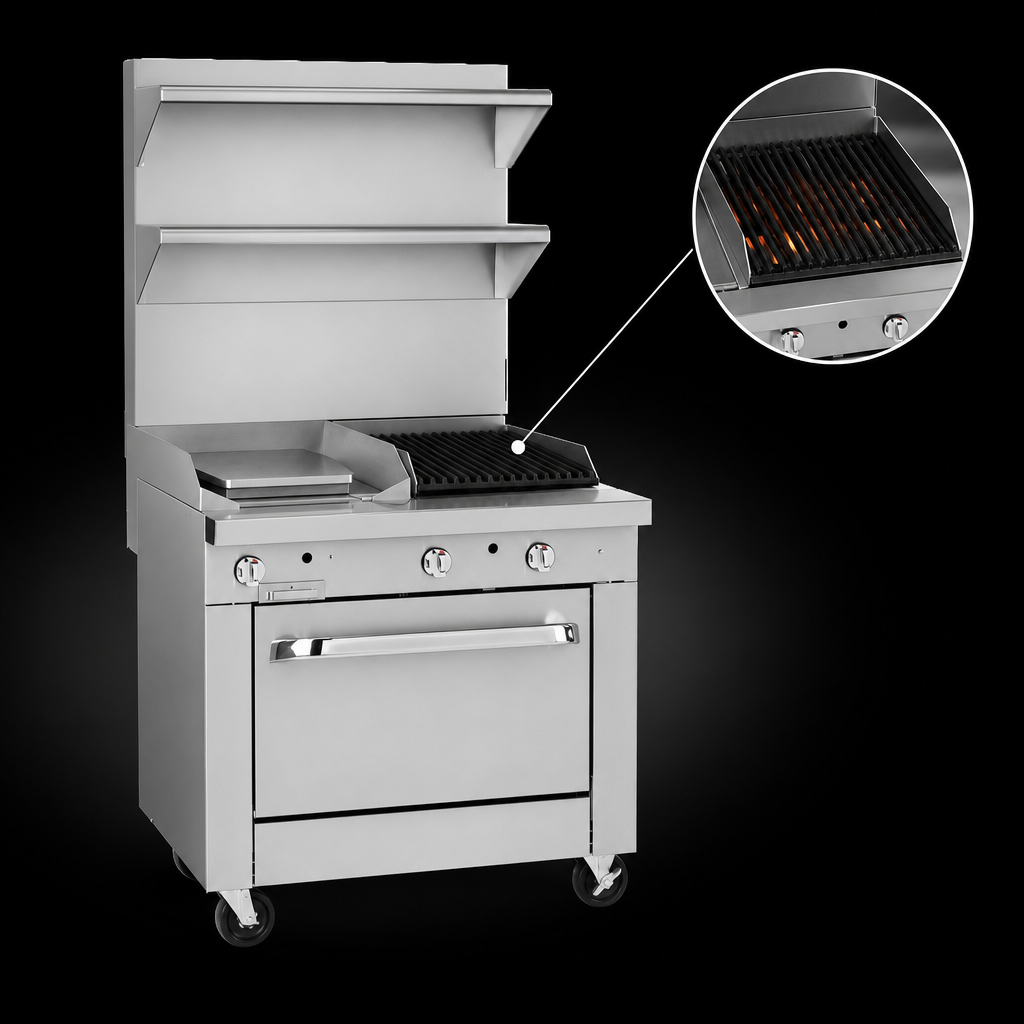

  • Charbroiler features reversible cast-iron grates (⅛" or ¼" ridges) and stainless steel radiants for a uniform 600 °F surface.
  • 9-¼" deep front rail keeps cookware clear of hot tops and provides plating space.
  • Stainless cabinet base with two swing doors stores sheet pans, stockpots and utensils safely out of the workflow.
  • 6" adjustable stainless legs for easy leveling on any kitchen floor.
  • Made in the USA and backed by Southbend’s renowned service network.

Performance specs

Total BTU (natural gas) 96,000 BTU/hr
Griddle section 24" W • 64,000 BTU (four 16,000 BTU burners) • 1" plate • 180 °F–400 °F thermostatic
Charbroiler section 12" W • 32,000 BTU (two 16,000 BTU burners) • Reversible cast-iron grates
Ignition Battery spark (cooktop)
Gas connections 1 ¼" front manifold (battery-ready) & 1" rear male NPT
Exterior dimensions 36" W × 40" D × 37 ½" H (to cook surface) plus 5" flue riser
Construction Stainless steel front, sides, rear & exterior bottom; fully insulated burner box
Base style Stainless cabinet, two removable doors
Legs 6" stainless, height adjustable
Origin Made in USA

Certifications

  • cCSAus
  • CSA Flame
  • CSA Star
  • NSF

Popular add-ons (extra cost)

  • External gas pressure regulator
  • 24" or 36" flue riser with one or two shelves
  • Locking casters & safety restraint kit
  • Chrome or grooved griddle plate
  • Plated fish grids for charbroiler
  • Open-frame, refrigerated or freezer bases
Important: Never cover the charbroiler grates with sheet pans during cleaning—reflected heat can permanently damage the unit and void the warranty.

Protected by Southbend’s 1-year parts & labor limited warranty. Full details available upon request.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame, Made in USA

Height

41.0in

Width

36.0in

Depth

37.75in

Shipping Weight

490.0lbs

Top

(1) 12" charbroiler, (1) 24" griddle with thermostat

Exterior Finish

stainless steel front & sides

Plate Thickness

1.000" = 1"

Base

cabinet(s)

Specifications

Platinum Heavy Duty Range, gas, 36", (1) 24" griddle, (1) 12" charbroiler, thermostatic controls, battery spark ignition, (1) cabinet base, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 96,000 BTU, cCSAus, CSA Flame, CSA Star, NSF, Made in USA
