Southbend (Middleby) P36C-PPP Platinum Gas Ranges
Description

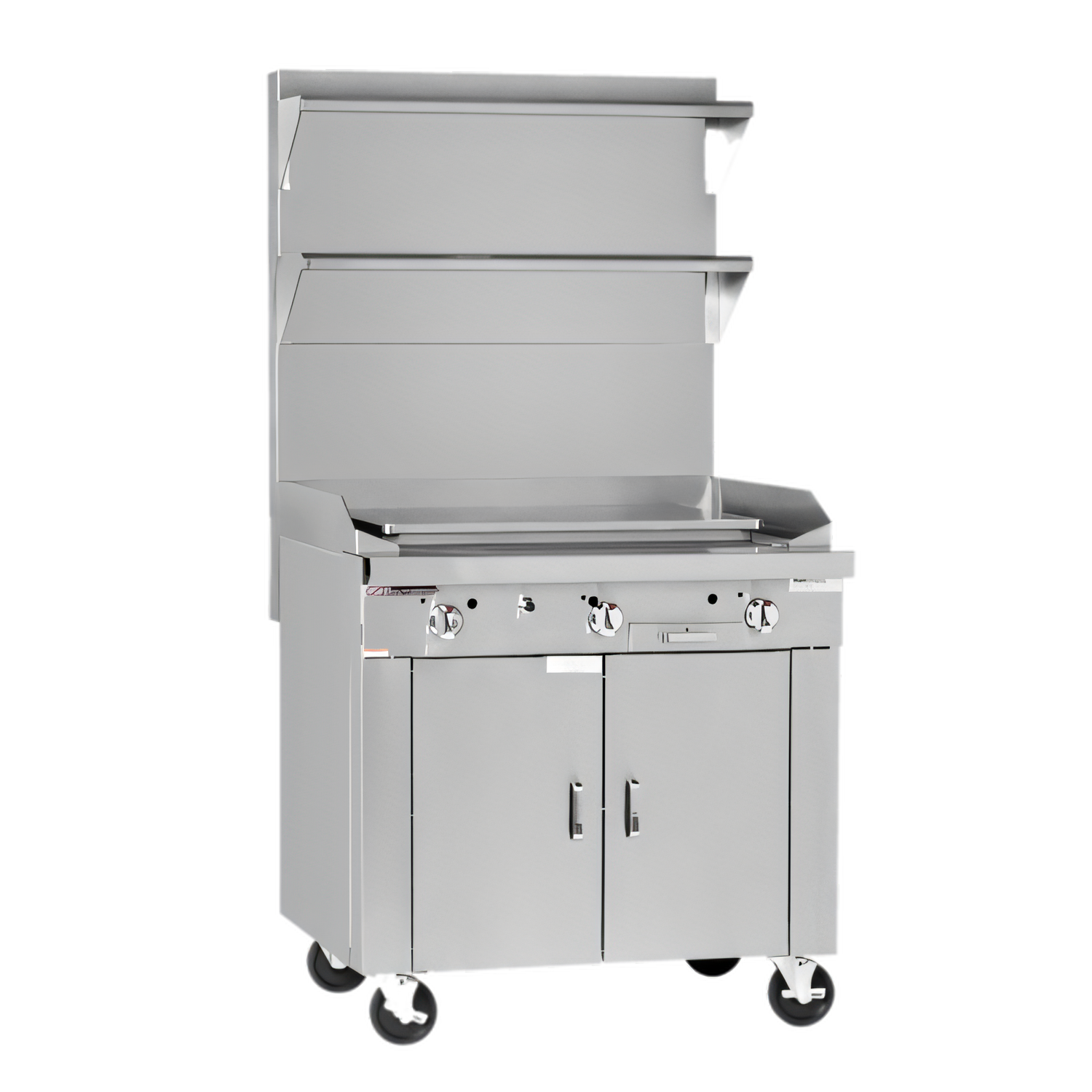

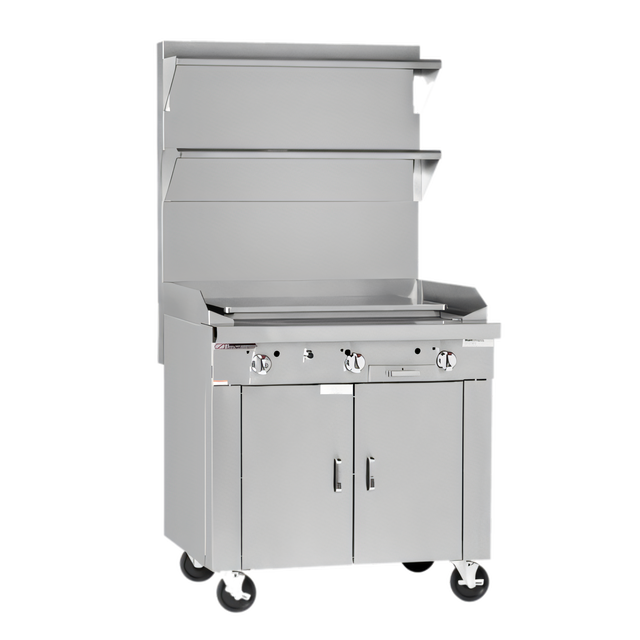

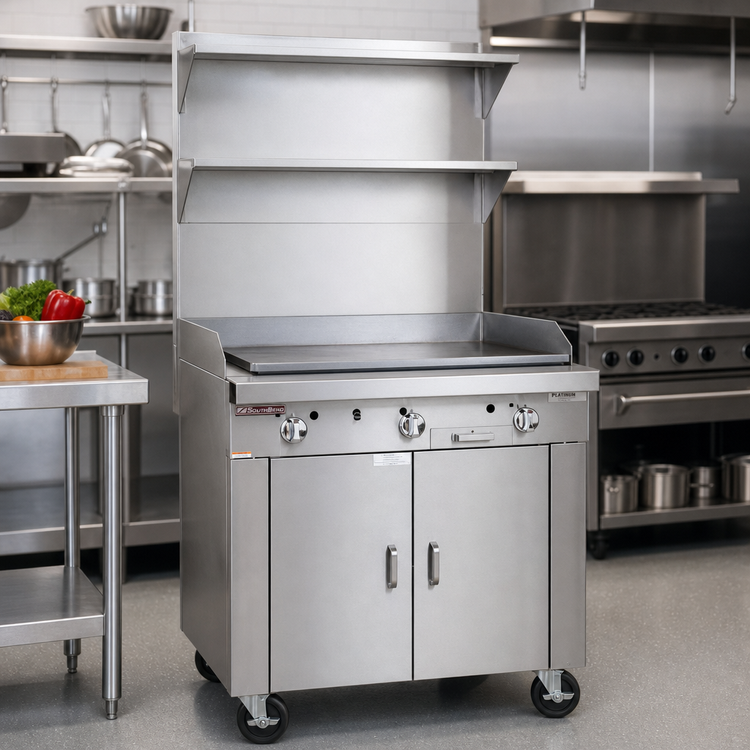

Southbend Platinum Series 36" Heavy-Duty Gas Range with Plancha Griddle & Cabinet Base
Model P36C-PPP | 48,000 BTU | CSA & NSF ListedPurpose-built for demanding, high-volume operations, the Platinum P36C-PPP combines rapid-response plancha grilling with rugged, all-stainless construction and a convenient cabinet base. Three 16,000 BTU cast-iron burners heat a ½" thick reinforced steel plate that sears up to 800 °F on the front two-thirds and gently finishes on the rear third—perfect for steaks, seafood, vegetables, tortillas and more.
Key Performance Features
- 29-3/4" raised plancha griddle, ½" thick reinforced steel for fast pre-heat & recovery

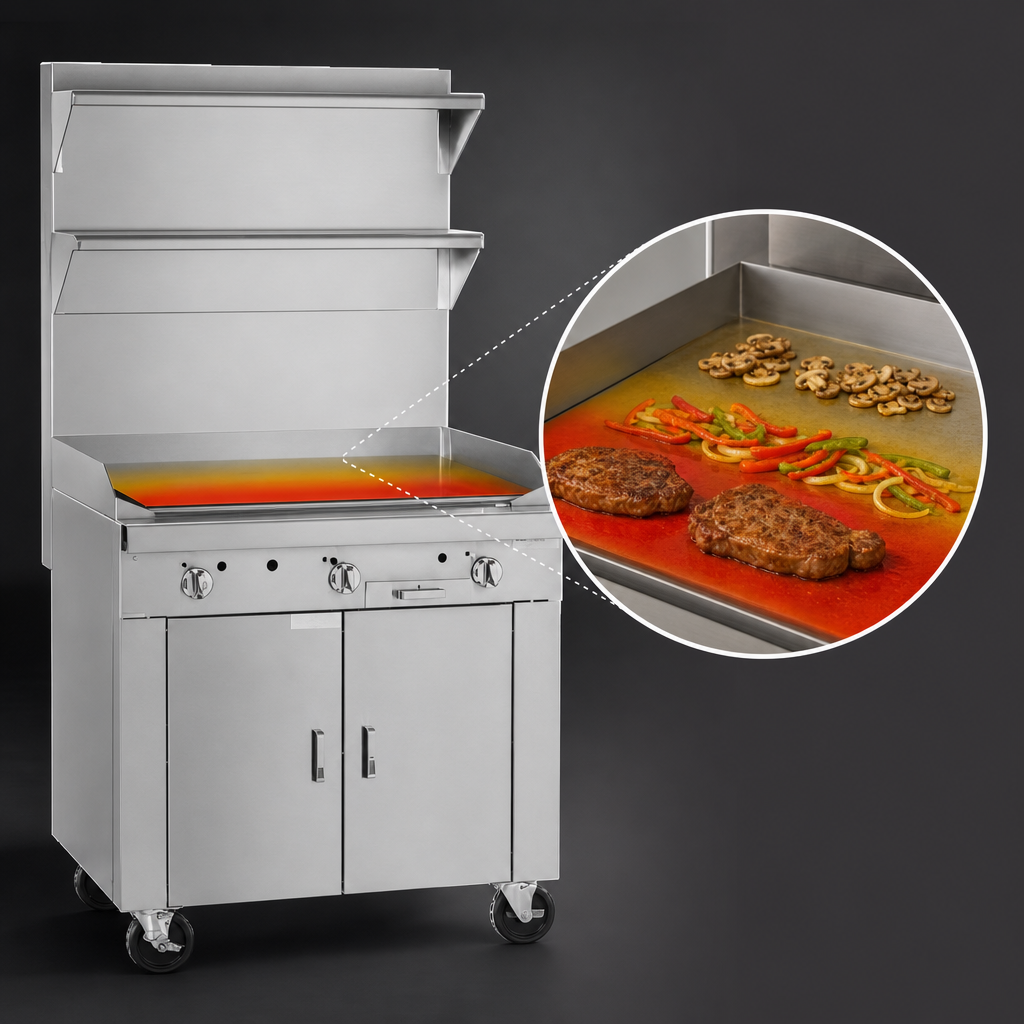

- High-heat zone (to 800 °F) on front ⅔ of plate; lower finishing zone on rear ⅓
- 3" wide side troughs & extra-capacity stainless grease drawer for quick turnarounds
- Manual controls with reliable battery spark ignition—no standing pilot needed
- Side & rear splashers plus a 5" deep front rail keep work areas clean & safe
- 1¼" front gas manifold couples easily into a sectional battery; 1" rear NPT connection
- Fully welded stainless cabinet base with center-opening removable doors stores pans & utensils
- 6" adjustable stainless legs level the unit on uneven floors
- All-stainless front, sides, rear & exterior bottom stand up to daily abuse and harsh cleaning
- Zero clearance to non-combustible surfaces; 10" side / 12" rear clearance to combustibles
Technical Specifications
| Cooking surface | 29-3/4" W x 23" D raised plancha plate |
|---|---|
| Plate thickness | ½" (12 mm) reinforced steel |
| Total input | 48,000 BTU/hr NAT (46,500 BTU/hr LP) |
| Burners | (3) 16,000 BTU cast-iron, individually controlled |
| Controls / ignition | Manual valves & battery spark ignition |
| Overall width | 36" (914 mm) |
| Overall depth | 38-5/16" (973 mm) |
| Cooktop height | 36 ½" (927 mm) to plate 41 ½" (1054 mm) with 5" flue riser |
| Base | Stainless cabinet with (2) removable doors |
| Gas connection | 1¼" front manifold; 1" rear male NPT |
| Legs | 6" adjustable stainless |
| Shipping weight | Approx. 495 lb (224.5 kg) |
| Certifications | CSA, NSF |
| Warranty | 1-year limited parts & labor (commercial use) |
Popular Factory Options (sold separately)
- Locking casters
- External gas pressure regulator
- 24" or 36" flue riser with shelf
- Cable restraint kit for mobile installations
- Open-frame base with casters for battery line-ups
Intended for commercial use only. Installation under a properly vented hood and a regulated gas supply is required.
