Southbend (Middleby) P36C-GRAD Platinum Gas Ranges
$9,614.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) P36C-GRAD Platinum Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P36C-GRAD Platinum Gas Ranges
$9,614.00
Unit price
/
Unavailable
Description

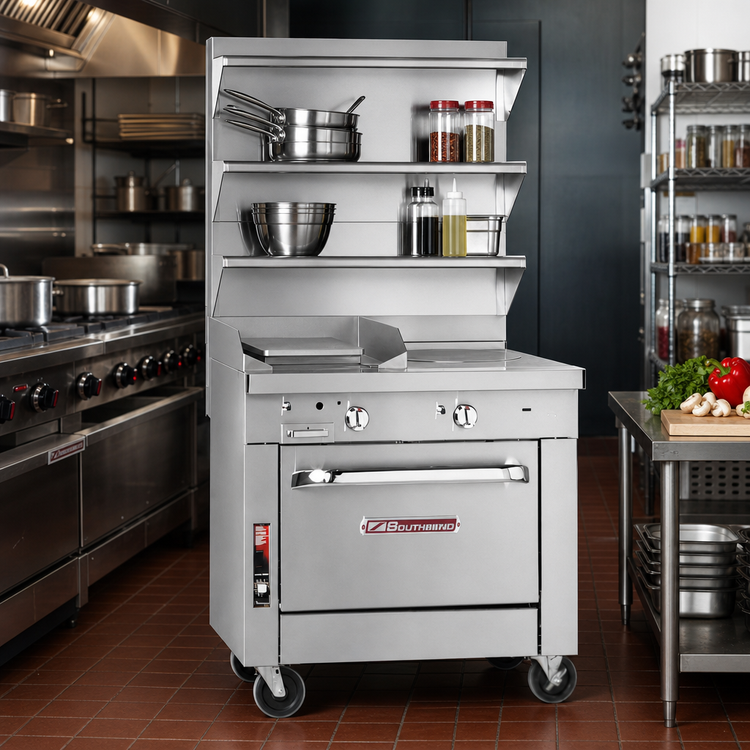

Southbend Platinum 36" Graduated Hot Top Range – Cabinet Base (Gas)
Model P36C-GRAD | 62,000 BTU NAT | CSA & NSF ListedBuilt for high-volume, round-the-clock kitchens, the Southbend Platinum P36C-GRAD marries powerhouse performance with bullet-proof construction. Its full-width graduated hot top lets you slide pans from intense sear to gentle simmer without changing burners—perfect for sauces, sautés, and everything in between.
Performance Highlights
- 62,000 BTU natural-gas burner (42,000 BTU LP) with battery spark ignition

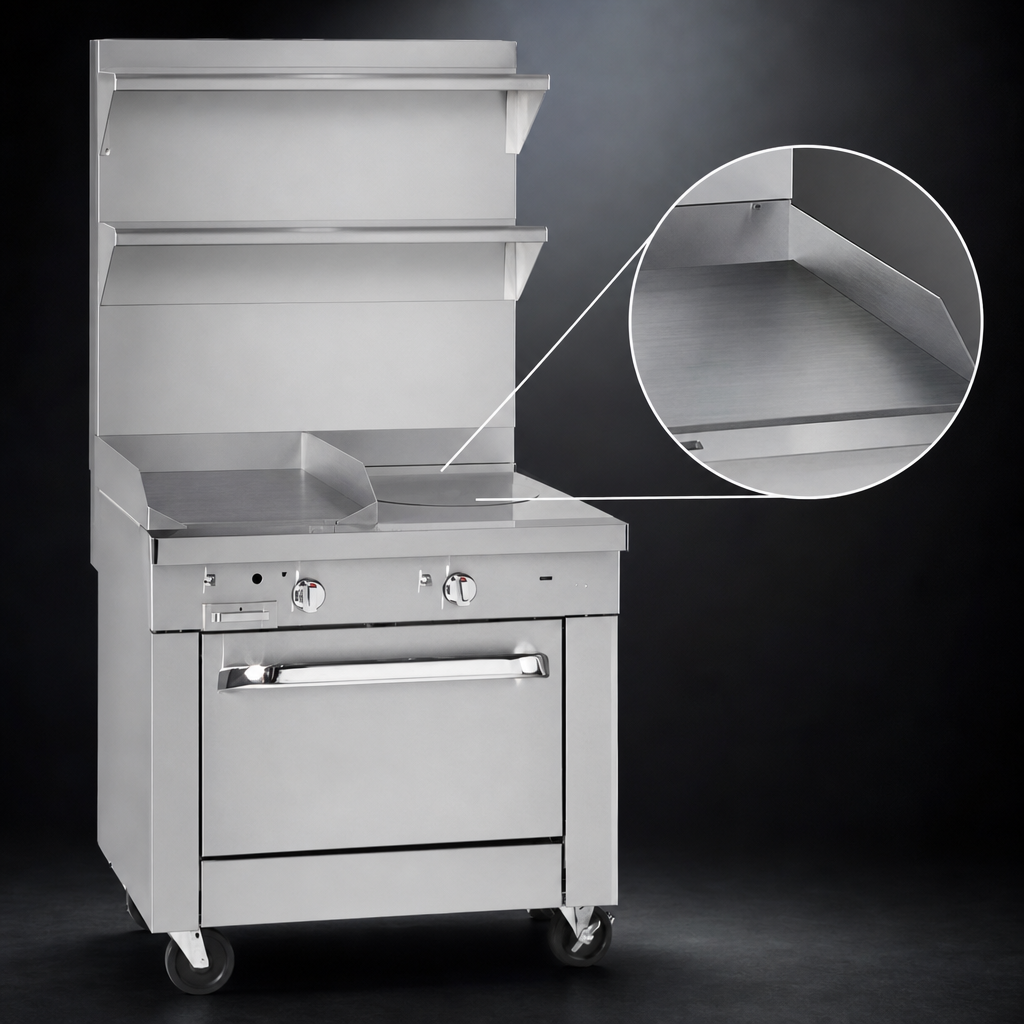

- Full-width graduated hot top reaches up to 900 °F at the center
- Removable 3-piece steel plates for easy cleaning & service access

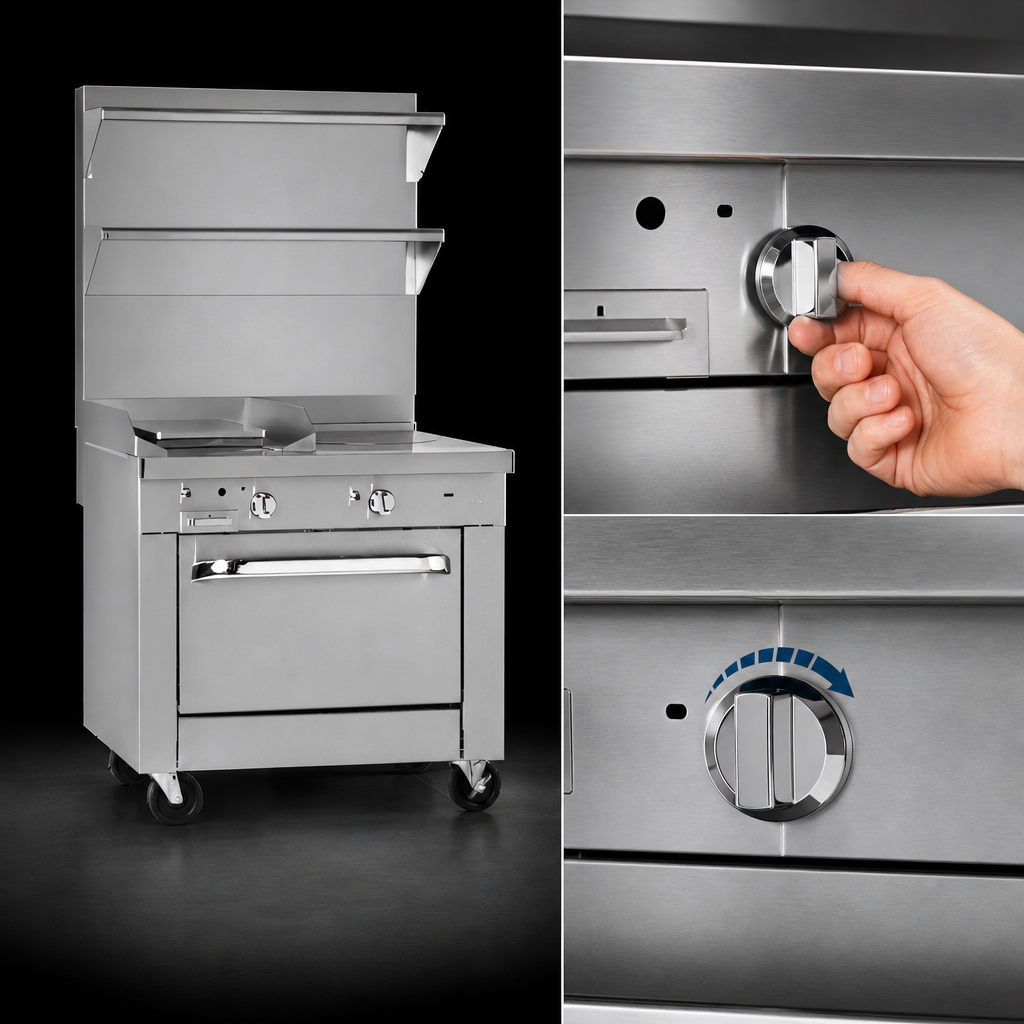

- Simple High/Low manual controls—no electronics to fail
- 9-¼" deep front rail keeps cookware within easy reach
- 5" stainless-steel flue riser directs heat & fumes to your hood
- Fully insulated burner box boosts efficiency & keeps kitchens cooler
Heavy-Duty Construction
- 430 & 304 stainless steel front, sides, rear, and exterior bottom
- One-piece stainless cabinet base with center-opening doors—ideal for pots, pans, or countertop equipment storage
- 6" stainless adjustable legs for fast leveling on uneven floors
- Front 1-¼" gas manifold couples seamlessly with other Platinum sectional units for battery design
Technical Specifications
| Cooking Surface | 36" W graduated hot top, removable steel plates |
|---|---|
| Total Input (Natural Gas) | 62,000 BTU/hr |
| Total Input (Propane) | 42,000 BTU/hr |
| Controls | Manual High/Low valves, battery spark ignition |
| Gas Connections | 1-¼" front manifold (couples in a battery) 1" rear male NPT (single unit hook-up) |
| Overall Dimensions (WxDxH) | 36" x 37-½" x 34" (to cooking surface) + 5" flue riser |
| Shipping Weight | Approx. 523 lb / 237 kg |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Popular Options & Accessories (sold separately)
- Casters (front two locking) or open-frame base on casters
- 24" or 36" flue riser with single or double shelves
- Extra-deep rear-extending flue riser for island suites
- External gas pressure regulator or cable restraint kit
- Tray or tubular pan shelving (12" deep)
- Salamander or cheesemelter mountable on flue riser
Commercial Installation Required: This appliance is intended for commercial kitchens only and must be installed under an appropriate vented hood by a qualified technician. A regulated gas supply at 7" W.C. (NAT) or 11" W.C. (LP) is mandatory.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Platinum
Certifications
NSF, CSA
Height
41.0in
Width
36.0in
Depth
37.5in
Shipping Weight
490.0lbs
Top
(1) hotplate
Exterior Finish
stainless steel front & sides
Base
cabinet(s)
Specifications
Platinum Heavy Duty Range, gas, 36", graduated hot top, manual controls, battery spark ignition, (1) cabinet base, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 62,000 BTU, CSA, NSF
