Southbend (Middleby)

Southbend Platinum 36-Inch Heavy Duty Sectional Gas Range with Full-Width Manual Griddle and Cabinet Base

SKU: P36C-GGG
$10,031.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum 36-Inch Heavy Duty Sectional Gas Range with Full-Width Manual Griddle and Cabinet Base

Manual Controls, Battery Spark Ignition, Stainless Steel Construction

Built for high-volume kitchens, this 36-inch sectional gas range combines a full-width 1-inch griddle with a durable stainless steel cabinet base and rugged commercial construction.

  • 36-inch wide sectional gas range with a full-width manual griddle
  • 1-inch thick griddle plate with side and rear splashers
  • Battery spark ignition for dependable start-up
  • Stainless steel front, sides, rear, and exterior bottom
  • Cabinet base with removable center-opening doors
  • Standard 6-inch stainless steel adjustable legs
  • 96,000 BTU natural gas rating with propane rating also listed

Overall Dimensions:

36.0"W x 37.5"D x 41.0"H

Product Weight:

560.0 lb

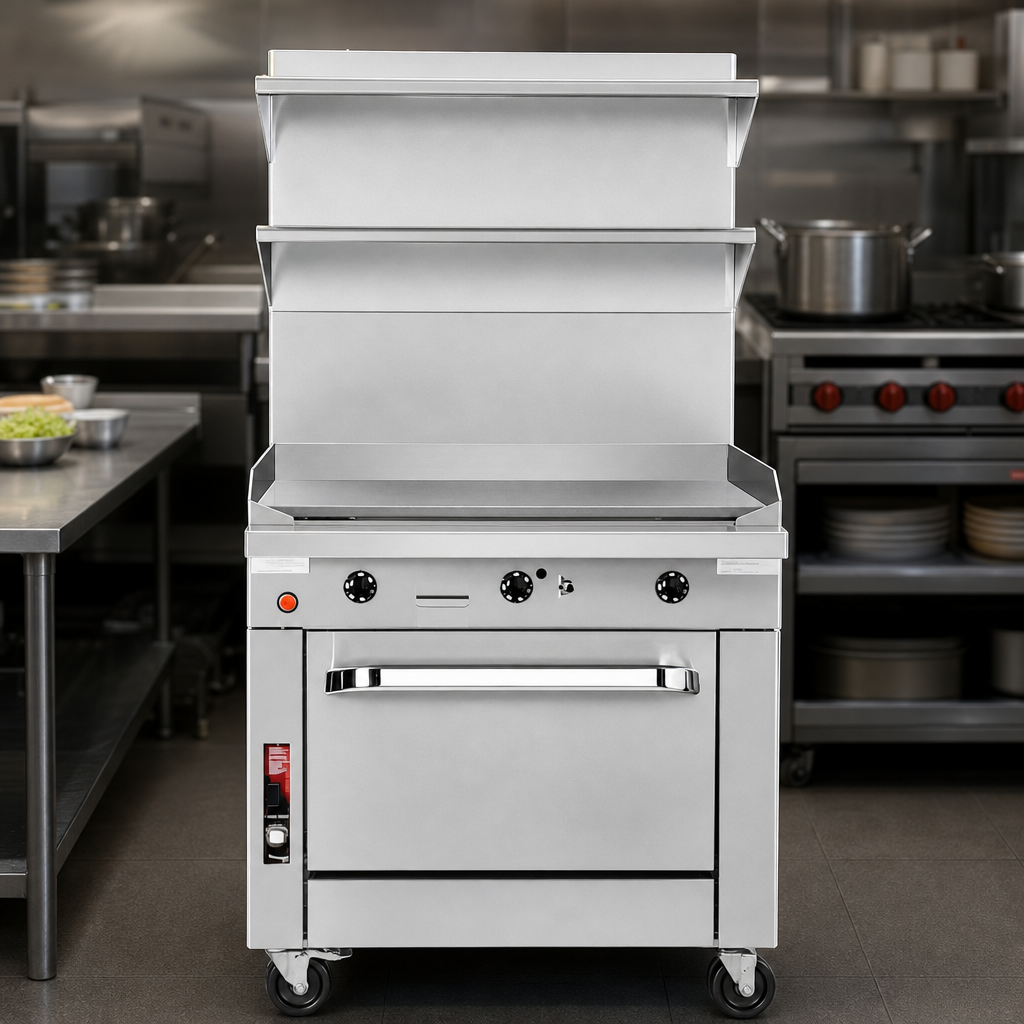

Full-Width 36-Inch Griddle

The 1-inch thick griddle plate spans the full width of the range for high-volume cooking.

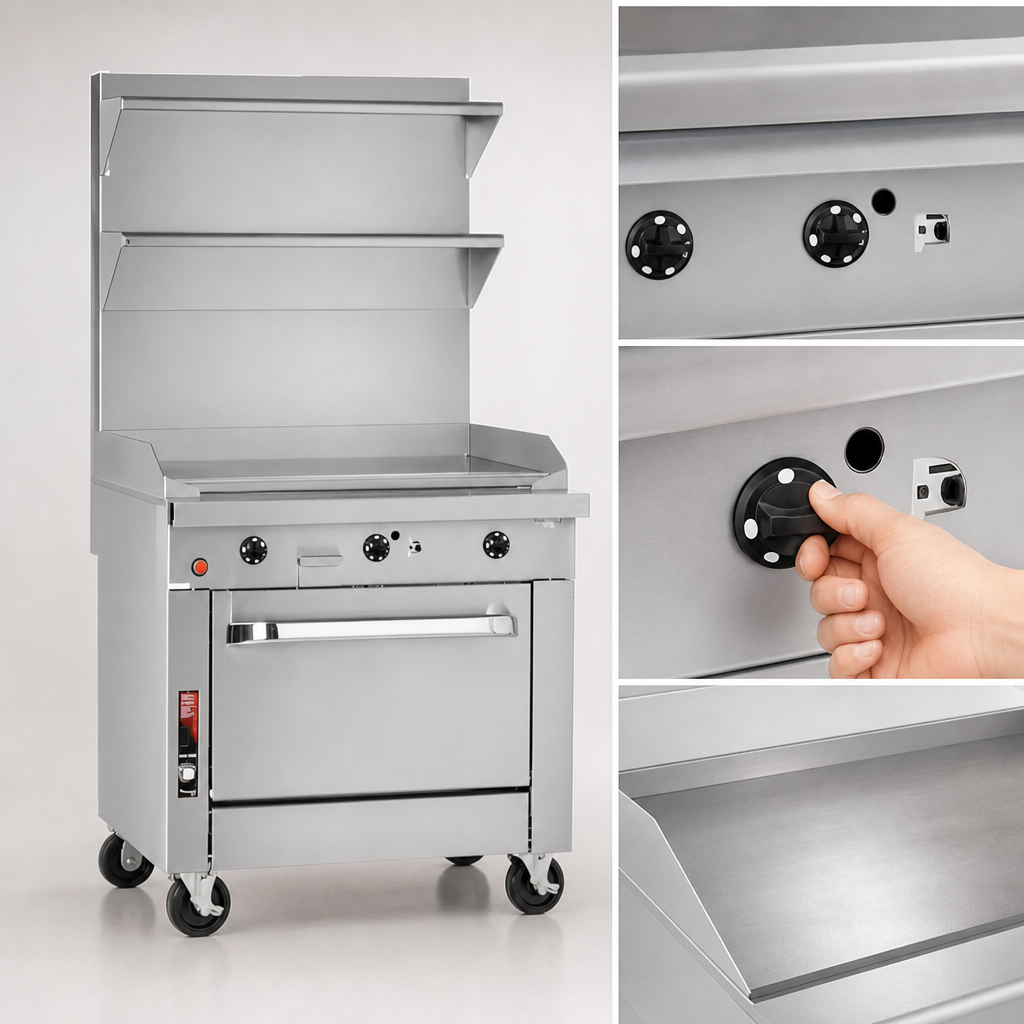

Manual Griddle Controls

Manual operation does not allow specific temperature operation.

Battery Spark Ignition

Battery-powered spark ignition helps simplify start-up.

Stainless Steel Construction

Front, sides, rear, and exterior bottom are built from polished stainless steel for durability.

Cabinet Base Storage

Includes a stainless steel cabinet base with removable doors that open from the center.

Heavy-Duty Gas Connection

Features a 1-1/4 inch front manifold and a 1 inch rear gas connection with regulated gas supply required.

Easy Cleanup Design

A removable stainless steel grease drawer and side/rear splashers help contain mess during cooking.

Adjustable Stainless Steel Legs

Standard 6-inch adjustable stainless steel legs provide stable floor installation.

Type Sectional Range
Style Manual Griddle
Installation Type Floor Model
Controls Manual
Cooking Surface Width 36 Inches
Material Stainless Steel
Finish Polished Stainless Steel
BTU 96,000 BTU
Gas Connection Size 1-1/4 Inch Front Manifold; 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C. Natural Gas; 11 Inches W.C. Propane
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 41 Inches
Shipping Weight 560 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Product configurator PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. This model uses manual griddle controls and does not allow specific temperature operation.
The documentation lists both natural gas and propane ratings, with minimum gas supply pressure of 7 inches W.C. for natural gas and 11 inches W.C. for propane.
It includes a stainless steel cabinet base with removable doors that open from the center.
Yes. Six-inch stainless steel adjustable legs are standard.
Yes. The documentation recommends installation under a vented hood.
