Southbend (Middleby) P36C-GGC Platinum Gas Ranges

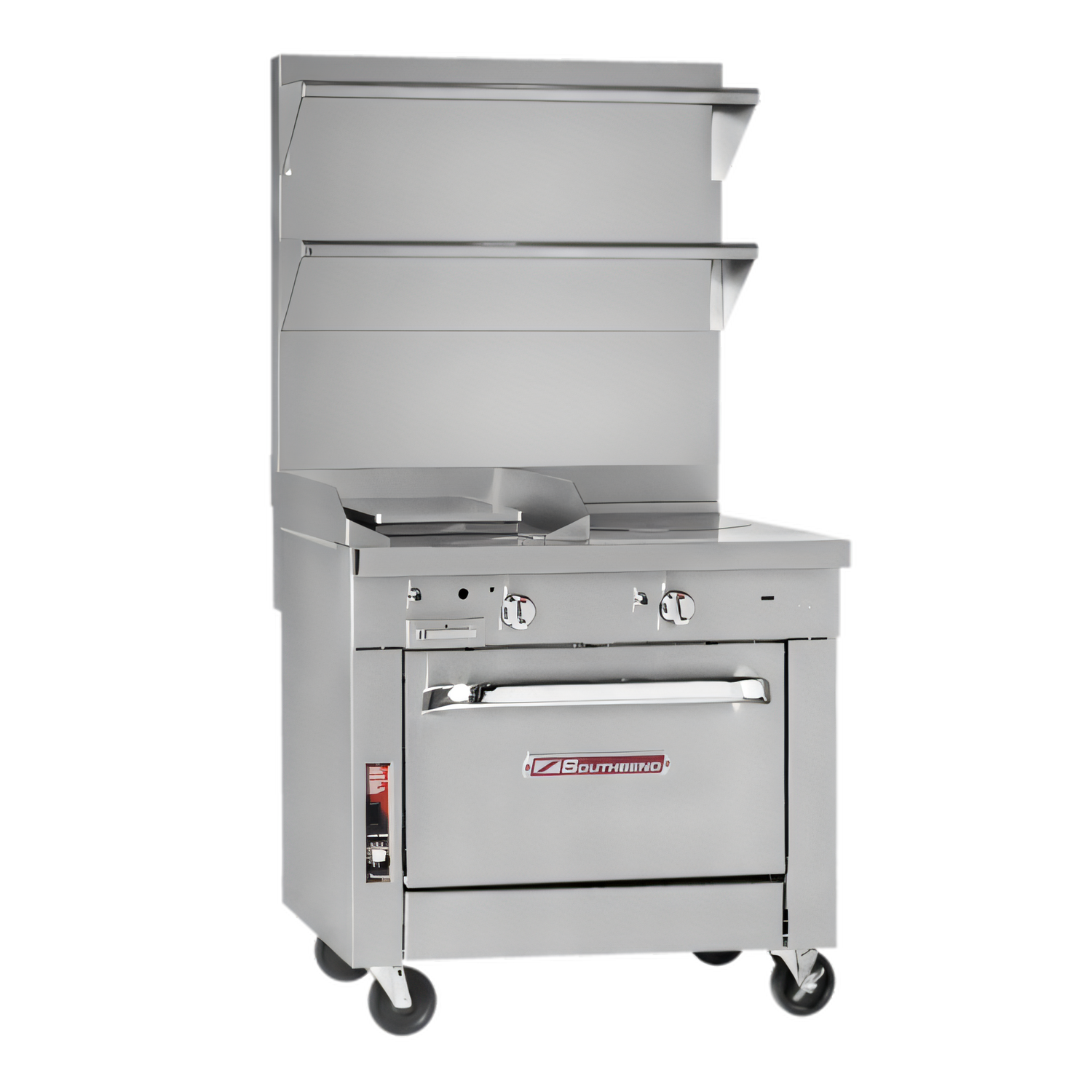

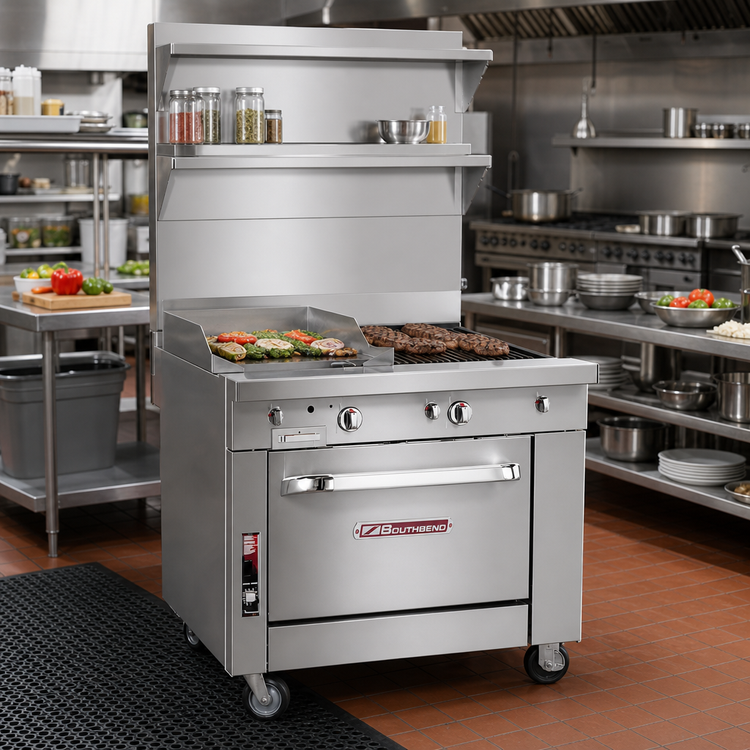

Southbend Platinum P36C-GGC 36" Heavy-Duty Gas Range

Bring powerful versatility to your cookline with Southbend’s Platinum Series 36" combination range. A high-output manual griddle, precision charbroiler and rugged stainless-steel cabinet base give chefs everything they need in one space-saving footprint—no electrical hookup required.

Key Benefits

• 96,000 BTU total input for fast recovery during peak service.
• 1" thick, 24" griddle plate delivers even heat for breakfast, burgers & sauté work.
• 12" charbroiler with reversible cast-iron grates produces classic grill marks.
• Manual controls with battery spark ignition—ideal for kitchens without dedicated receptacles.
• All-stainless exterior, fully insulated burner box and 6" adjustable legs built for years of heavy use.
• 5" flue riser keeps more cooking surface under your hood while venting combustion products safely.
• Made in the USA and certified cCSAus, CSA Flame, CSA Star & NSF.

Performance Cooking Surfaces

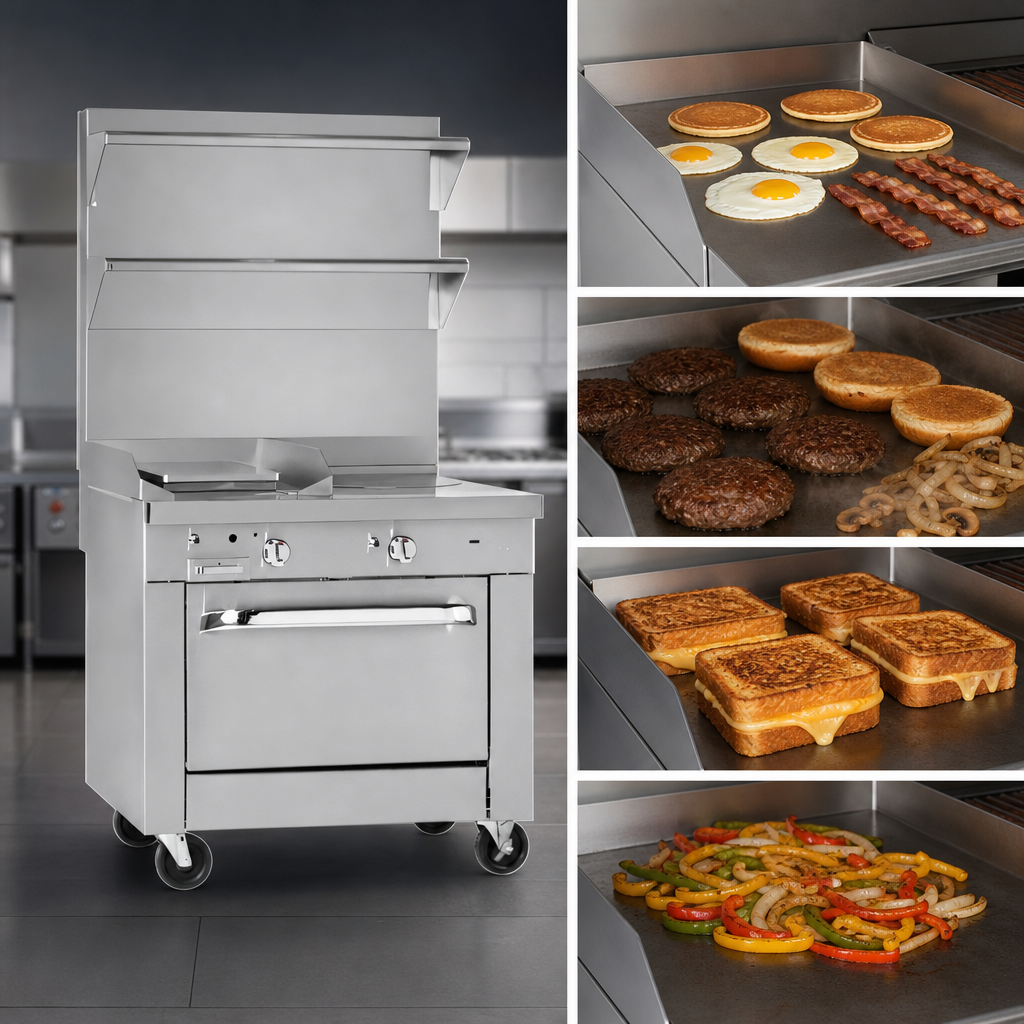

• 24" Manual Griddle – 64,000 BTU
  • Four 16,000 BTU straight-tube burners spaced 6" on center.
  • 1" thick polished steel plate with side & rear splashes.
  • Front-mounted stainless grease drawer for quick clean-up.
  • Manual griddles do not provide set-point temperature control.

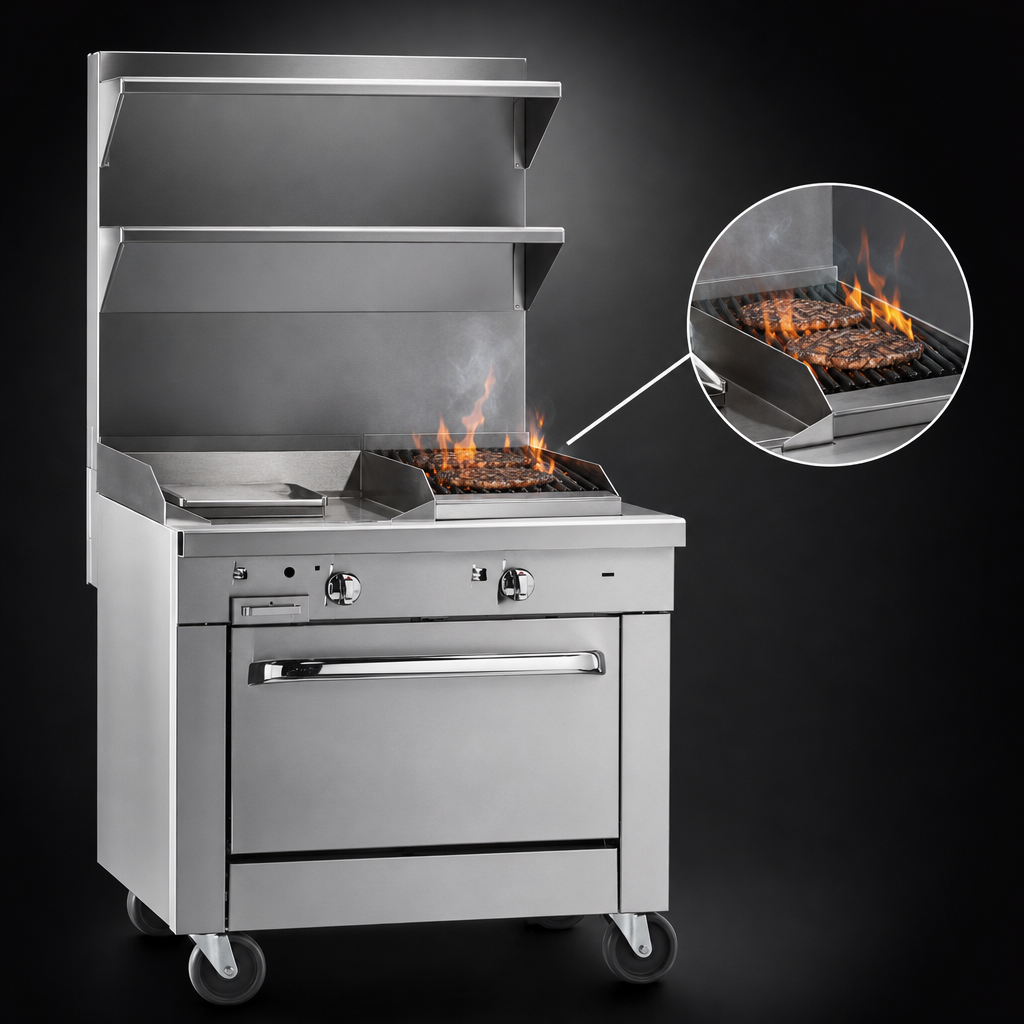

• 12" Charbroiler – 32,000 BTU
  • Two 16,000 BTU burners with single high/low valve.
  • Reversible cast-iron grates (⅛" or ¼" branding) adjust front-to-back for fat run-off.
  • Stainless radiants deliver an even 600 °F surface temp on high.
  • Removable drip tray simplifies maintenance.

Built to Last

• Cabinet base with double-wall stainless doors holds sheet pans, stock pots and utensils.
• 1 ¼" front gas manifold couples easily with adjacent Platinum sectional units.
• 1" rear male NPT connection for single-point utility hook-up.
• Fully welded frame and insulated lining reduce kitchen ambient heat.
• 6" stainless legs adjust for perfect leveling on uneven floors.

Certifications & Warranty

• cCSAus, CSA Flame & CSA Star (gas safety)
• NSF-listed for sanitation
• Manufactured in Fuquay-Varina, North Carolina
• 1-year parts & labor warranty backed by Southbend’s nationwide service network

Specifications

An external gas pressure regulator (ordered separately) is required. Install under a properly sized vent hood and follow all local codes.
