Southbend (Middleby) P36C-CCC Platinum Gas Ranges
Description

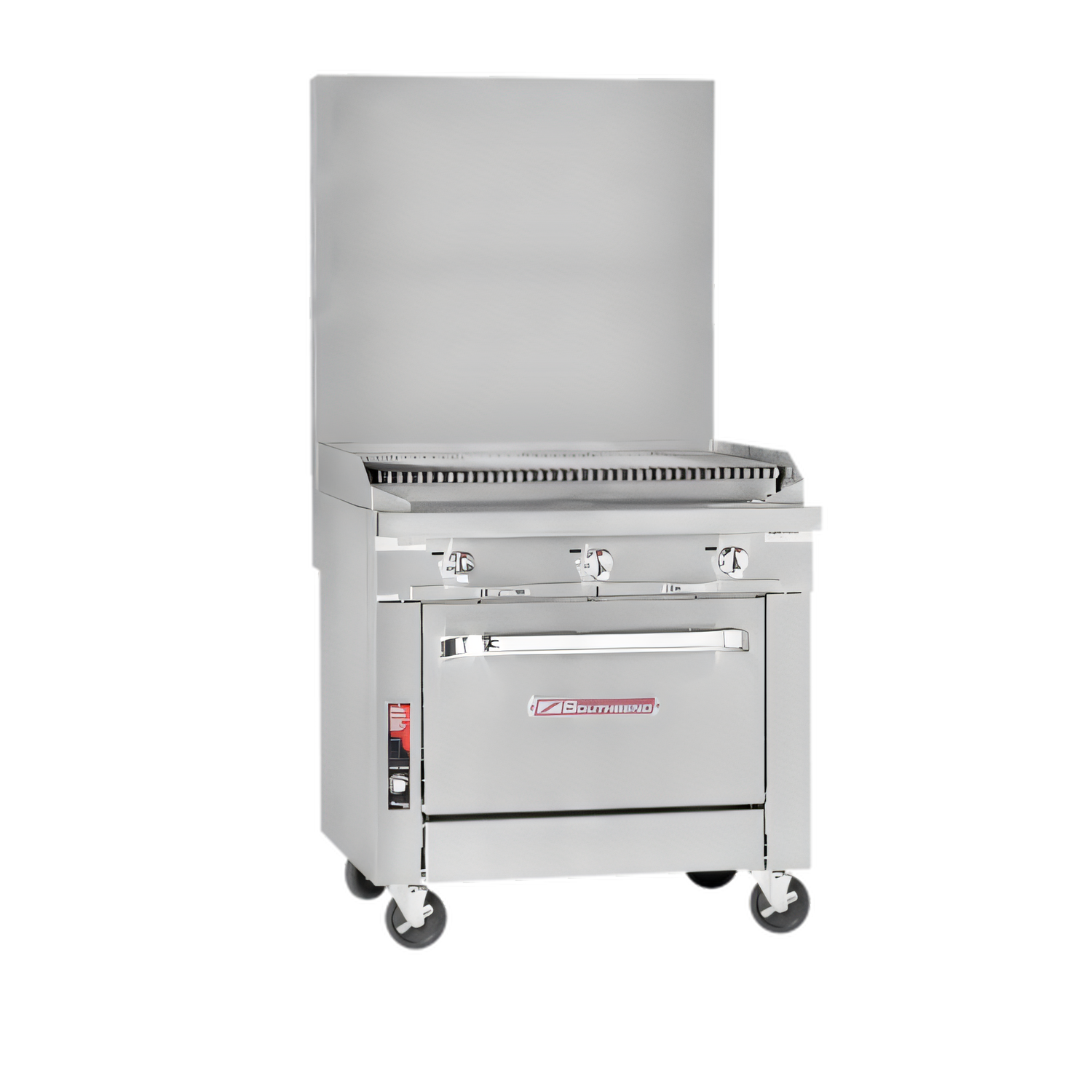

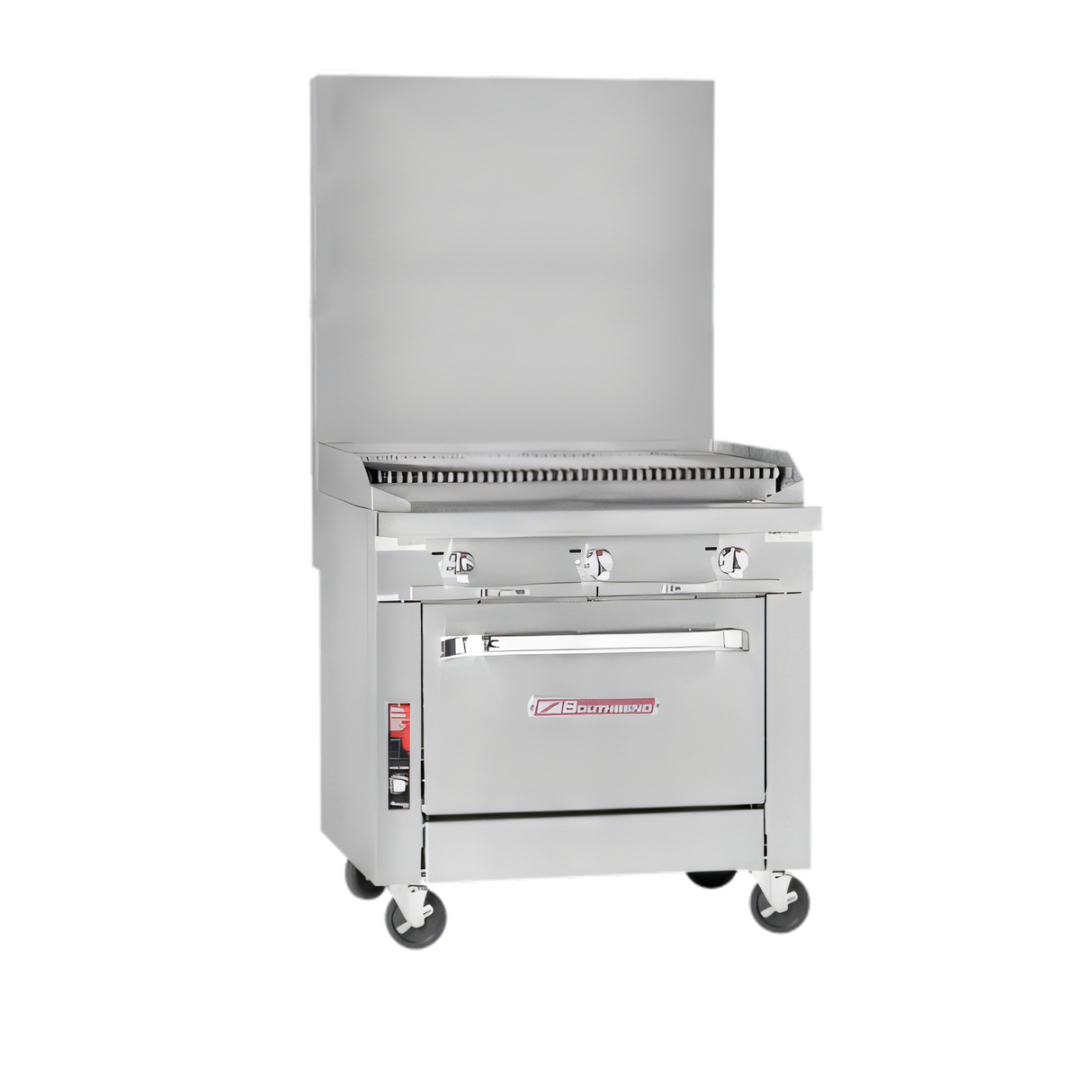

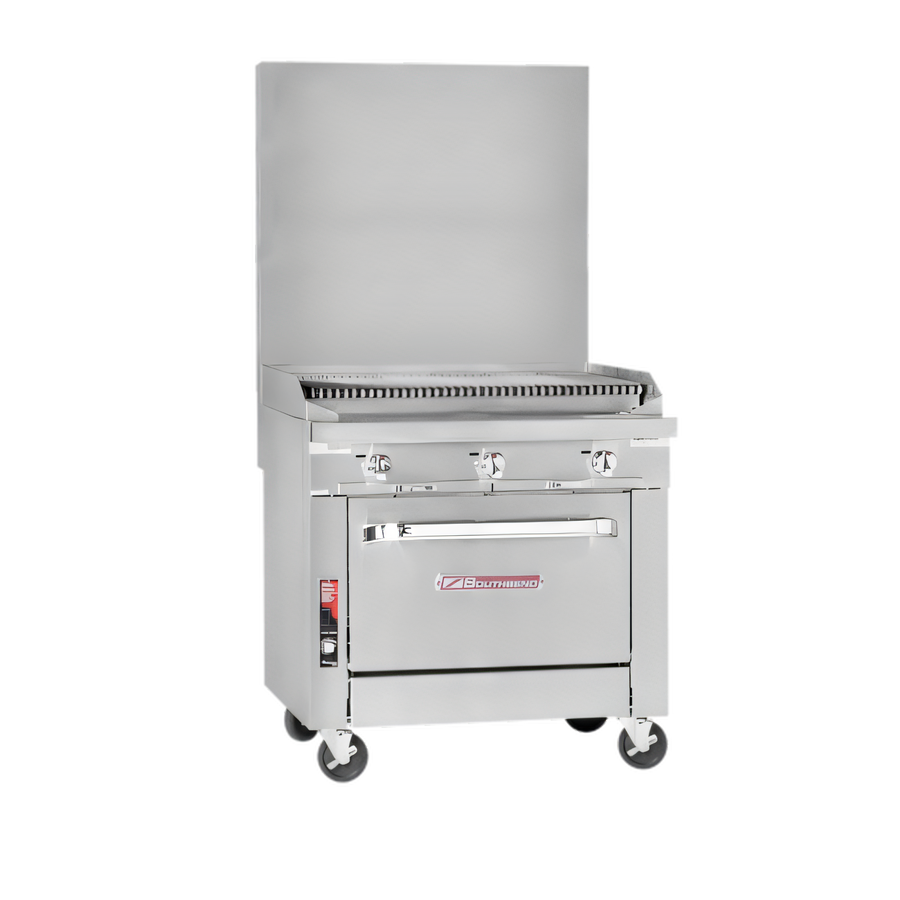

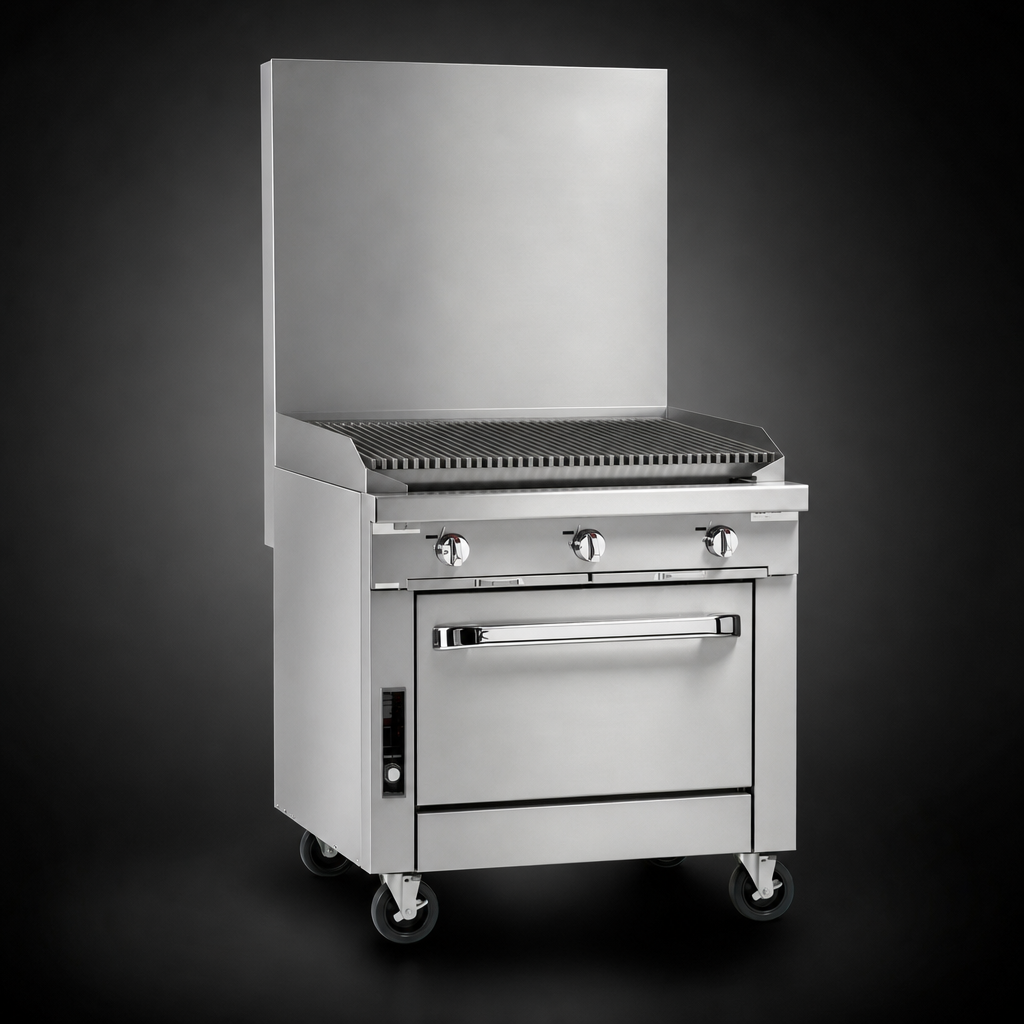

Platinum 36" Heavy-Duty Gas Charbroiler Range – Cabinet Base
Model P36C-CCC | by Southbend (Middleby)Built for high-volume kitchens that refuse to compromise, the Southbend Platinum P36C-CCC combines a full-width 36" charbroiler with a rugged stainless-steel cabinet base. Six 16,000 BTU burners, cast-iron grates, and precise manual controls deliver up to 600 °F of even cooking power, while the fully insulated body and removable drip tray keep operation safe and clean.
Why You’ll Love It
- 96,000 BTU natural gas output (84,000 BTU LP) for fast recovery and consistent charring.
- Six independent burners with three high/low control knobs let you create multiple temperature zones.

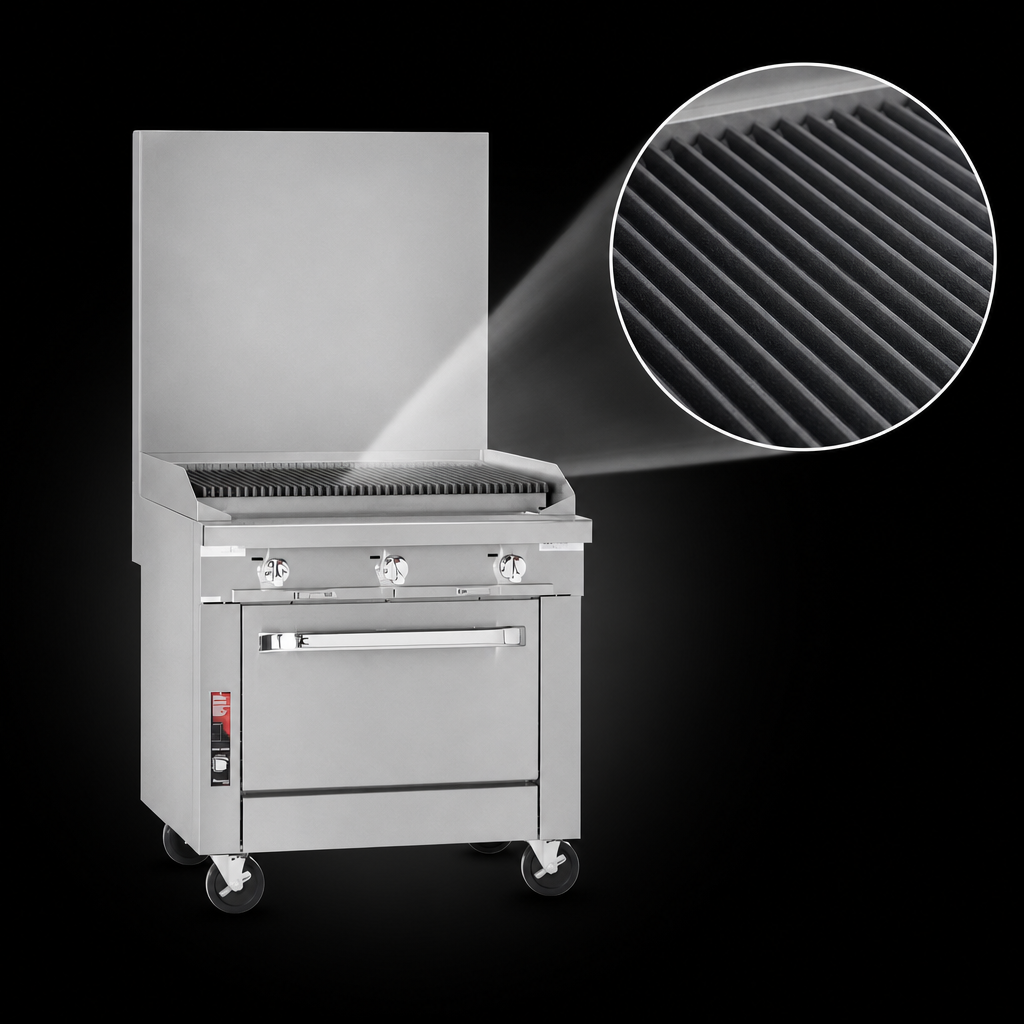

- Flip-over cast-iron grates offer 1/8" or 1/4" grid widths and an adjustable front-to-back slope for menu versatility.
- Stainless-steel radiants and 600 °F surface temps ensure signature grill marks and even heat distribution.
- 9-¼" deep front rail keeps plates and tools within easy reach while protecting operators.
- Full stainless front, sides, rear, and exterior bottom hold up to the toughest cleaning routines.
- Integrated cabinet base with center-opening doors provides convenient under-counter storage.
- 6" stainless-steel legs adjust for a level installation on uneven floors.
- CSA & NSF listed for safe, code-compliant operation.
Technical Specifications
| Model | P36C-CCC (cabinet base) |
|---|---|
| Cooking Surface | 36" W full-width charbroiler |
| Total Input | 96,000 BTU/h (Natural) | 84,000 BTU/h (LP) |
| Burners | Six 16,000 BTU cast-iron burners |
| Temperature Range | Up to 600 °F surface temperature (high setting) |
| Controls | Manual high/low valves (3 knobs) |
| Grates | Removable cast iron, reversible 1/8" or 1/4" grid, adjustable slope |
| Cabinet Base | Stainless steel, double-door, removable doors |
| Gas Connections | 1-¼" front manifold (battery ready) | 1" rear NPT |
| Overall Dimensions* | 36" W × 37.5" D × 41" H (to top of 5" flue riser) |
| Legs | 6" adjustable stainless steel |
| Construction | Stainless steel front, sides, rear, exterior bottom; fully insulated lining & burner box |
| Certifications | CSA, NSF |
*Dimensions shown are nominal; allow for installation clearances per local code.
Popular Factory Options (extra cost)
- Casters (front pair locking)
- External gas pressure regulator
- Removable interior shelf for cabinet base
- Cable restraint kit (required with flexible hose & casters)
- 24", 36", or extra-deep flue risers
- Plated fish grids
Backed by Southbend’s 1-year limited parts & labor warranty. Full details available at southbendnc.com/service.
