Southbend (Middleby) P36C-BTT Platinum Gas Ranges
Description

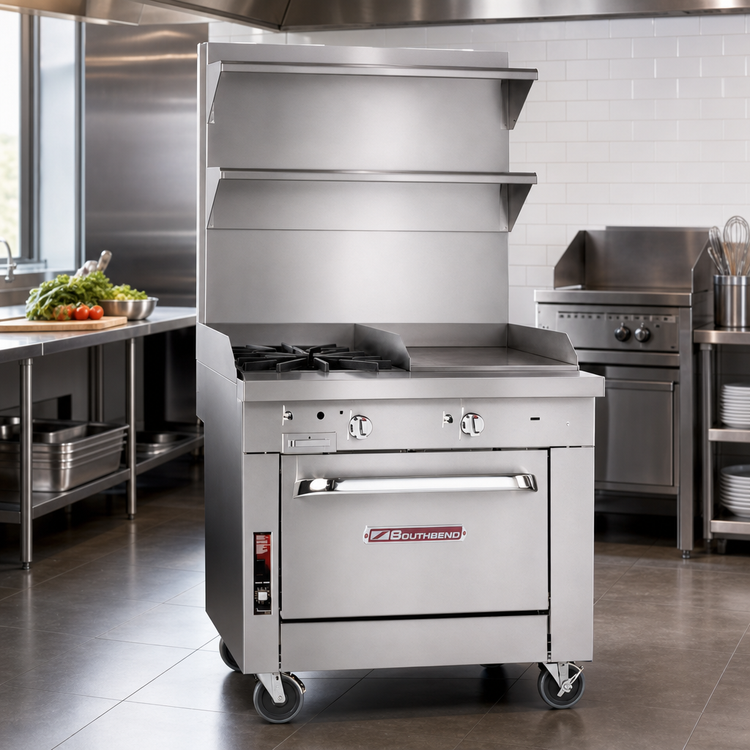

Southbend Platinum 36" Heavy-Duty Gas Range
2 Open Burners • 24" Thermostatic Griddle • Cabinet Base • 134,000 BTUPurpose-built for high-volume kitchens, the Southbend Platinum P36C-BGG/BTT combines searing open-top power with a precision-controlled griddle – all in a rugged 36-inch footprint that’s Made in the USA and certified for the toughest commercial environments.
Why You’ll Love It

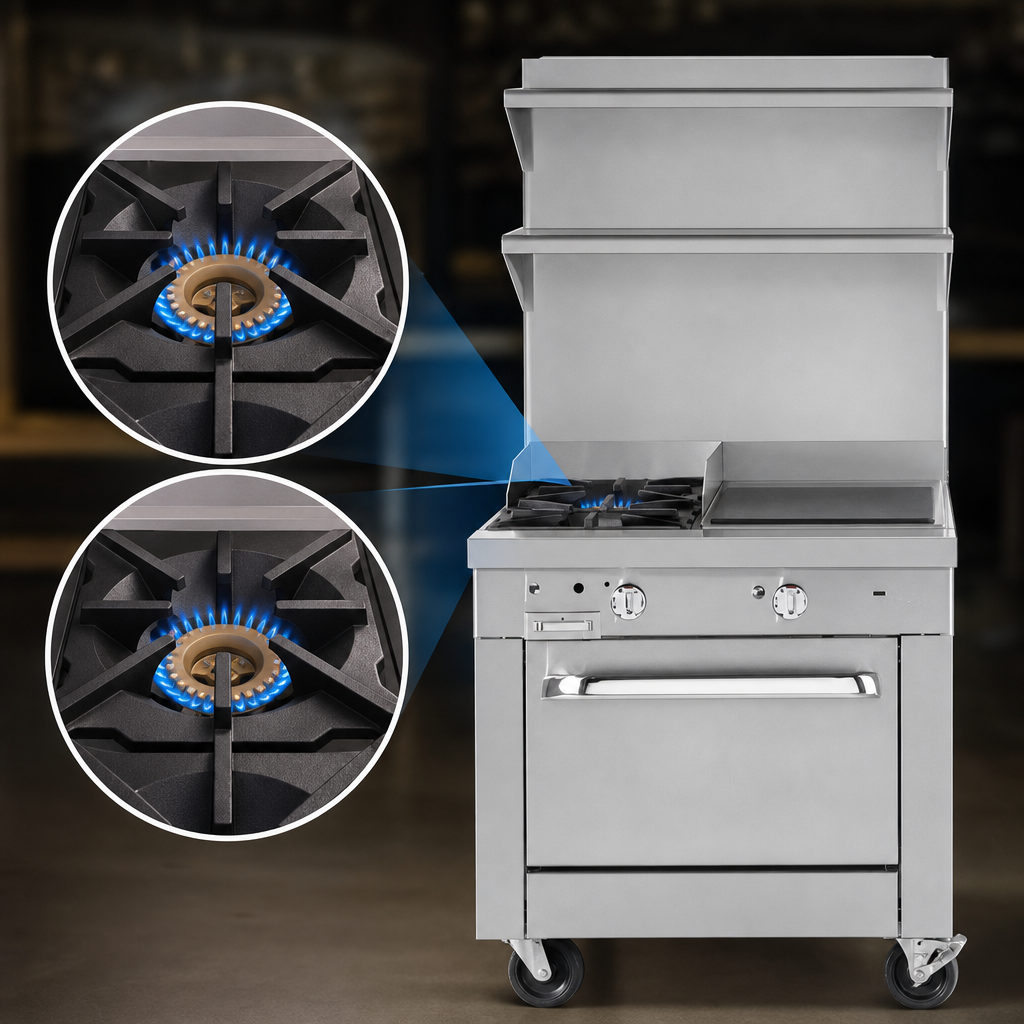

- Rapid Fire Burners – Two patented clog-free 35,000 BTU burners with removable cast-iron grates for lightning-fast sautéing, boiling or stock work.

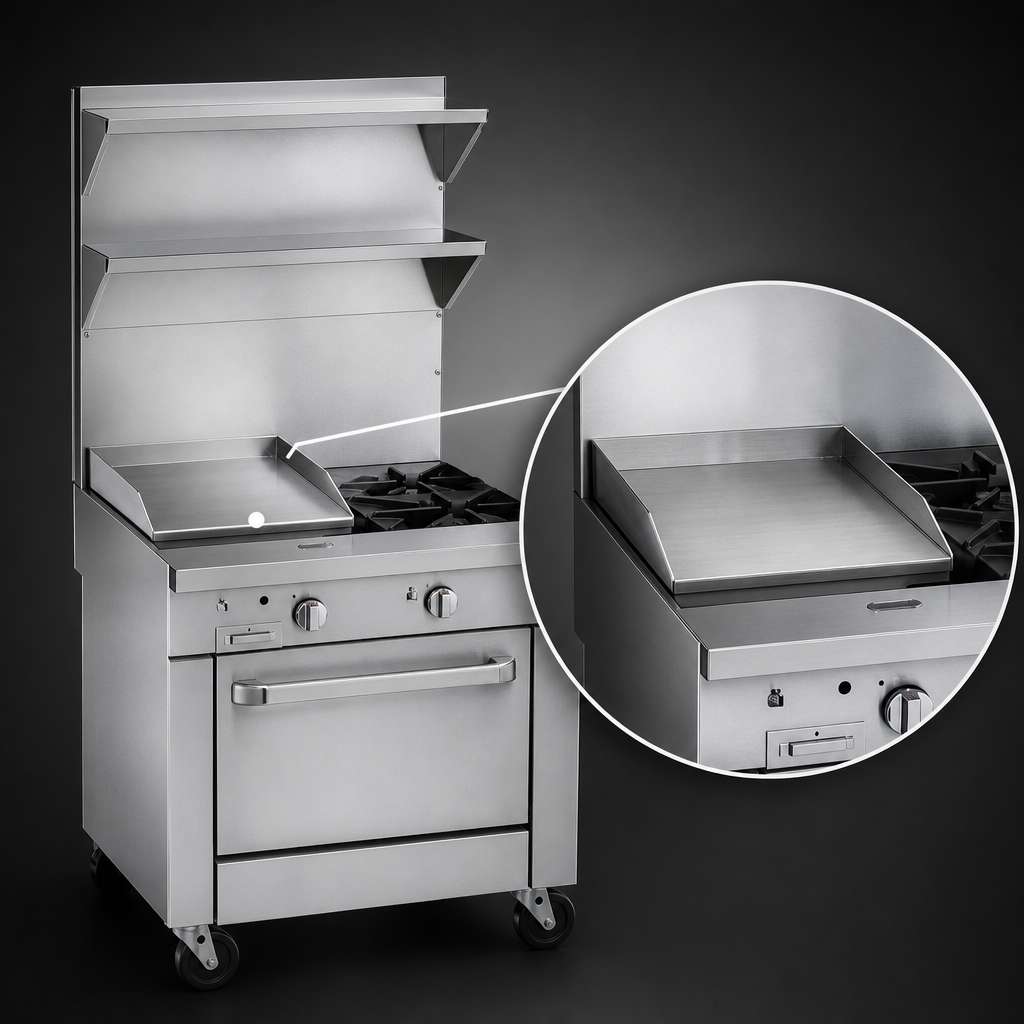

- True Thermostatic Griddle – 24" wide, 1" thick polished steel plate with “Insta-On” controls (180 °F–400 °F) and 64,000 BTU of even, edge-to-edge heat.
- Battery Spark Ignition – No standing pilots on the top section means cooler kitchens and lower utility costs.
- Generous Storage – Full stainless cabinet base with two center-opening doors keeps pans, sheet trays and smallwares close at hand.
- Engineered to Last – Fully insulated burner box, 9-¼" deep front rail, 5" stainless flue riser and adjustable 6" legs withstand daily abuse.
- Easy to Integrate – 1-¼" front gas manifold mates with adjoining Platinum units for seamless battery designs.
- Safety & Compliance – cCSAus, CSA Flame, CSA Star & NSF listed for commercial use.
Power & Precision, Side-by-Side
- Total Output: 134,000 BTU/hr (Natural Gas)
- Open Burners: 70,000 BTU (2 × 35,000 BTU)
- Griddle Section: 64,000 BTU (2 × 32,000 BTU) with thermostatic control
- Temperature Range: 180 °F–400 °F (griddle surface)
- Ignition: Battery-powered spark (top) / standing pilot (base)
Heavy-Duty Construction
- Front, sides, rear & exterior bottom: 430/304 stainless steel with #3 polish
- Fully insulated lining & burner box to reduce ambient heat
- 5" stainless flue riser directs exhaust into the hood
- 1" rear gas connection (male NPT) for quick hook-up
Specifications
| Model | P36C-BGG/BTT (Platinum Series) |
|---|---|
| Cooking Surface | 2 open burners + 24" thermostatic griddle |
| Overall Width | 36" (914 mm) |
| Depth | 37-½" (953 mm) |
| Height | 45" to cooktop + 5" flue riser |
| Base Type | Stainless steel cabinet, two removable doors |
| Total BTU | 134,000 BTU/hr (Natural Gas) |
| Gas Connections | 1-¼" front manifold (battery) & 1" rear NPT |
| Shipping Weight | ≈ 490 lb (222 kg) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Origin | Made in Fuquay-Varina, NC USA |
| Warranty | 1 year parts & labor (see warranty terms) |
Popular Factory Options
- Casters with restraining kit
- 24" or 36" high flue riser with shelf or salamander mount
- Chrome-plated or grooved griddle surface
- External gas pressure regulator
- Square belly bar or alternative front rail depths
Contact our team for pricing on factory-installed options.
Ready to raise your line’s throughput? Add the Southbend Platinum 36" Range to your cart or chat with a foodservice specialist for a custom battery layout.
