Southbend (Middleby) P36C-BCC Platinum Gas Ranges
Description

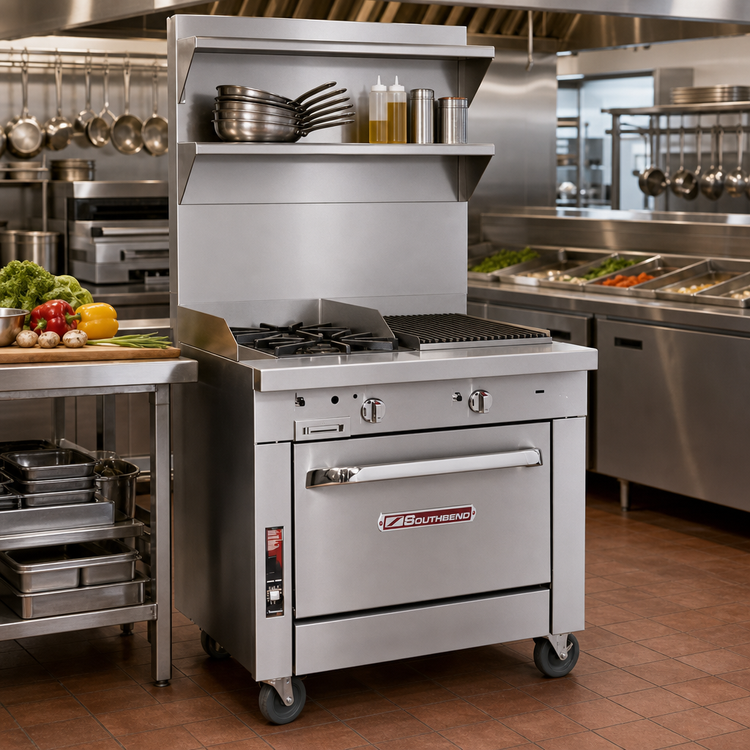

Southbend Platinum 36" Heavy-Duty Gas Range w/ 24" Charbroiler & 2 Open Burners
Model P36C-BCC | 134,000 BTU | Made in USACombine intense searing power with high-speed sautéing in a single 36" footprint. Built on Southbend’s flagship Platinum platform, this sectional range delivers the versatility, durability and easy-service design demanded by the busiest commercial kitchens.

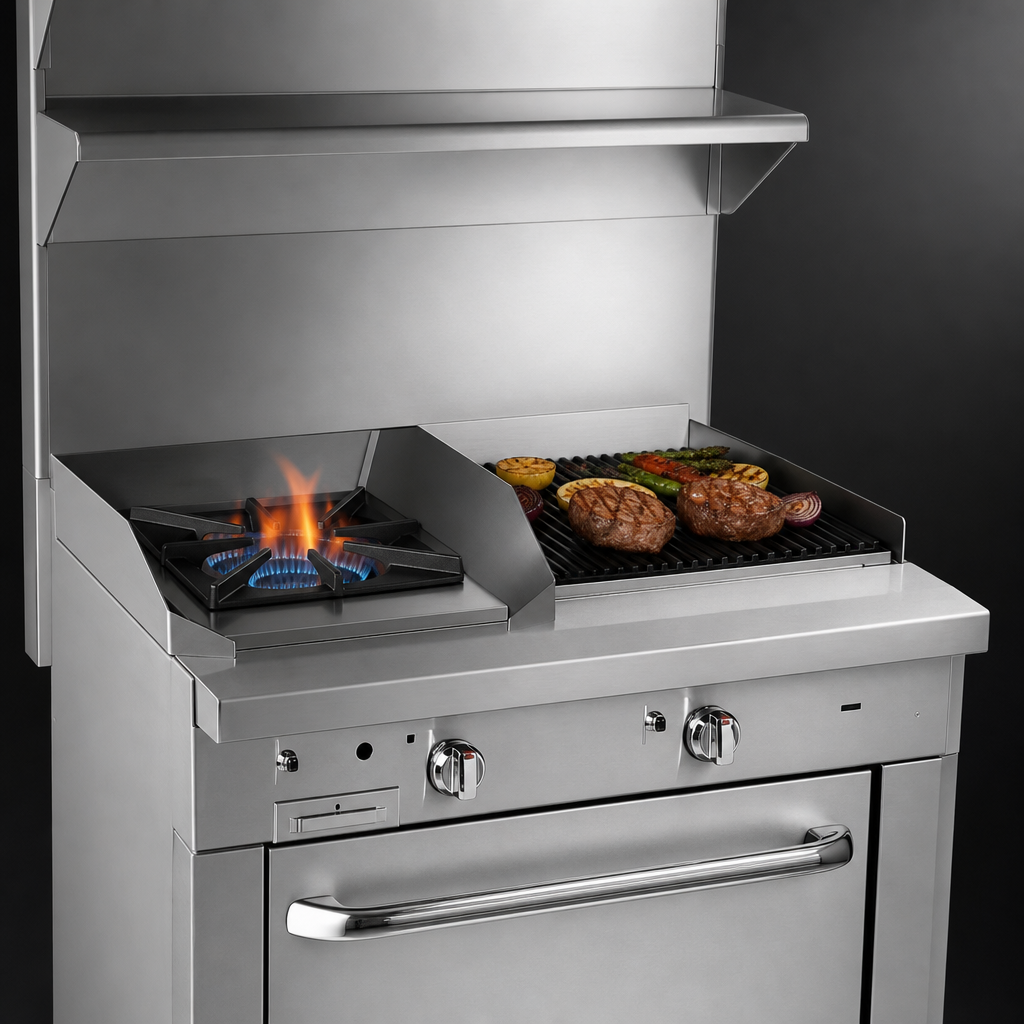

Highlights- Two 35,000 BTU clog-free open burners for rapid boil & sauté work

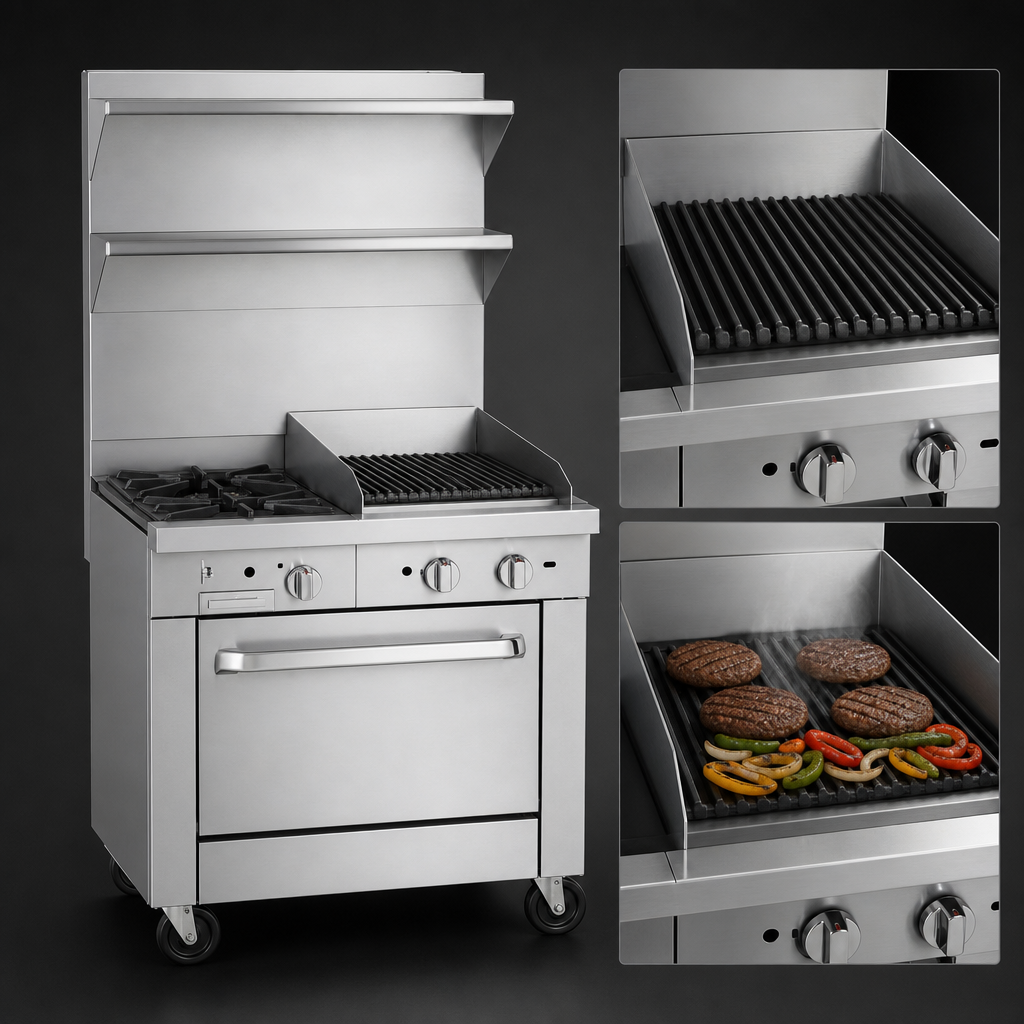

- Full-width 24" charbroiler (64,000 BTU) with stainless radiants and reversible cast-iron grates (⅛" or ¼" grid) that tilt for perfect fat drainage
- Manual standing-pilot controls – instant flame adjustment, zero electronics
- 9-¼" deep front rail doubles as plating and pan rest area
- Stainless steel cabinet base with center-opening doors keeps cookware close at hand
- Fully insulated burner box & 5" flue riser improve efficiency and line comfort
- All-stainless exterior (front, sides, rear & bottom) plus 6" adjustable legs for effortless cleaning underneath
- Batteries seamlessly with other Platinum sectional pieces – free factory design assistance available
- NSF, cCSAus, CSA Flame & CSA Star certified for gas safety and sanitation
- Backed by a 1-year parts & labor warranty
Looking for casters, flue-riser shelves, chrome or grooved grates, or other customizations? Contact us for factory-approved accessories and alternate configurations.
Specifications| Item | Details |
|---|---|
| Range type | Platinum Series 36" sectional, heavy-duty gas |
| Cooktop configuration | (2) open burners + 24" manual charbroiler |
| Total input | 134,000 BTU/hr (Natural or LP gas) |
| Open burners | 2 × 35,000 BTU patented clog-free cast iron |
| Charbroiler | 4 × 16,000 BTU burners, stainless radiants, reversible cast-iron grates |
| Base | Stainless steel storage cabinet with double doors |
| Controls | Manual gas valves, standing pilots (battery-spark ignition optional) |
| Gas connection | 1¼" front manifold (for batterying) & 1" rear NPT |
| Dimensions (W × D × H) | 36" × 37.5" × 36" to cook surface | +5" flue riser |
| Legs | 6" stainless, adjustable |
| Construction | Stainless steel front, sides, rear & exterior bottom; fully insulated lining |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
| Origin | Fuquay-Varina, NC USA |
| Warranty | 1-year limited parts & labor |
