Southbend (Middleby)  |  Platinum  |  SKU: P36C-BBC

Southbend (Middleby) P36C-BBC Platinum Gas Ranges

$11,619.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Product configurator Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

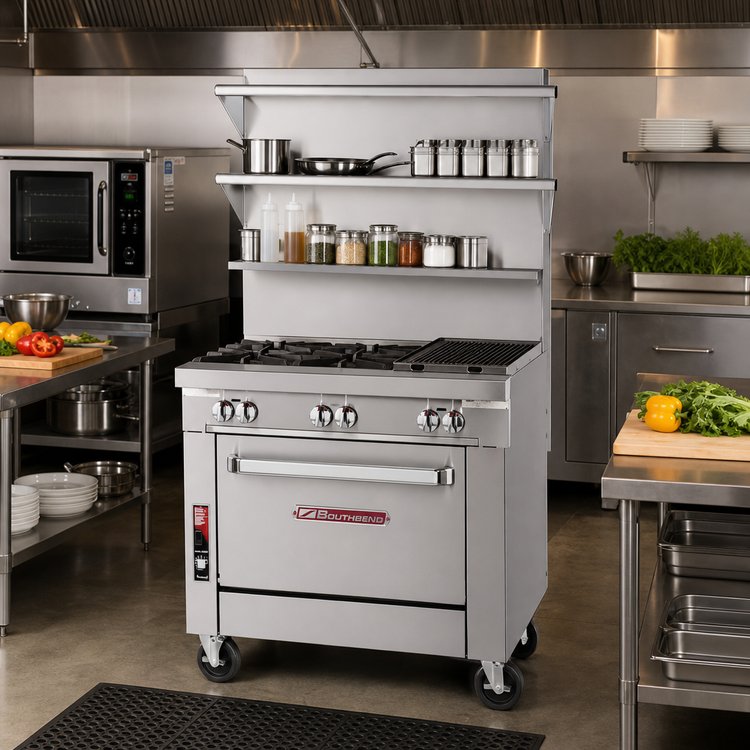

Southbend Platinum Heavy-Duty 36" Gas Range – 4 Open Burners & 12" Charbroiler

Model P36-BBC | 172,000 BTU | Cabinet Base | Made in USA

Built for high-volume kitchens that refuse to compromise, the Southbend Platinum 36" sectional range marries intense firepower with rock-solid construction. Four patented clog-free open burners pair with a 12" manual charbroiler, giving chefs the versatility to sear, sauté, grill and finish on a single heavy-duty platform.

Cooktop Configuration

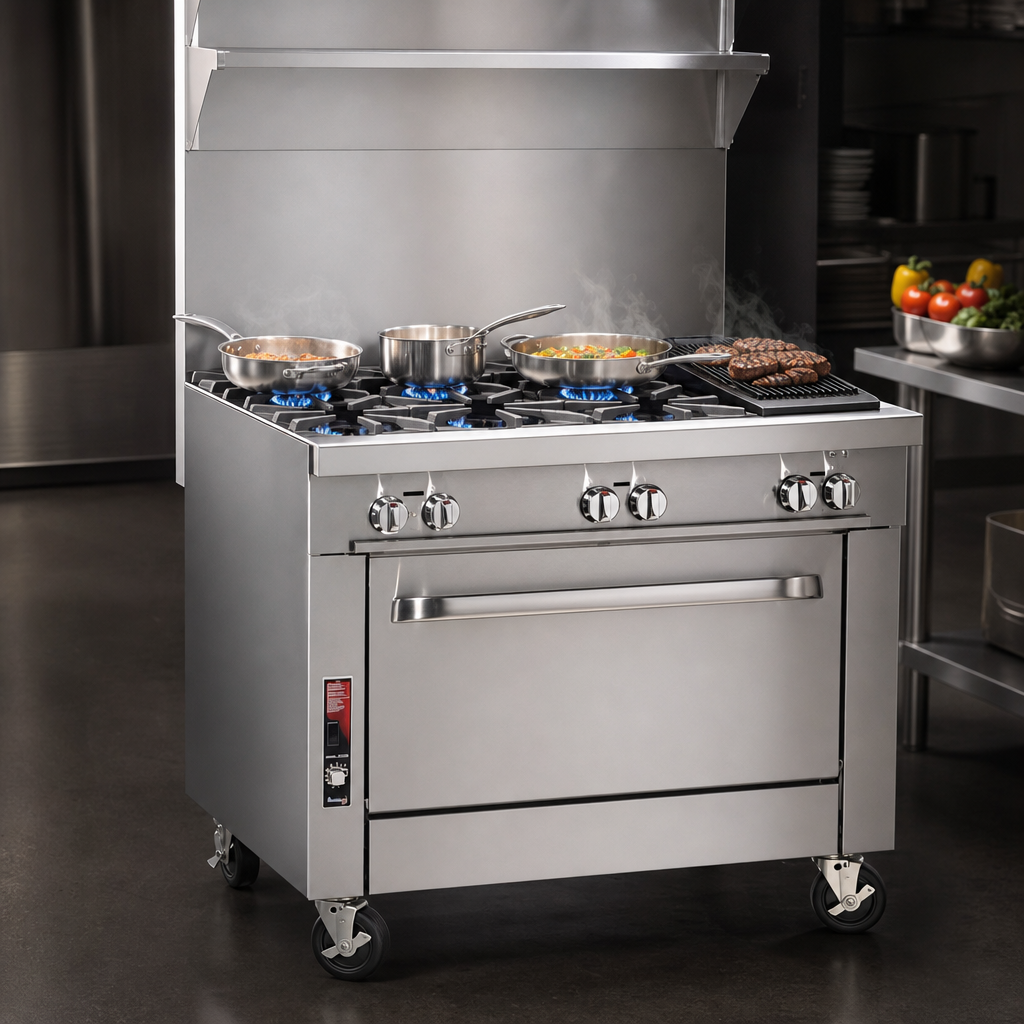

  • Four 35,000 BTU open burners (patented clog-free design) with removable welded-steel grates and slide-out drip tray for fast clean-up.

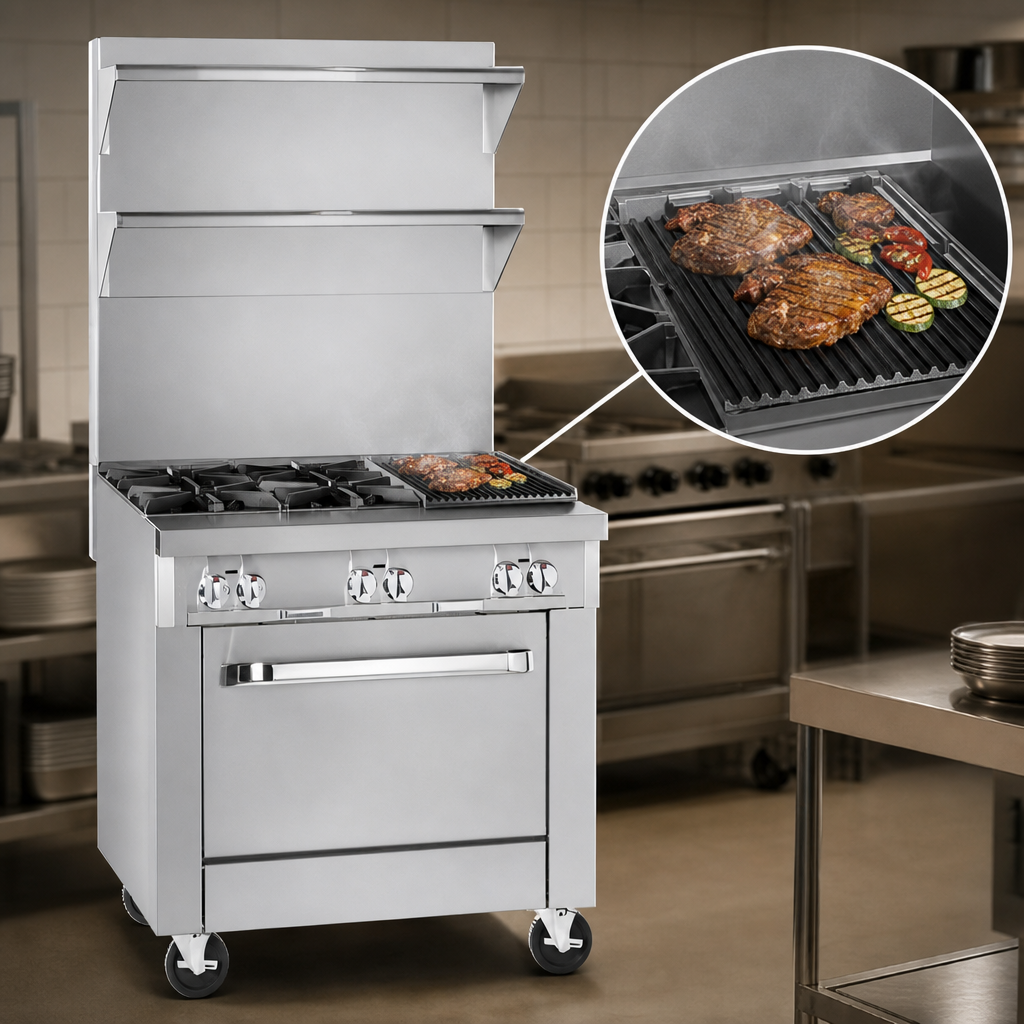

  • 12" charbroiler with two 16,000 BTU stainless-radiant burners, high/low manual control, and reversible cast-iron grates that flip for 1/8" or 1/4" grid width and adjust front-to-back for perfect branding.
  • Even heat up to 600 °F on the broiler and 700 °F plate temperature on the open tops.

Construction & Durability

  • All-stainless exterior: front, sides, rear and bottom resist dents, corrosion and daily abrasion.
  • Fully insulated lining and burner box maintain consistent temperatures while keeping the kitchen cooler.
  • 9-1/4" deep front rail and 5" stainless flue riser for safe, comfortable operation.
  • 6" stainless steel legs with adjustable feet for easy leveling on uneven floors.
  • Stainless cabinet base with two center-opening doors doubles as handy dry storage.

Performance Benefits

  • 172,000 BTU/hr total input delivers rapid boil times and crisp grill marks during rushes.
  • Manual, front-mounted gas valves give chefs instant, precise flame adjustment.
  • 1-1/4" front gas manifold couples seamlessly to other Southbend sectional units—free battery design assistance included.
  • Made, tested and certified in the USA for years of dependable service.

Specifications

Overall Width 36" (914 mm)
Overall Depth 40" (1 016 mm) to front rail
Cook-Surface Height 37-1/2" (953 mm) on 6" legs
Flue Riser Height 5" (127 mm)
Total BTU Input 172,000 BTU/hr
Open Burners 4 × 35,000 BTU
Charbroiler 2 × 16,000 BTU (manual)
Gas Connection 1-1/4" front manifold, 1" rear male NPT
Shipping Weight Approx. 440 lb (200 kg)
Construction Stainless steel front, sides, rear, bottom & cabinet doors

Certifications & Warranty

  • cCSAus, CSA Flame & CSA Star gas safety certified
  • NSF listed for commercial sanitation
  • One-year limited parts & labor warranty backed by Southbend’s nationwide service network
Important:
  • This appliance is intended for commercial use only and must be installed under a vented hood.
  • A regulated gas supply is required (minimum 7" W.C. natural, 11" W.C. propane).
  • Avoid placing cookware larger than 12" in diameter over the front rail; excessive heat can damage control components.
  • Do not cover the charbroiler grates with sheet pans during cleaning—heat reflection may cause permanent damage.

Need a matching convection oven, salamander or battery layout? Contact our team for free design assistance.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame, Made in USA

Height

41.0in

Width

36.0in

Depth

37.5in

Shipping Weight

490.0lbs

Exterior Finish

stainless steel front & sides

Base

cabinet(s)

Top

(4) open burners, (1) 12" charbroiler

Specifications

Platinum Heavy Duty Range, gas, 36", (4) 35,000 BTU open burners, (1) 12" charbroiler, manual controls, (1) cabinet base, stainless steel radiants, front, sides, rear, exterior bottom & 6" adjustable legs, 172,000 BTU, cCSAus, CSA Flame, CSA Star, NSF, Made in USA
