Southbend (Middleby)

Southbend Platinum Heavy Duty 36-Inch Gas Sectional Range with Cabinet Base, 6 Open Burners and Step-Up Rear Burners

SKU: P36C-BBB-SU
$10,057.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

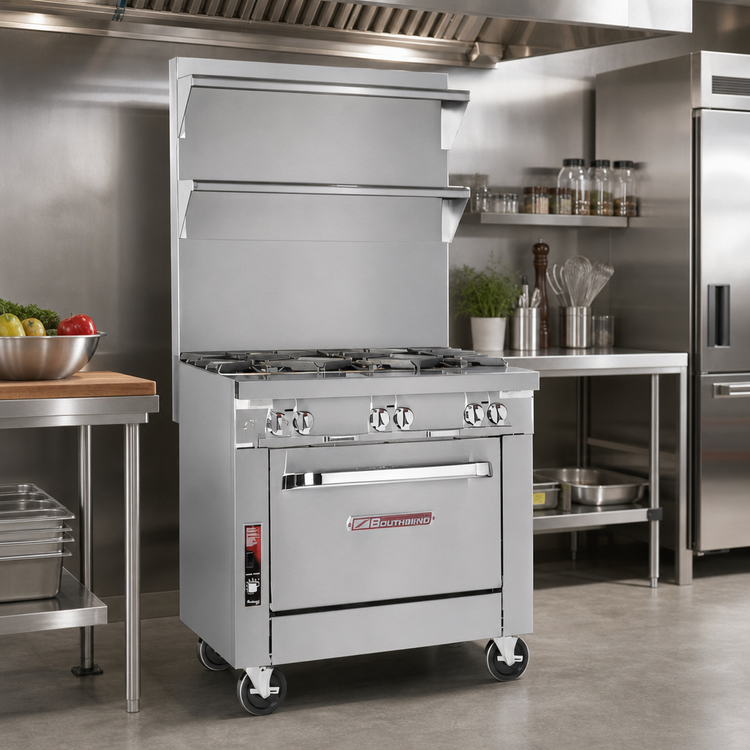

Southbend Platinum Heavy Duty 36-Inch Gas Sectional Range with Cabinet Base, 6 Open Burners and Step-Up Rear Burners

Floor model with stainless steel exterior, manual controls, and 210,000 BTU total output

Built for high-volume kitchens, this 36-inch sectional range combines six high-output open burners, a durable cabinet base, and step-up rear burners in a rugged stainless steel design.

  • Six 35,000 BTU open-top burners deliver 210,000 BTU total output.
  • Step-up rear burners sit 4 inches higher than the front burners for easier access.
  • Cabinet base includes removable doors that open from the center for storage.
  • Stainless steel front, sides, rear, and exterior bottom are built for demanding kitchen use.
  • Manual controls keep operation straightforward and dependable.
  • 6-inch stainless steel adjustable legs come standard for floor installation.

Overall Dimensions:

36.0"W x 37.5"D x 41.0"H

Product Weight:

460.0 lb

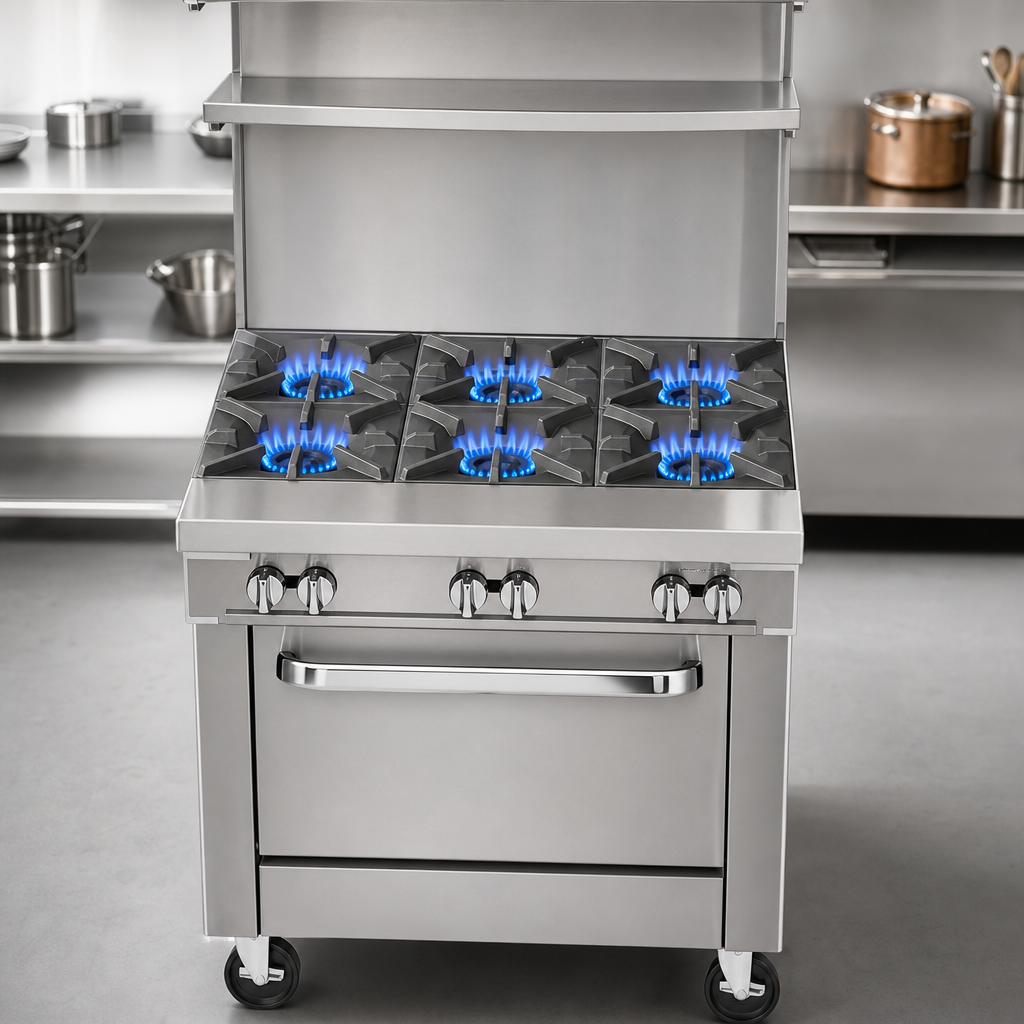

Six Open-Top Burners

Six patented clog-free burners provide 35,000 BTU each for high-heat cooking performance.

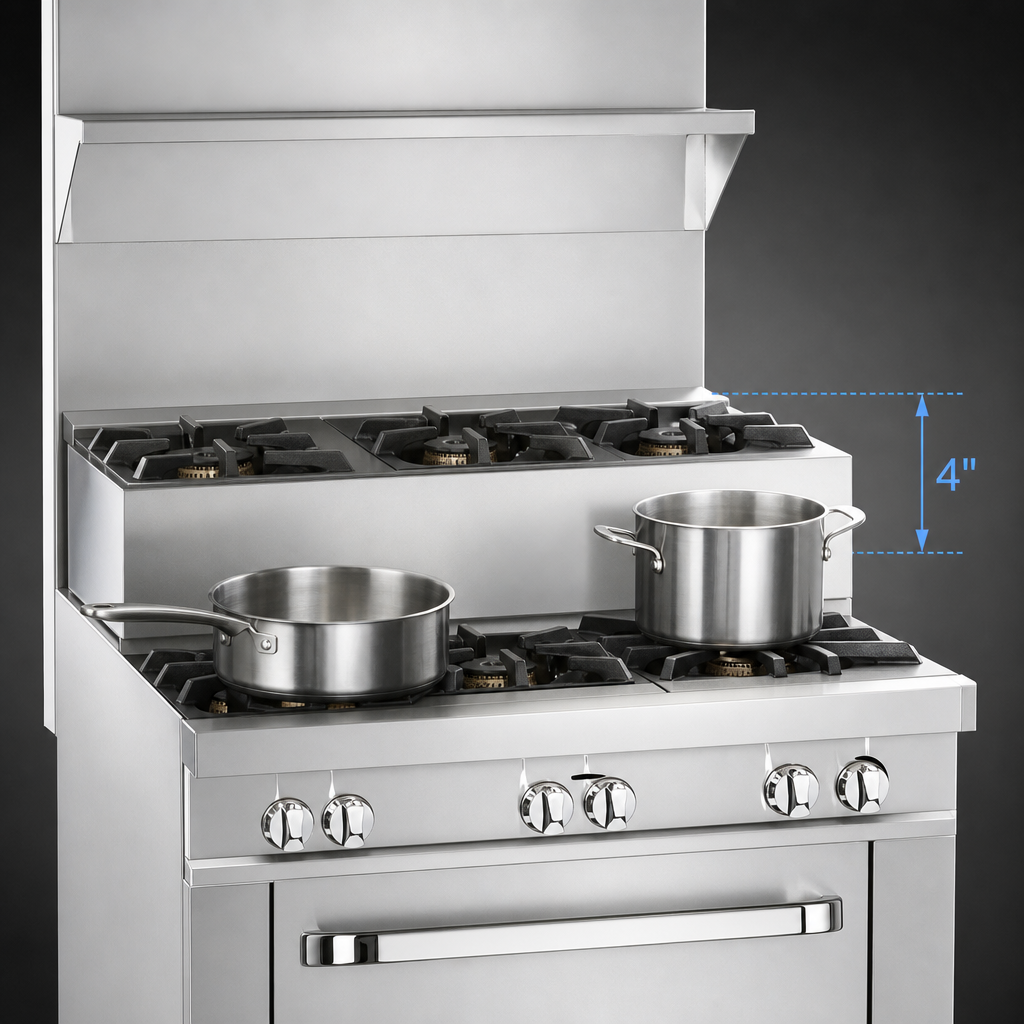

Step-Up Rear Burners

Rear burners are positioned 4 inches higher than the front burners to improve access and cookware clearance.

Cabinet Base Storage

The stainless steel cabinet base includes two removable doors that open from the center for under-range storage.

Stainless Steel Construction

Front, sides, rear, and exterior bottom are stainless steel for durability and easier cleaning.

Manual Controls

Simple manual controls provide direct burner operation.

Removable Top Grates and Drip Tray

Welded steel top grates and the removable drip tray help simplify cleanup.

Adjustable Legs

Standard 6-inch stainless steel adjustable legs provide stable floor installation.

Gas Connection Layout

A 1-1/4 inch front manifold and 1 inch rear gas connection support battery configurations.

Type Open Burner Range
Style Heavy Duty
Installation Type Floor Model
Controls Manual
Material Stainless Steel
Finish Polished Stainless Steel
BTU 210,000 BTU
Gas Connection Size 1-1/4 Inch Front Manifold, 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C. Natural Gas, 11 Inches W.C. Propane
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 41 Inches
Shipping Weight 460 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and 1 year labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Product configurator PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has six open-top burners rated at 35,000 BTU each, for 210,000 BTU total.
The rear burners are 4 inches higher than the front burners.
It comes with a stainless steel cabinet base with removable center-opening doors.
It uses a 1-1/4 inch front manifold and a 1 inch rear gas connection, and a pressure regulator must be ordered separately.
Yes, 6-inch stainless steel adjustable legs are standard.
The warranty is 1 year parts and 1 year labor from the date of original purchase, with service performed through an authorized service agency.
