Southbend (Middleby)

Southbend Platinum 36-Inch Heavy Duty Gas Sectional Range with Cabinet Base and Six Open Burners

SKU: P36C-BBB
$8,745.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum 36-Inch Heavy Duty Gas Sectional Range with Cabinet Base and Six Open Burners

Manual Controls, Stainless Steel Construction, 210,000 BTU

Built for high-volume kitchens, this 36-inch Platinum sectional range combines six powerful open burners with a durable stainless steel cabinet base and straightforward manual operation.

  • Six 35,000 BTU open-top burners deliver 210,000 BTU total cooking power.
  • Cabinet base provides enclosed under-range storage with center-opening removable doors.
  • Stainless steel construction on the front, sides, rear, and exterior bottom supports heavy-duty use.
  • Manual controls keep operation simple and dependable in busy kitchens.
  • 6-inch adjustable stainless steel legs help with leveling and installation.
  • Front manifold and rear gas connection support sectional battery configurations.

Overall Dimensions:

36.0"W x 37.5"D x 41.0"H

Product Weight:

460.0 lb

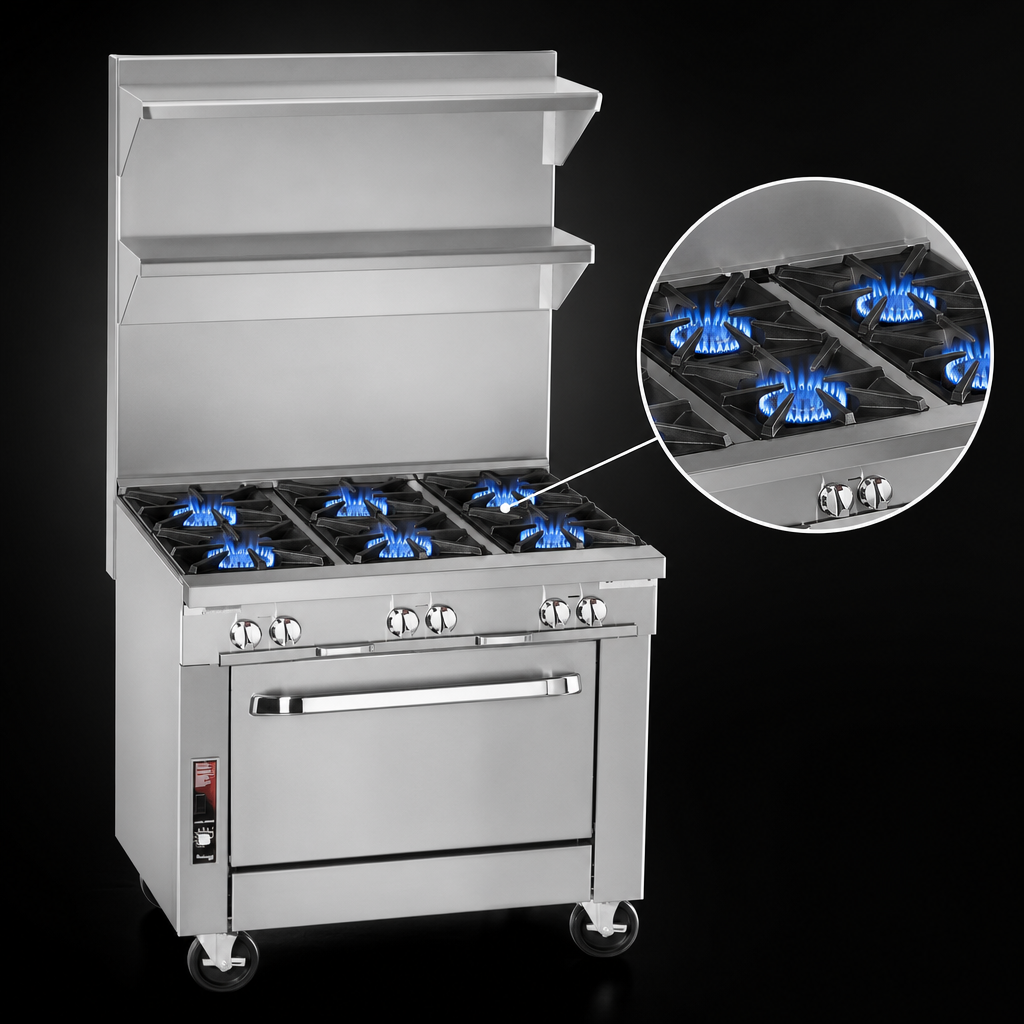

Six Open-Top Burners

Six burners are rated at 35,000 BTU each for high-output cooking performance.

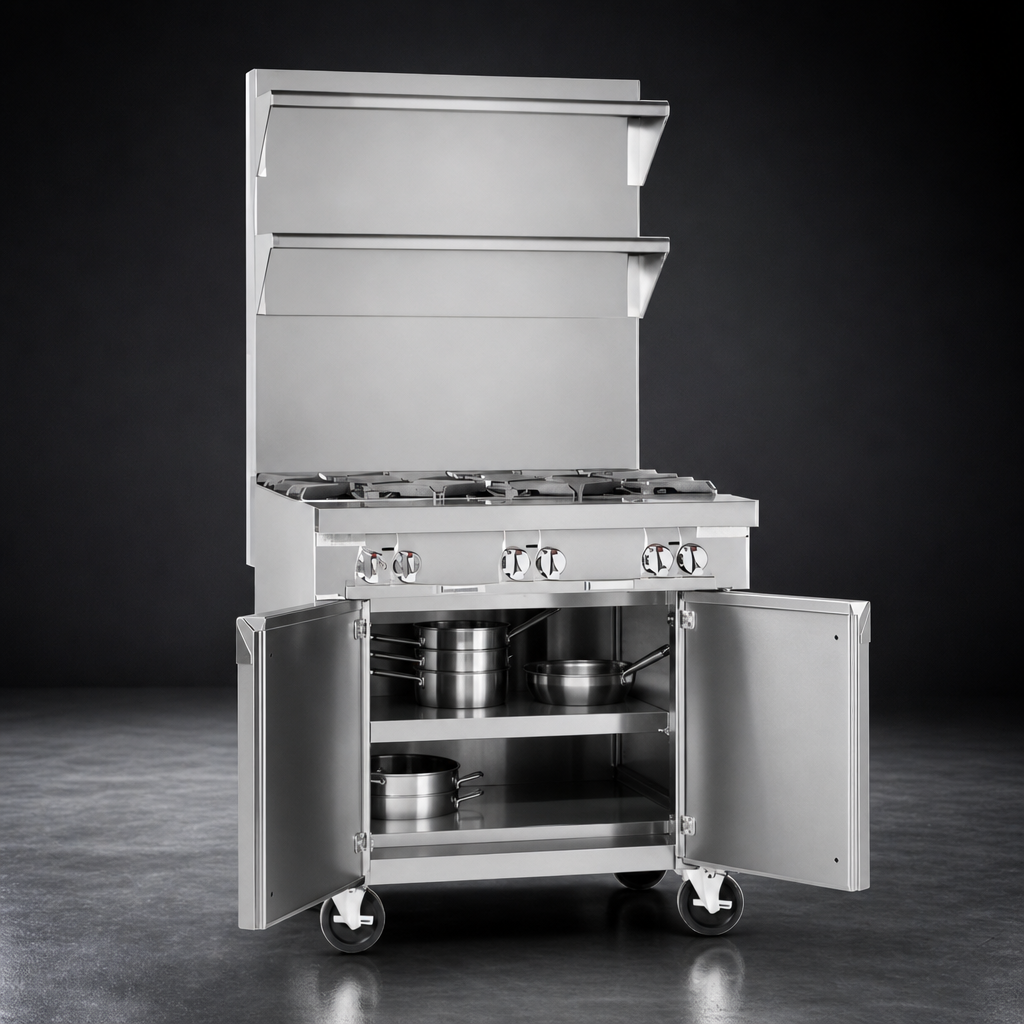

Cabinet Base

Stainless steel cabinet base includes removable doors that open from the center for under-range storage.

Stainless Steel Construction

Front, sides, rear, and exterior bottom are stainless steel for durability and easier cleaning.

Manual Controls

Simple manual controls provide straightforward burner operation.

Adjustable Stainless Steel Legs

Standard 6-inch adjustable legs help level the range on uneven floors.

Removable Top Grates

Welded steel top grates are removable for easier cleaning and maintenance.

Gas Connection Layout

Includes a 1-1/4 inch front gas manifold and 1 inch rear gas connection for sectional installation.

Insulated Burner Box

Fully insulated lining and burner box help support heat retention and performance.

Flue Riser

A 5-inch stainless steel flue riser is standard.

Type Gas Range
Style Sectional
Base Type Cabinet Base
Burner Type Open-Top
Burner Quantity 6
Installation Type Floor Model
Controls Manual
Material Stainless Steel
Finish Polished Stainless Steel
BTU 210,000 BTU
Gas Connection Size 1 1/4 Inches Front Manifold; 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C. Natural Gas; 11 Inches W.C. Propane
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and 1 year labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Product configurator PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. P36C-BBB is the cabinet-base version of the 36-inch sectional range and does not include an oven.
It has six open-top burners, each rated at 35,000 BTU, for a total of 210,000 BTU.
The unit uses a 1-1/4 inch front manifold and a 1 inch rear gas connection. A regulated gas supply is required, and the pressure regulator must be ordered separately.
The cabinet base is stainless steel and includes removable doors that open from the center.
Yes. The documentation recommends installation under a vented hood.
The warranty is one year parts and one year labor, with service performed by a Southbend Authorized Service Agency.
