Southbend (Middleby)  |  Platinum  |  SKU: P36A-XX

Southbend (Middleby) P36A-XX Platinum Gas Ranges

$15,207.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Product configurator Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

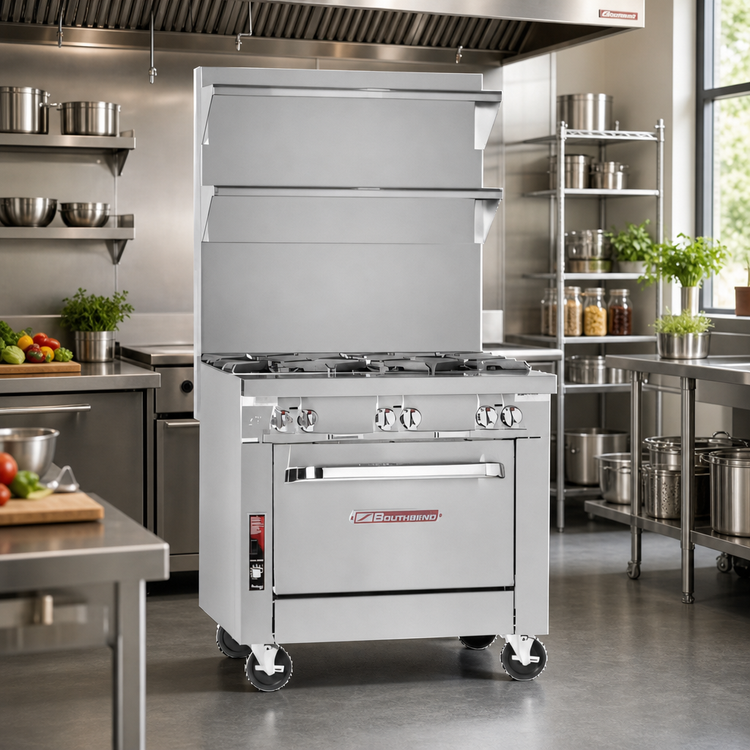

Southbend Platinum 36" Heavy-Duty Gas Range with Convection Oven

Model P36A – Four 45,000 BTU Pyromax Burners • 225,000 BTU Total

Built for relentless commercial duty, the Southbend Platinum Series 36" range unites a high-output, four-burner cooktop with a powerful convection oven base, giving chefs the speed, precision and durability they demand—all in just three feet of line space.

Performance & Construction Highlights

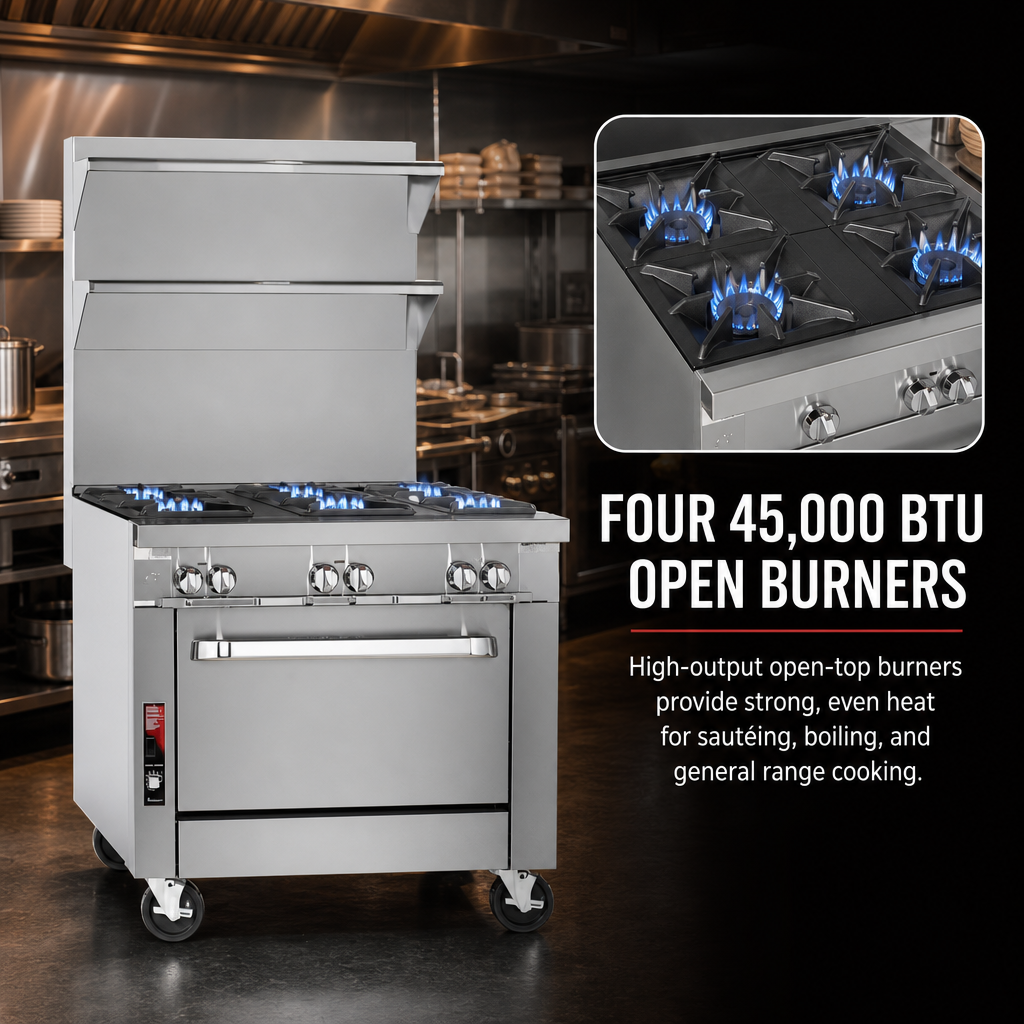

  • Four 45,000 BTU Signature Pyromax™ clog-free open burners (180,000 BTU cooktop).
  • Removable, welded steel top grates for easy cleaning & seamless pan movement.

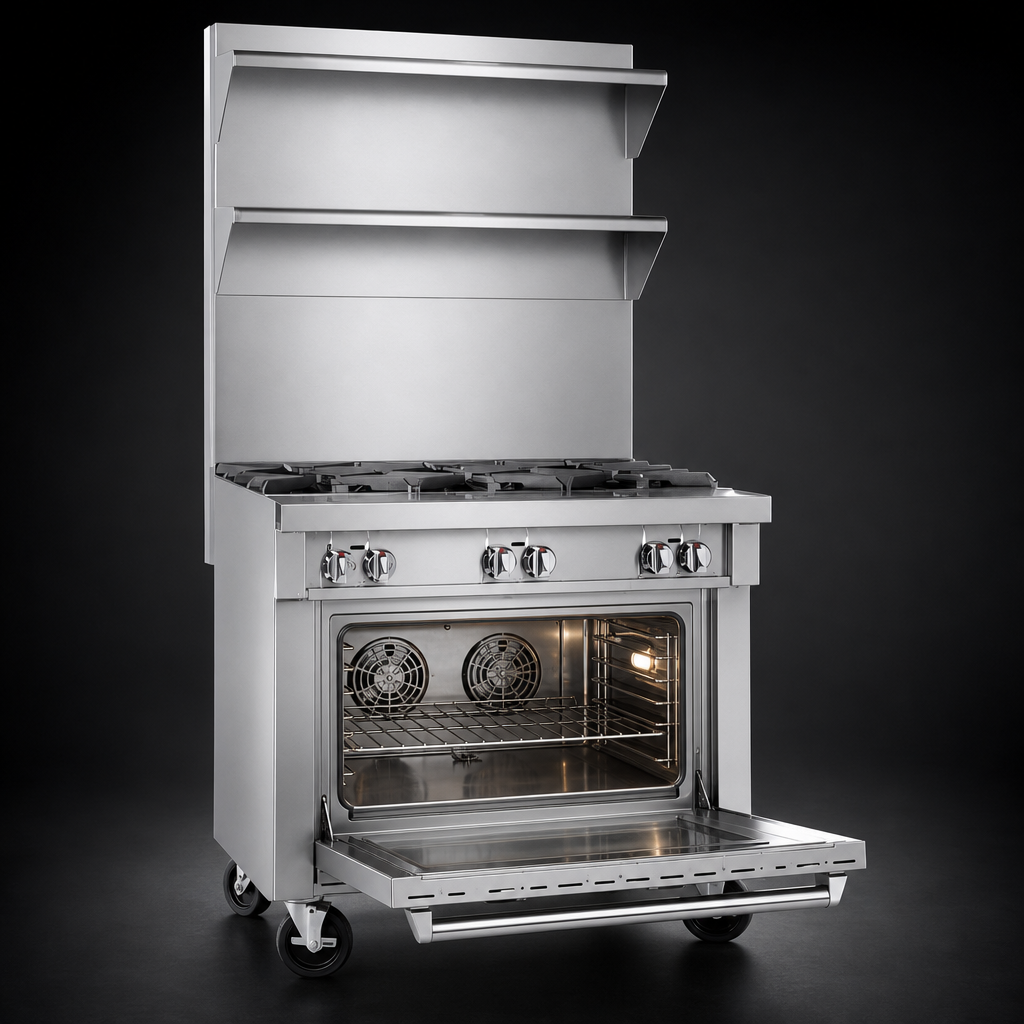

  • 45,000 BTU convection oven with standing pilot, three chrome racks & five rack positions.
  • ½ HP two-speed blower delivers even heat from 175 °F – 550 °F (79 °C – 288 °C).
  • All-stainless front, sides, rear & exterior bottom resist corrosion and simplify wipe-downs.
  • 9-¼" deep front rail plus fully insulated burner box for a cooler, safer cookline.
  • 5" flue riser channels heat toward the hood; 6" adjustable stainless legs level the unit.
  • 1¼" front gas manifold couples to other Platinum sectional units; 1" rear NPT gas inlet.
  • CSA & NSF certified; includes one-year parts & labor warranty.

Technical Specifications

Cooktop Output 4 × 45,000 BTU Pyromax open burners (180,000 BTU)
Oven Output Convection, 45,000 BTU (standing pilot)
Total Input 225,000 BTU/hr
Oven Interior (H × W × D) 14" × 26" × 24" (356 × 660 × 610 mm)
Rack Capacity 3 racks, 5 positions, fits full-size sheet pans either way
Temperature Range 175 °F – 550 °F (79 °C – 288 °C)
Gas Connection 1¼" front manifold & 1" rear NPT; 7" W.C. NAT / 11" W.C. LP min.
Electrical (blower) 120 V, 1-phase, 5.9 A (cord & plug supplied)
Overall Dimensions 36" W × 37.5" D × 40" H (to cook surface)
Shipping Weight Approx. 670 lb (304 kg)
Certifications CSA, NSF

Perfect For

  • Full-service restaurants & hotel kitchens
  • High-volume cafeterias & institutions
  • Catering commissaries & ghost kitchens
  • Any operation that demands relentless, heavy-duty production
Safety Tip: Oversized cookware (12" diameter or larger) should be used on the rear burners only. Allow at least 2" of clearance behind the convection-oven blower motor, and install the range beneath a properly sized, code-compliant vent hood.

Commercial use only – not for residential installation.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

41.0in

Width

36.0in

Depth

43.0in

Shipping Weight

670.0lbs

Top

(4) open burners

Base

(1) convection oven

Exterior Finish

stainless steel front & sides

Specifications

Platinum Heavy Duty Range, gas, 36", (4) 45,000 BTU open burners, manual controls, (1) convection oven, includes (3) racks, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 225,000 BTU, CSA, NSF
