Southbend (Middleby) P36A-TTT Platinum Gas Ranges

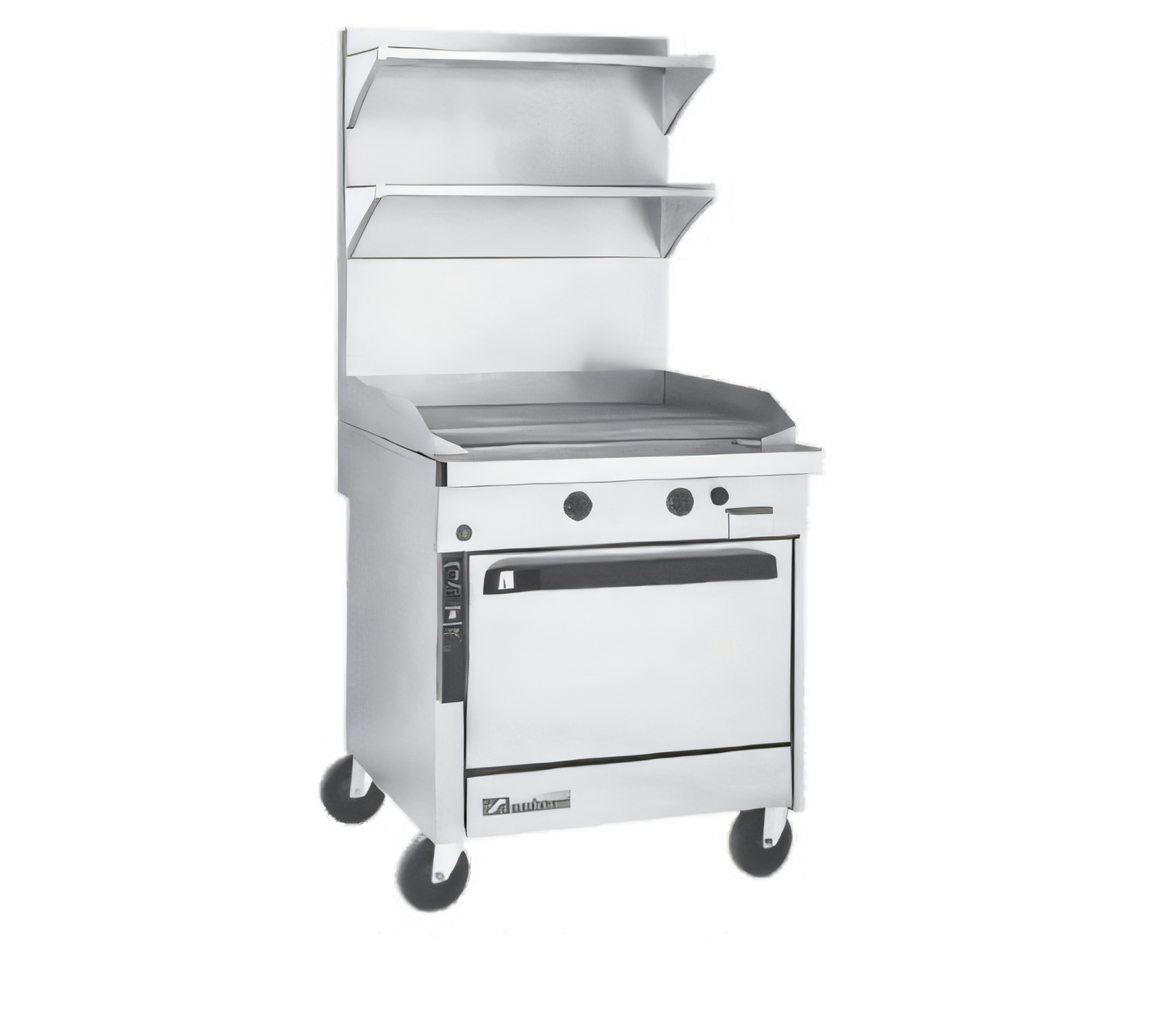

Southbend Platinum 36" Thermostatic Griddle Range w/ Convection Oven – 141,000 BTU

Engineered for the busiest commercial kitchens, the Southbend Platinum P36A-TTT marries a precision-controlled 36 inch griddle with a high-performance convection oven, all wrapped in a rugged stainless-steel chassis that’s built to work as hard as you do.

Key advantages

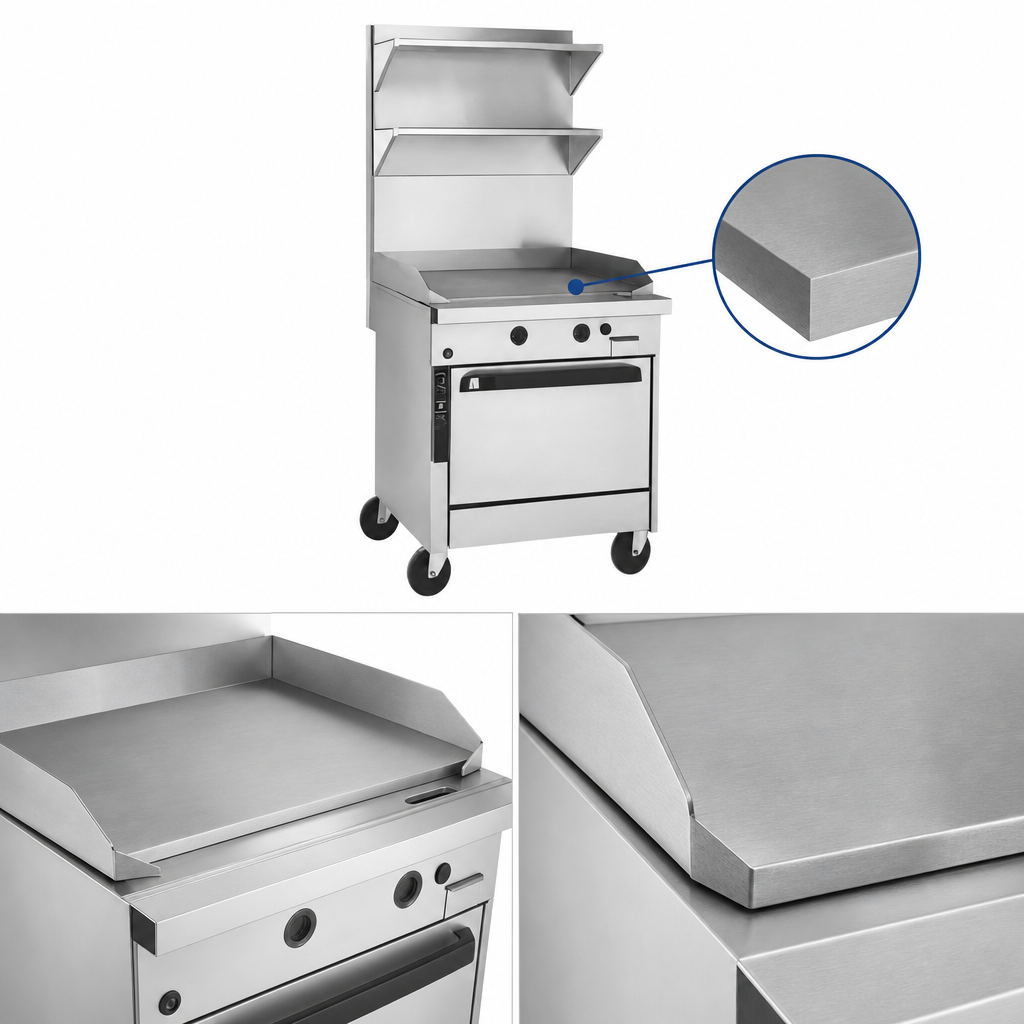

• Full-width 1" thick griddle plate provides unmatched heat retention and even cooking.

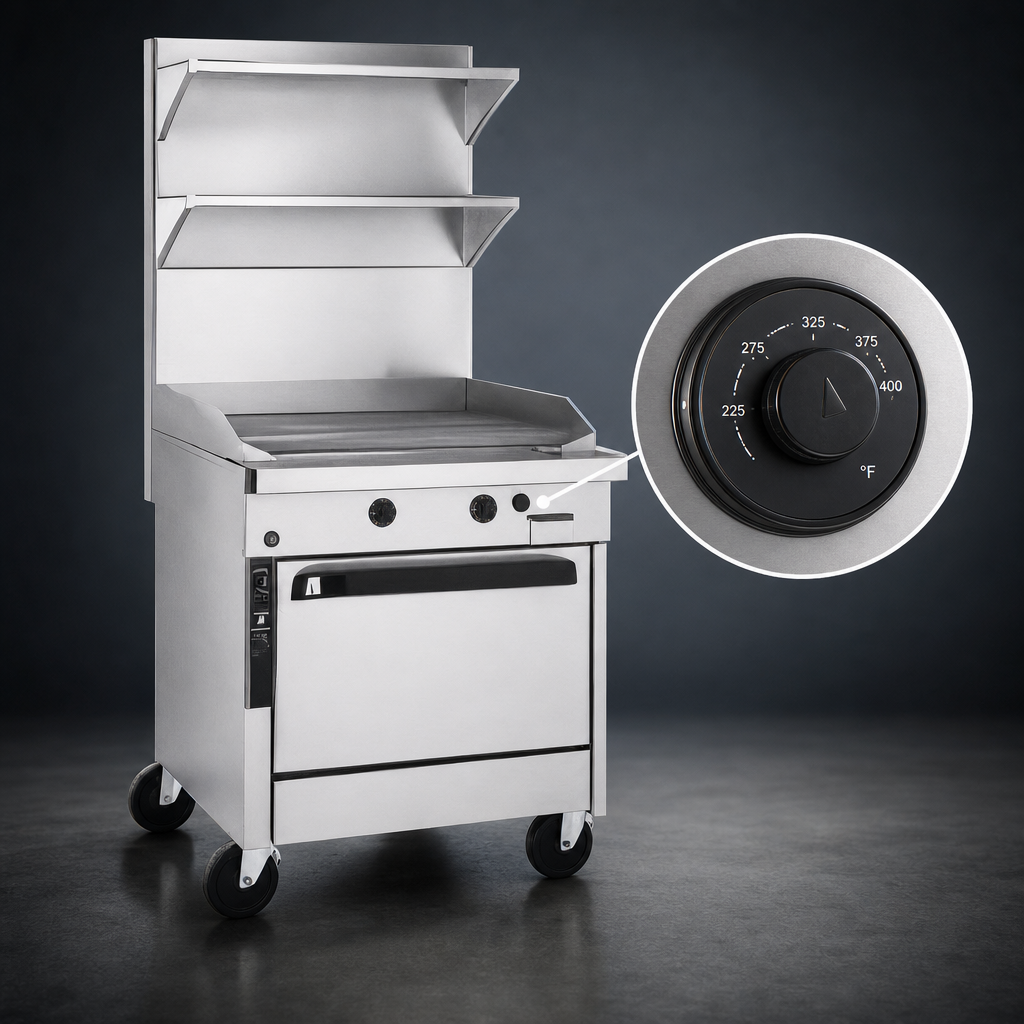

• “Insta-On” thermostatic controls (180 °F–400 °F) allow exact surface temperature settings.
• Battery spark ignition lights burners instantly—no matches required.
• 45,000 BTU convection oven with two-speed ½ hp blower circulates heat for fast, even baking & roasting.
• Three nickel-plated oven racks fit full-size sheet pans either direction.
• 9-¼" deep front rail doubles as a convenient plating shelf and heat guard.
• Stainless steel front, sides, rear & bottom resist corrosion and wipe clean in seconds.
• 6" adjustable stainless legs for quick leveling and effortless floor cleaning.

Construction that lasts

• Fully insulated lining and burner box improve efficiency and keep exterior surfaces cooler.
• 5" stainless flue riser directs flue gasses into your hood system.
• Removable stainless grease drawer plus side/rear splash guards keep the cookline spotless.
• 1-¼" front gas manifold couples easily with other Southbend sectional units for seamless “battery” installations.

Technical specifications

Popular factory options (sold separately)

• Grooved or chrome-plated griddle surface
• 24" or 36" flue riser with one or two shelves
• Casters or open-frame base with casters
• External gas pressure regulator & cable-restraint kit
• Electronic oven pilot ignition (no-charge option)

Need help designing a sectional battery configuration? Southbend offers free layout assistance—just ask!
