Southbend (Middleby) P36A-PPP Platinum Gas Ranges
Description

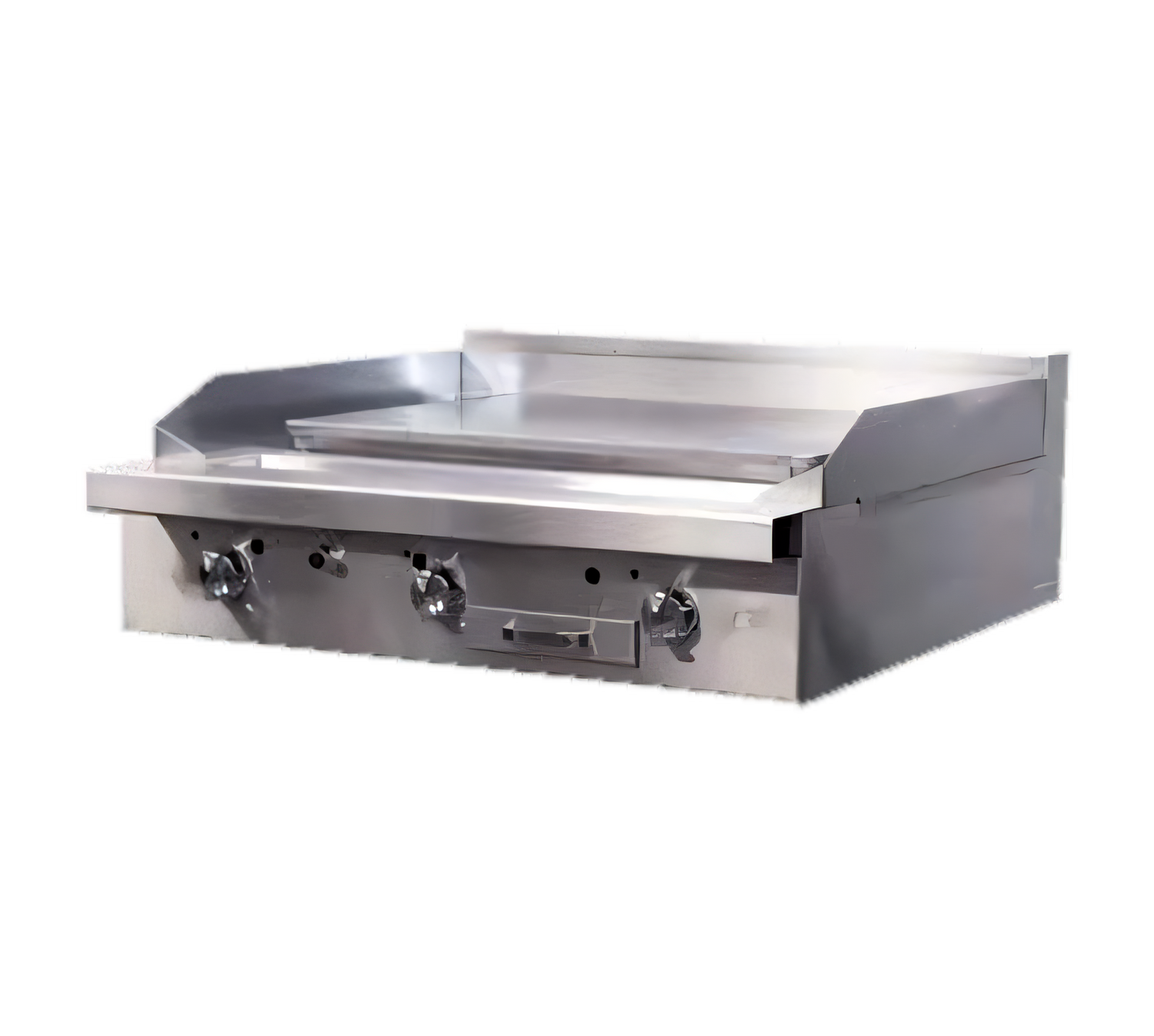

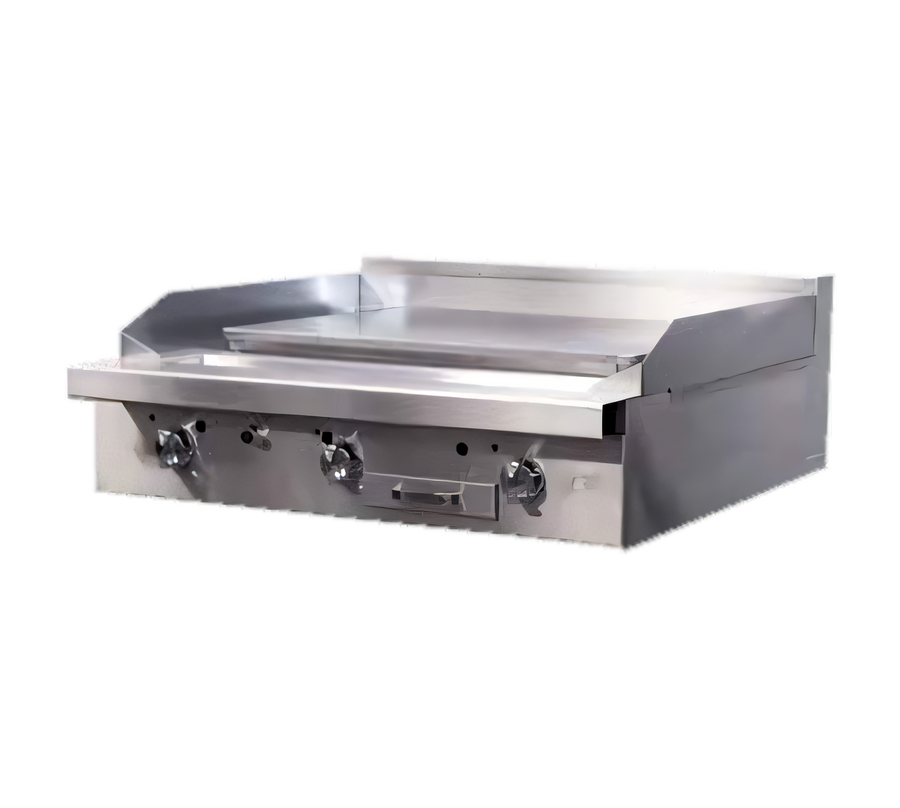

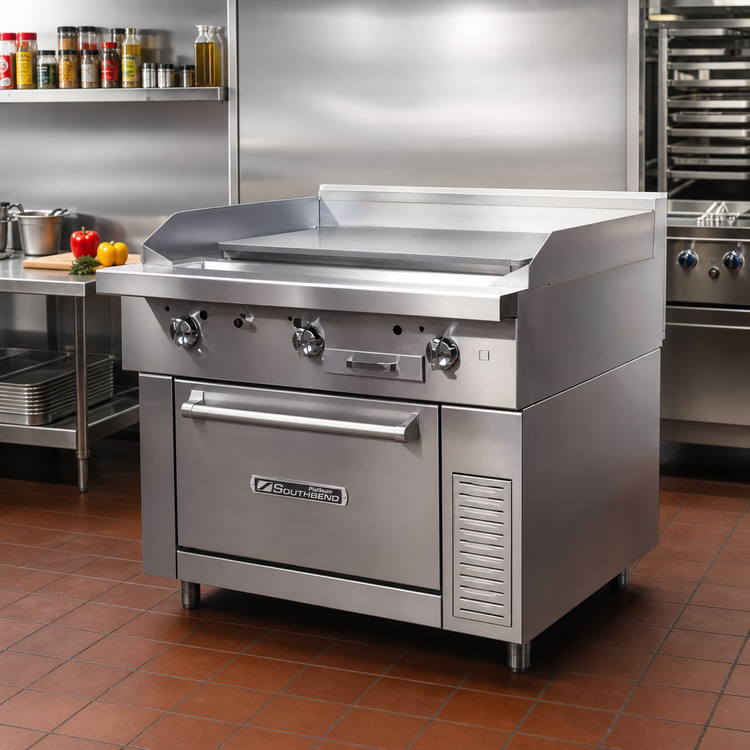

Platinum Series 36" Heavy-Duty Gas Plancha Range w/ Convection Oven
Southbend Model P36A-PPP · 93,000 BTU · CSA & NSF CertifiedBuilt for high-volume, all-day production, the Southbend Platinum P36A-PPP unites an ultra-responsive raised plancha griddle with a high-performance convection oven in just 36 inches of hood space. From breakfast rush searing to evening finishing and baking, this single piece of equipment delivers the speed, consistency and durability demanded by the busiest commercial kitchens.
Key Performance Features

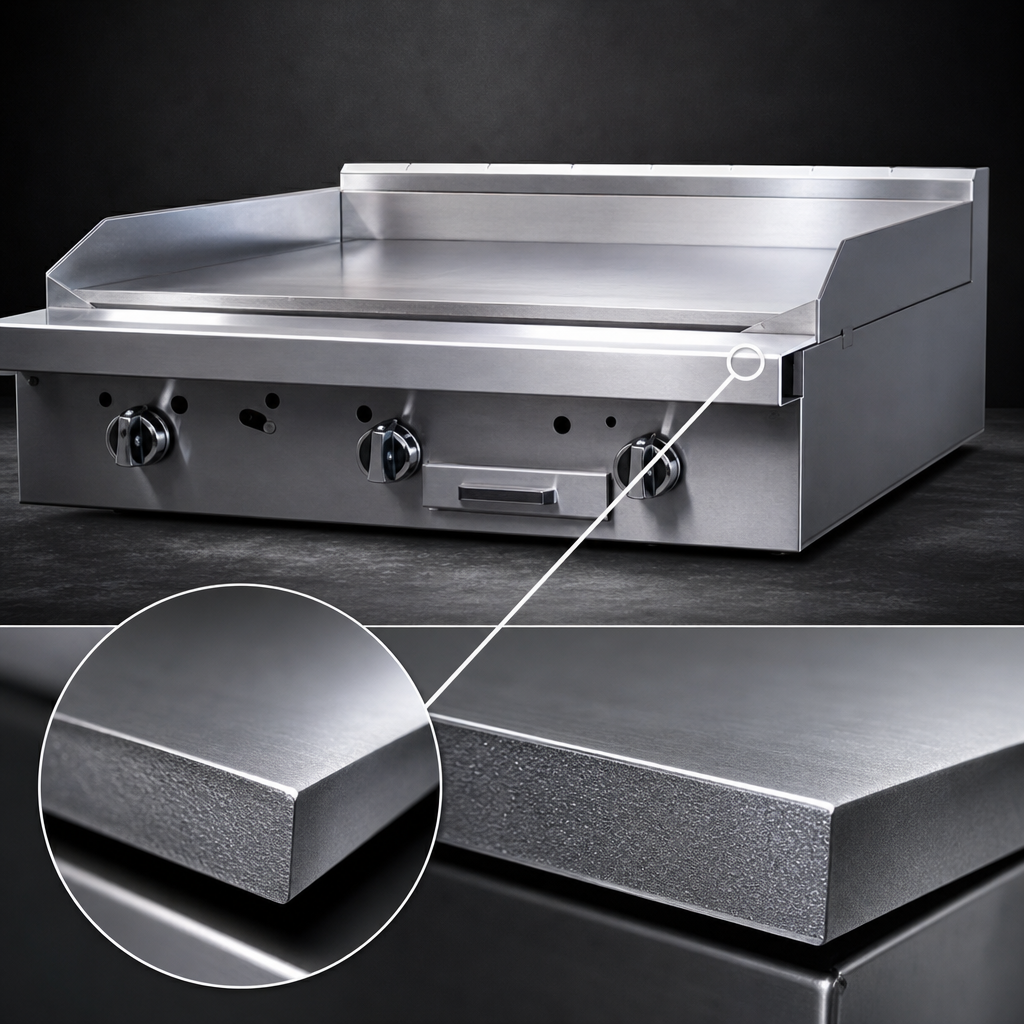

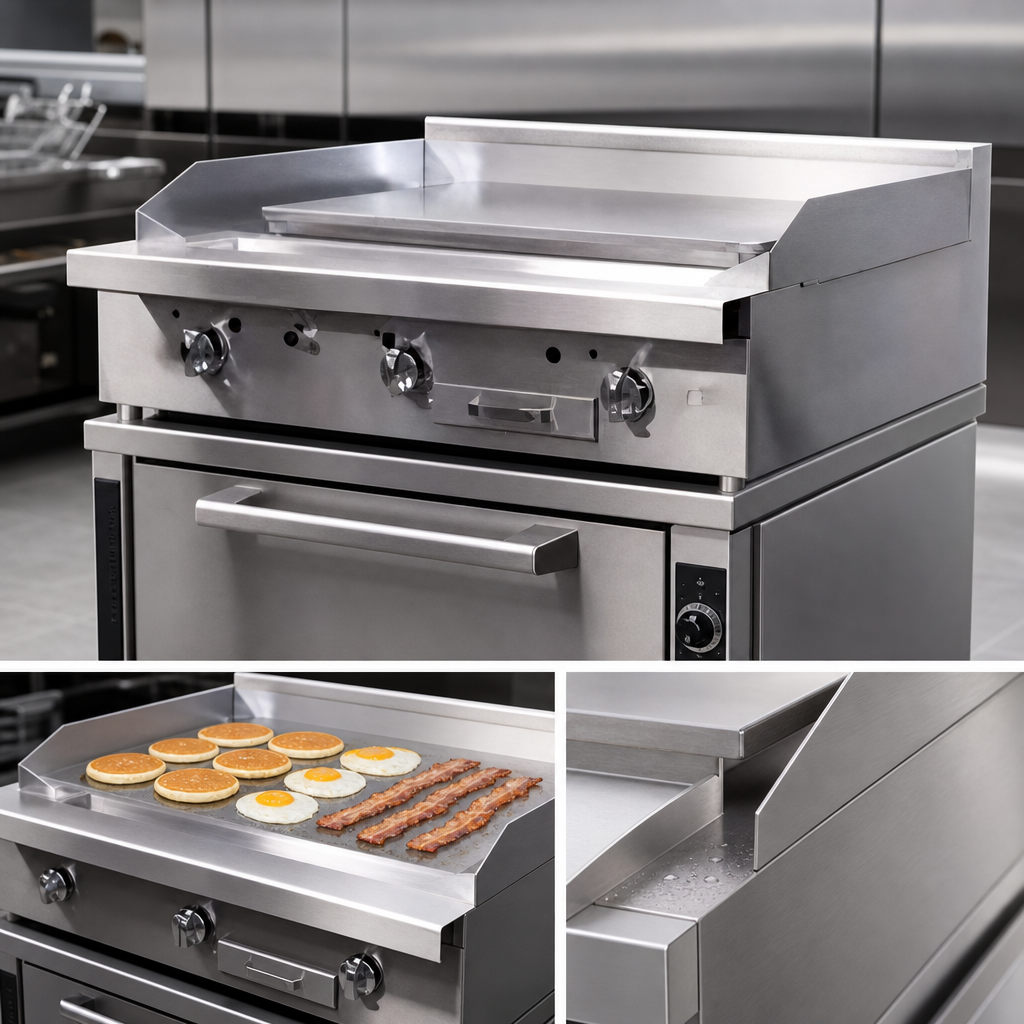

- 29-3/4″ raised plancha plate (1/2″ thick reinforced steel) for quick pre-heat and rapid heat recovery.
- Three 16,000 BTU cast-iron burners (battery spark ignition) create a high-heat zone up to 800 °F on the front 2/3 of the plate with a cooler rear zone for finishing.
- Full-width, stainless steel grease drawer plus 3″ wide side troughs keep the cooking surface clear between loads.
- 45,000 BTU convection oven with standing pilot, porcelain-enamel interior, and 1/2 hp two-speed blower for even results from 175 °F–550 °F.
- (3) removable oven racks with 5-position side rails accept full-size sheet pans either way.
- Rugged stainless steel construction on front, sides, rear & exterior bottom with fully insulated burner box.
- 5″ deep front rail, 5″ stainless flue riser and factory-installed 6″ adjustable stainless legs.
- Front 1-1/4″ gas manifold couples to adjacent Platinum sectional units for easy battery line-ups.
Why Operators Love It
- Versatility – Sear, sauté, finish and bake from a single footprint.
- Labor Savings – Raised plate and oversized troughs make daily clean-up fast.
- Menu Consistency – Convection airflow delivers evenly browned, repeatable results.
- Built to Last – All-stainless exterior and heavy-duty components withstand the toughest shifts.
Technical Specifications
| Model | P36A-PPP (Platinum Series) |
|---|---|
| Overall width | 36″ (914 mm) |
| Plancha cooking surface | 29-3/4″ W × 24″ D, 1/2″ thick steel |
| Total input | 93,000 BTU/hr (Natural Gas) |
| Gas connection | Front 1-1/4″ manifold, rear 1″ NPT; 7″ WC NAT, 11″ WC LP min. |
| Electrical | 120 V, 1-phase, 5.9 A (convection blower) |
| Oven interior | 14″H × 26″W × 24″D (porcelain enamel) |
| Oven racks supplied | 3 |
| Grease management | Stainless drawer + side troughs |
| Certifications | CSA Flame, CSA Sanitation, NSF |
| Warranty | 1-year parts & labor (commercial use) |
| Ship weight | Approx. 654 lb (297 kg) |
What’s in the Box
- Platinum P36A-PPP range with factory-mounted 6″ adjustable legs
- (3) heavy-duty oven racks
- Battery-powered spark ignitor (plancha)
- 5″ stainless flue riser
- Owner’s/installation manual
Popular Options & Accessories (sold separately)
- Factory pressure regulator
- Locking front casters or open-frame base with casters
- 24″ or 36″ flue riser with shelving
- Extra-deep rear-extending flue riser
- Salamander or cheesemelter mounting kit
- Stainless steel oven interior upgrade
Need a matched battery line? Our team can configure any Platinum sectional line-up at no extra design charge.
