Southbend (Middleby)

Southbend Platinum Heavy Duty 36-Inch Gas Sectional Range with 3 Uniform Hot Tops and Convection Oven Base

SKU: P36A-HHH
$16,461.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum Heavy Duty 36-Inch Gas Sectional Range with 3 Uniform Hot Tops and Convection Oven Base

Manual Controls, Battery Spark Ignition, 141,000 BTU

Built for high-volume kitchens, this 36-inch gas sectional range combines three uniform hot tops with a convection oven base in one durable stainless steel footprint.

  • 36-inch gas sectional range with three uniform hot tops for versatile surface cooking.
  • Convection oven base includes 3 racks and a two-speed 1/2 hp blower motor.
  • Manual controls and battery spark ignition keep operation simple and reliable.
  • Stainless steel front, sides, rear, and exterior bottom for heavy-duty durability.
  • 141,000 BTU total output with 6-inch adjustable legs and removable hot top plates.

Overall Dimensions:

36.0"W x 40.25"D x 41.0"H

Product Weight:

670.0 lb

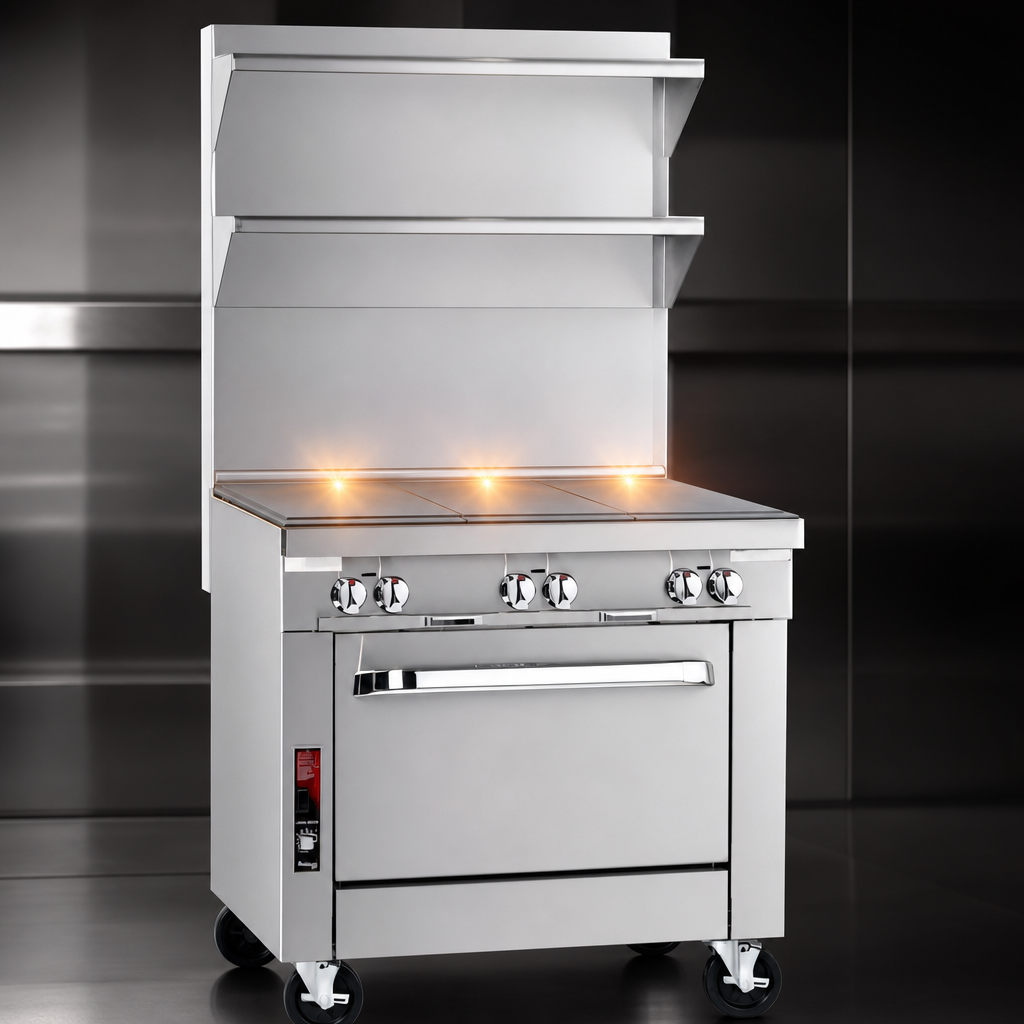

Three Uniform Hot Tops

Full-width hot top cooking surface with removable steel plates and surface temperatures up to 700°F.

Convection Oven Base

Built-in convection oven includes 3 racks, a porcelain enamel interior, a thermostat range of 175°F to 550°F, and a two-speed 1/2 hp blower motor.

Battery Spark Ignition

Battery-powered spark ignition provides reliable start-up without a hardwired electrical connection.

Manual High/Low Controls

Manual controls with high/low adjustment give operators straightforward heat management on the top section.

Stainless Steel Construction

Front, sides, rear, and exterior bottom are constructed of stainless steel for durability in demanding kitchens.

Adjustable Legs

6-inch stainless steel adjustable legs are standard for easier leveling and installation.

Gas Utility Connections

Features a 1-1/4-inch front manifold and a 1-inch rear gas connection; regulated gas supply is required.

Type Sectional Range
Style Uniform Hot Top
Installation Type Floor Model
Material Stainless Steel
Finish Polished Stainless Steel
Interior Finish Porcelain Enamel
Controls Manual
Hot Tops 3
Oven Type Convection Oven
BTU 141,000 BTU
Temperature Range 175°F to 550°F
Gas Connection Size 1-1/4 Inch Front Manifold, 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C. Natural Gas, 11 Inches W.C. Propane
Shipping Width 36 Inches
Shipping Depth 41 Inches
Shipping Height 41 Inches
Shipping Weight 670 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Product configurator PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes three uniform hot tops and one convection oven base with 3 racks.
The unit is rated at 141,000 BTU.
It uses a 1-1/4-inch front manifold and a 1-inch rear gas connection. Minimum gas supply pressure is 7 Inches W.C. for natural gas and 11 Inches W.C. for propane, and a separate pressure regulator is required.
The convection oven thermostat range is 175°F to 550°F.
The product carries a limited 1-year parts and labor warranty, subject to manufacturer terms and authorized service requirements.
Yes. The range comes standard with 6-inch stainless steel adjustable legs.
