Southbend (Middleby) P36A-GGG Platinum Gas Ranges
Description

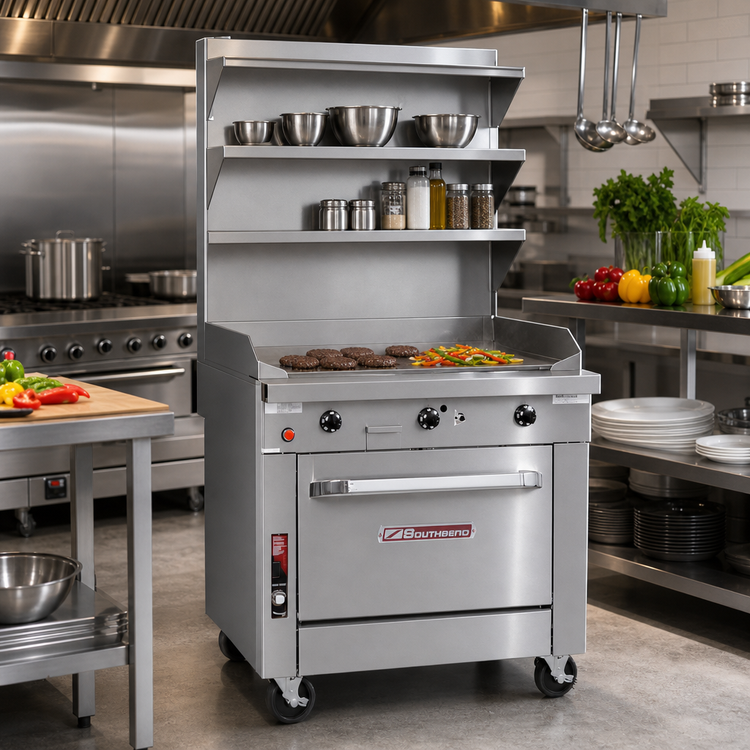

Platinum 36" Heavy-Duty Gas Range with Full-Width Manual Griddle & Convection Oven
Southbend | Model P36A-GGG | 141,000 BTU (Natural Gas)Built for the punishing pace of high-volume kitchens, the Southbend Platinum Series 36" range couples a massive, 1" thick steel griddle with a high-performance convection oven – all wrapped in heavy-gauge stainless steel. From breakfast rush to late-night service, this single footprint delivers the versatility, power and durability chefs demand.
Top Reasons You'll Love It

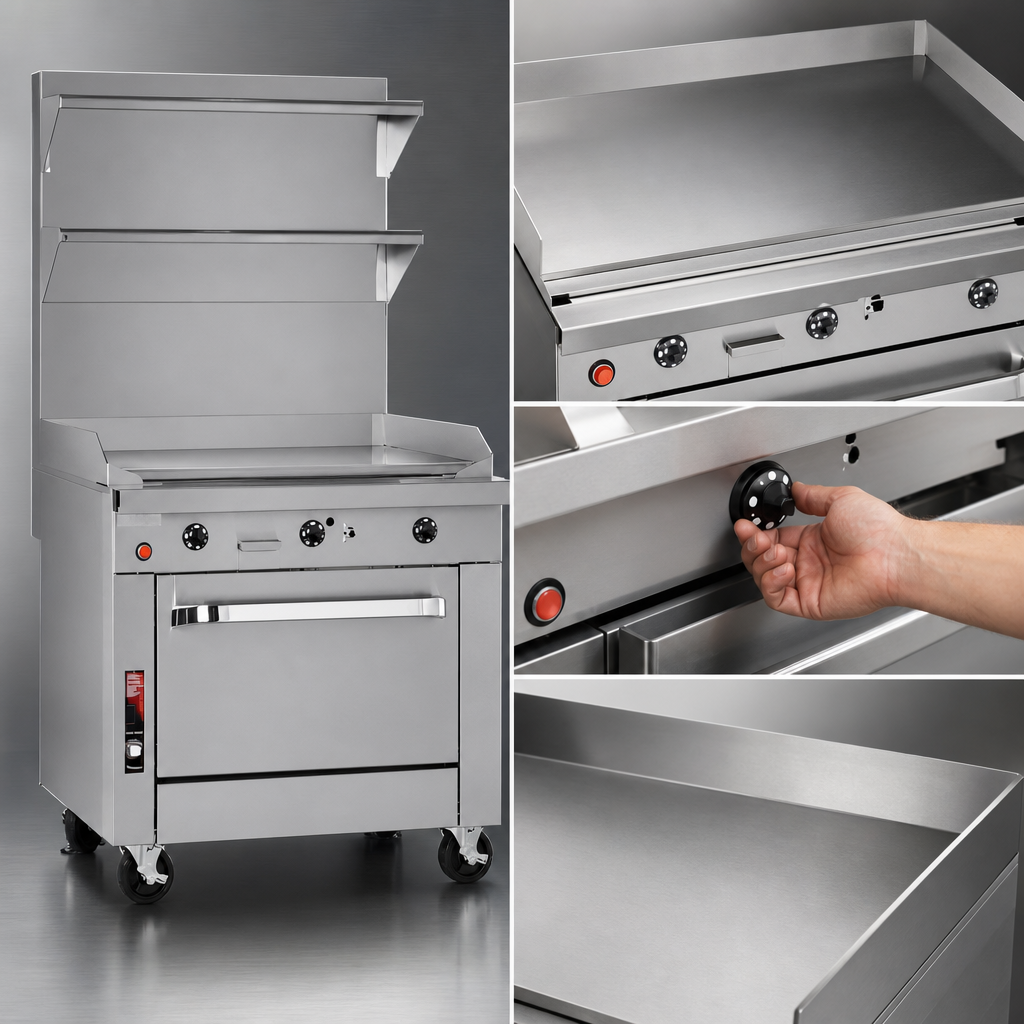

- Full-width 36" griddle delivers 96,000 BTU of even, edge-to-edge heat for flawless searing & sautéing.

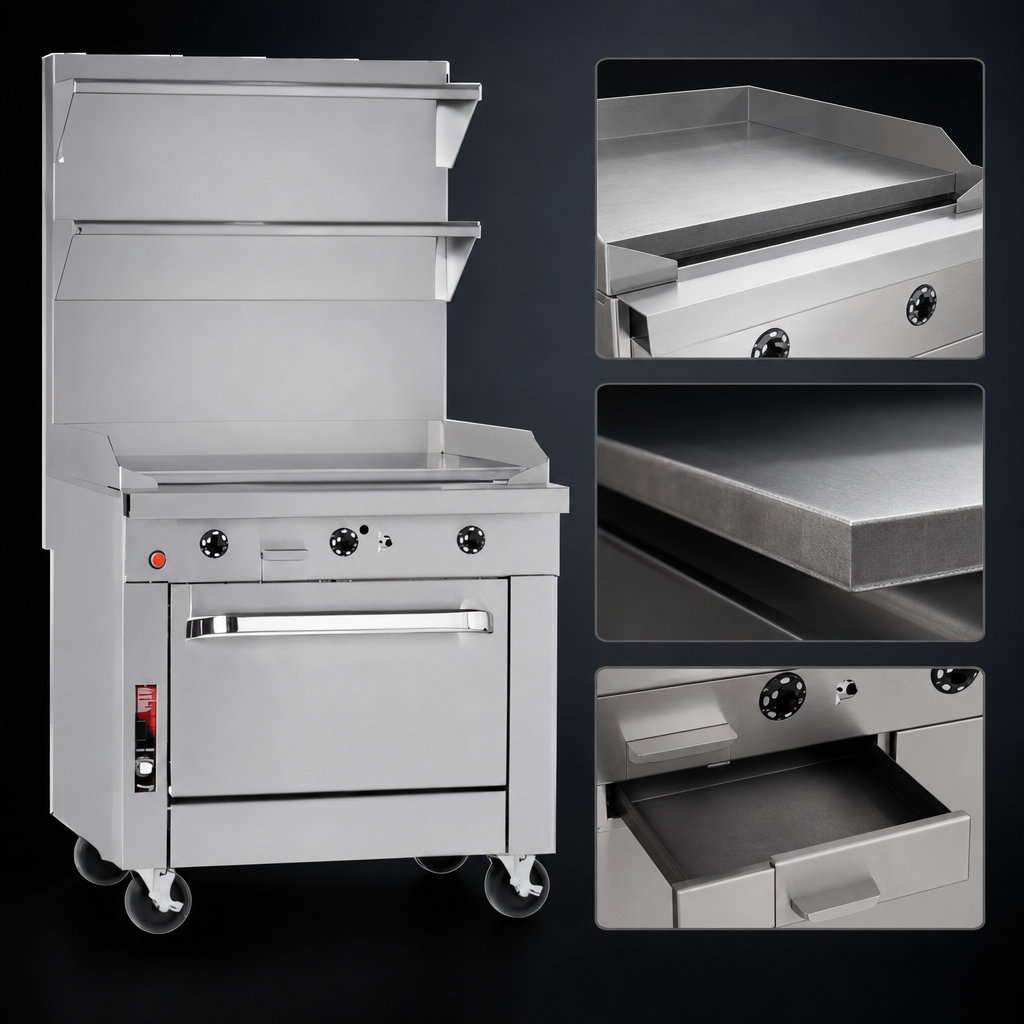

- 1" thick plate retains heat and rebounds fast when fully loaded.
- Manual valves with battery spark ignition – light every burner without matches or electricity.
- 45,000 BTU convection oven with ½ hp two-speed blower cooks up to five full-size sheet pans (3 racks included).
- All-stainless exterior (front, sides, rear & bottom) plus fully insulated burner box for a cooler, safer kitchen.
- 6" adjustable stainless legs and 5" flue riser keep the unit level and hood-ready.
Serious Cooking Muscle
- Manual Griddle Control: Dial in instant flame changes for multiple cooking zones (manual griddles do not provide thermostatic set-points).
- Convection Consistency: 175 °F–550 °F Insta-On thermostat pairs with a two-speed fan for even browning and faster bake times.
- Stay-clean Design: 9-¼" deep front rail and a removable stainless grease drawer make end-of-shift cleanup a breeze.
Construction Highlights
- #3 polished 430 & 304 stainless steel chassis resists corrosion and harsh cleaning chemicals.
- Battery-ready 1-¼" front gas manifold – drops straight into new or existing Southbend sectional suites.
- Fully insulated oven cavity and burner box improve efficiency and reduce radiant heat.
- CSA Flame, CSA Star, cCSAus & NSF listed for gas, safety and sanitation compliance.
- Backed by a 1-year parts & labor warranty and Southbend’s nationwide service network.
Technical Specifications
| Model | P36A-GGG |
|---|---|
| Total BTU | 141,000 BTU/hr (Natural) 129,000 BTU/hr (LP) |
| Griddle Plate | 36" W × 24" D, 1" thick steel, manual valves |
| Oven Type / BTU | Convection, 45,000 BTU standing pilot |
| Oven Interior (WxDxH) | 26" × 24" × 14" (3 chrome racks, 5 positions) |
| Exterior Dimensions | 36" W × 37.5" D × 43.5" H (with 5" flue) |
| Gas Connection | 1 ¼" front manifold, 1" rear male NPT |
| Electrical (fan motor) | 120 V, 1-phase, 5.9 A (208/240 V, 2.7 A optional) |
| Legs | 6" stainless steel, adjustable |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1 year parts & labor (commercial use) |
Manual griddle models do not offer thermostatic temperature set-points. Installation under a properly sized, vented hood and a regulated gas supply (7" W.C. NAT / 11" W.C. LP) is required.
