Southbend (Middleby) P36A-GGC Platinum Gas Ranges
Description

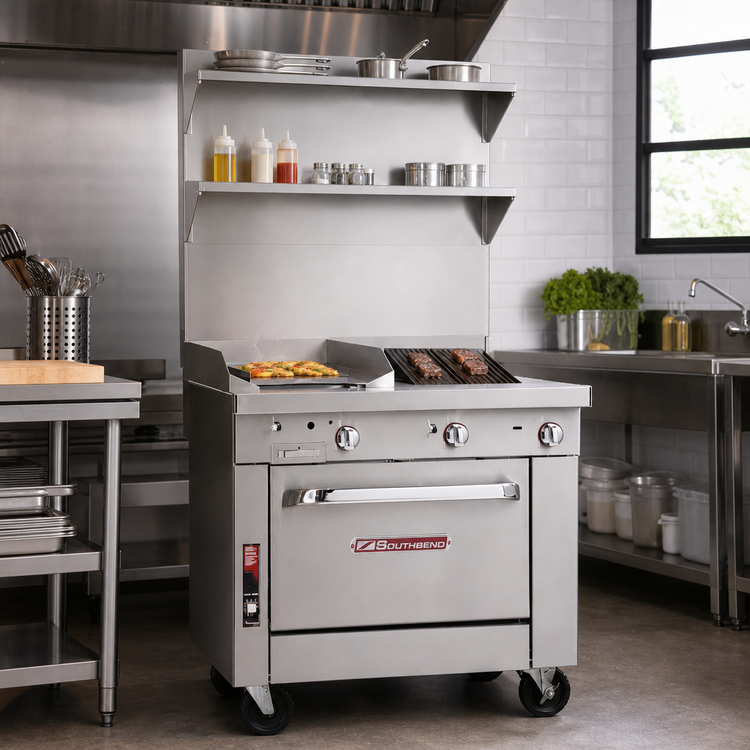

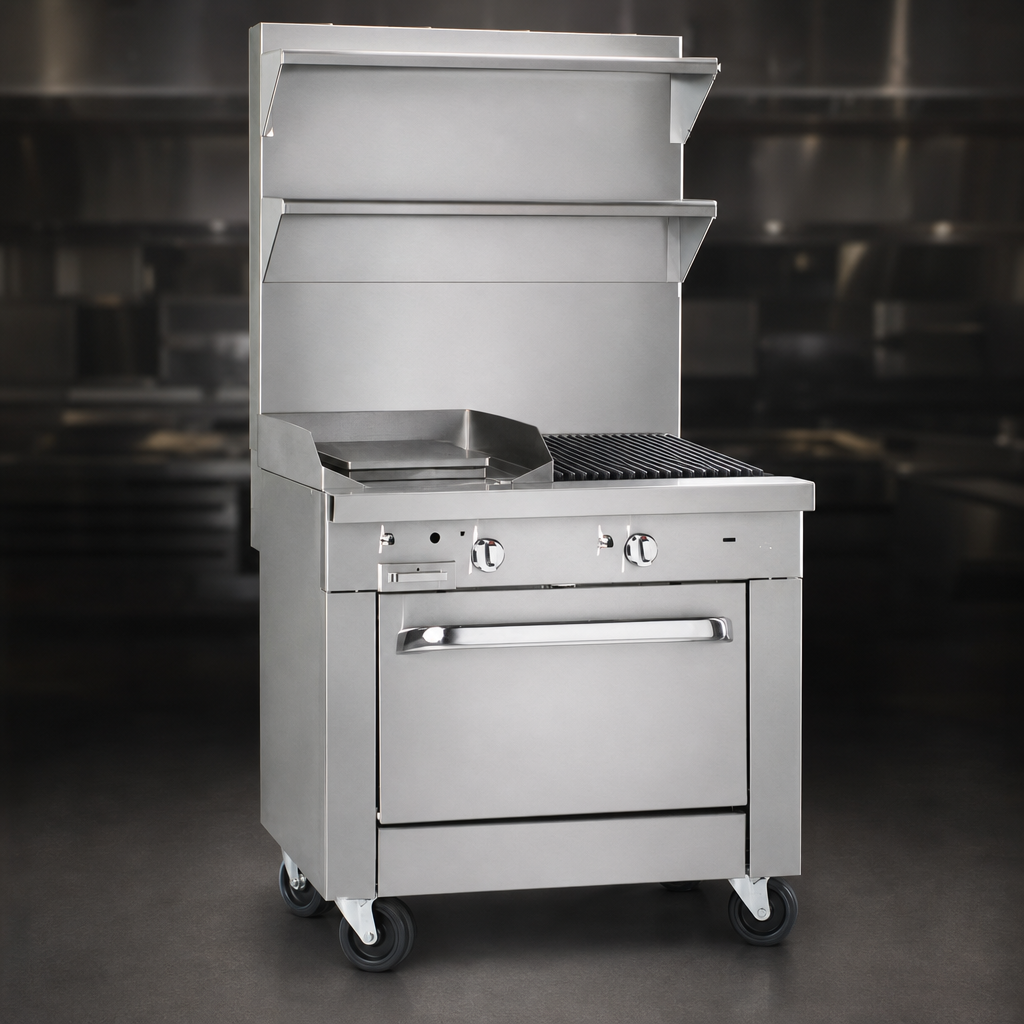

Southbend Platinum 36" Heavy-Duty Gas Range
24" Griddle • 12" Charbroiler • Convection Oven Base • 141,000 BTUPack maximum cooking power into a true 36-inch footprint. The Southbend Platinum Series range delivers a full-size griddle, a high-heat charbroiler, and a high-performance convection oven—all built, tested, and certified in the USA for the most demanding commercial kitchens.
Top reasons chefs choose Platinum
- Three cooking stations in one compact unit—grill, sear, and bake without reshuffling the line.
- 1" thick, manually-controlled griddle plate spreads heat evenly for breakfast rushes and burger volume alike.
- Cast-iron charbroiler grates flip to ⅛" or ¼" spacing and adjust front-to-back slope for flawless grill marks.
- Battery spark ignition removes standing pilots on the cooktop, reducing heat and energy use.

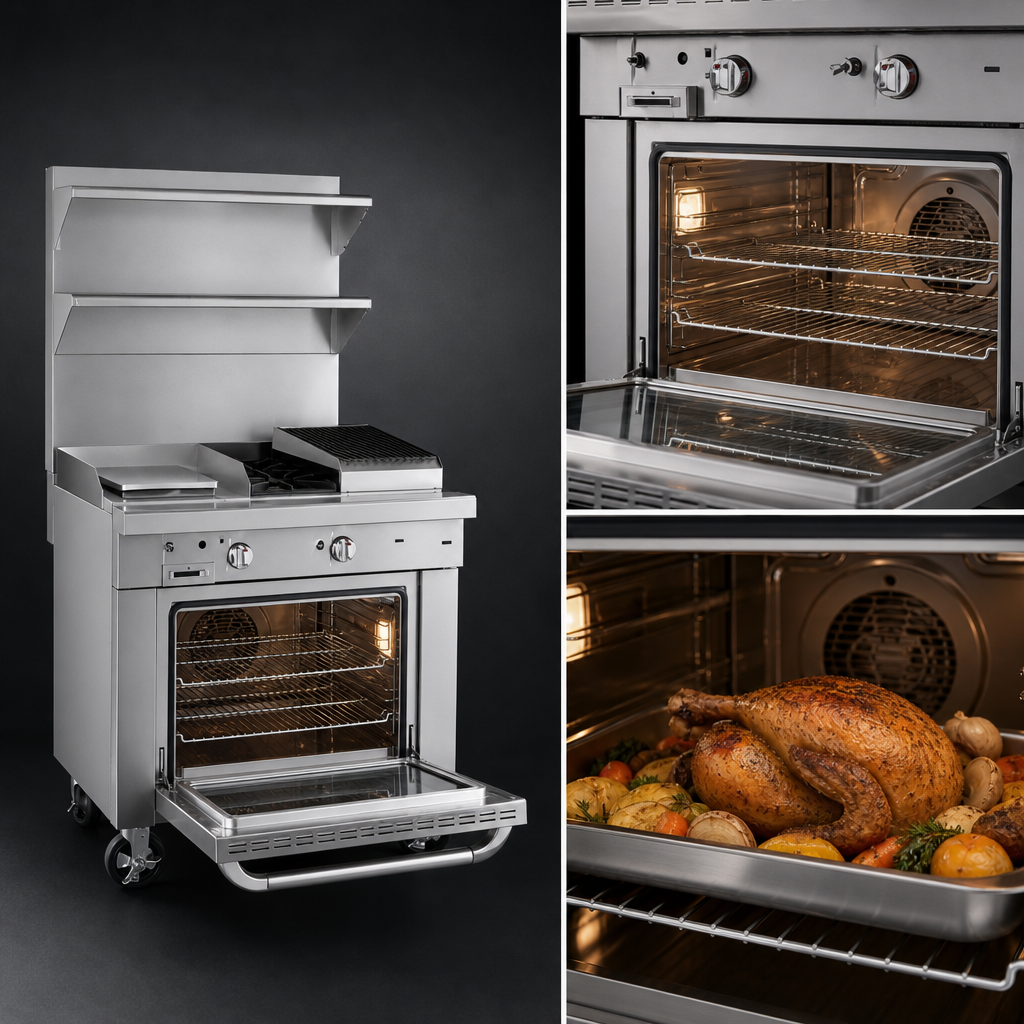

- 45 kBTU convection oven (175-550 °F) with three chrome racks and a two-speed ½ hp blower for even, fast bakes.
- All-stainless front, sides, rear, and bottom plus 6" adjustable stainless legs—ready for the toughest shift.
- 9¼" deep front rail and full-width drip & grease drawers speed up end-of-day cleanup.
- Certified cCSAus, CSA Flame, CSA Star, NSF; proudly made in Fuquay-Varina, North Carolina.
Specifications
| Model | P36A-GGC (Platinum Series) |
|---|---|
| Cooking surface |
24" W griddle, 1" plate (manual “G” valve) 12" W charbroiler, cast-iron grates |
| Total output | 141,000 BTU/hr (Natural gas) |
| Oven interior | 14" H × 26" W × 24" D porcelain with 3 racks / 5 positions |
| Overall dimensions | 36" W × 40" D × 43½" H (with 36" flue riser) |
| Gas connection | 1¼" front manifold (couples to adjacent units), 1" rear NPT inlet Supply: 7" WC NG / 11" WC LP |
| Electrical | 120 V, 1-phase, 5.9 A (convection blower & electronic ignition) |
| Construction | Stainless steel front, sides, rear, exterior bottom & 6" legs |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Included with purchase
- (3) chrome oven racks
- Stainless steel grease drawer (griddle) & removable drip tray (charbroiler)
- 6" stainless adjustable legs
- Free battery-design assistance from Southbend engineers
Never place a sheet pan over the charbroiler while burners are on—doing so may cause damage not covered by warranty.
Need casters, chrome-plated griddle, or salamander mounting? Reach out—factory options are available to tailor this Platinum range to your exact line.
