Description

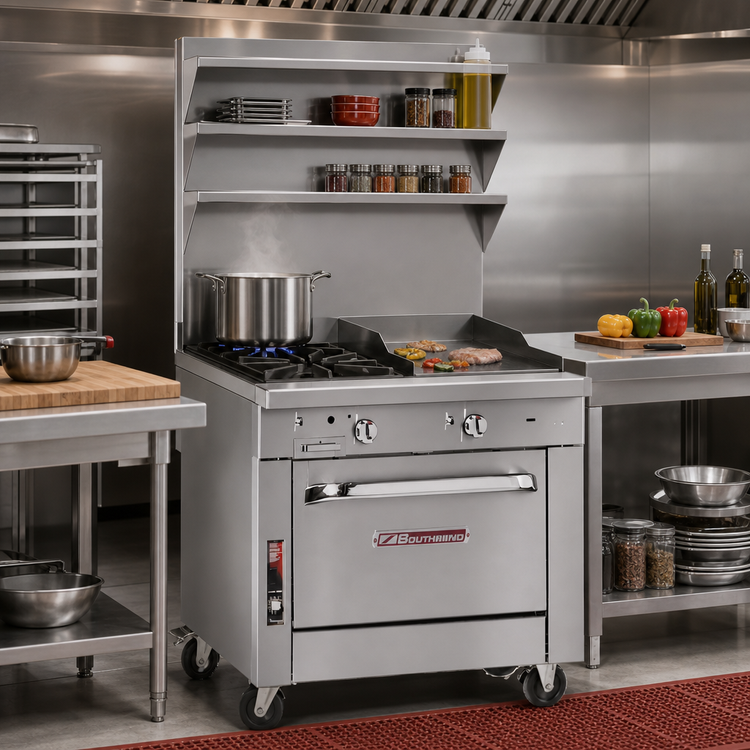

Southbend Platinum 36" Heavy-Duty Gas Range w/ Convection Oven

2 Clog-Free Burners • 24" Thermostatic Griddle • 179,000 BTU

Engineered for relentless commercial use, the Southbend Platinum Series model P36A-BTT combines intense burner power, precise griddle control and a full-size convection oven—all in a compact 36-inch footprint made in the USA.

Key Features

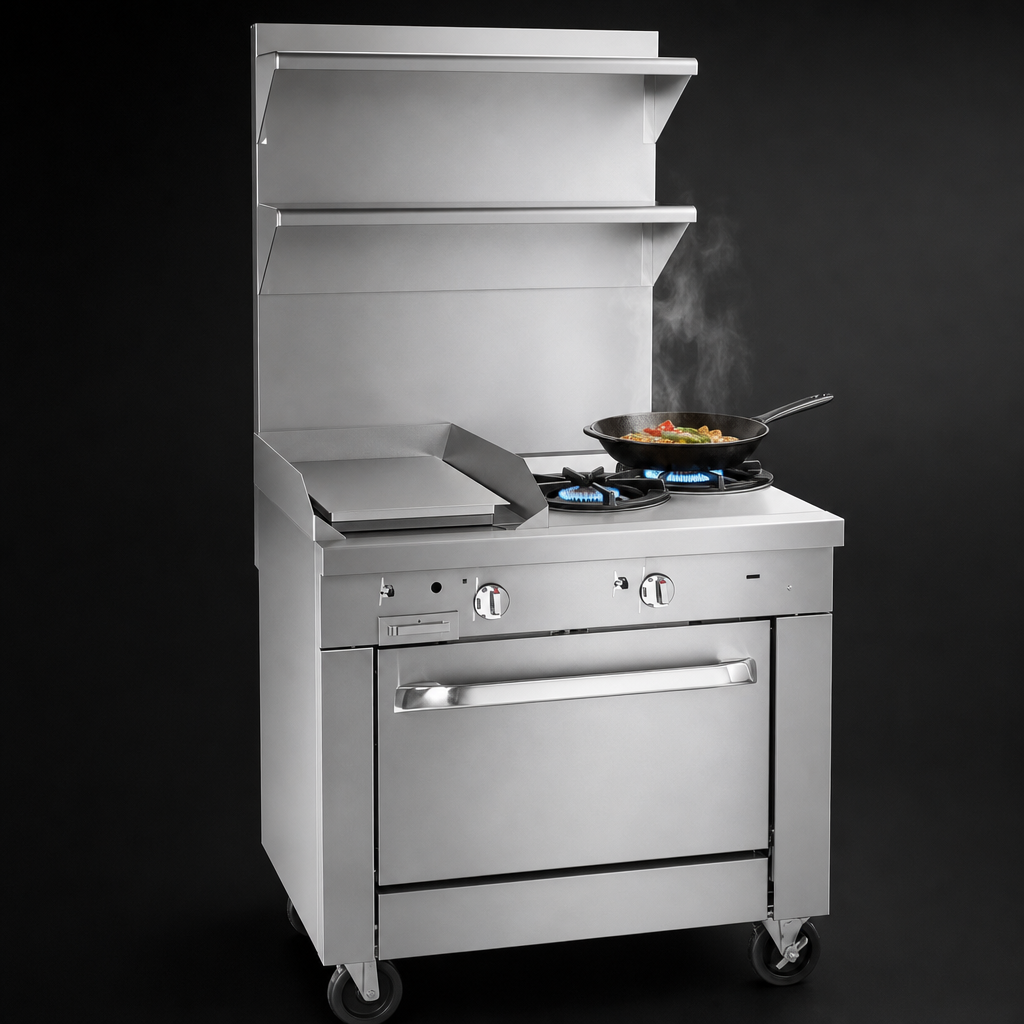

  • (2) 35,000 BTU patented clog-free open burners with removable cast-iron grates.

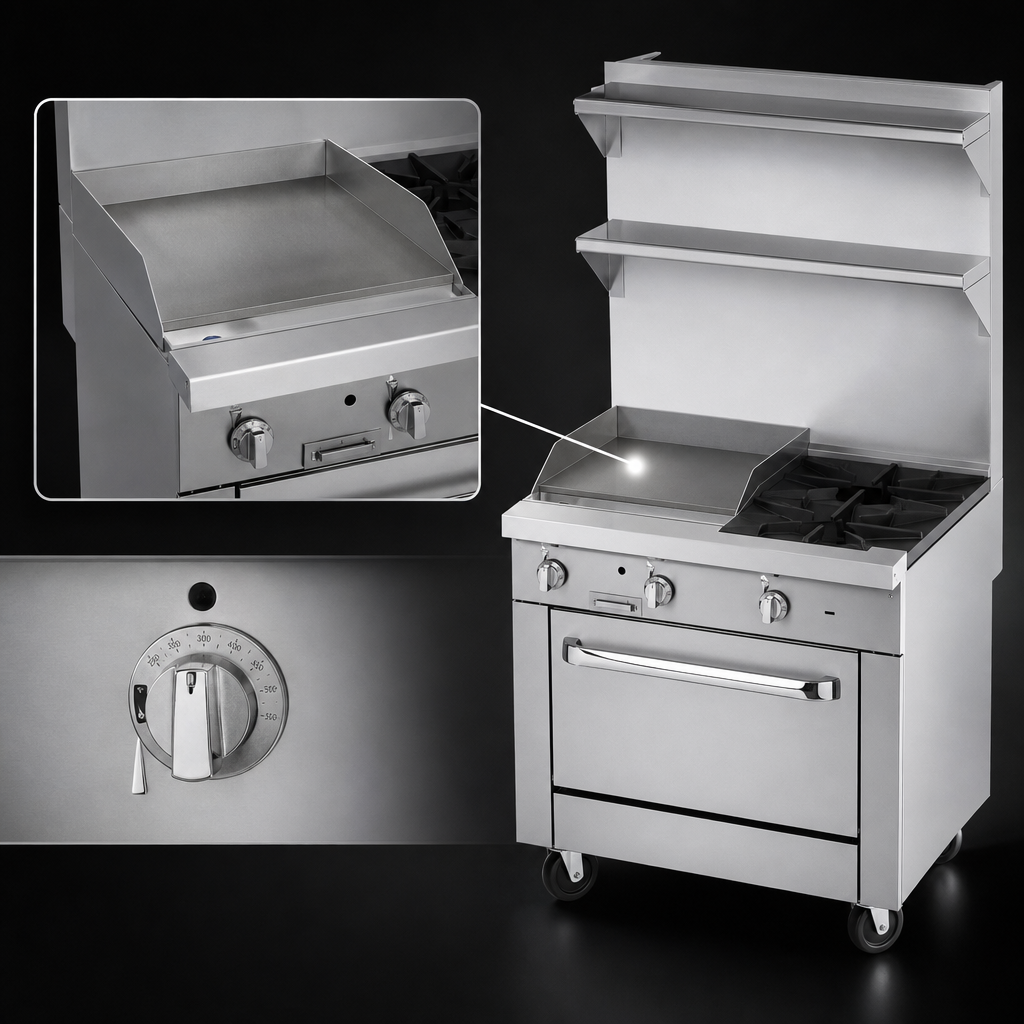

  • 24" thermostatic griddle
    • 1" thick steel plate with side & rear splashes
    • “Insta-On” thermostat maintains 180 °F – 400 °F
    • Battery-spark ignition & large stainless grease drawer
  • 45,000 BTU convection oven
    • Porcelain interior 14"H × 26"W × 24"D
    • (3) nickel-plated racks, 5 positions
    • Two-speed ½ hp blower for even baking/roasting
  • All-stainless exterior (front, sides, rear, bottom) with 6" adjustable legs.
  • 9-¼" deep cool-touch front rail for plating & staging.
  • 1-¼" front gas manifold couples to adjoining sectional units.
  • Battery-spark ignition throughout—no standing pilots.
  • Certifications: cCSAus, CSA Flame, CSA Star, NSF.
  • Backed by a 1-year parts & labor warranty.
Specifications
Model P36A-BTT
Width 36" / 914 mm
Depth 37.5" / 953 mm
Height 36" cooking surface, 41" top of 5" flue riser
Total BTU 179,000 BTU/hr (Natural or LP)
Open Burners 2 × 35,000 BTU cast-iron
Griddle 24" W, 1" thick, thermostatic, 64,000 BTU
Oven Gas convection, 45,000 BTU; fits full-size sheet pans
Gas Connection 1" NPT rear; 1-¼" front manifold
Electrical 120 V, 1-phase, 5.9 A (factory-installed cord & plug)
Construction Stainless steel, fully insulated burner box
Certifications cCSAus, CSA Flame, CSA Star, NSF
Origin Made in USA
Warranty 1 year parts & labor
Popular Factory Options (sold separately)
  • Chrome-plated or grooved griddle surface
  • 24" or 36" flue riser with one or two shelves
  • Locking caster kit with restraining cable
  • 10" deep or belly-bar front rail
  • External gas pressure regulator
Installation notice: Unit must be installed under a vented hood with a regulated gas supply (min. 7" W.C. Natural / 11" W.C. LP). A restraining device is required when casters are used.

Need a different top configuration or battery design? Contact your Southbend representative for free design assistance.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame, Made in USA

Height

41.0in

Width

36.0in

Depth

40.25in

Shipping Weight

800.0lbs

Exterior Finish

stainless steel front & sides

Plate Thickness

1.000" = 1"

Top

(2) open burners, (1) 24" griddle with thermostats

Base

(1) convection oven

Specifications

Platinum Heavy Duty Range, gas, 36", (2) 35,000 BTU open burners, (1) 24" griddle, thermostatic controls, battery spark ignition, (1) convection oven, includes (3) racks, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 179,000 BTU, cCSAus, CSA Flame, CSA Star, NSF, Made in USA
