Southbend (Middleby) P36A-BHH Platinum Gas Ranges
Description

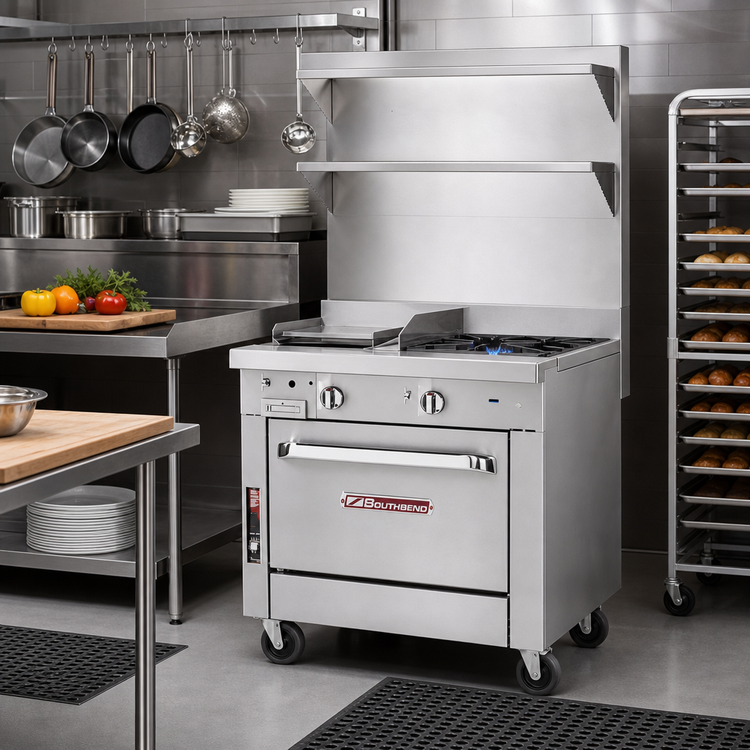

Platinum 36" Heavy-Duty Gas Range w/ (2) Open Burners, (2) 12" Hot Tops & Convection Oven
Southbend | Model P36A-BHH | 179,000 BTU | Made in USABuilt for the busiest professional kitchens, Southbend’s Platinum Series brings uncompromising power, durability, and flexibility to your cookline. This 36" heavy-duty range combines high-performance open burners, instant-ready hot tops, and a full-feature convection oven in one rugged, fully-stainless package.

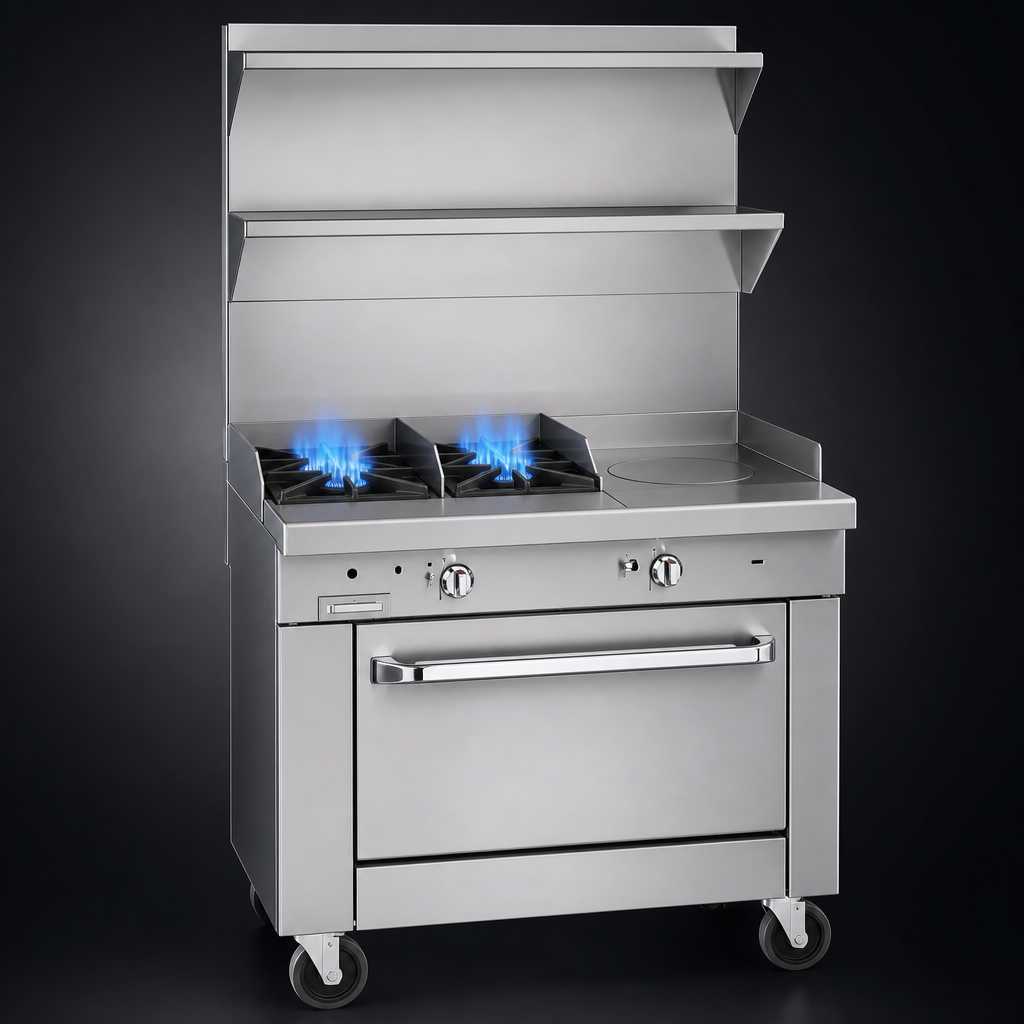

Key Performance Features- (2) 35,000 BTU clog-free cast-iron open burners – perfect for high-heat sautés & rapid boils.

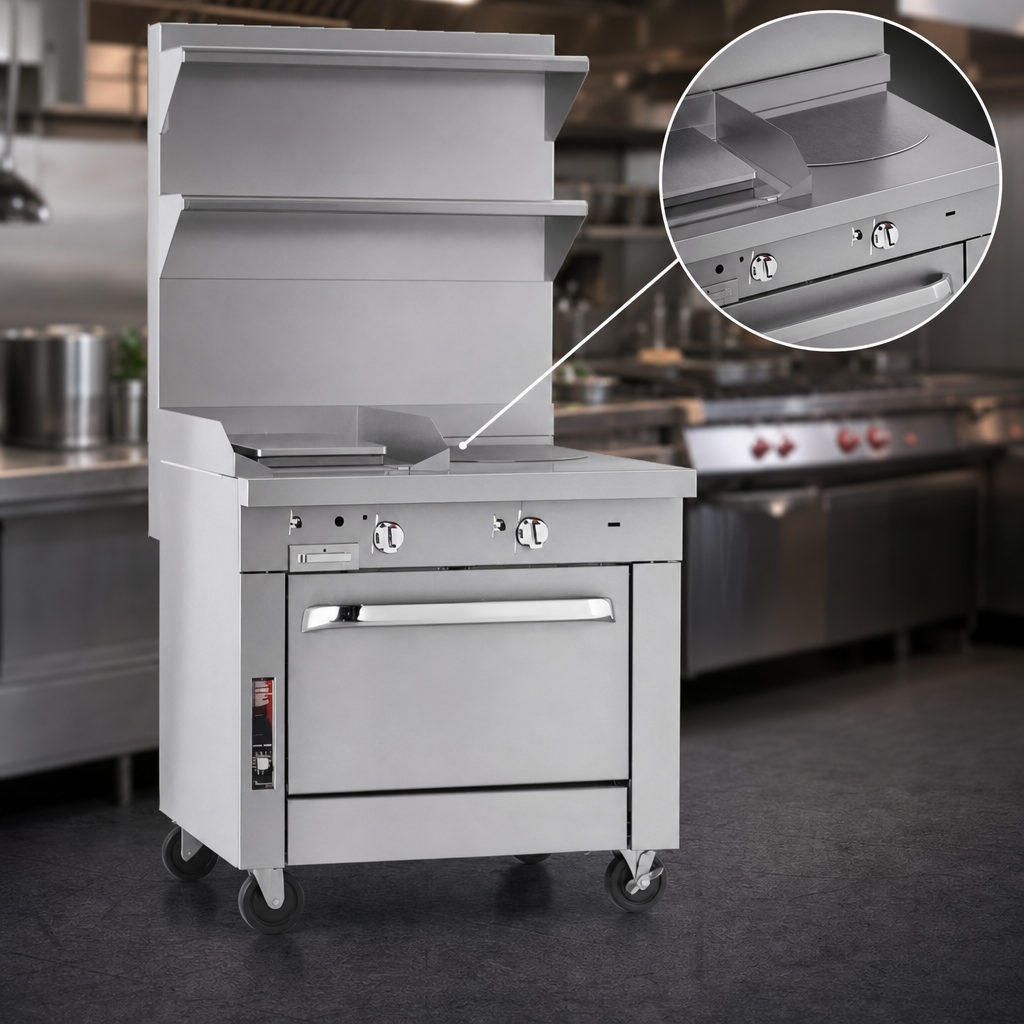

- (2) 12" hot tops, each with dual 16,000 BTU burners and a single high/low control – maintain up to 700 °F plate temperature for gentle holds or high-volume stock work.
- 45,000 BTU convection oven with two-speed ½ HP blower for fast, even baking & roasting.
- Manual top controls plus battery spark ignition for reliable, match-free lighting.
- Porcelain-enameled oven interior; includes 3 heavy-duty racks with 5 positioning guides.
- 9¼" deep front rail, recessed drip trays, and removable tops for rapid end-of-shift cleanup.
- All-stainless exterior (front, sides, rear & bottom) resists corrosion and wipes clean.
- 6" stainless steel adjustable legs keep the range level and simplify floor sanitation.
- Free battery-design assistance – Platinum sections couple seamlessly for custom cook suites.
| Cooktop Configuration | (2) 35 kBTU open burners | (2) 12" hot tops |
|---|---|
| Total Input | 179,000 BTU/hr (Natural Gas or LP) |
| Oven Type / Capacity | Gas convection, 14"H × 26"W × 24"D, 3 racks |
| Controls | Manual top valves • Oven thermostat 175 °F – 550 °F |
| Ignition | Battery spark (top & hot tops) • Standing pilot (oven) |
| Gas Connections | 1¼" front manifold couples to adjoining sections; 1" rear NPT |
| Minimum Supply Pressure | 7" W.C. Natural • 11" W.C. Propane |
| Electrical (oven blower) | 120 V, 1-phase, 5.9 A, 7-ft cord & plug |
| Overall Dimensions | 36"W × 40"D × 43½"H (to top of 5" flue riser) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1 year parts & labor (see warranty statement) |
- High-volume restaurants & hotel banquet kitchens
- Catering operations needing maximum menu flexibility in minimal footprint
- Institutional foodservice – schools, hospitals, correctional facilities
Oversized cookware (12" +) should be limited to rear grates to avoid heat damage to front components. Always follow Southbend’s cleaning & maintenance guidelines to keep your warranty intact.
