Southbend (Middleby) P36A-BGG Platinum Gas Ranges
$17,723.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) P36A-BGG Platinum Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P36A-BGG Platinum Gas Ranges
$17,723.00
Unit price
/
Unavailable
Description
Southbend Platinum 36" Heavy-Duty Gas Range
2 Open Burners • 24" Manual Griddle • Convection Oven BaseBuilt for round-the-clock, high-volume cooking, the Platinum Series 36" Combination Range delivers a powerful 179,000 BTU punch in a space-saving footprint—perfect for restaurants, hotels, institutions and commissaries that refuse to compromise on performance or durability.
Why You’ll Love It

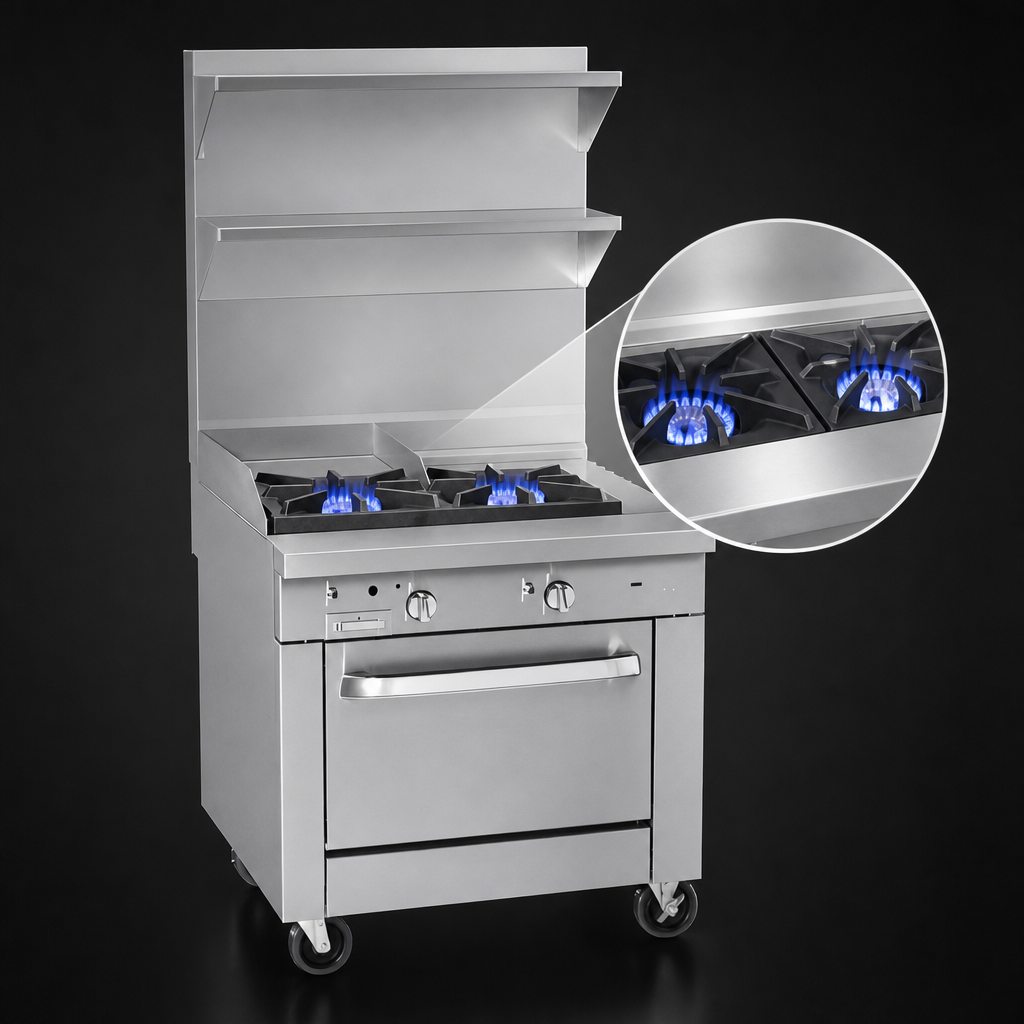

- Two clog-free 35,000 BTU open burners with removable cast-iron grates

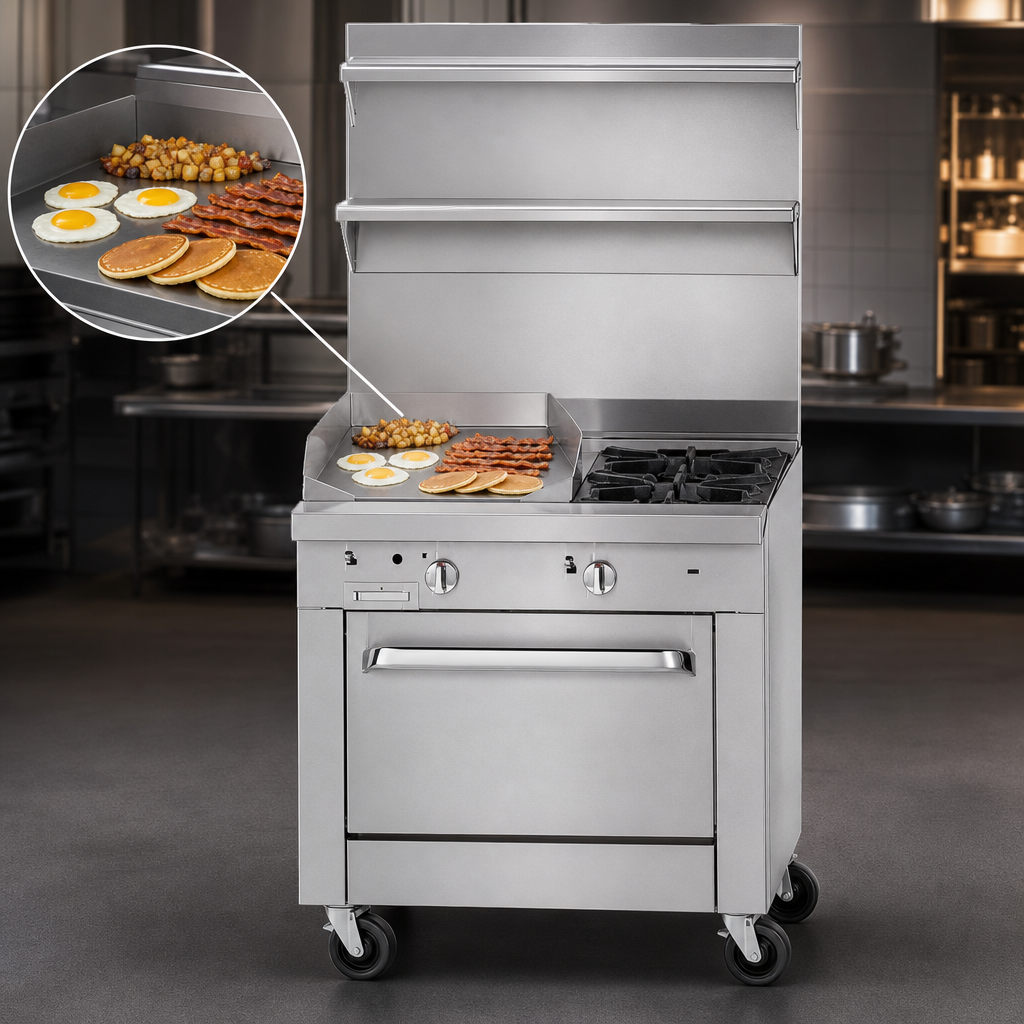

- 24" manual-control griddle with a 1" thick polished steel plate and battery spark ignition
- 45,000 BTU convection oven base with 5-position slides & 3 chrome racks included
- Stainless-steel front, sides, rear and exterior bottom—easy to clean, built to last
- 9-1/4" deep front rail provides a convenient plating surface and protects controls
- 5" stainless-steel flue riser safely vents heat and combustion gases
- 6" stainless-steel adjustable legs for quick, rock-solid leveling
- Battery-ready 1-1/4" front gas manifold couples seamlessly to other Platinum modules
- Fully certified: cCSAus, CSA Flame, CSA Star, NSF
Made in the USA
Technical Specs
| Total Input (Natural Gas) | 179,000 BTU/hr |
|---|---|
| Open Burner Section | 2 × 35,000 BTU clog-free burners |
| Griddle Section | 24" wide, manual controls, battery spark ignition |
| Griddle Plate | 1" thick polished steel |
| Convection Oven | 45,000 BTU; 175–550 °F thermostat; two-speed ½ HP blower |
| Oven Interior (H × W × D) | 14" × 26" × 24" (356 mm × 660 mm × 610 mm) |
| Racks Supplied | 3 chrome-plated, adjustable to 5 positions |
| Gas Connections | 1-1/4" front manifold, 1" rear NPT |
| Overall Dimensions (W × D × H) | 36" × 38-3/8" × 45-5/8" (+5" flue riser) |
| Approx. Shipping Weight | 710 lb (322 kg) |
Perfect For
- High-volume restaurants and gastro pubs
- Catering facilities & banquet kitchens
- University, hospital and institutional foodservice
- Hotel main kitchens and room-service lines
What’s Included
- 3 chrome convection-oven racks
- Removable stainless-steel grease drawer (griddle) & drip tray (open burners)
- Battery spark ignition on griddle and burners
- One-year limited parts & labor warranty
Popular Add-Ons (sold separately)
- Grooved or chrome-plated griddle surface
- Flue-mounted shelves or salamander broiler
- Factory-installed casters & restraining kit
- External gas pressure regulator
Important: To prevent heat damage, never allow cookware to overhang the front rail
and do not place sheet pans directly on the griddle or charbroiler while burners are lit.
Commercial use only. Installation under a vented hood and a regulated gas supply are required.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Platinum
Certifications
NSF, cCSAus, CSA Star, CSA Flame, Made in USA
Height
41.0in
Width
36.0in
Depth
40.25in
Shipping Weight
800.0lbs
Plate Thickness
1.000" = 1"
Top
(2) open burners, (1) 24" griddle
Base
(1) convection oven
Exterior Finish
stainless steel front & sides
Specifications
Platinum Heavy Duty Range, gas, 36", (2) 35,000 BTU open burners, (1) 24" griddle, manual controls, battery spark ignition, (1) convection oven, includes (3) racks, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 179,000 BTU, cCSAus, CSA Flame, CSA Star, NSF, Made in USA
