Southbend (Middleby) P36A-BCC Platinum Gas Ranges
Description

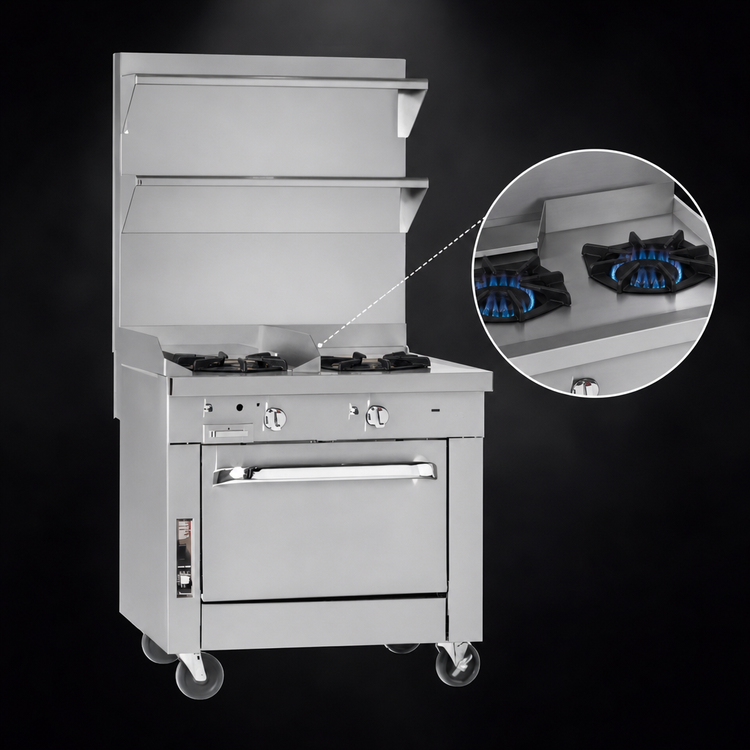

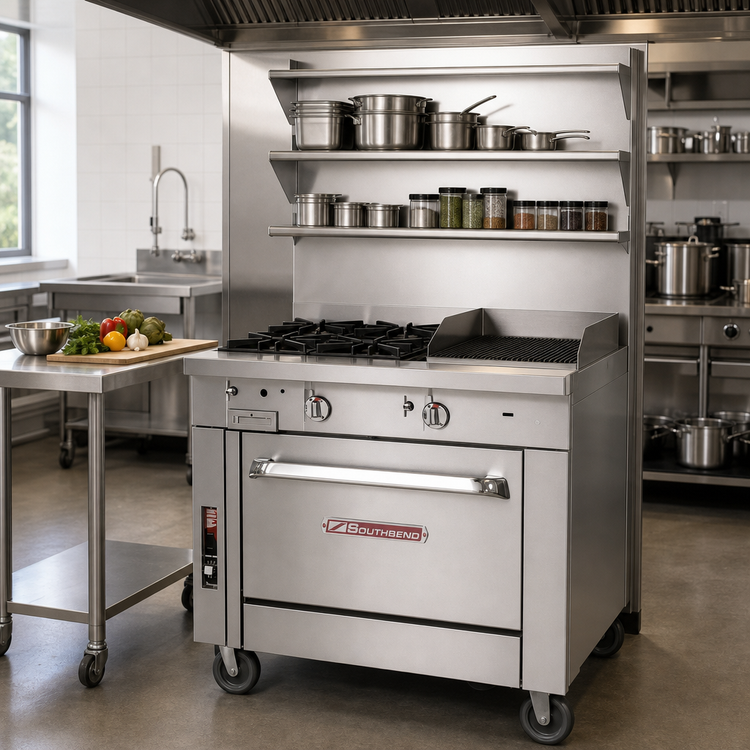

Platinum 36" Heavy-Duty Gas Range
2 Open Burners • 24" Charbroiler • Convection Oven BaseBuilt in North Carolina for the most demanding kitchens, the Southbend Platinum Series P36A-BCC packs powerful, precise cooking into a single 36" footprint. From rapid sautéing and flame-kissed grilling to high-volume baking, this all-in-one workhorse delivers a combined 179,000 BTU of dependable, operator-friendly performance.
Top-Of-Range Performance

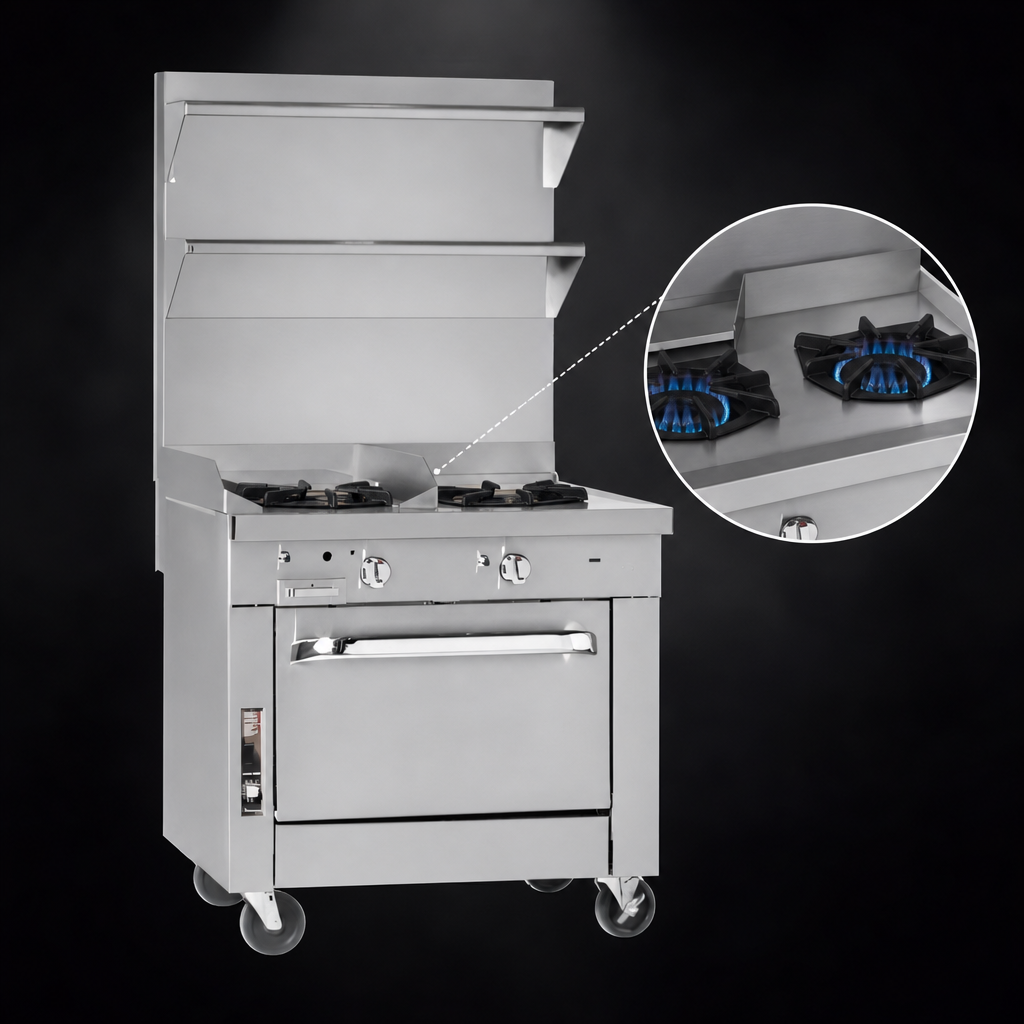

- (2) 35,000 BTU clog-free open burners with removable welded steel grates and drip tray

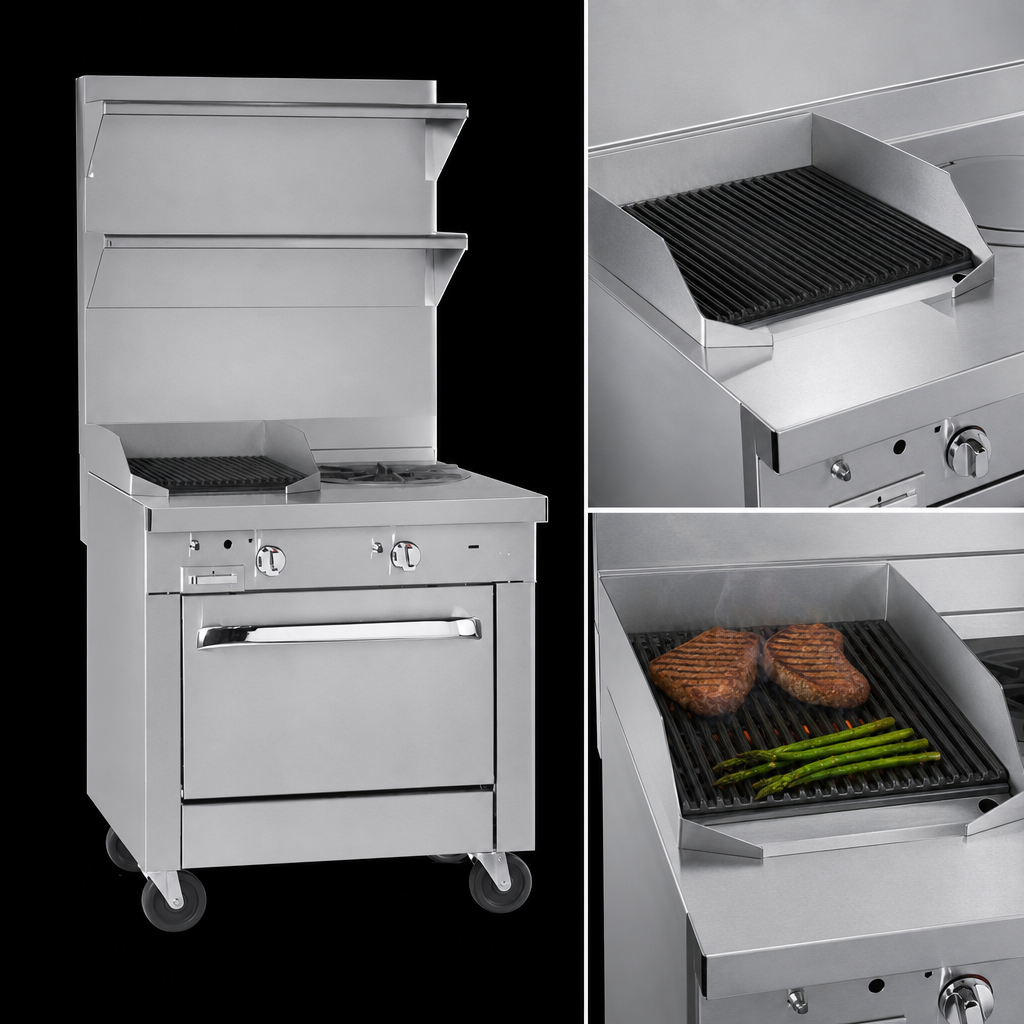

- 24" manual charbroiler – 64,000 BTU with stainless steel radiants, flip-over cast-iron grates (1/8" or 1/4"), 600 °F surface temperature and front-to-back slope adjustment
- 9-1/4" deep front rail keeps pans within reach and away from controls
- 5" stainless flue riser vents heat up and away from the line
Convection Oven Base
- 45,000 BTU burner with standing pilot and electronic ignition option
- Thermostat range: 175 °F – 550 °F (79 °C – 288 °C)
- 14" H × 26" W × 24" D porcelain-enameled cavity
- (3) nickel-plated racks on 5-position side rails
- Two-speed ½ hp blower motor for even heat distribution
Built To Last
- All-stainless exterior (front, sides, rear & bottom) with fully-insulated burner box
- 6" adjustable stainless steel legs
- 1-¼" front gas manifold & 1" rear male NPT connection for easy battery installation
- Free factory battery-design assistance
- Made in the USA and backed by a 1-year parts & labor warranty
Specifications
| Model | P36A-BCC |
|---|---|
| Overall Width | 36" (914 mm) |
| Total Input | 179,000 BTU/hr (Natural or Propane convertible) |
| Top Configuration | (2) Open Burners @ 35,000 BTU each (1) 24" Charbroiler @ 64,000 BTU |
| Oven Type / Input | Convection, 45,000 BTU/hr |
| Electrical | 120 V, 1 ph, 5.9 A (for blower & optional electronic ignition) |
| Gas Connections | Front 1-¼" manifold (battery) Rear 1" NPT |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (Heavy Duty Sectional) |
| Country of Origin | United States of America |
• Never place sheet pans directly on the charbroiler grates while burners are on; reflected heat can cause permanent damage.
Need a different top arrangement, rail depth, or a flue-mounted salamander? Southbend offers factory-configured options & accessories upon request.
