Southbend (Middleby) P36A-BBH Platinum Gas Ranges
Description

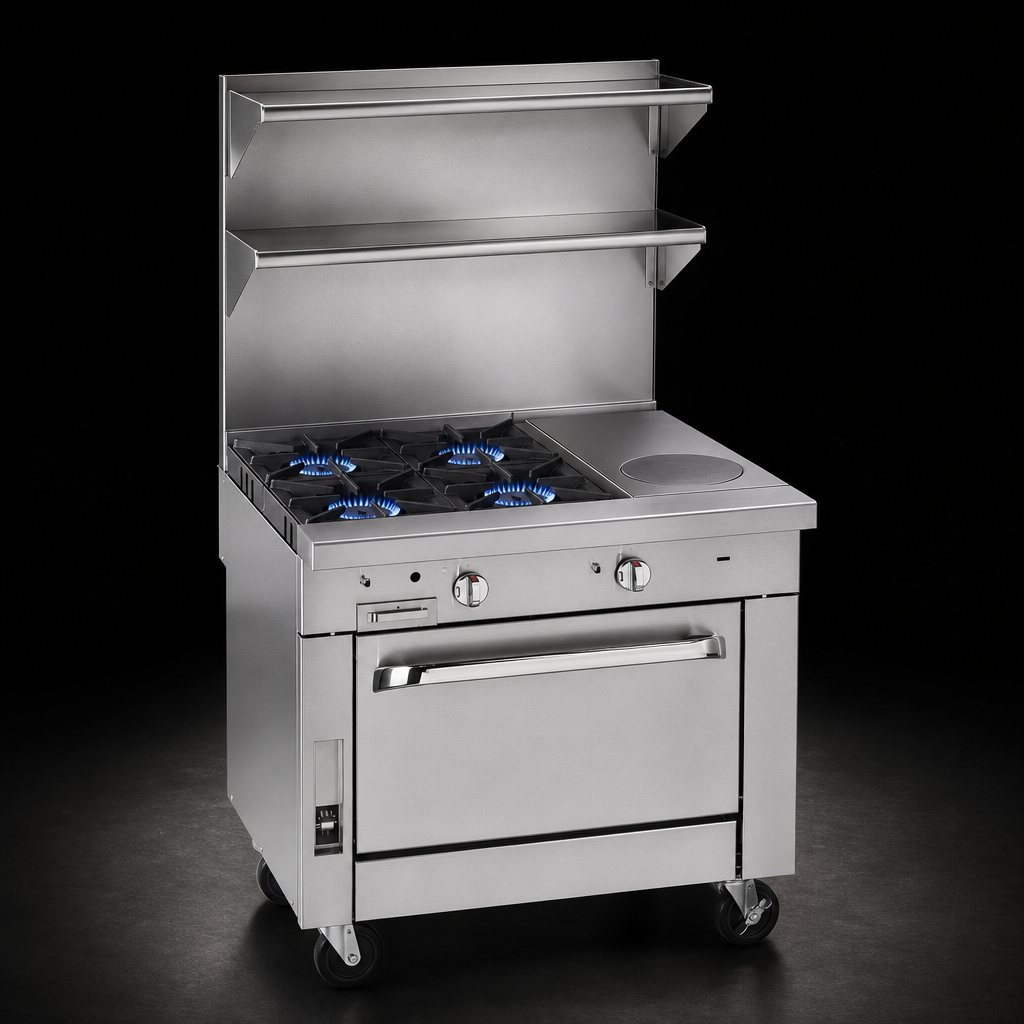

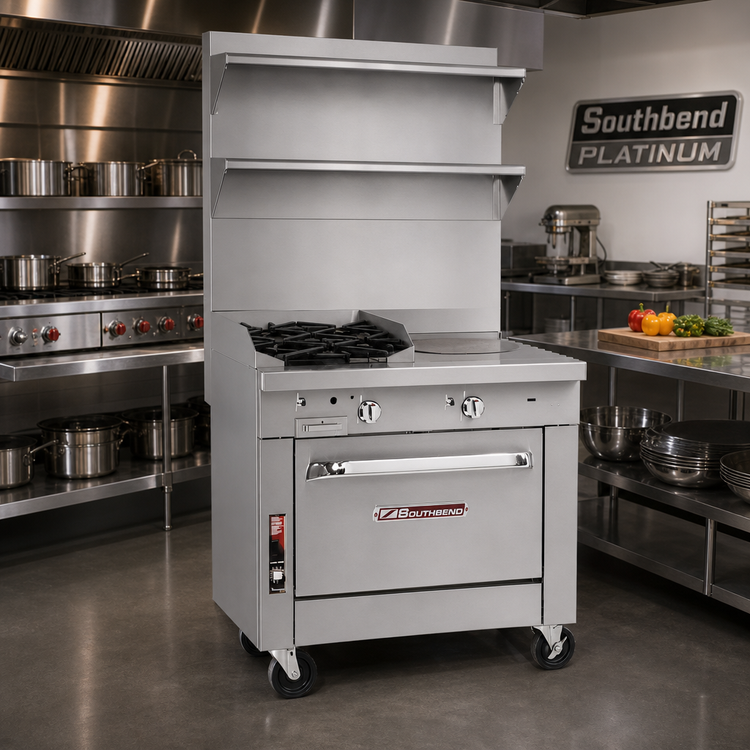

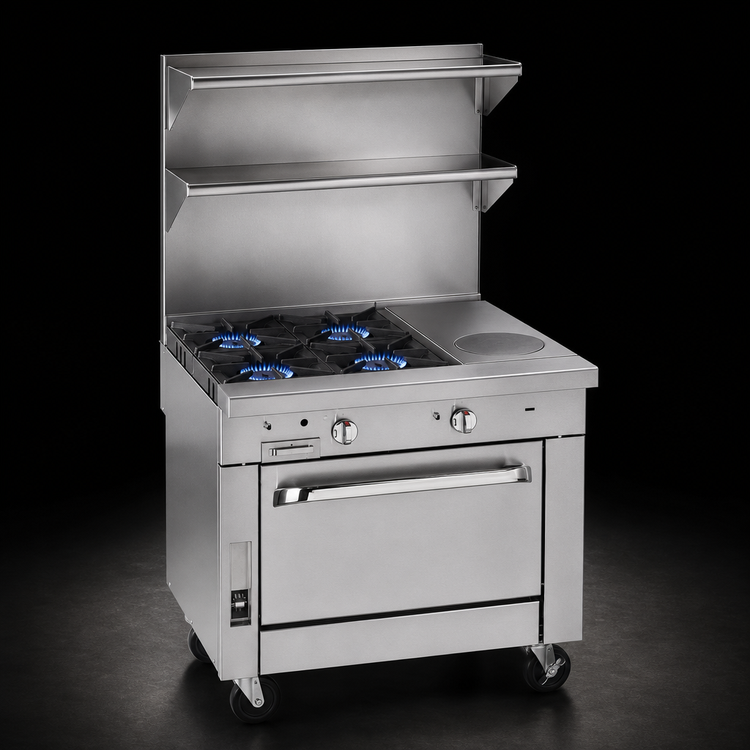

Southbend Platinum 36" Heavy-Duty Gas Range
(4) 35,000 BTU Open Burners • 12" Hot Top • Convection Oven BaseBuilt in Fuquay-Varina, NC, the Southbend Platinum Series P36A-BBH combines maximum cooking power, rugged all-stainless construction and the versatility serious commercial kitchens demand. From high-heat sautéing on the open tops to gentle holding on the hot top and fast, even baking in the convection oven, this 36-inch sectional range is engineered to outperform shift after shift.
Performance & Convenience
- Four patented clog-free open burners, each delivering 35,000 BTU for 140,000 BTU of instant, adjustable heat
- 12" hot top with two 16,000 BTU burners and a single high/low control—ideal for stock pots and low-simmer applications
- Battery spark ignition for quick, pilot-free lighting on the hot top (optional on open burners)

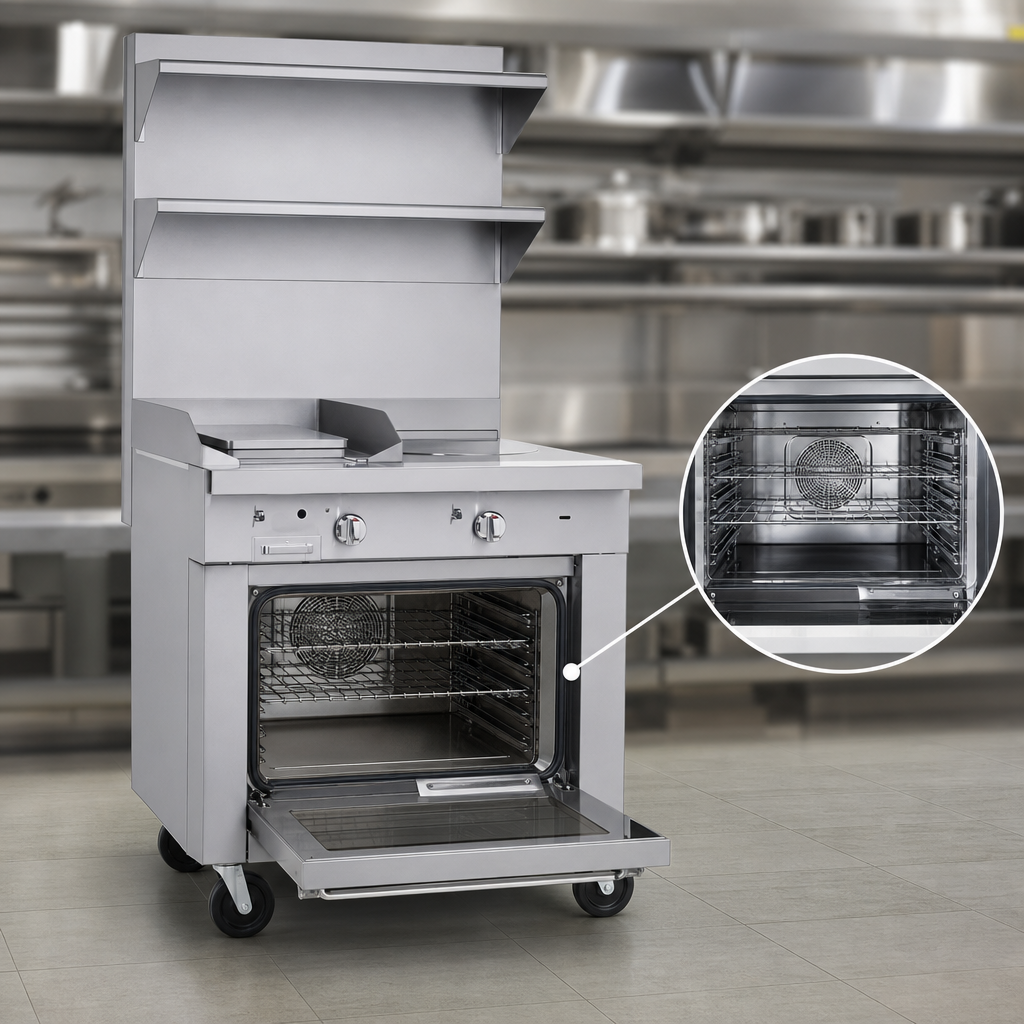

- 45,000 BTU convection oven with a 2-speed ½ HP fan, 175–550 °F thermostat and three chrome racks on 5 positions
- Fully insulated burner box and oven cavity for reduced ambient heat and lower energy costs
- 9-1/4" deep front rail for staging and plating, plus 5" stainless steel flue riser to keep heat away from the line
Built to Last
- All-stainless front, sides, rear and exterior bottom resist corrosion and wipe clean fast
- Removable, heavy cast-iron top grates and hot-top plates simplify daily cleaning
- 6" stainless steel legs with threaded inserts let you level the unit on uneven floors
- 1-1/4" front gas manifold couples seamlessly with other Platinum sectional units for batteried installations
- Made in the USA and backed by a 1-year parts & labor warranty
Specifications
| Model | Platinum P36A-BBH (convection oven base) |
|---|---|
| Overall Width | 36" (914 mm) |
| Overall Depth | 37-1/2" (953 mm) |
| Overall Height | 43-1/2" (1105 mm) with 5" flue riser |
| Total Input | 217,000 BTU/hr (Natural Gas) |
| Open Burners | 4 × 35,000 BTU clog-free cast-iron burners |
| Hot Top | 12" wide; 32,000 BTU (2 × 16,000 BTU) with removable steel plates |
| Oven Interior | 14" H × 26" W × 24" D; porcelain enamel; three racks |
| Gas Connection | 1-1/4" front manifold & 1" rear NPT; 7" W.C. NAT / 11" W.C. LP minimum |
| Electrical | 120 V, 1-phase, 5.9 A (for convection blower & electronic ignition) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Shipping Weight | Approx. 710 lb (322 kg) |
| Origin | Made in USA |
Popular Options & Accessories
- External gas pressure regulator
- 24" or 36" flue riser with single or double shelves
- Locking front casters in place of legs
- 7-1/4" or 10" deep front rail with sauce-pan cut-outs
- Stainless steel oven interior
1-year limited parts & labor warranty. For complete terms see the Southbend Limited Warranty document.
