Southbend (Middleby) P36A-BBG Platinum Gas Ranges
Description
Southbend Platinum™ 36" Heavy-Duty Gas Range
4 Open Burners • 12" Manual Griddle • Convection Oven BaseBuilt for high-volume, around-the-clock kitchens, the Platinum Series sectional range delivers uncompromising power, rugged stainless-steel construction and the flexibility to grow with your line-up—all in a space-saving 36-inch footprint.
Why You’ll Love It
- Four clog-free open burners—35,000 BTU each (140,000 BTU total)

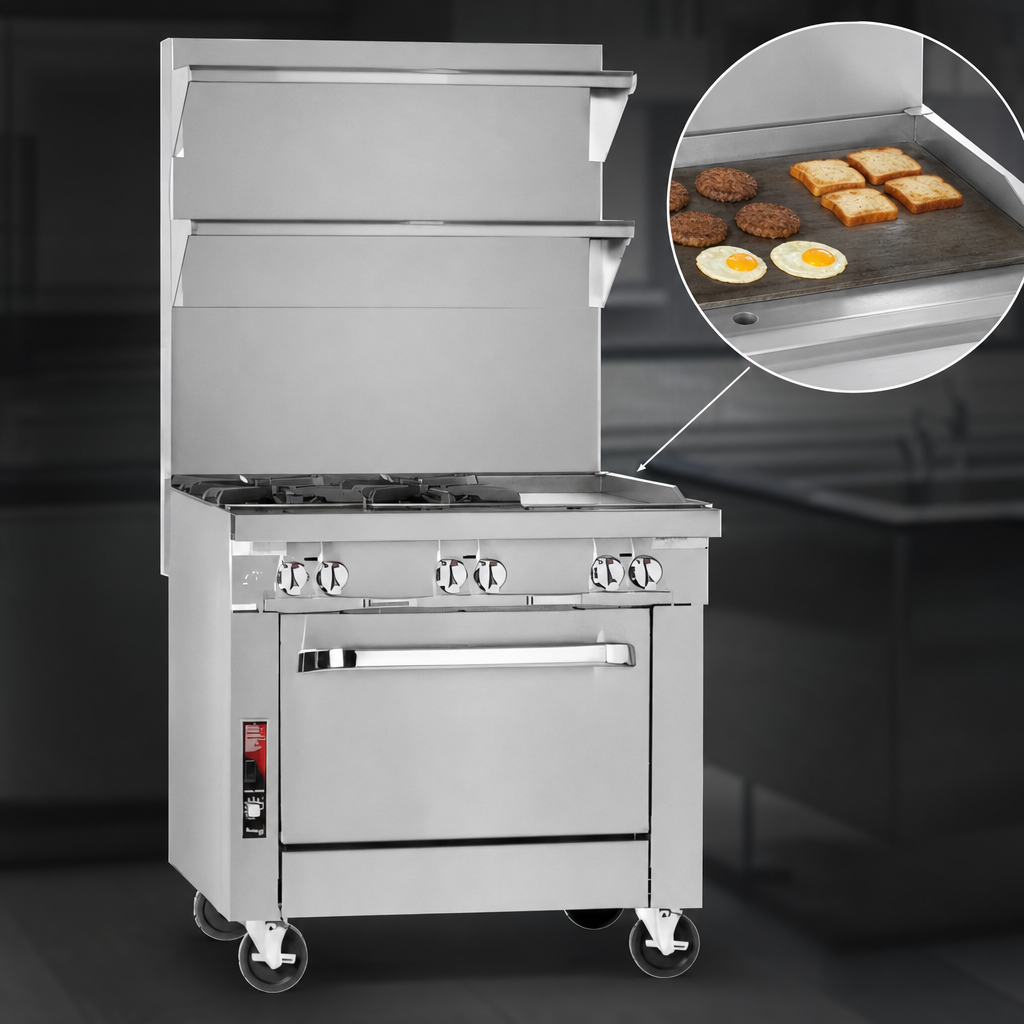

- 12" manual-control griddle with 1" thick polished plate, 32,000 BTU
- 45,000 BTU convection oven with standing pilot, 175 °F–550 °F thermostat & 2-speed ½ HP blower
- Three heavy-duty oven racks with five rack positions included
- Battery-spark ignition on burners and griddle reduces gas consumption
- 9¼" deep front rail plus 5" stainless flue riser keeps the cook line cooler
- All-stainless front, sides, rear & bottom plus 6" adjustable stainless legs
- 1¼" front gas manifold & 1" rear connection for easy line-up installation
- NSF listed, cCSAus / CSA Flame / CSA Star certified & proudly Made in the USA
Built for Performance
- Patented clog-free burner heads stay clear in grease-heavy environments.
- Fully insulated burner box and oven cavity maximize heat retention.
- Removable welded-steel top grates, drip tray and stainless grease drawer speed up nightly cleanup.
- Sectional design mates with other Platinum units—add refrigeration bases, extra tops or a salamander any time.
Specifications
| Model | P36A-BBG (Natural Gas or LP) |
|---|---|
| Overall Width | 36" (914 mm) |
| Overall Depth | 40" (1,016 mm) to front of rail |
| Cook-Surface Height | 37½" (953 mm) |
| Total Input | 217,000 BTU/hr |
| Open Burners | 4 × 35,000 BTU clog-free burners |
| Griddle | 12" W × 24" D × 1" thick plate, 32,000 BTU (manual control) |
| Oven Interior | 14" H × 26" W × 24" D, porcelain enamel |
| Oven Racks | 3 (five-position) |
| Gas Connection | 1 ¼" NPT front manifold, 1" NPT rear; 7" W.C. NG / 11" W.C. LP min. |
| Electrical | 120 V, 1-phase, 5.9 A (convection blower) |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor |
Looking for a different top configuration, refrigerated bases, or a matching salamander? Ask our equipment specialists—Platinum sectional ranges are fully modular.
