Southbend (Middleby) P36A-BBC Platinum Gas Ranges
Description
Southbend Platinum 36" Gas Heavy-Duty Range w/ 4 Burners, 12" Charbroiler & Convection Oven
Model P36A-BBC | 217,000 BTU | Natural GasBuilt for high-volume kitchens, the Platinum Series combination range delivers a powerful 217,000 BTU of cooking muscle in a space-saving 36-inch footprint. Four clog-free open burners, a true charbroiler, and a high-performance convection oven let you sauté, sear, grill, roast and bake from a single station—while rugged stainless-steel construction stands up to years of double-shift abuse.
Highlights
- All-in-one cooking suite: open burners, charbroiler and convection oven.
- Four 35,000 BTU patented clog-free burners for rapid heat recovery.

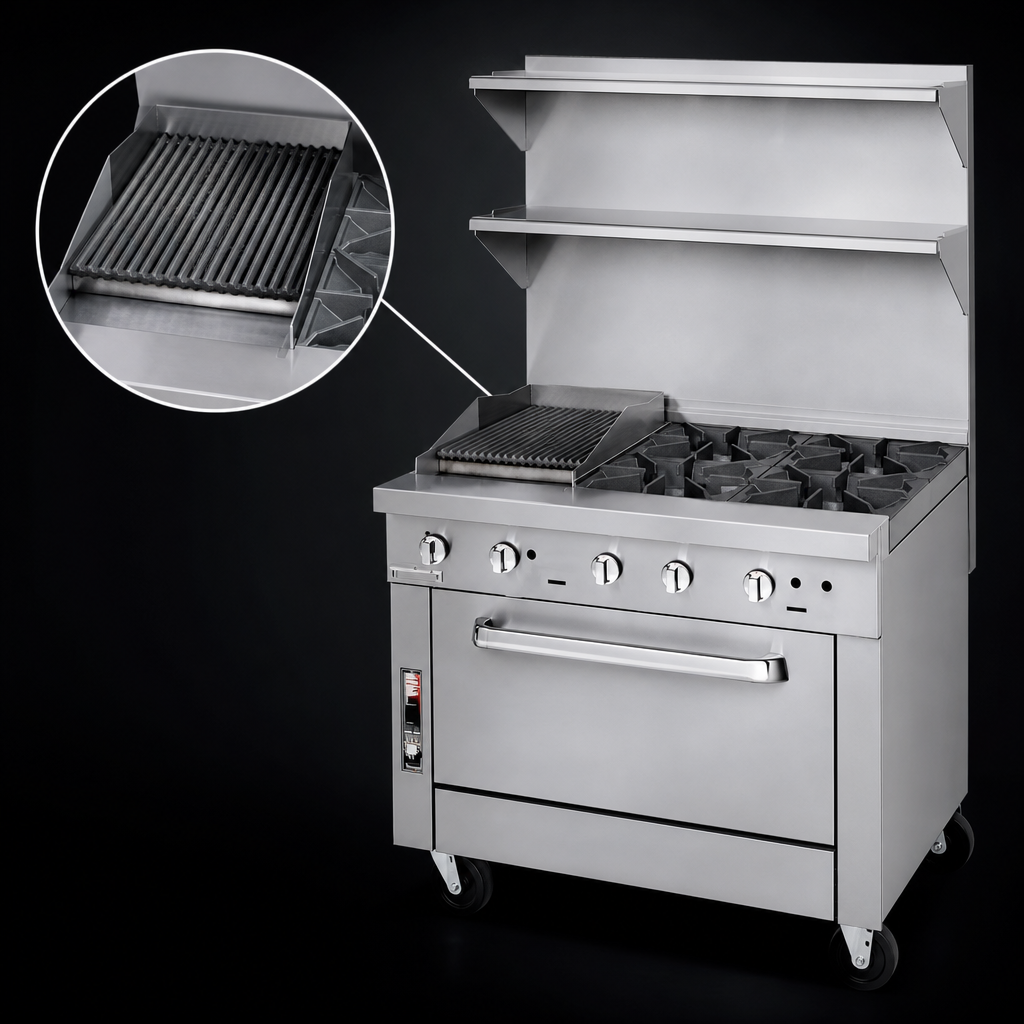

- 12" charbroiler with reversible cast-iron grates, stainless radiants & removable drip tray.
- 45,000 BTU convection oven with 1/2 hp two-speed fan and three pan racks.
- 9-1/4" deep front rail and 5" stainless flue riser reduce heat on the line.
- Made in the USA; backed by Southbend’s 1-year parts & labor warranty.
Top Cooking Surface
- 4 × 35,000 BTU open burners (140,000 BTU total) with removable welded-steel grates.
- 12" manual charbroiler with 2 × 16,000 BTU burners (32,000 BTU) and hi/lo control.
- Adjustable grate slope; flip for 1/8" or 1/4" grill marks.
- Easy-clean drip trays under both the burners and broiler section.
Convection Oven Base
- 45,000 BTU burner, 175 °F – 550 °F thermostat range.
- Porcelain-enameled cavity: 14" H × 26" W × 24" D.
- Three chrome racks; five rack positions fit full-size sheet pans.
- Two-speed, 1/2 hp blower ensures even bake & fast recovery.
- Standing pilot standard; electronic ignition available at no charge.
Specifications
| Dimensions | 36" W × 38 3/8" D × 43 1/2" H (to top of flue) |
|---|---|
| Total Input | 217,000 BTU/hr (Natural Gas) |
| Gas Connections | 1 1/4" NPT front manifold & 1" NPT rear; 7" W.C. min. supply pressure (NAT) |
| Electrical (oven fan) | 120 V, 1-ph, 5.9 A, 60 Hz (7-ft cord & plug) — 208/240 V terminal block optional |
| Legs | 6" stainless steel, adjustable |
| Construction | Stainless steel front, sides, rear & exterior bottom; fully-insulated liner |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Origin | Made in USA |
| Warranty | 1-year parts & labor (commercial use) |
Optional Upgrades (extra cost)
- Locking caster kit with restraining cable
- 24" or 36" flue riser with single or double shelving
- Salamander or cheesemelter mounting kit
- Stainless steel oven interior
- Grooved or chrome griddle plate (replaces charbroiler)
Need a different cooktop mix? Platinum Series modules are fully sectional—contact us for custom configurations and battery design assistance.
