Southbend (Middleby) P36A-BBB-SU Platinum Gas Ranges
Southbend (Middleby) P36A-BBB-SU Platinum Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P36A-BBB-SU Platinum Gas Ranges
Description

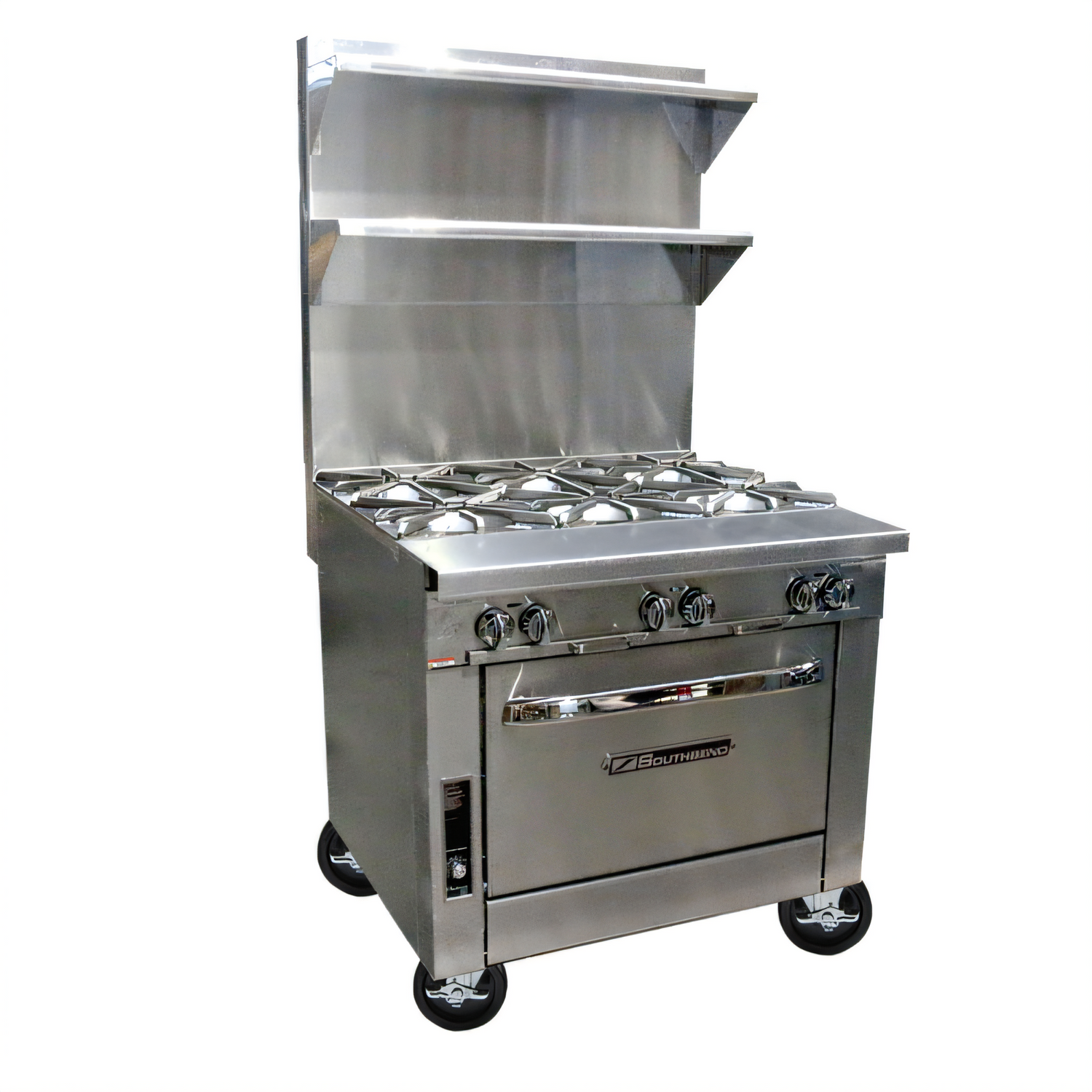

Southbend Platinum 36" Heavy-Duty Gas Range – 6 Open Burners + Convection Oven
Model P36A-BBB-SU | 255,000 BTU | CSA & NSF ListedBuilt for the relentless pace of high-volume kitchens, the Southbend Platinum Series 36" range combines six searing 35,000 BTU burners with a precision convection oven base. The rear row is raised 4" higher, giving you full view of every pot while keeping the compact footprint you need on a busy cookline.
Why chefs choose Platinum

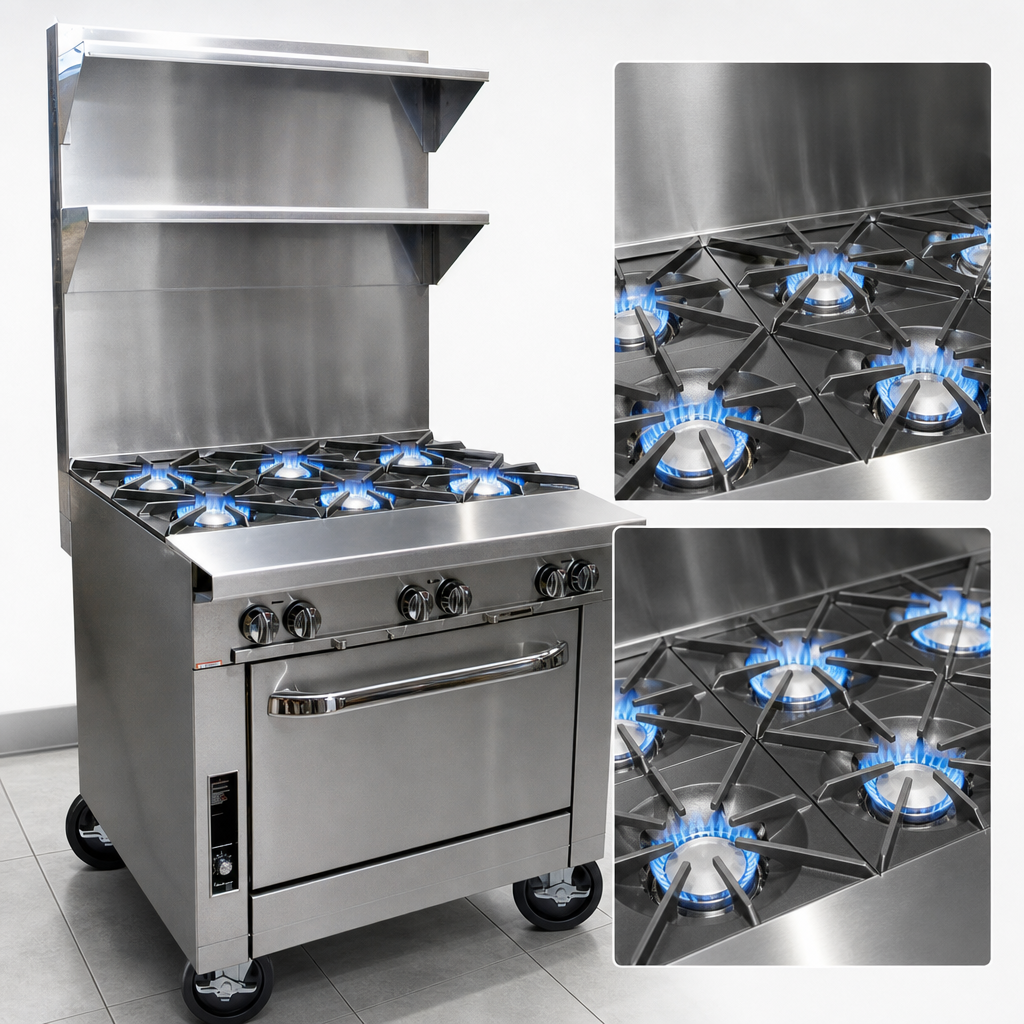

- Six 35,000 BTU patented clog-free open burners for consistent, even heat.

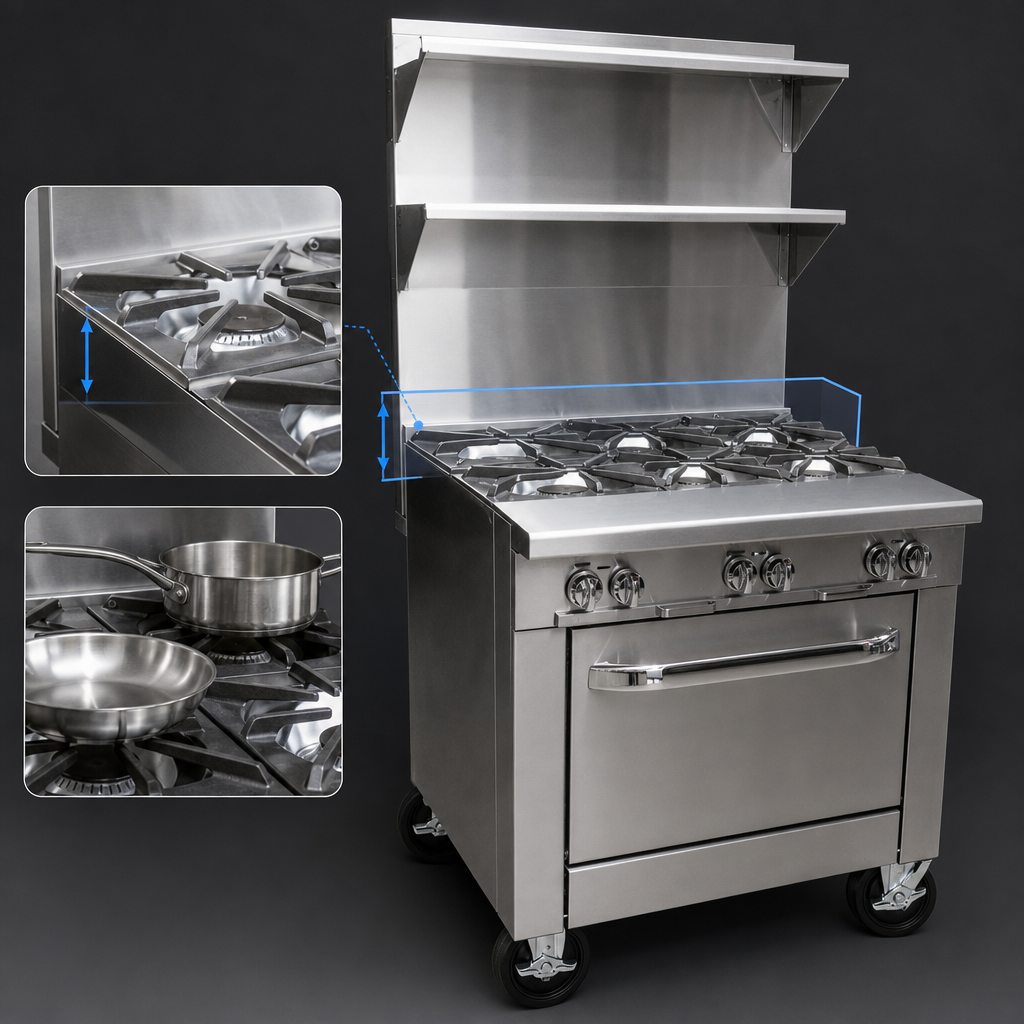

- Step-Up rear burners (4" higher) maximize capacity without crowding the front row.
- Full-size convection oven (45,000 BTU) with ½ hp two-speed blower and three chrome racks.
- 9-¼" deep front rail and removable drip tray for faster plating and cleanup.
- All-stainless exterior and 6" adjustable legs stand up to the toughest shifts.
- Battery-ready 1-¼" front manifold plus 1" rear gas connection for easy line-ups.
- Covered by Southbend’s 1-year parts & labor warranty and nationwide service network.
At-a-Glance Specs
| Overall width | 36" (914 mm) |
|---|---|
| Burners | 3 front open + 3 rear step-up |
| Open-top output | 6 × 35,000 BTU = 210,000 BTU |
| Oven type / output | Convection, 45,000 BTU • 175 °F–550 °F thermostat |
| Total gas input | 255,000 BTU/hr (natural or propane) |
| Oven interior (H×W×D) | 14" × 26" × 24" – fits full-size sheet pans either way |
| Electrical (blower) | 120 V, 1-phase, 5.9 A (7-ft cord with ground plug) |
| Exterior dimensions* | 36" W × 40" D × 43-½" H (with 36" flue riser) |
| Ship weight | ≈ 759 lb (344 kg) |
| Certifications | CSA, NSF |
*Height includes 5" flue riser and 6" legs. Optional 24" or 36" flue risers available.
Built for the Line, Ready for a Battery
Every Platinum section is modular, allowing this 36" range to anchor a standalone station or lock seamlessly into a multi-unit battery with griddles, charbroilers, or refrigerated bases. Front manifolds couple cleanly, keeping your cookline flush and efficient.
What’s in the Box
- (3) chrome oven racks with 5-position side rails
- 5" stainless steel flue riser
- Factory-installed 6" stainless steel adjustable legs
- User & installation manual
Need casters, electronic ignition, or custom battery design? Our foodservice specialists are ready to help configure the perfect Platinum solution for your kitchen.
