Southbend (Middleby)  |  Platinum  |  SKU: P36A-BBB

Southbend (Middleby) P36A-BBB Platinum Gas Ranges

$15,358.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Product configurator Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

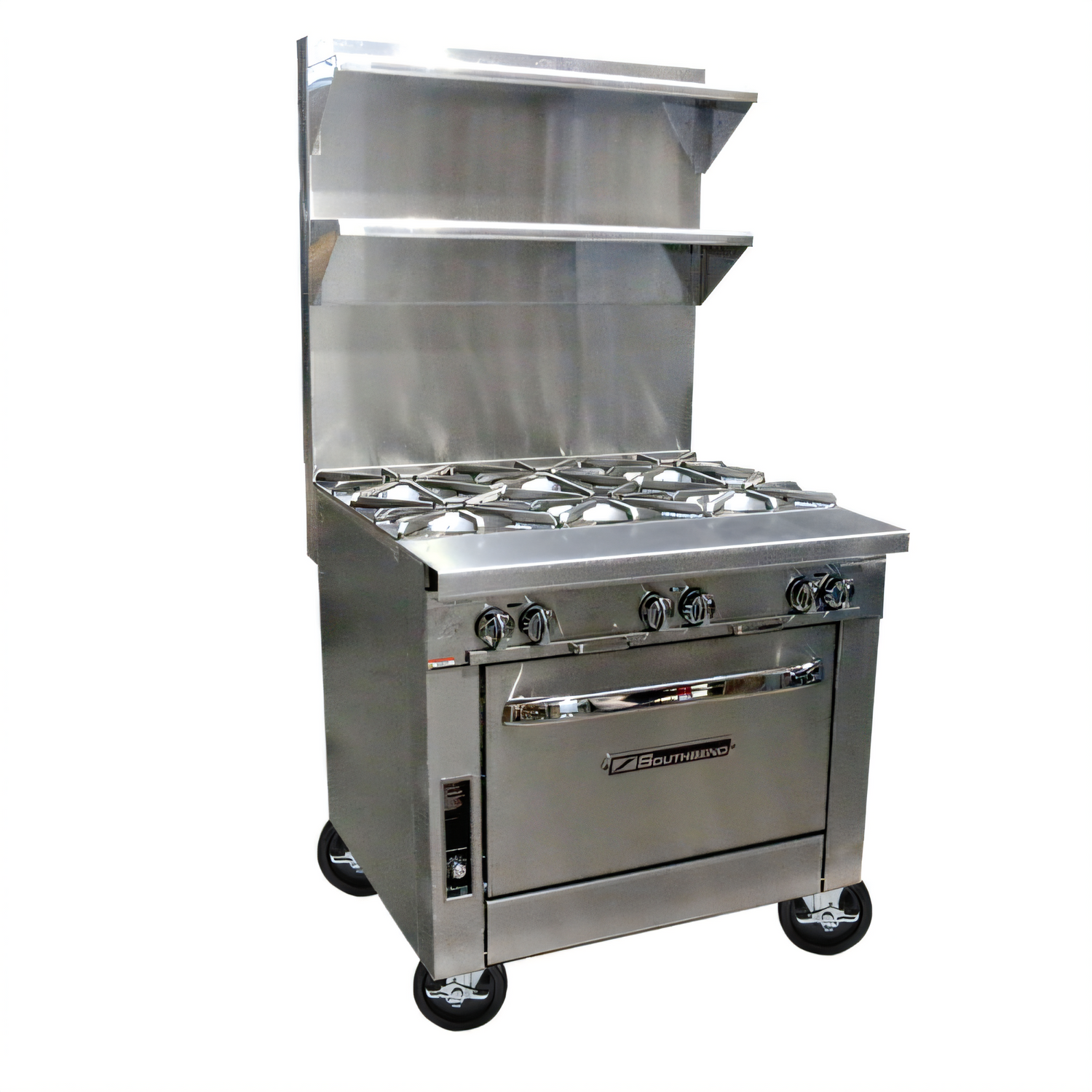

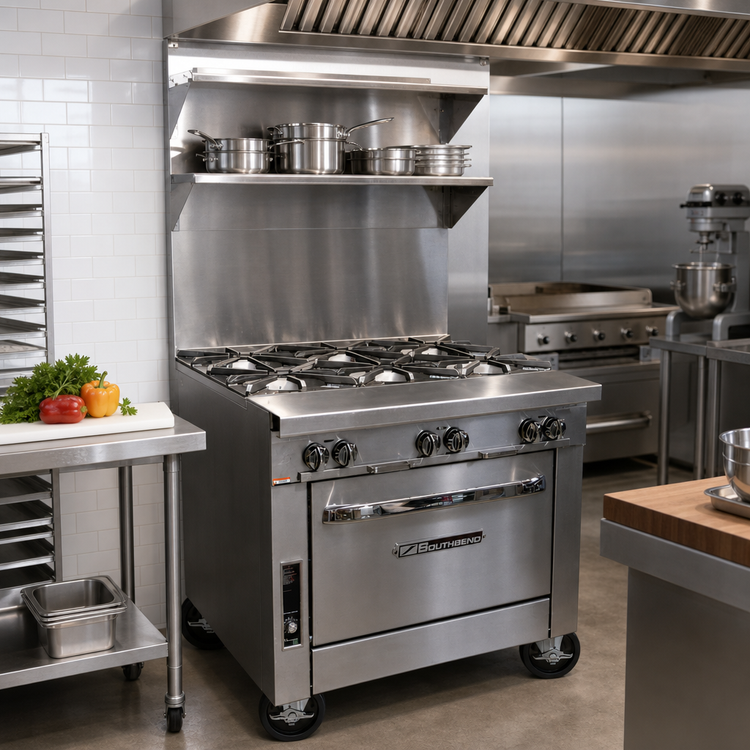

Southbend Platinum Series 36" Heavy-Duty Gas Range | 6 Open Burners + Convection Oven

Model P36A-BBB • 255,000 BTU • CSA & NSF Certified

Built for the toughest commercial kitchens, the Platinum Series 36" range unites six 35,000 BTU open burners with a high-performance convection oven in one rugged, stainless-steel footprint. From all-day sauté lines to banquet baking, it delivers the power, precision and durability pros demand.

Key Range Features

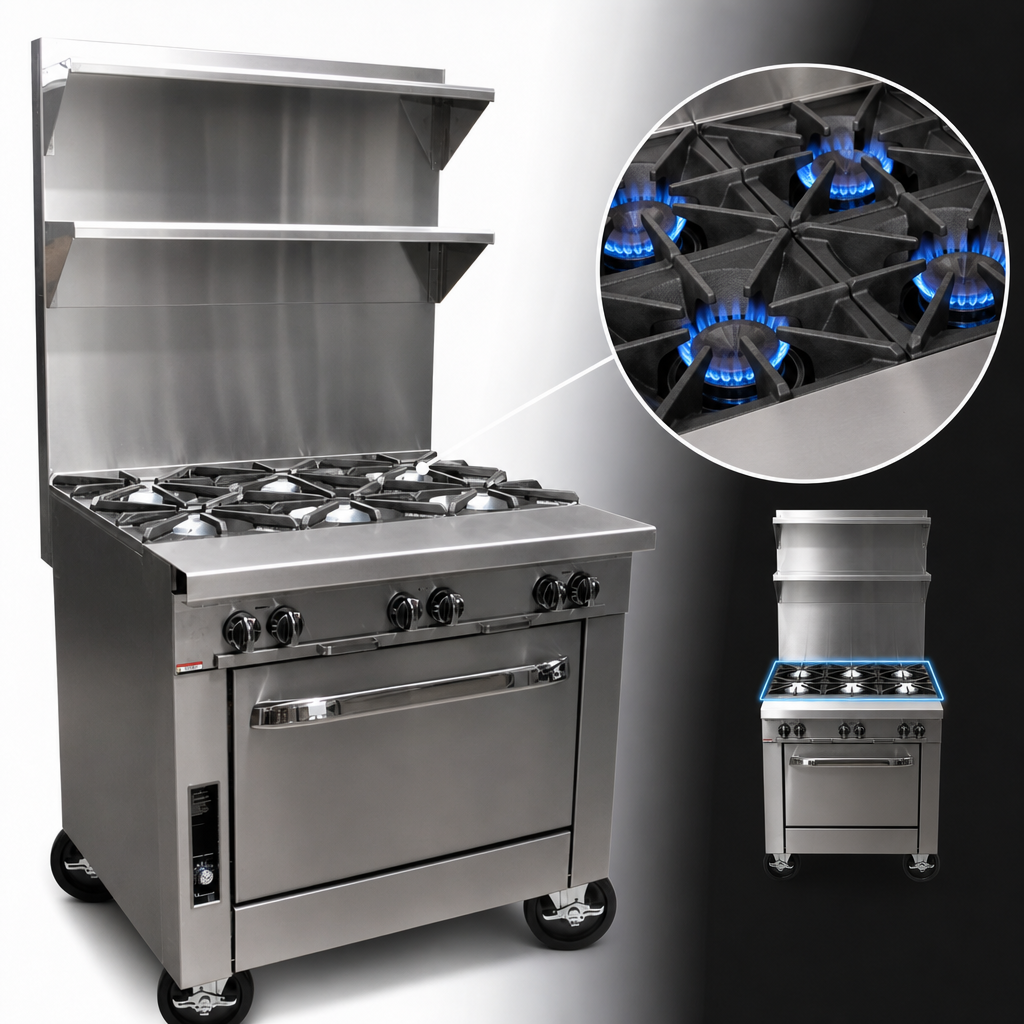

  • Six patented clog-free burners, each at 35,000 BTU (210,000 BTU total cook-top power).
  • Removable welded-steel top grates for quick change-outs and deep cleaning.
  • 9-1/4" deep front rail doubles as a sturdy landing ledge.
  • Full-width drip tray keeps the line clean and labor low.
  • 5" stainless flue riser effectively vents combustion by-products.
  • 1-1/4" front gas manifold for seamless battery installation with other Platinum modules.

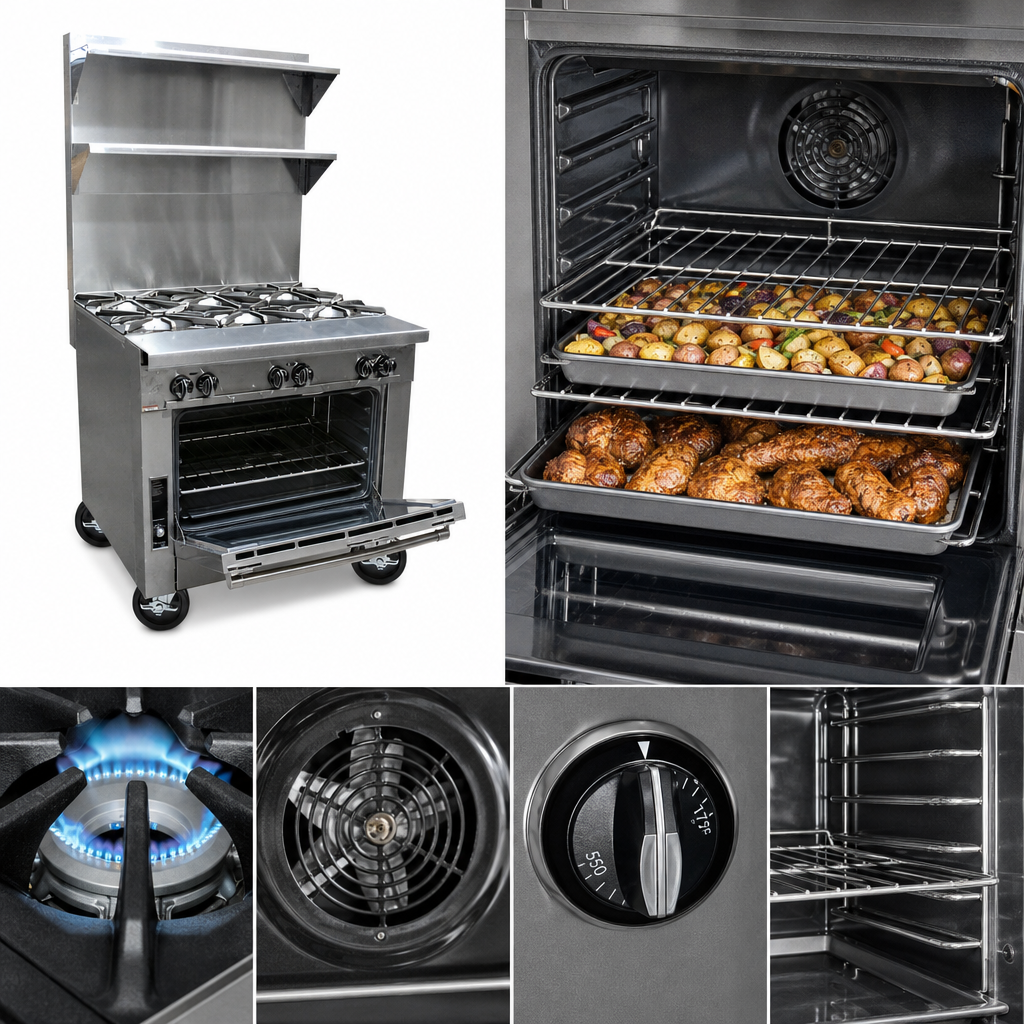

High-Performance Convection Oven

  • 45,000 BTU burner with standing pilot (electronic ignition optional).
  • “Insta-On” thermostat from 175 °F – 550 °F (79 °C – 288 °C).
  • Porcelain-enameled cavity — 14" H × 26" W × 24" D fits full-size sheet pans either direction.
  • 1/2 HP, two-speed blower motor for even heat distribution.
  • Includes 3 heavy-duty racks on five-position side rails.

Built to Last

  • All-stainless front, sides, rear and exterior bottom resist corrosion.
  • Fully insulated lining and burner box keep surfaces cooler and save energy.
  • 6" adjustable stainless steel legs ensure rock-solid leveling on any floor.
  • Backed by Southbend’s 1-year parts & labor warranty and nationwide service network.

Specifications

Overall width 36" (914 mm)
Overall depth 40" (1,016 mm) with standard flue riser
Overall height 37-1/2" (953 mm) to cook surface  /  43-1/2" (1,105 mm) with 36" flue riser
Total input 255,000 BTU/hr (Natural or LP)
Open burners 6 × 35,000 BTU clog-free burners
Oven heat 45,000 BTU convection burner
Gas connection 1" rear NPT  /  1-1/4" front manifold
Min. supply pressure 7" W.C. Natural  /  11" W.C. LP
Electrical (oven motor) 120 V, 1-phase, 5.9 A (208/240 V, 2.7 A terminal block)
Oven cavity 14" H × 26" W × 24" D, porcelain enamel
Shipping weight Approx. 759 lb (344 kg)
Certifications CSA, NSF
Important: This appliance is for commercial use only and must be installed by qualified personnel under a vented hood. Maximum of 2 units per order.

Oversized cookware (12"+ diameter) should be placed on rear burners to avoid excessive heat on the front rail.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

41.0in

Width

36.0in

Depth

43.0in

Shipping Weight

756.0lbs

Top

(6) open burners

Exterior Finish

stainless steel front & sides

Base

(1) convection oven

Specifications

Platinum Heavy Duty Range, gas, 36", (6) 35,000 BTU open burners, manual controls, (1) convection oven, includes (3) racks, stainless steel front, sides, exterior bottom & 6" adjustable legs, 255,000 BTU, CSA, NSF (maximum quantity = 2 per order)
