Southbend (Middleby) P36-RAD Platinum Salamander Broilers
Description

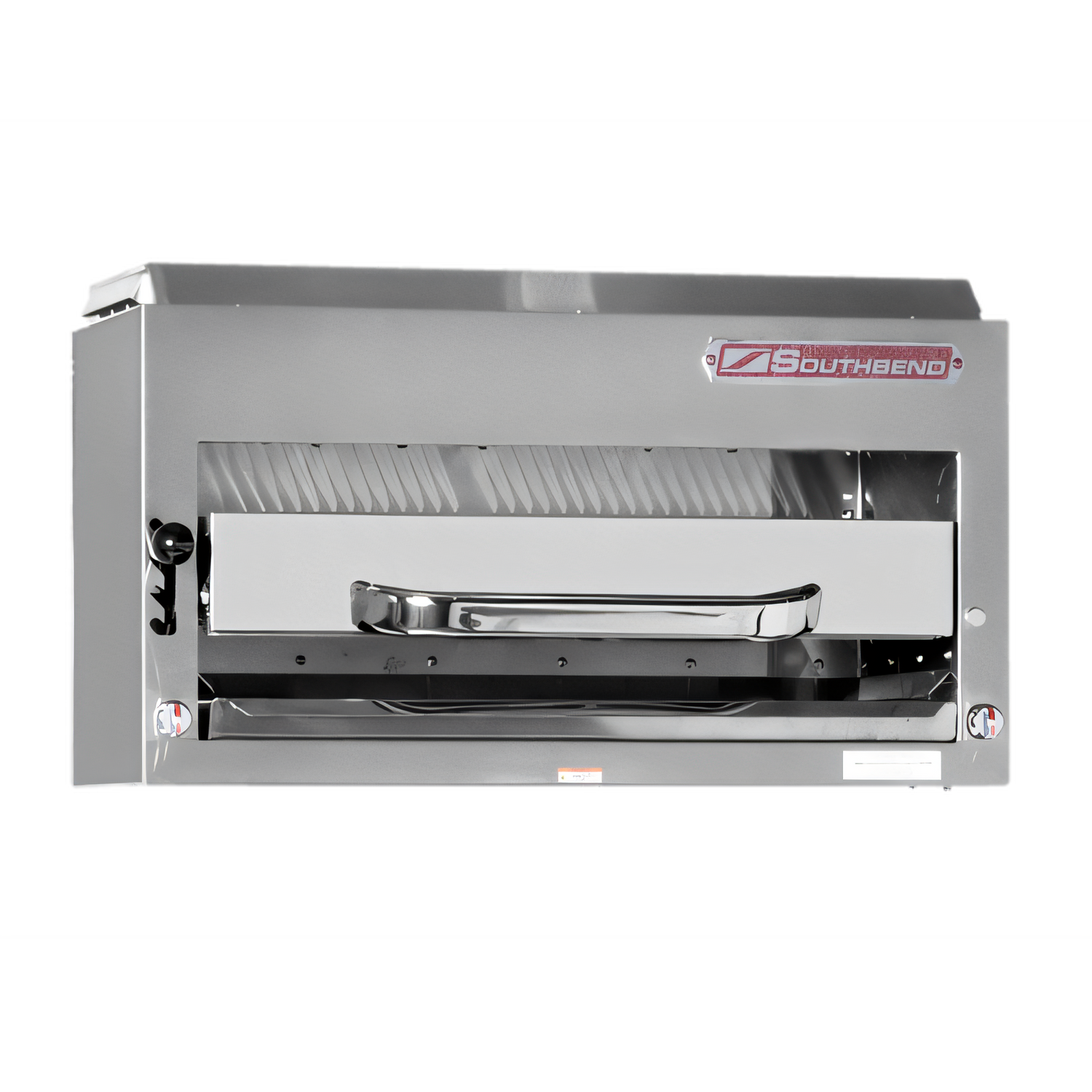

Southbend Platinum P36-RAD 36" Compact Radiant Broiler
Gas | Riser-mount | 40,000 BTU | CSA & NSFGive steaks, chops, seafood and vegetables the signature char your guests crave—without tying up valuable line space. The Southbend Platinum P36-RAD packs powerhouse broiling performance into a compact 36 inch footprint, purpose-built for heavy-duty commercial use.
Performance & Design Highlights

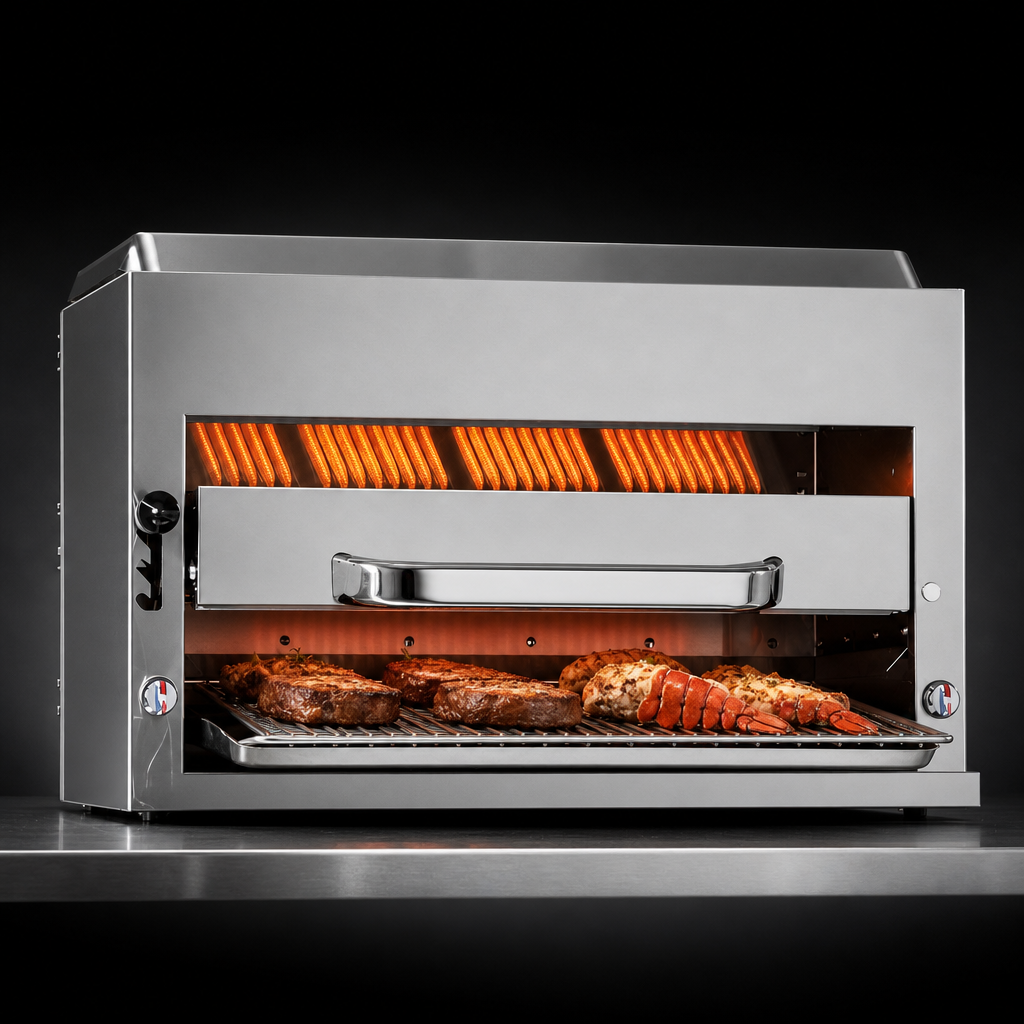

- Four durable stainless-steel radiant burners—10,000 BTU each (40,000 BTU total).
- Independent dual-valve controls (High / Low / Off) let you fire only the side you need.

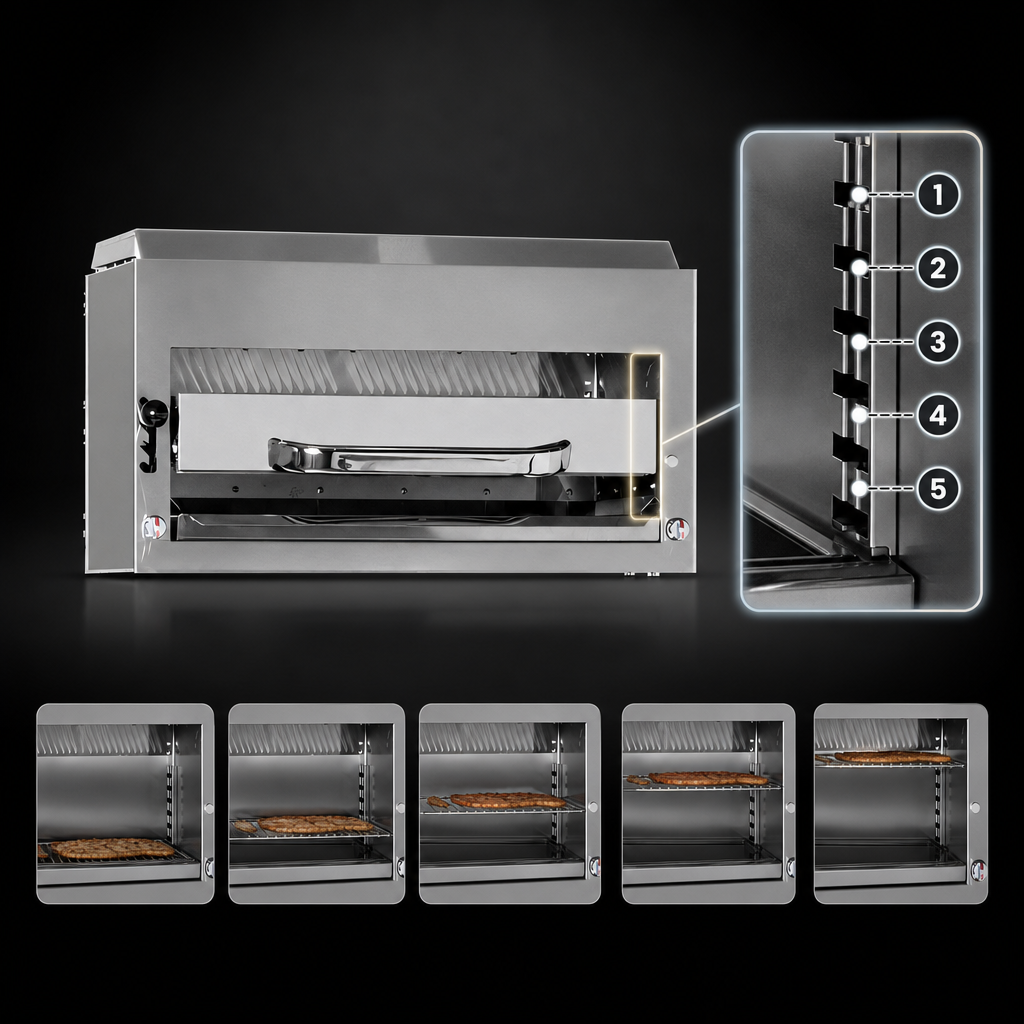

- 5-position “Easy-Track” counter-balanced rack system for fast height changes.
- 30" W × 14" D chrome-plated broiler rack (420 in² cooking area) rolls out for safe loading.
- Stainless-steel cradle, carriage, interior, front and sides for maximum durability and easy cleaning.
- Cool-touch handle and removable grease drawer help protect staff and simplify maintenance.

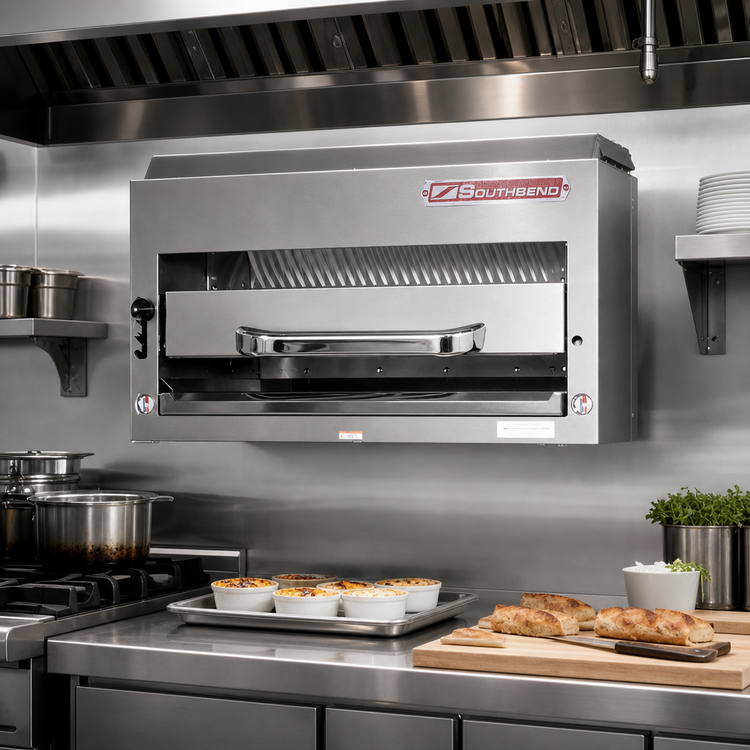

- Factory-mounted on the range flue riser; optional wall or countertop kits available.
- Zero rear / 1" side clearance to combustibles—ideal for space-restricted kitchens.
Technical Specifications
| Model | P36-RAD |
|---|---|
| Overall Width | 36" / 914 mm |
| Overall Depth | 15.5" / 394 mm |
| Overall Height | 21.5" / 546 mm |
| Cooking Surface | 30" × 14" (420 in²) |
| Total BTU | 40,000 BTU (Natural or Propane) |
| Gas Connection | 3/8" NPT rear inlet (regulator supplied with 3/4" NPT) |
| Operating Pressure | Natural 4" W.C. | LP 10" W.C. |
| Unit Weight | 170 lb / 77 kg |
| Certifications | CSA, NSF |
Utility & Installation Notes
- Intended for commercial use only—not for household installation.
- Supply line must be sized to maintain listed operating pressure.
- Follow local codes for gas, fire and sanitation compliance.
- Minimum clearances: 0" rear, 1" sides (combustible construction).
Peace-of-Mind Warranty
Southbend backs the Platinum P36-RAD with a one-year limited parts & labor warranty when installed and serviced by an authorized Southbend service agency.
