Southbend (Middleby) P36-NFR Platinum Salamander Broilers
Description

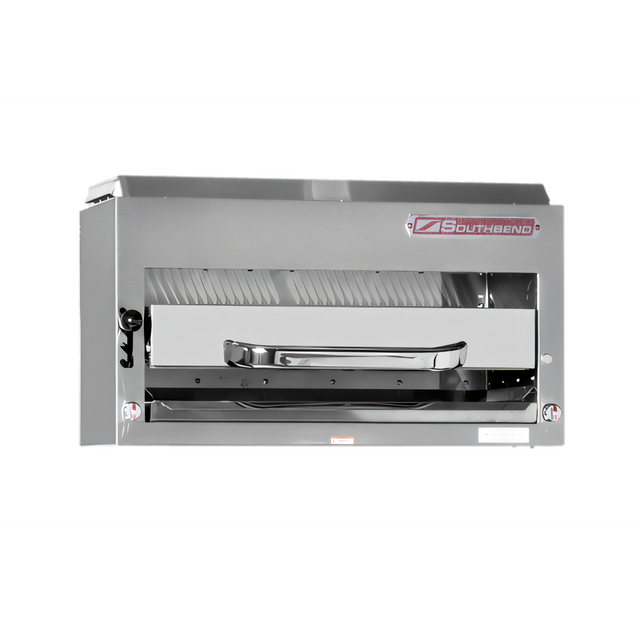

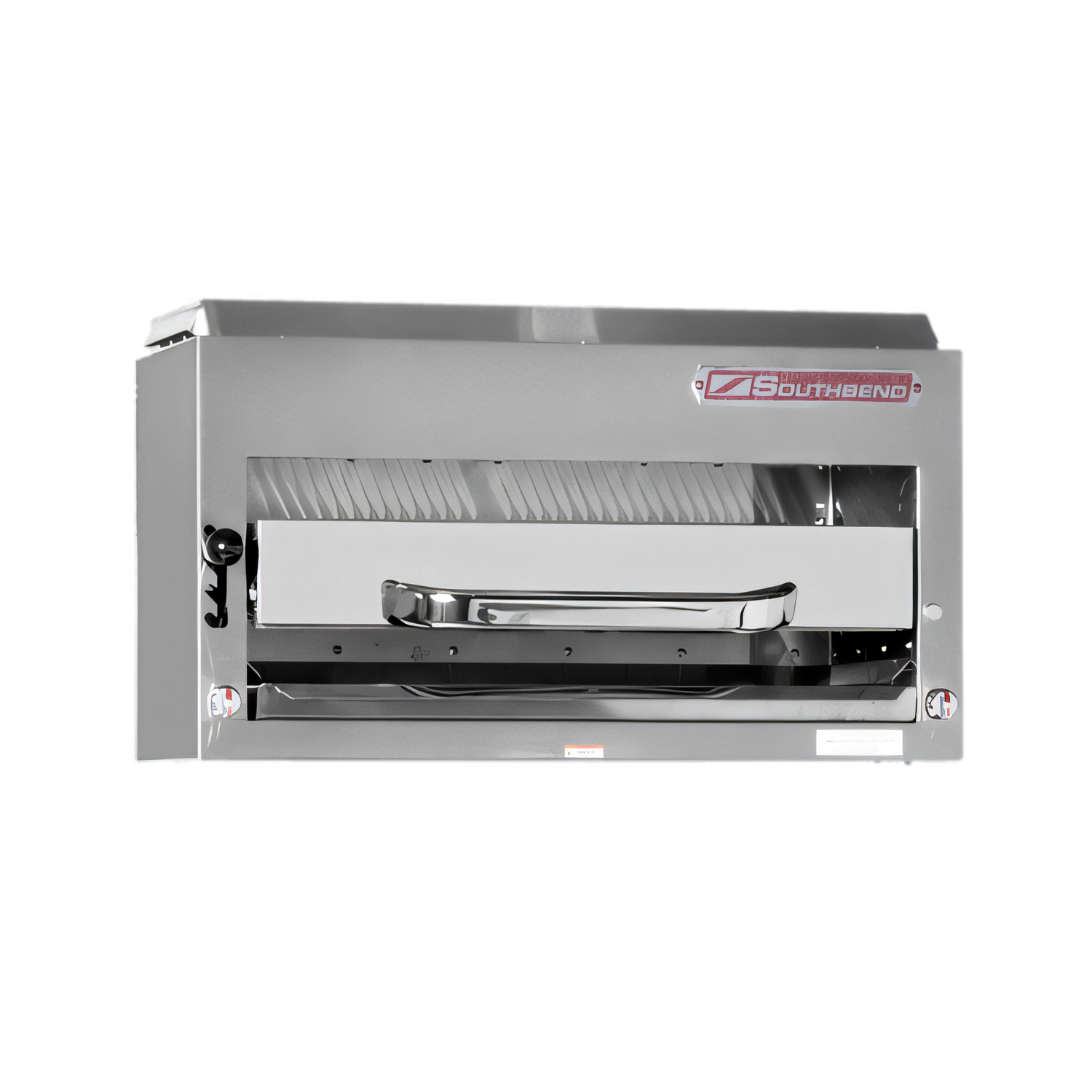

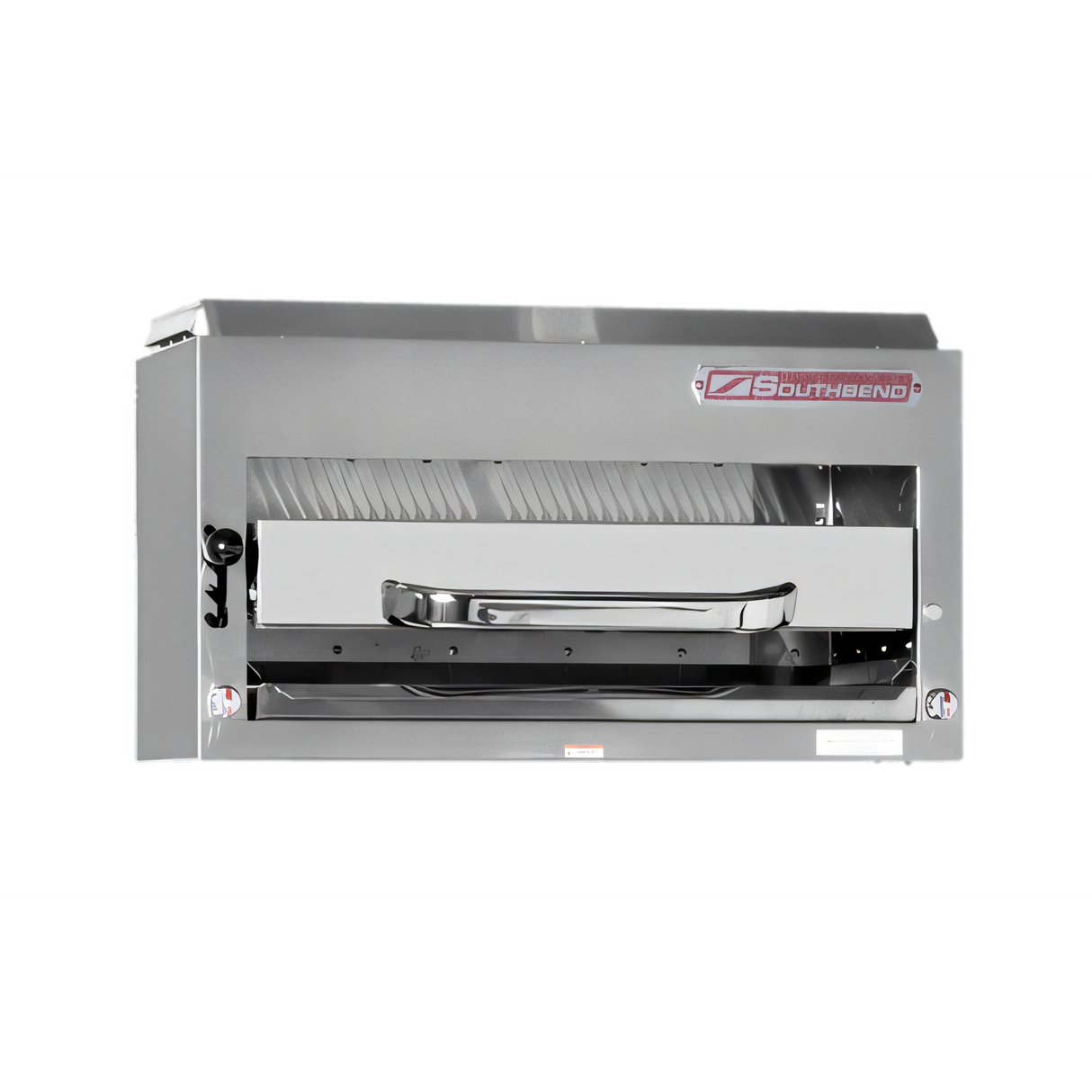

Platinum Compact Infrared Broiler – 36" Gas (Model P36-NFR)
(QUICK SHIP) | Southbend / MiddlebyTurn out perfectly broiled steaks, chops, seafood and vegetables in record time with Southbend’s Platinum 36-inch Compact Infrared Broiler. Four powerful infrared burners reach full heat in just 90 seconds, while the counter-balanced rack system gives chefs precise control over five cooking levels. Built for heavy-duty, high-volume kitchens, this riser-mounted broiler delivers 40,000 BTU of searing power in a stainless-steel package that fits almost anywhere.
Top Features
- Quick-heat infrared technology – ready to cook in 90 seconds
- Four 10,000 BTU infrared burners (total 40,000 BTU)
- Dual valve control for independent left/right heat zones
- Five “Easy-Track” rack positions with smooth, counter-balanced pull-out carriage
- 30" × 14" chrome-plated cooking grate – 420 sq in cooking surface
- Cool-touch handle for operator safety
- Removable bright-anneal grease drawer & shields for fast cleanup
- Durable stainless-steel front, sides, cradle and carriage
- Riser-mount design saves valuable countertop space
- Commercial certifications: CSA & NSF listed
- Standard 1-year limited parts & labor warranty
Technical Specifications
| Model | P36-NFR |
|---|---|
| Cooking method | Gas-fired infrared radiant broiler |
| Overall width | 36 in / 914 mm |
| Overall depth | 15.5 in / 394 mm |
| Overall height | 21.5 in / 546 mm |
| Burners | 4 × 10,000 BTU infrared (ceramic) tiles |
| Total output | 40,000 BTU/hr |
| Rack size / positions | 30" W × 14" D, 5 positions |
| Cooking surface area | 420 sq in (0.27 m²) |
| Preheat time | ≈ 90 seconds to searing temp |
| Gas type & pressure | Natural 4" W.C. / Propane 10" W.C. |
| Gas connection | 3⁄8" NPT rear inlet (regulator supplied) |
| Mounting | Flue-riser (range) mount – standard Wall or countertop kits available |
| Clearances | 0" rear, 1" sides to combustibles |
| Shipping weight | 170 lb / 77 kg |
Popular Options (sold separately)
- Countertop kit with 4" stainless-steel legs
- Wall-mount bracket assembly
- Gas inter-piping to sectional range bases
- Sloped stainless-steel rear enclosure
Warranty
Includes Southbend’s standard 1-year parts & labor warranty with on-site service by an authorized agency. Warranty is valid for commercial installations within the U.S. & Canada. See official policy for full terms and exclusions.
