Southbend (Middleby) P36-CM Platinum Cheese Melters
$4,424.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) P36-CM Platinum Cheese Melters is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P36-CM Platinum Cheese Melters
$4,424.00
Unit price
/
Unavailable
Description

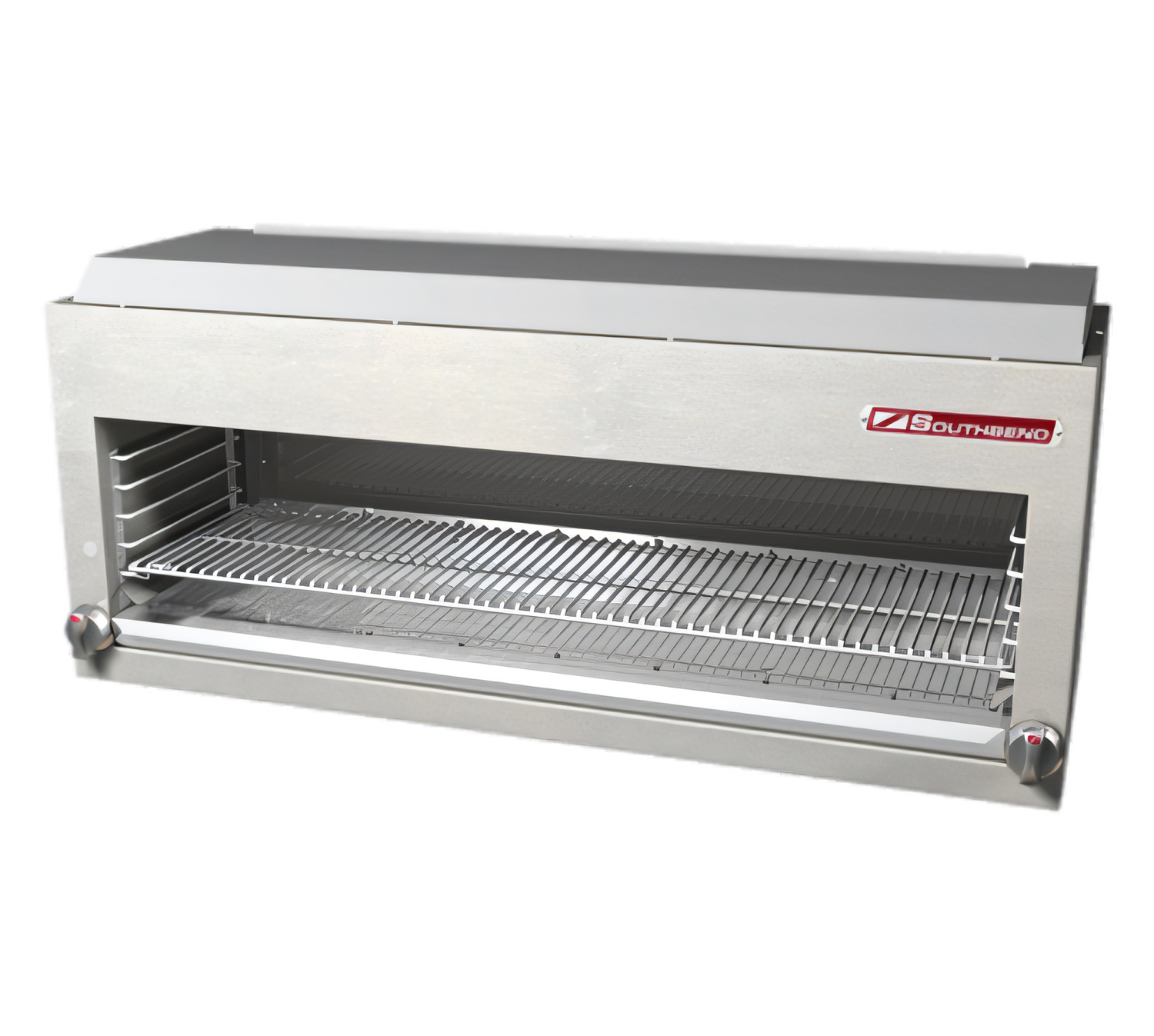

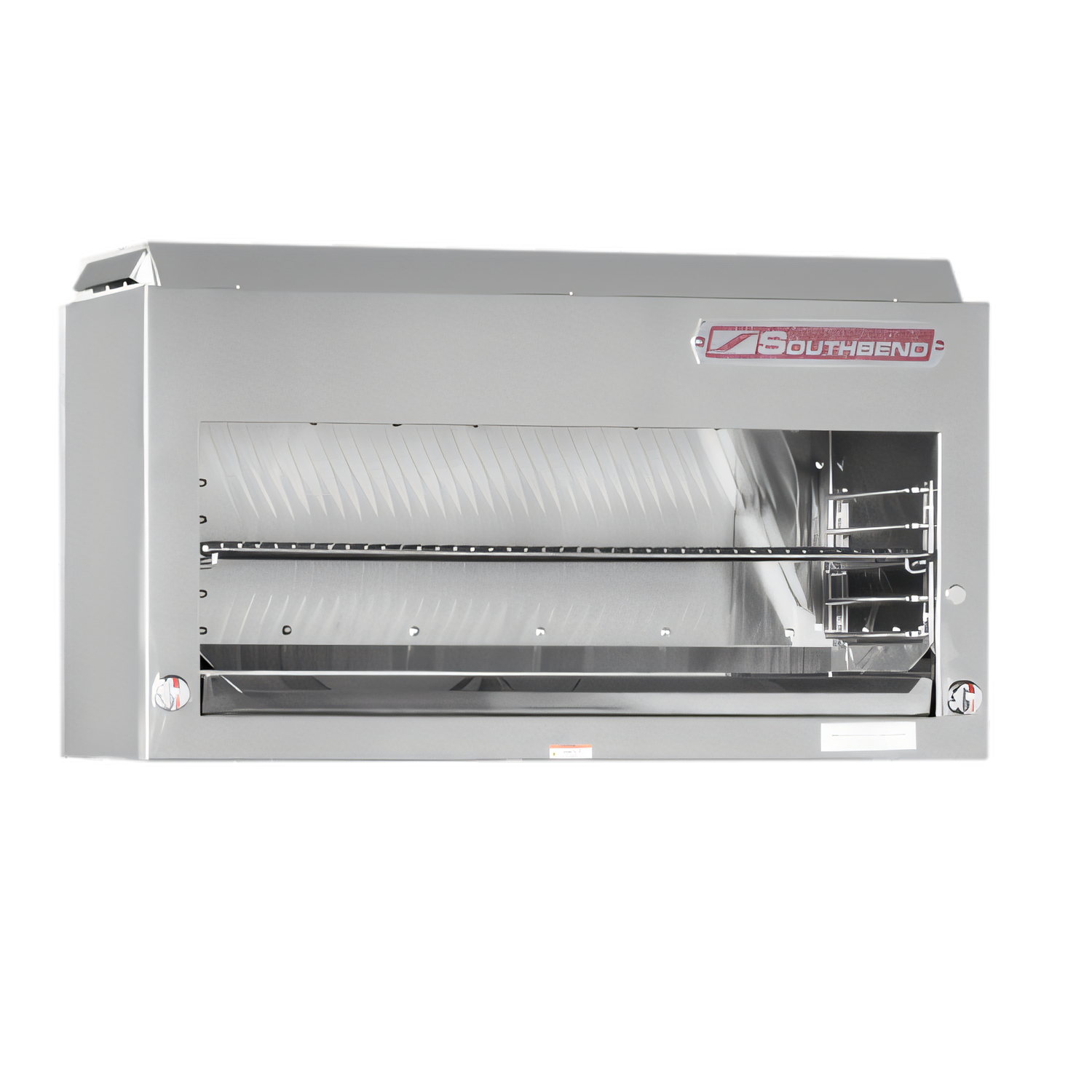

Southbend Platinum Series 36" Heavy-Duty Gas Cheesemelter — Model P36-CM
40,000 BTU • Riser-Mount • 4 Infrared BurnersGive every dish a picture-perfect finish in seconds. The Southbend P36-CM delivers intense, even top heat for melting cheese, glazing meats, and browning casseroles—without slowing down the line.
Performance Highlights
- Blazing 90-second preheat—no waiting between loads.

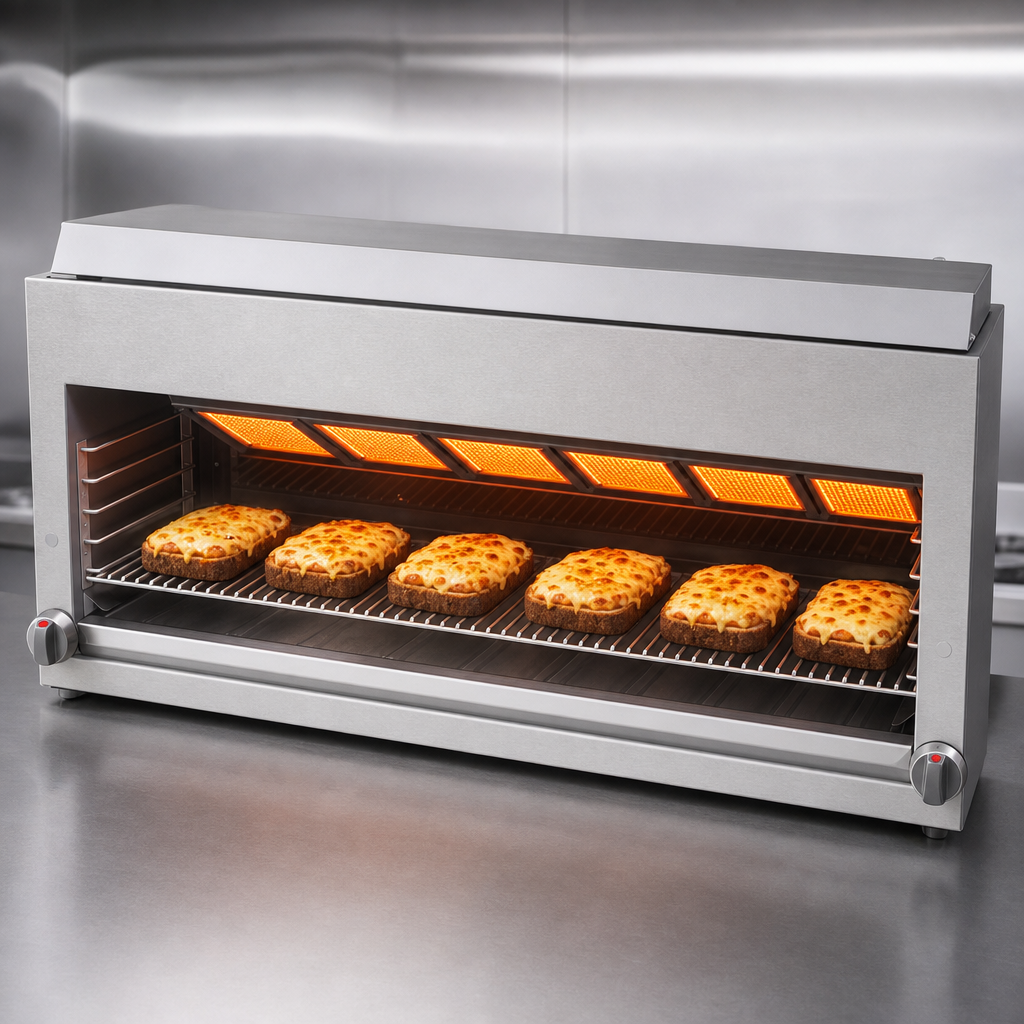

- 4 high-intensity infrared burners spread heat uniformly across the full 36 in. width.
- Dual valve control fires left, right, or both zones to match production and save energy.
- Five rack positions plus a chrome-plated rack for precise browning control.
- Bright-annealed, removable crumb tray makes clean-up fast and easy.
- All-stainless exterior & interior built to withstand heavy-duty commercial use.
- Factory-set for Natural or LP gas with built-in regulator and 3/8" rear gas connection.
Key Specifications
| Model | P36-CM |
|---|---|
| Cooking width | 36" (914 mm) |
| Burners | 4 infrared @ 10,000 BTU each |
| Total output | 40,000 BTU/hr |
| Preheat time | ≈90 seconds |
| Rack guides / rack supplied | 5 positions / 1 chrome rack |
| Cooking surface | 403 in² (31" W × 13" D cavity) |

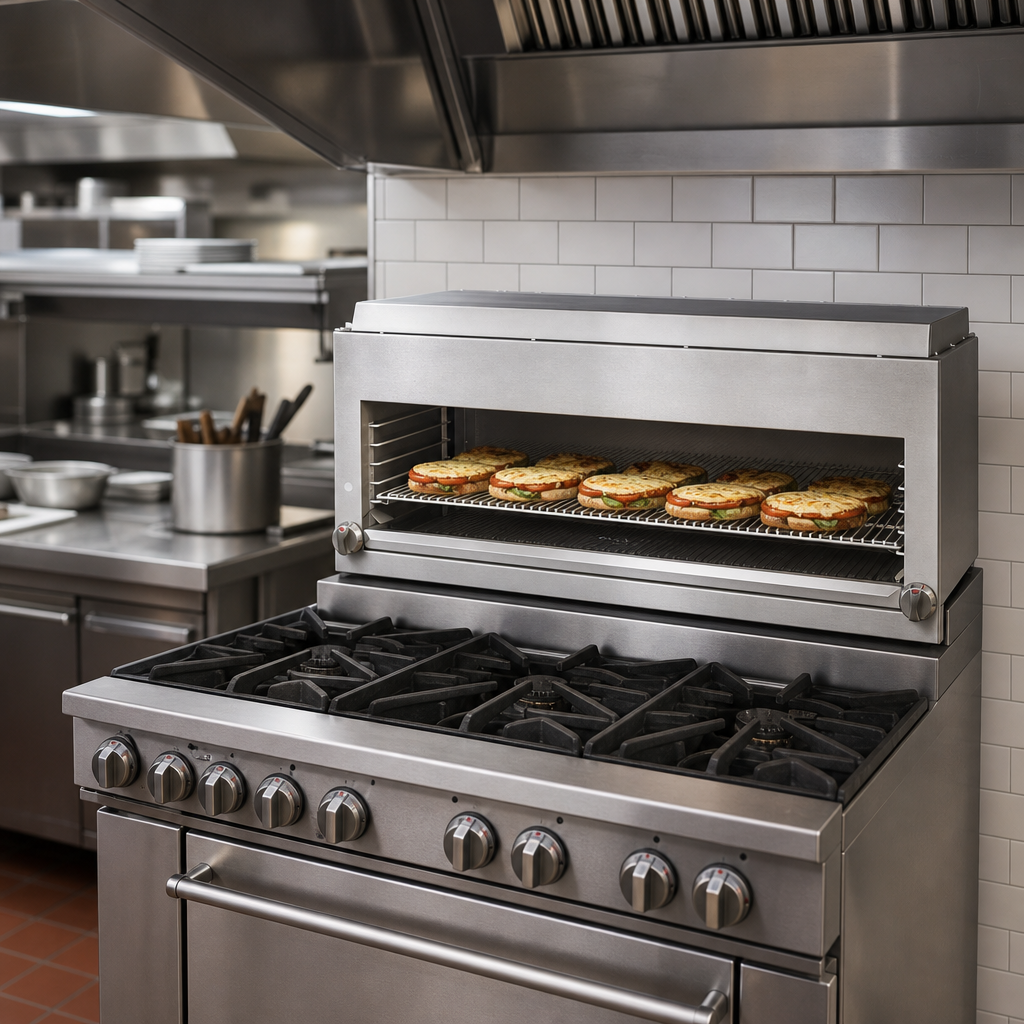

| Standard mounting | Flue-riser (range) mount |
| Optional mounting | Wall bracket or 4" countertop legs (sold separately) |
| Gas connection | 3/8" NPT (rear) |
| Operating pressure | 4" W.C. Natural • 10" W.C. Propane |
| Clearances | 1" sides combustible • 0" rear |
| Overall dimensions | 36" W × 21.5" H × 15.5" D |
| Shipping weight | 135 lb (61 kg) |
| Warranty | 1-year parts & labor |
Options & Accessories
- Wall-mount bracket
- 4" stainless steel legs for countertop installation
- Additional chrome cooking rack
- Sloped enclosure kit
Need flexible payments? Ask about fast Middleby equipment financing.
Commercial use only: This appliance must be installed by qualified technicians in accordance with all local codes.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Platinum
Height
21.5in
Width
36.0in
Depth
15.5in
Shipping Weight
135.0lbs
Width (side - side)
25" - 36"
Heat type
infrared
Mounting
range mount
Rack Positions
5
Exterior Finish
all stainless steel exterior
Specifications
Platinum Heavy Duty Cheesemelter Match, gas, 36", riser mount, (4) infrared burners, (5) position rack guides, (1) chrome plated rack, dual valve control, 90 second preheat time, removable crumb tray, stainless steel construction, 40,000 BTU
