Southbend (Middleby) P32N-XX Platinum Gas Ranges
Description
Southbend Platinum Series P32N 32" Modular Heavy-Duty Gas Range
4 Open PyroMax™ Burners • 180,000 BTU • CSA & NSFBuilt for high-volume, high-heat production, the Platinum P32N drops right onto a chef’s counter, refrigerated base, or into a sectional battery to unleash 180,000 BTU of cooking power in just 32 inches of space. Four patented PyroMax™ burners deliver fast, even heat while the all-stainless exterior shrugs off daily abuse.
Key Advantages

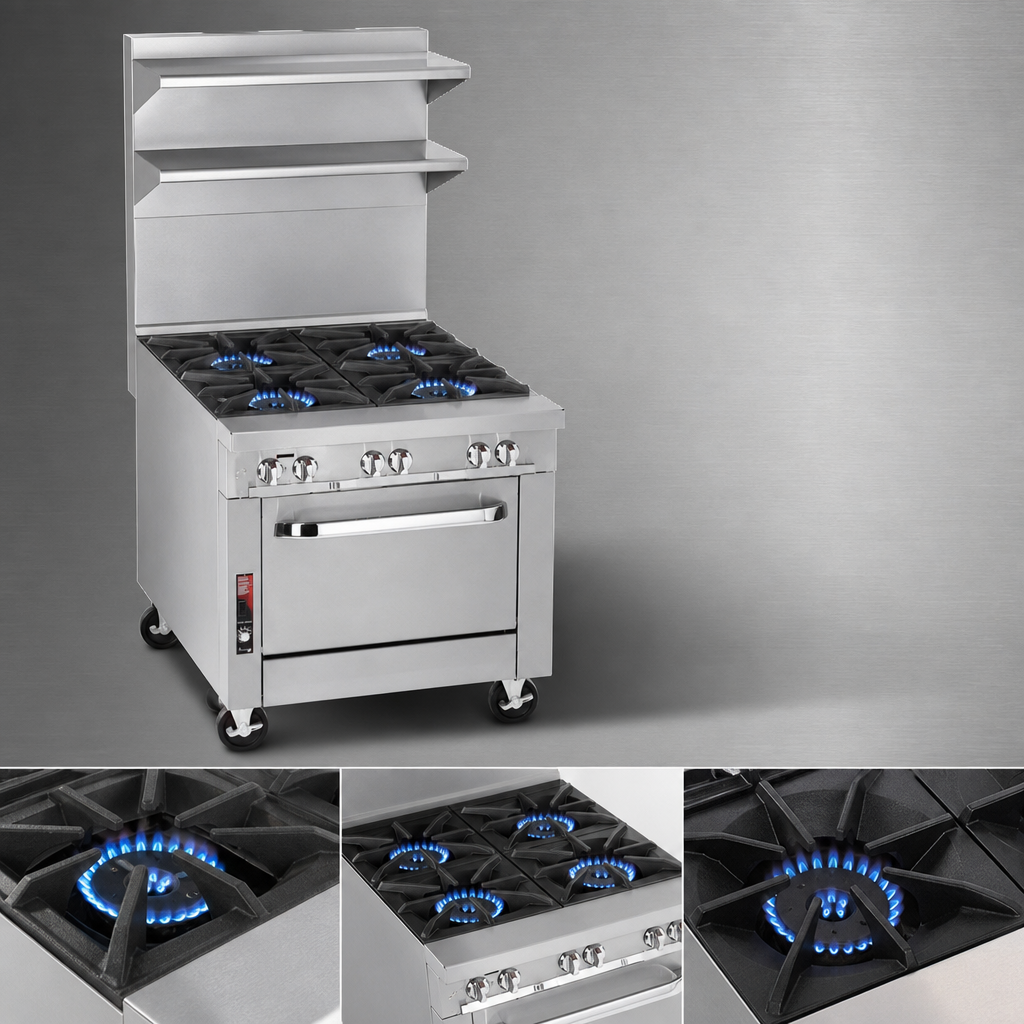

- Four patented PyroMax™ 45,000 BTU clog-free burners (180,000 BTU total).

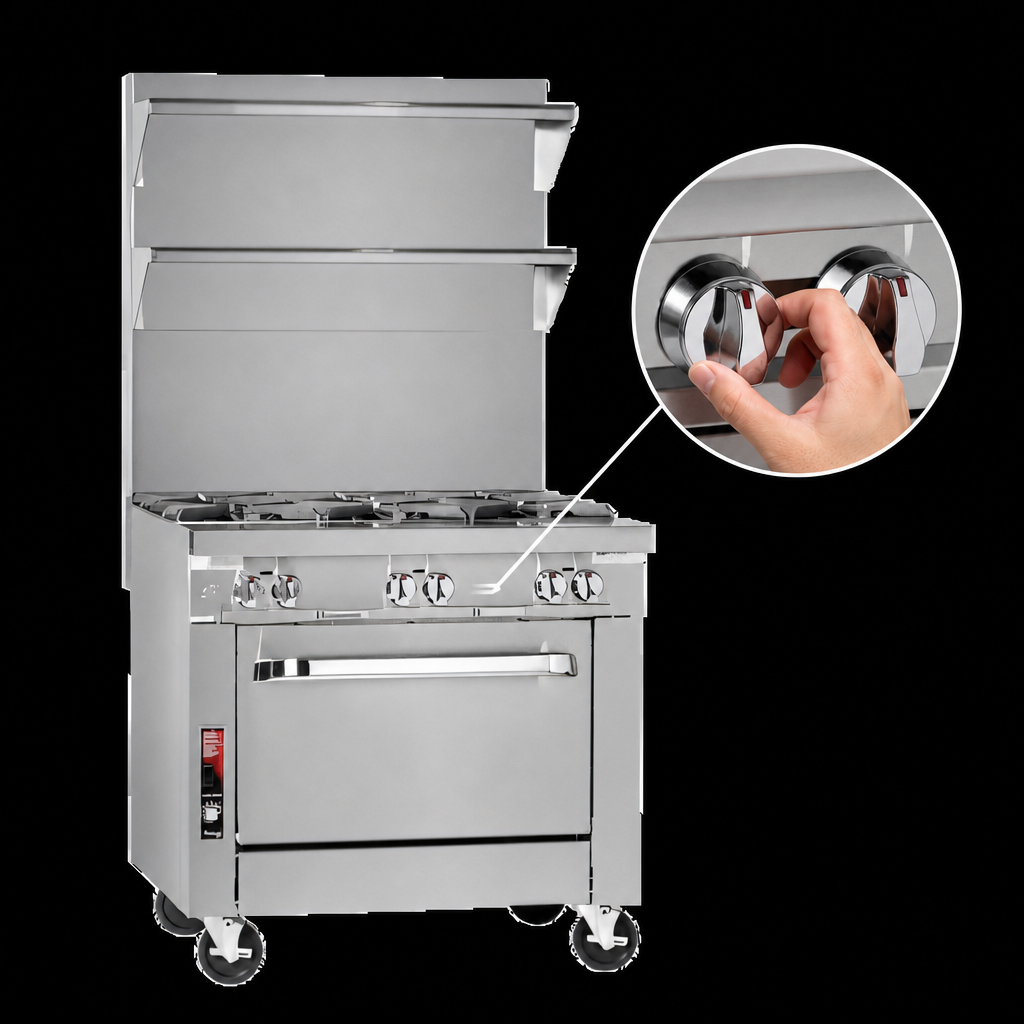

- Precision manual gas valves for instant, infinite flame control.
- Removable welded-steel grates & full-width drip tray for rapid nightly clean-up.
- 9-1/4″ deep front rail keeps pans and plates safely in reach.
- 5″ stainless flue riser directs heat toward the ventilation hood.
- Stainless front, sides, rear & bottom—corrosion-resistant, easy to wipe down.
- Fully insulated burner box helps keep your kitchen cooler and more comfortable.
- 1-1/4″ front gas manifold mates seamlessly with other Platinum sectional pieces.
- Field convertible for Natural or Propane gas (7″ W.C. NAT / 11″ W.C. LP minimum supply pressure).
Specification Sheet
| Model | P32N (Modular Mount) |
|---|---|
| Cooking Surface Width | 32″ / 813 mm |
| Overall Depth | 37-1/2″ / 953 mm |
| Standard Flue Height | 5″ / 127 mm |
| Number of Burners | 4 open top |
| BTU per Burner | 45,000 BTU |
| Total BTU Input | 180,000 BTU/hr |
| Gas Connection | 1″ NPT rear (male) & 1-1/4″ front manifold |
| Shipping Weight | 315 lb / 143 kg |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
Optional Accessories
- 24″ or 36″ flue riser with optional storage shelves.
- Cut-out, square or belly front rails.
- Removable cast-iron grate tops.
- Battery spark ignition for open burners.
- Casters or open-frame base for mobile installations.
- External pressure regulator & gas restraint kits.
