Southbend (Middleby) P32N-XH-RE Platinum Gas Ranges
Description

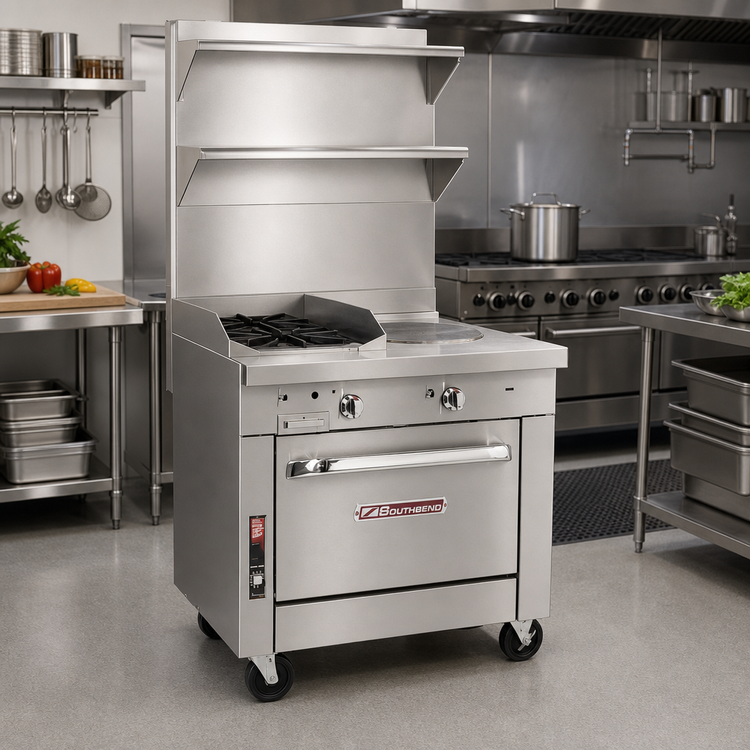

Platinum 32" Modular Heavy-Duty Gas Range – 2 Pyromax Burners & 16" Hot Top
Model: P32-XH | Southbend / MiddlebyGive your cookline true platinum-grade power in a compact 32 inch footprint. This modular Southbend Platinum range pairs two 45,000 BTU Pyromax open burners with a high-performance 16 inch rear hot top, delivering a combined 130,000 BTU for relentless, all-day production.
Why you’ll love it

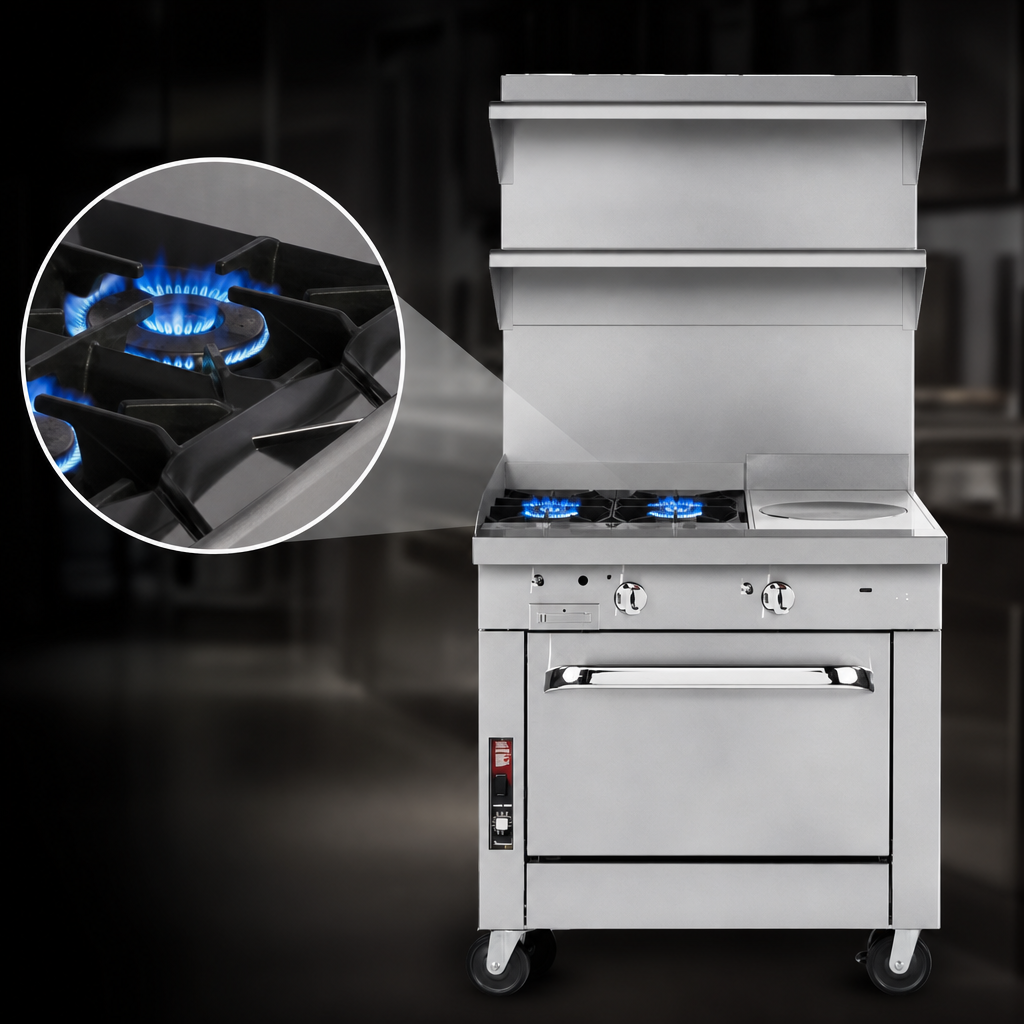

- Massive firepower – (2) patented clog-free Pyromax burners, 45,000 BTU each.
- Versatile 16" hot top – dual 20,000 BTU burners under a single steel plate reach ≈700 °F for searing, holding, or finishing.
- Battery spark ignition – reliable, pilot-free starts without an electrical hook-up.
- Modular design – mount on a refrigerated, freezer, cabinet, or countertop base to build the exact cook suite you need.
- Built to last – stainless front & sides, fully-insulated burner box, and removable welded grates for easy cleaning.
- Free factory battery-layout assistance – simplify planning when you’re stringing multiple Platinum sections together.
Technical specifications
| Overall width / depth | 32" W × 37.5" D (813 × 953 mm) |
|---|---|
| Configuration | (2) front open burners & (1) 16" rear hot top plate |
| Total input | 130,000 BTU/hr (Natural or LP) |
| Open burner rating | 45,000 BTU each | clog-free design |
| Hot top rating | 40,000 BTU total (2 × 20,000) |
| Controls | Manual valve; single high/low knob on hot top |
| Ignition | Battery spark (no electrical connection required) |
| Gas connections | 1-¼" front manifold (couples to adjacent sections) 1" rear NPT inlet |
| Standard features | 5" stainless flue riser, 9-¼" deep front rail, removable drip tray |
| Construction | Stainless steel front & sides; fully insulated lining |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor (commercial use) |
Popular factory options *
- 24" or 36" flue riser with single or double shelves
- Casters or open-frame base with casters
- External gas pressure regulator
- Front-rail cut-outs or square belly bar
- Battery spark ignition for additional open-top sections
*Options ship at an additional charge. Ask your dealer for details.
