Southbend (Middleby) P32N-XH Platinum Gas Ranges
Description
Platinum Series 32" Modular Heavy-Duty Range

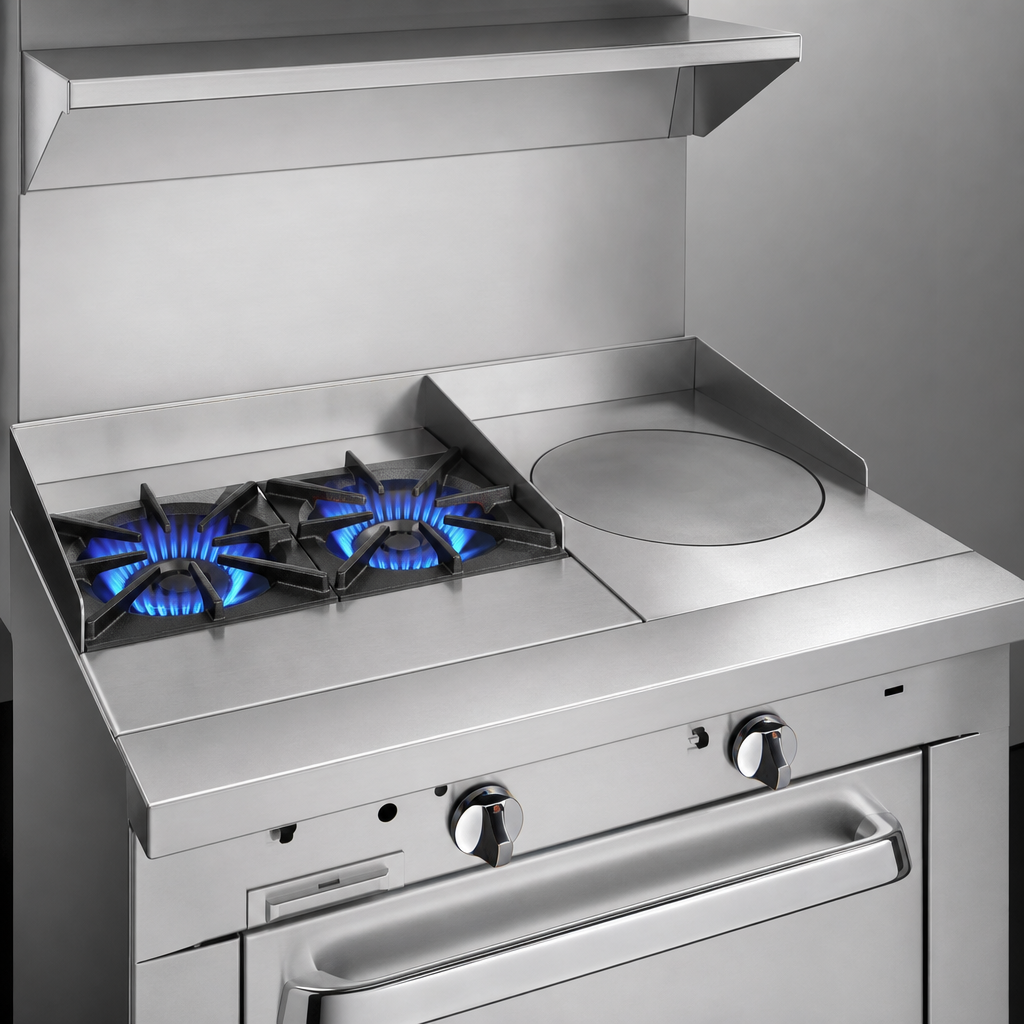

Model P32-XH – 2 Open Burners + 16" Hot TopSouthbend’s Platinum Series delivers uncompromising power and durability for the most demanding kitchens. The 32" P32-XH modular section combines two patented Pyromax™ open burners with a high-output 16" hot top, giving chefs instant open-flame precision and a spacious even-heat plate in one compact footprint.
Why You’ll Love It
- 130,000 BTU total output – 90 K from (2) 45 K BTU open burners + 40 K BTU hot top.
- Pyromax™ clog-free burners roast, sauté and sear with intense, consistent flame.

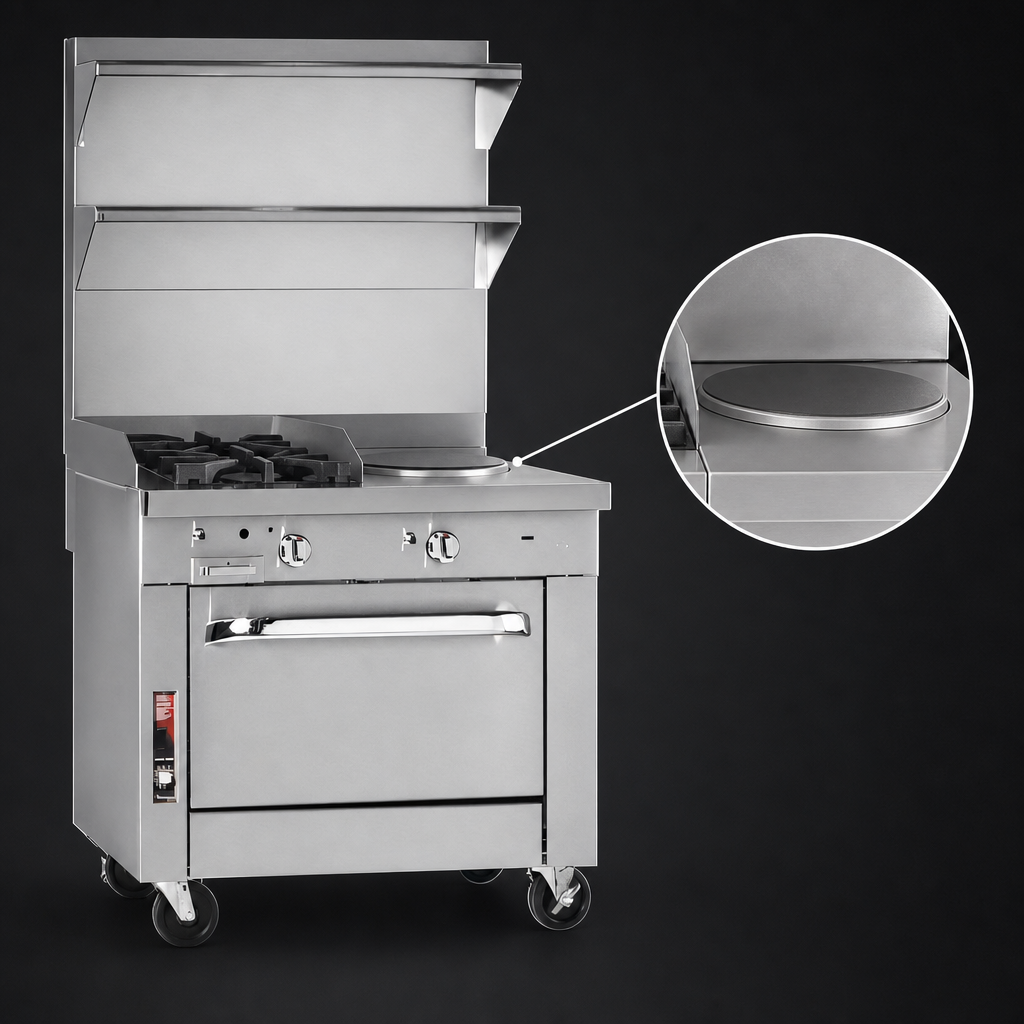

- 16" hot top reaches 700 °F surface temperature for finishing sauces, holding stockpots or low-temp simmering.
- Battery spark ignition lights both sections fast—no standing pilots required.
- Fully insulated burner box keeps heat where it belongs and lowers surrounding temps.
- Modular design mounts on countertops, refrigerated bases or mates perfectly in a Platinum battery lineup.
- Stainless steel front & sides with 9-1/4" deep rail stand up to years of daily cleaning.
- CSA & NSF listed for gas safety and sanitation compliance.
Performance Details
| Overall width | 32" (813 mm) |
|---|---|
| Configuration | (2) open burners + 16" hot top |
| Total BTU | 130,000 BTU/hr (Natural gas) (120,000 BTU/hr Propane) |
| Open burners | 2 × 45,000 BTU Pyromax™ clog-free, removable welded steel grates |
| Hot top | 2 × 20,000 BTU cast burners, single hi/lo control, 700 °F max plate temp |
| Ignition | Battery spark (no external power needed) |
| Gas connections | 1-1/4" front manifold (for battery) & 1" rear male NPT |
| Exterior construction | #3 polish 430 & 304 stainless steel front, sides & flue riser |
| Listings | CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Engineered for Heavy Duty Service
- 5" stainless steel flue riser directs flue products into your ventilation hood.
- Removable drip tray under burners simplifies daily clean-up.
- Free battery-layout assistance from Southbend engineers.
- Field-replaceable steel hot-top plates reduce downtime.
Factory Options (sold separately)
- 24" or 36" high flue risers with optional shelves.
- Casters or open-frame base with casters for mobile batteries.
- 7-1/4" deep rail, square belly bar, or sauce-pan cut-outs.
- External gas pressure regulator.
Oversized cookware (12" Ø+) should be kept to the rear burners to protect front-rail components.
