Southbend (Middleby) P32N-XG Platinum Gas Ranges
Description
Southbend Platinum 32" Heavy-Duty Modular Range – Model P32-XG
(2) 45,000 BTU Pyromax™ open burners + 16" manual griddle, 130,000 BTU totalBuilt for the most demanding commercial kitchens, the Platinum Series P32-XG combines Southbend’s legendary clog-free Pyromax™ burners with a versatile 1" thick griddle plate – all in a compact 32" footprint that drops onto a refrigerated base, equipment stand or countertop battery.
Why chefs choose Platinum

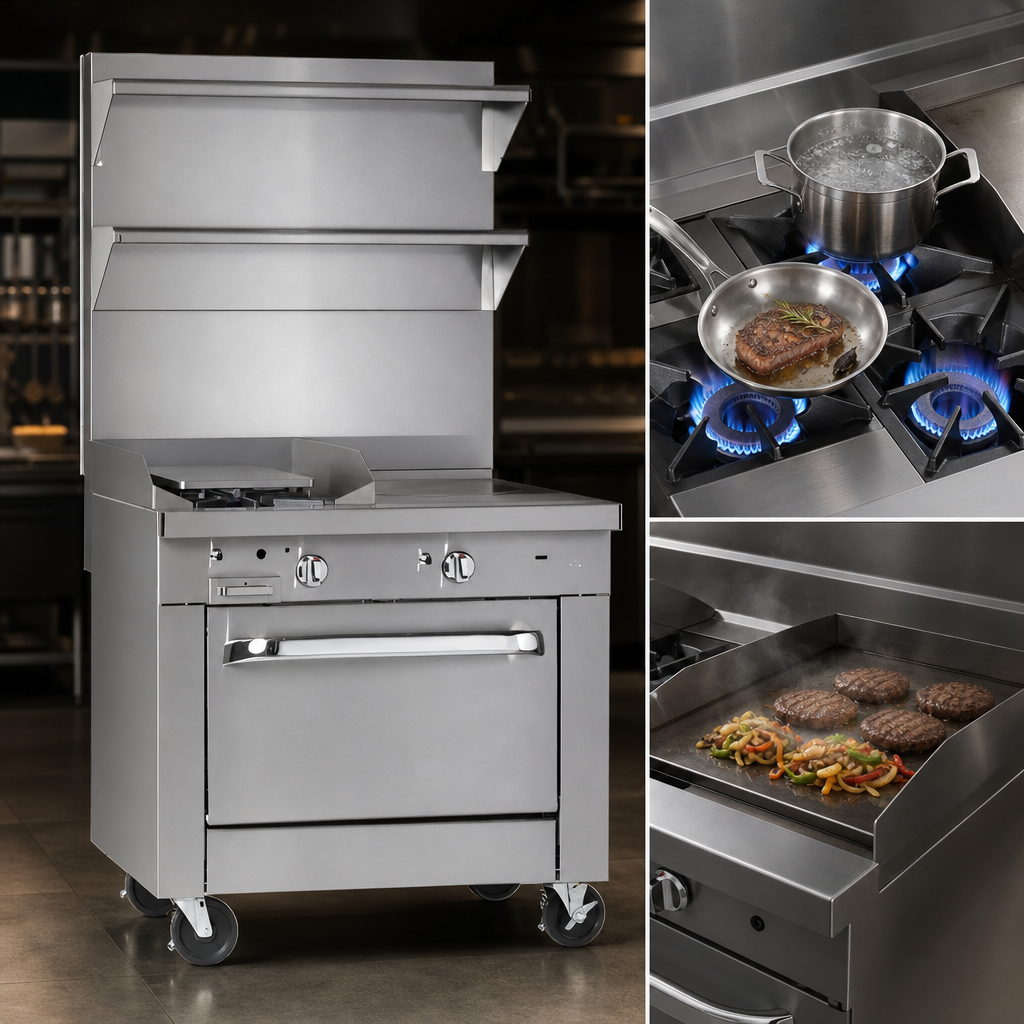

- Two 45,000 BTU open burners deliver instant, even heat with patented clog-free design.
- 16" wide griddle features dual 20,000 BTU burners, manual “G” control and battery spark ignition.
- 1" thick polished steel plate holds heat for perfect searing and recovery.
- Stainless steel front & sides, fully-insulated burner box and 9-¼" deep front rail stand up to daily punishment.
- 5" stainless flue riser keeps heat moving up into the hood – not into your kitchen.
- Sectional design couples to other Platinum pieces for a seamless cookline.
- Certified cCSAus, CSA Flame, CSA Star & NSF for gas safety and sanitation.
Technical specifications
| Model | P32-XG (manual griddle) |
|---|---|
| Cooking surface | (2) 12" x 12" Pyromax™ open burners + 16" x 24" griddle |
| Total input | 130,000 BTU/hr (Natural) | 120,000 BTU/hr (LP) |
| Individual burner ratings | Open burners: 45,000 BTU each | Griddle: 2 × 20,000 BTU |
| Gas connection | 1-¼" front manifold couples to adjacent units; 1" rear male NPT |
| Operating pressure | 7" W.C. Natural | 11" W.C. Propane (regulator required, sold separately) |
| Dimensions (WxDxH) | 32" × 37-½" × 20-½" (plus 5" flue riser) |
| Plate thickness | 1" (25 mm) |
| Ignition | Battery spark (no standing pilot on top section) |
| Construction | 430/304 stainless front & sides, welded steel grates, removable drip & grease trays |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Popular factory options (extra cost)
- 24" or 36" flue riser with single or double shelves
- Chrome or grooved griddle surface
- Casters with cable restraint kit
- External gas pressure regulator
- Front rail cut-outs or belly bar
Ask your foodservice consultant for a complete options list or custom battery design assistance.
Oversized cookware (12" diameter or larger) should be kept to the rear burners to avoid heat damage to the front rail.
