Southbend (Middleby)  |  Platinum  |  SKU: P32N-XC

Southbend (Middleby) P32N-XC Platinum Gas Ranges

$9,911.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

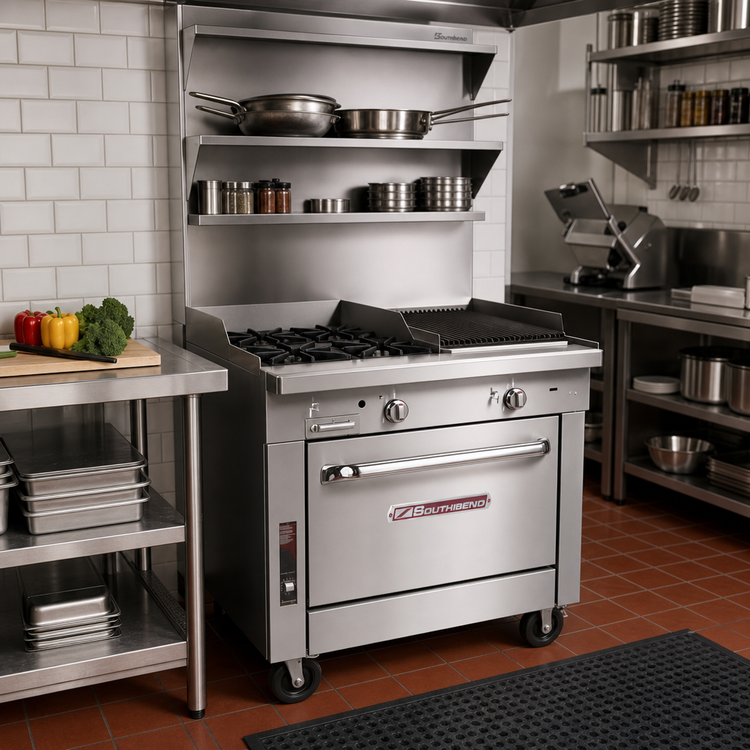

Southbend Platinum 32" Heavy-Duty Modular Range

2 × 45,000 BTU Pyromax open burners + 16" gas charbroiler

Built for high-volume kitchens that demand power, flexibility, and long-term durability, the Platinum 32" combination top delivers searing open-flame heat alongside a true steak-house char pattern— all in a compact modular footprint that drops right onto a counter, chef base, or refrigerated stand.

Key Features & Benefits

  • Heavy-duty 32" wide modular section—perfect for battery line-ups or standalone use.

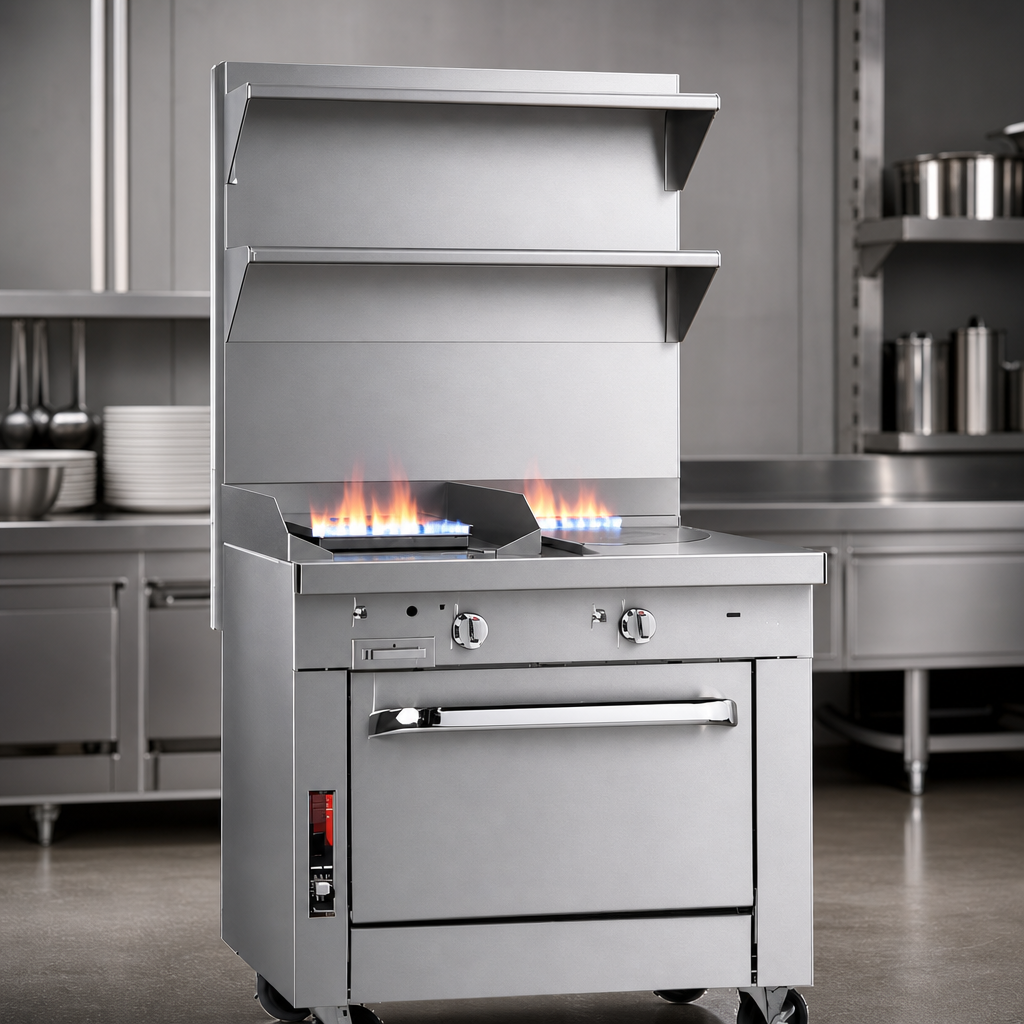

  • Two 45,000 BTU patented clog-free Pyromax open burners for lightning-fast boil and wok-style heat.

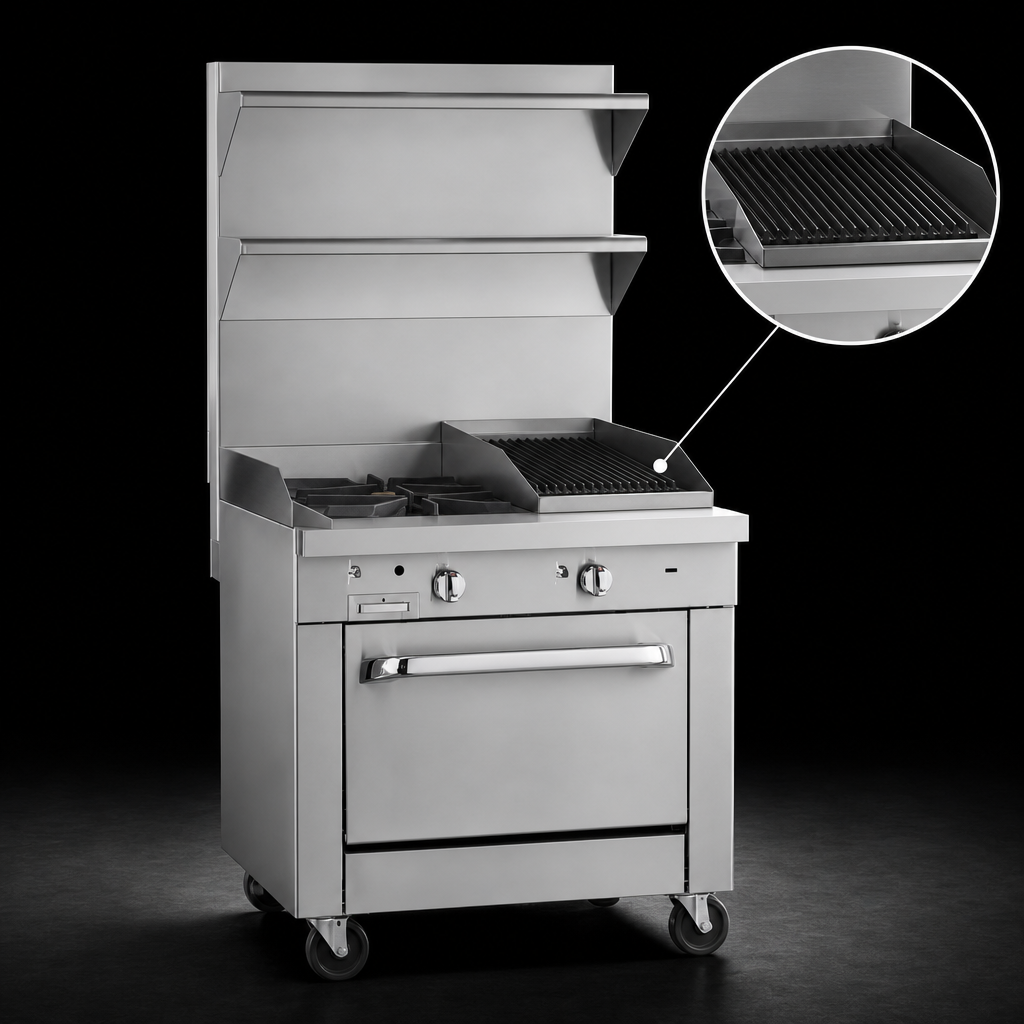

  • 16" manual charbroiler with:
    • Two 20,000 BTU burners (natural gas) with high/low control
    • Stainless-steel radiants for even heat
    • Reversible cast-iron grates (1/8" or 1/4" branding) with adjustable front-to-back slope
    • 600 °F surface temperature on high
  • 9-1/4" deep front rail gives chefs extra plating room.
  • Fully-insulated burner box and stainless-steel front & sides stand up to years of abuse.
  • 5" stainless flue riser keeps heat out of the work zone.
  • 1-1/4" front gas manifold couples seamlessly to other Platinum sections; 1" rear NPT connection for single installs.
  • CSA & NSF certified for gas safety and sanitation.
  • Backed by a 1-year parts & labor warranty and Southbend’s nationwide service network.

At-a-Glance Specs

Model P32-XC (modular)
Cooktop (2) 45,000 BTU open burners + 16" gas charbroiler
Total BTU 130,000 BTU (NG)  |  120,000 BTU (LP)
Controls Manual infinite valves (burners) & high/low knob (charbroiler)
Grates / Radiants Removable cast-iron grates, stainless-steel radiants
Surface Temp (Charbroiler) Up to 600 °F on high
Gas Connection 1 ¼" front manifold & 1" rear male NPT
Overall Width 32" (813 mm)
Depth 37-1/2" (953 mm)
Height (w/ 5" flue) 34" (864 mm)
Certifications CSA, NSF
Warranty 1-year parts & labor (commercial use)

Popular Factory Options

  • 24" or 36" high flue riser with solid, tray, or tubular shelving
  • External gas pressure regulator
  • Open-frame base with casters or stainless cabinet base
  • Battery spark ignition for open tops
  • Plated fish grids or grooved grate kits for charbroiler
Important: Install under a properly sized ventilation hood and supply a regulated gas line (7" W.C. NG / 11" W.C. LP). Avoid placing sheet pans over lit charbroiler grates and keep cookware larger than 12" on the rear section to prevent heat damage—issues caused by improper use are not covered under warranty.

Need financing? Southbend is part of the Middleby family—ask us how to turn this purchase into affordable monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

13.5in

Width

32.0in

Depth

37.5in

Shipping Weight

300.0lbs

Vent

backriser

Base

modular

Exterior Finish

stainless steel front & sides

Top

(2) open burners, (1) 16" charbroiler

Specifications

Platinum Heavy Duty Range, gas, 32", modular, (2) 45,000 BTU open burners, (1) 16" charbroiler, cast iron grates, manual controls, stainless steel radiants, front & sides 80,000 BTU, CSA, NSF
