Southbend (Middleby)  |  Platinum  |  SKU: P32N-TT

Southbend (Middleby) P32N-TT Platinum Gas Ranges

$9,515.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

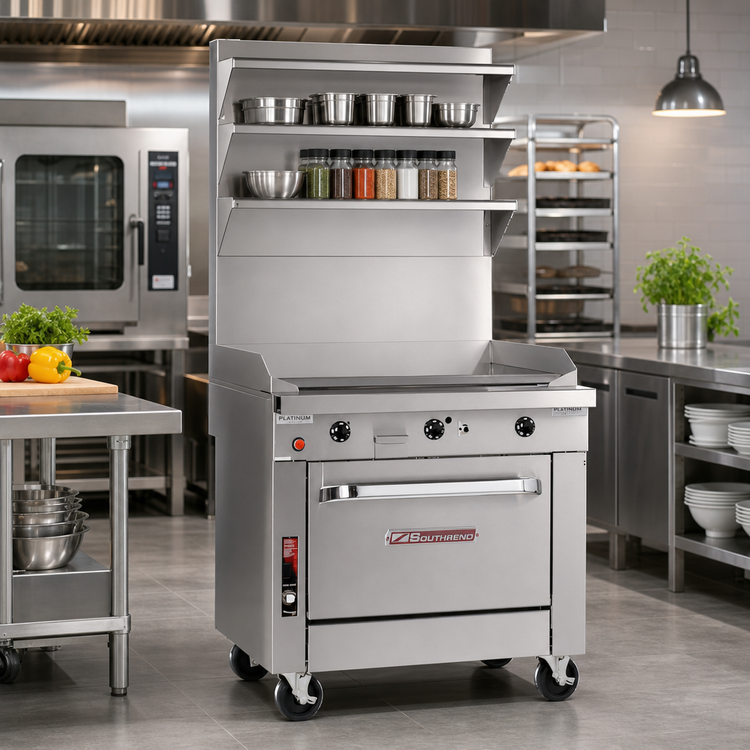

Southbend Platinum Series 32" Heavy-Duty Modular Gas Griddle Range

Model P32N-TT • 80,000 BTU • Thermostatic • NSF & CSA Certified

Unleash serious cooking power in a compact 32" footprint. The Platinum P32N-TT couples a full-width 1" thick griddle plate with precision thermostatic controls and Southbend’s legendary all-stainless construction—perfect for building a custom battery line or topping a refrigerated base.

Key Performance Features

  • 80,000 BTU/hr (natural gas) burner system delivers rapid pre-heat and quick recovery.

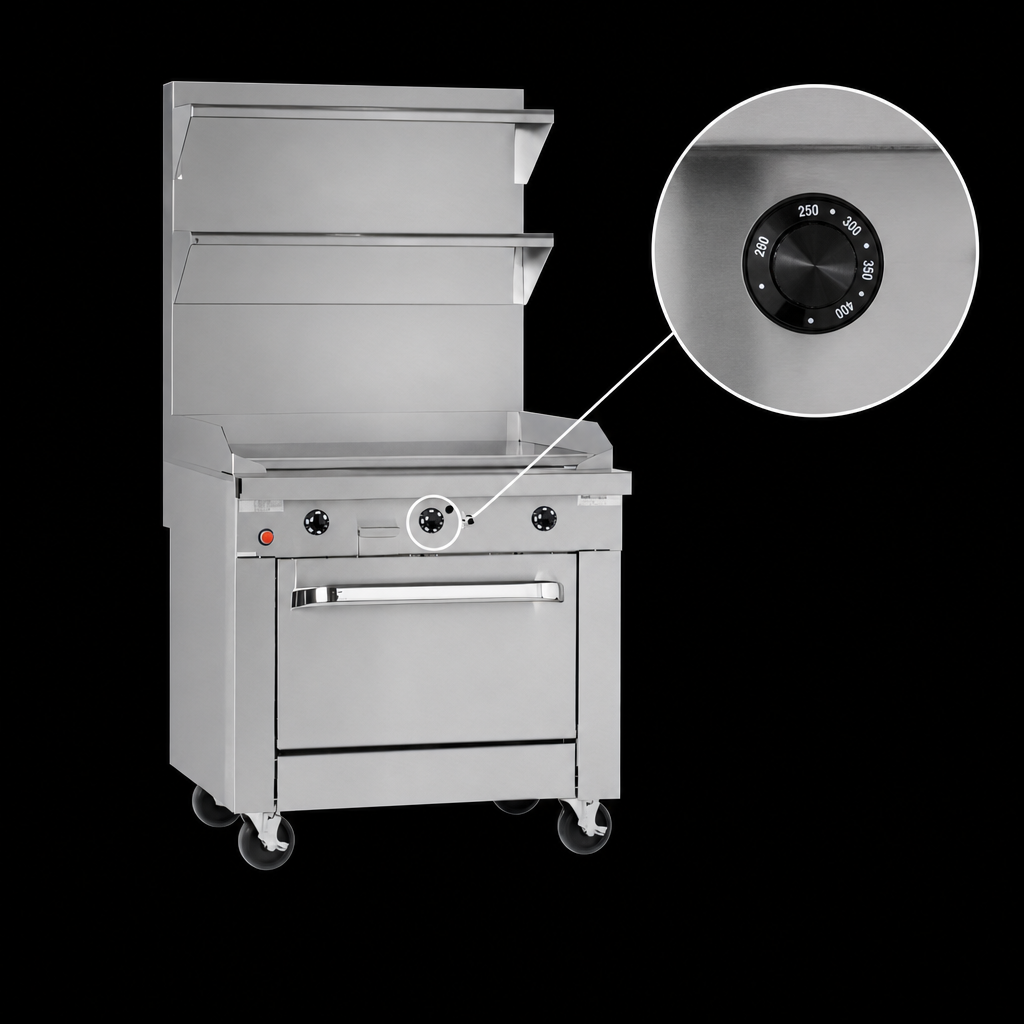

  • “Insta-On” thermostatic control maintains 180 °F–400 °F surface temperatures for repeatable results.

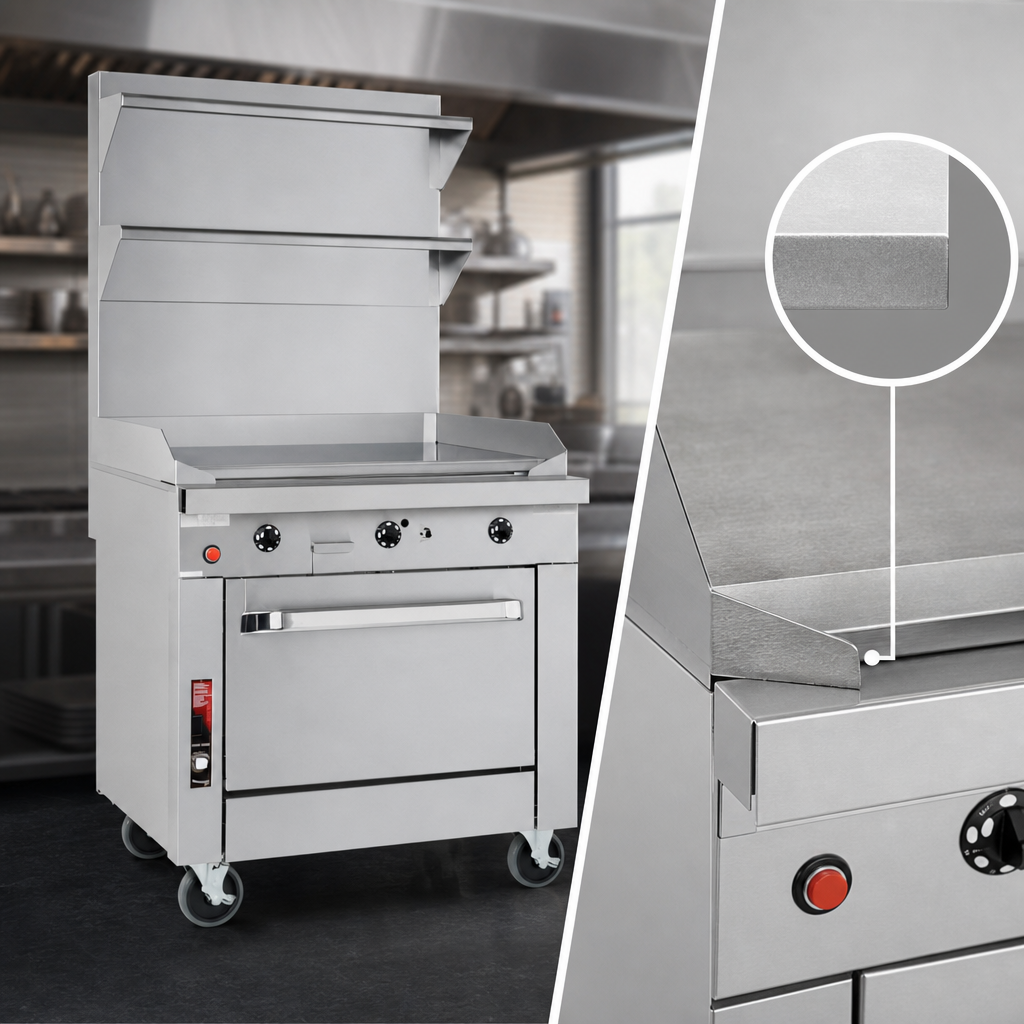

  • 1" thick polished steel plate resists warping and stores heat for even searing.
  • Battery spark ignition—no standing pilots—saves energy and improves safety.
  • Removable stainless grease drawer plus integrated side & rear splash guards keep the line clean.
  • 9-1/4" deep front rail provides plating space and protects operators.
  • All-stainless front, sides, rear & exterior bottom withstand the toughest commercial kitchens.
  • Modular design drops onto counters, refrigerated or freezer bases, or combines with other Platinum sections via a 1 1/4" unified manifold.

Certifications You Can Trust

  • cCSAus Gas Certified
  • CSA Flame & Star
  • NSF Listed

Specifications

Cooking surface 32" W × 24" D full-width griddle
Plate thickness 1" (25 mm) polished steel
Heat input 80,000 BTU/hr (natural) | 72,000 BTU/hr (propane)
Temperature range 180 °F – 400 °F (82 °C – 204 °C)
Controls “Insta-On” thermostatic (independent left/right zones)
Ignition Battery spark
Gas connection 1 1/4" NPT front manifold, 1" NPT rear inlet
Flue riser 5" stainless steel (included)
Overall dimensions* 32" W × 37-1/2" D × 36" H (with 5" riser)
Shipping weight ≈ 400 lb / 181 kg
Warranty 1-year parts & labor, on-site service by Southbend Authorized Agencies

*See cutsheet for complete dimensional drawings and utility requirements.

Popular Options & Accessories

  • External gas pressure regulator
  • Grooved or chrome-plated griddle surfaces
  • 24" or 36" flue risers with optional shelves
  • Caster kit or open-frame base for mobile batteries
  • Square belly bar or 7-1/4" deep front rail
Commercial installation only. Maintain 10" side and 12" rear clearance from combustible surfaces and install beneath a vented hood per local code. For best results, limit oversized (12"+ diameter) cookware to the rear portion of the plate to avoid excessive front-rail heat.

Ask about Middleby Equipment Financing for low, fixed monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

13.5in

Width

32.0in

Depth

37.5in

Shipping Weight

400.0lbs

Base

modular

Vent

backriser

Top

(1) griddle with thermostat

Exterior Finish

stainless steel front & sides

Plate Thickness

1.000" = 1"

Specifications

Platinum Heavy Duty Range, gas, 32", modular, griddle, 1" thick plate, thermostatic controls, battery spark ignition, stainless steel front, sides & exterior bottom, 80,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
