Southbend (Middleby) P32N-TC Platinum Gas Ranges
Southbend (Middleby) P32N-TC Platinum Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P32N-TC Platinum Gas Ranges
Description

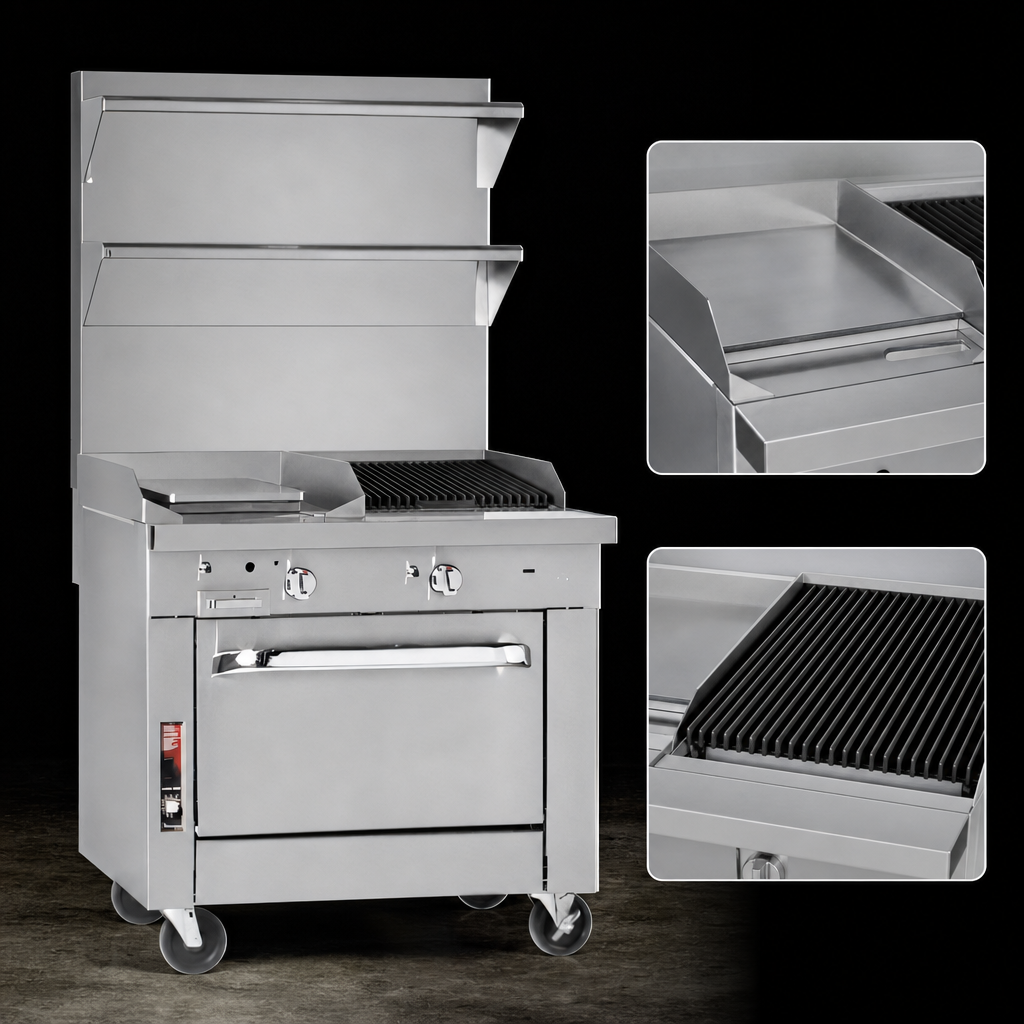

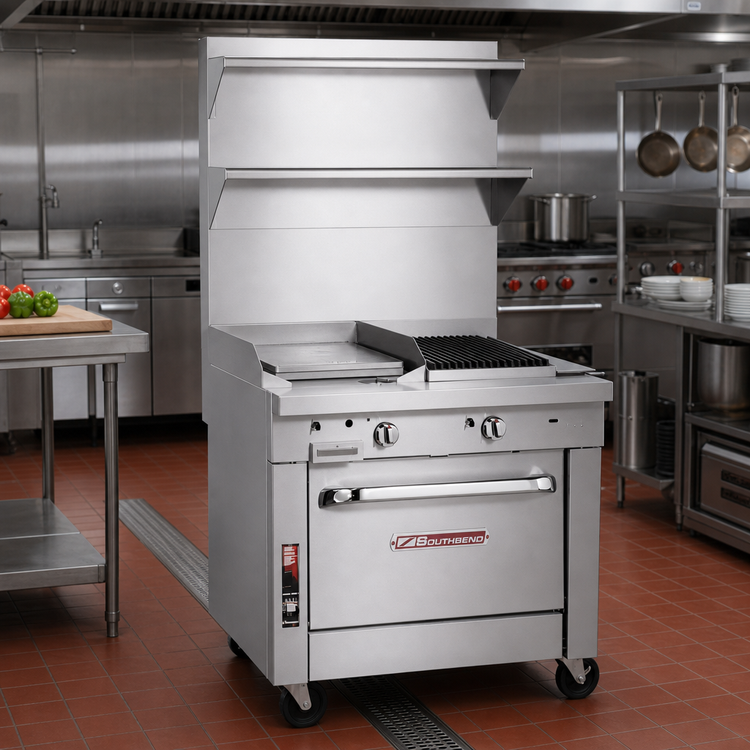

Southbend Platinum 32" Modular Heavy-Duty Range Top
16" Thermostatic Griddle & 16" Charbroiler | 80,000 BTULevel-up your cookline with the muscle of Southbend’s Platinum Series. This 32-inch modular range top merges a precision thermostatic griddle with a rugged charbroiler, giving chefs the power to sear, grill, sauté and finish from one compact footprint.
Key Benefits
- Two independent 40,000 BTU burners (Natural Gas) deliver a combined 80,000 BTU of heavy-duty performance.
- 1" thick polished steel griddle plate holds heat evenly and recovers fast during peak periods.
- Factory-installed “Insta-On” thermostatic control lets you dial surface temps from 180 °F–400 °F.
- 16" charbroiler section sports reversible cast-iron grates (⅛" or ¼" grid) with front-to-back slope adjustment for perfect sear marks.
- Stainless-steel burner radiants ensure a uniform 600 °F broiling surface.
- Battery spark ignition—no standing pilot—cuts gas use and keeps the kitchen cooler.

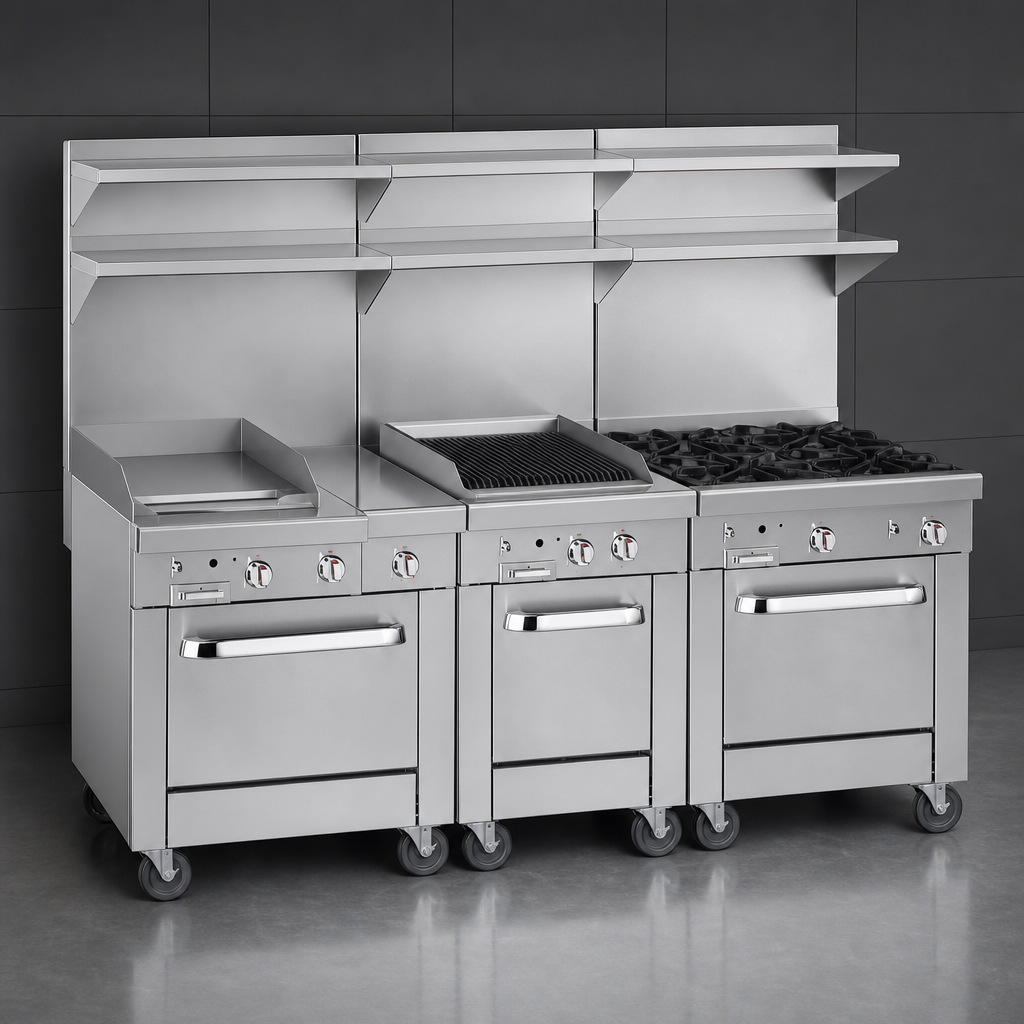

- Modular design mounts on a refrigerated base, chef’s counter or worktable to fit any layout.
- Durable 430/304 stainless-steel front & sides with a 9-¼" deep front rail built to survive the rush.
- Certified cCSAus, CSA Flame, CSA Star and NSF for gas safety and sanitation compliance.
Specifications
| Model | P32-G/TC (Natural Gas) |
|---|---|
| Configuration | 16" thermostatic griddle + 16" charbroiler, modular (top only) |
| Total Input | 80,000 BTU/hr (Natural) • 72,000 BTU/hr (LP) |
| Griddle Plate | 1" thick polished steel, 16" W × 24" D, 180 °F–400 °F |
| Charbroiler Grates | Cast iron, 16" W × 24" D, reversible ⅛"/¼", adjustable slope |
| Ignition | Battery spark (no standing pilot) |
| Gas Connection | 1-¼" front manifold; 1" rear male NPT |
| Gas Pressure | 7" W.C. Natural • 11" W.C. LP (regulator sold separately) |
| Dimensions (W × D × H) | 32" × 37-½" × 15-¾" (with 5" flue riser) |
| Shipping Weight | ≈ 300 lb |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Popular Options (sold separately)
- Chrome-plated or grooved griddle surface
- 24" or 36" stainless-steel flue riser with shelves
- External gas pressure regulator & restraining cable kit
- Open-frame base with casters
- Plated fish racks for charbroiler
