Southbend (Middleby) P32N-HH Platinum Gas Ranges
Description
Southbend Platinum Series 32" Modular Uniform Hot Top Range
Model P32N-HH | 80,000 BTU Natural Gas • 72,000 BTU LPBuilt for relentless, high-volume service, the Platinum Series 32" Heavy Duty Modular Hot Top gives you a single, super-heated cooking surface that slides right into any sectional battery. With four powerful burners, rugged stainless construction and precise manual controls, it’s the workhorse you want when every plate counts.
Key Features

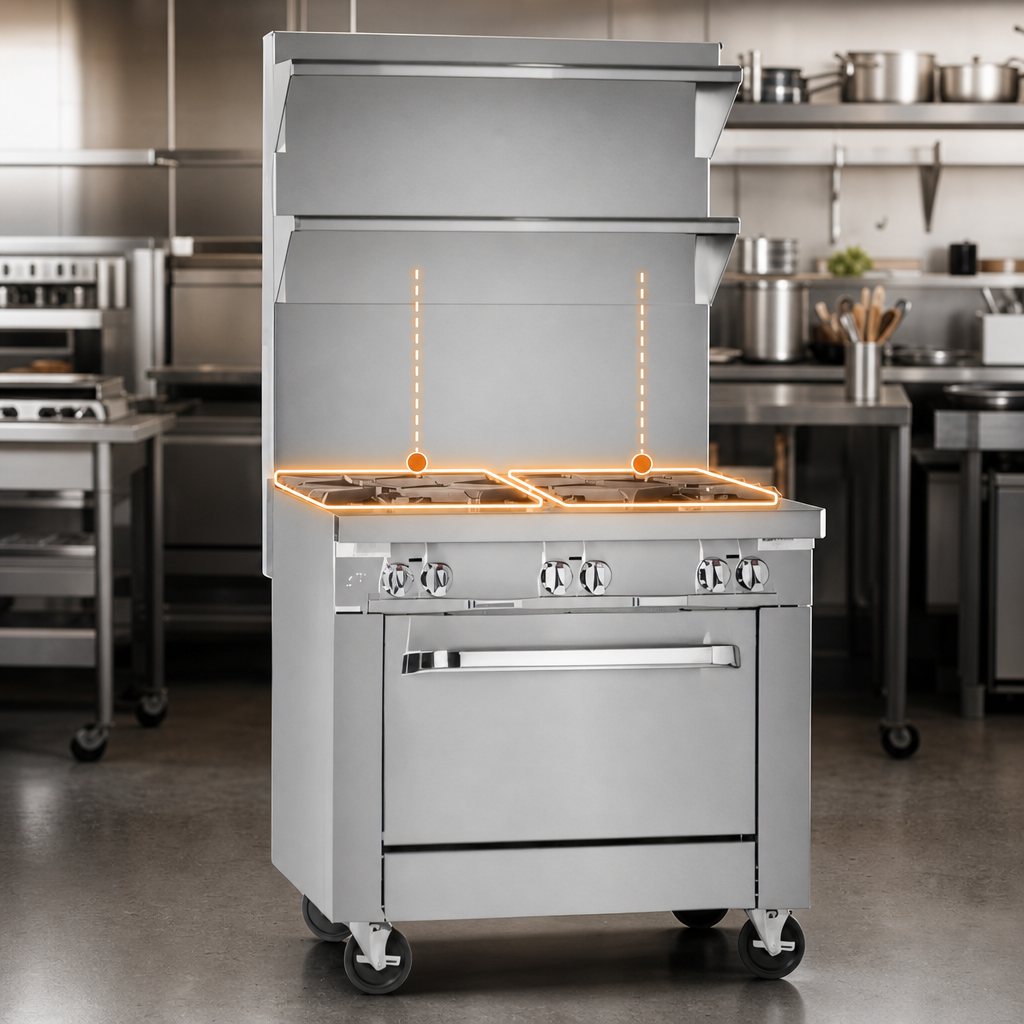

- Two 16" uniform hot tops span the full 32" width—ideal for pots, pans or griddles anywhere on the surface.
- 80,000 BTU/hr NAT (72,000 BTU/hr LP) from four heavy-duty burners beneath a 3/4" steel plate.
- Surface temps up to 700 °F with rapid recovery for non-stop production.

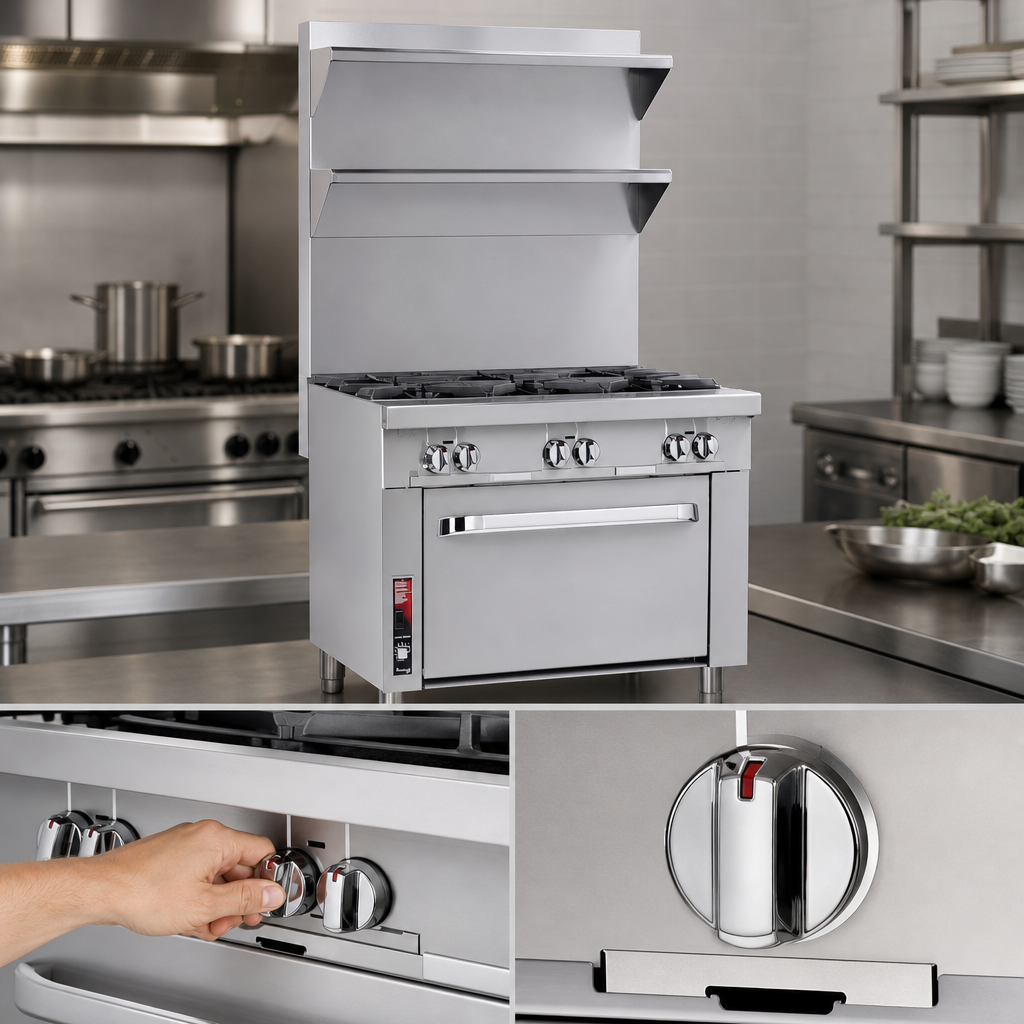

- Manual high/low valves for independent zone control.
- Battery spark ignition—no standing pilots on the top.
- 9-1/4" deep front rail doubles as a landing ledge and protects controls.
- 5" stainless steel flue riser vents heat up and away from the operator.
- Fully insulated burner box maximizes efficiency and keeps nearby equipment cooler.
- 430 & 304 stainless steel front, sides, rear and exterior bottom for long-lasting durability.
- 1-1/4" front gas manifold couples to adjacent Platinum sections; 1" rear male NPT for stand-alone installs.
- Zero side clearance from non-combustible surfaces—perfect under a vent hood.
- CSA & NSF listed; backed by a 1-year parts & labor warranty.
Technical Specifications
| Cooking Surface | (2) 16" uniform hot tops, removable steel plate |
|---|---|
| Total BTU Input | 80,000 BTU/hr NAT | 72,000 BTU/hr LP |
| Max Surface Temp | Up to 700 °F (371 °C) |
| Dimensions (W x D x H) | 32" x 37-1/2" x 34"* *Height includes 5" flue riser |
| Working Height | 15-3/4" (modular mount) |
| Gas Connection | 1-1/4" front manifold | 1" rear male NPT |
| Ignition | Battery spark (top) |
| Certifications | CSA, NSF |
| Shipping Weight | Approx. 315 lb / 143 kg |
| Warranty | 1-year limited parts & labor |
Why a Uniform Hot Top?
A solid hot top creates one continuous heat zone—slide stock pots, sear skillets or rest sheet pans anywhere without juggling grates. The thick steel plate stores heat like a griddle, so temperature dips are minimal when a cold pan hits the surface, and cleaning is as simple as scraping and wiping.
Popular Options & Accessories (sold separately)
- 24" or 36" flue risers with single or double shelves
- Extra-deep rear-extending flue riser
- 7-1/4" deep classic front rail or rail cut-outs for sauce pans
- Casters or open-frame base for mobile battery installs
- External gas pressure regulator & cable restraint kit
Need a custom cookline? Take advantage of Southbend’s free battery design assistance.
Upgrade your production capacity today with the Southbend Platinum Series 32" Modular Hot Top Range. Have questions or want to explore easy monthly payments? Contact us for financing options and keep your kitchen moving forward.
