Southbend (Middleby) P32N-HG Platinum Gas Ranges
Description

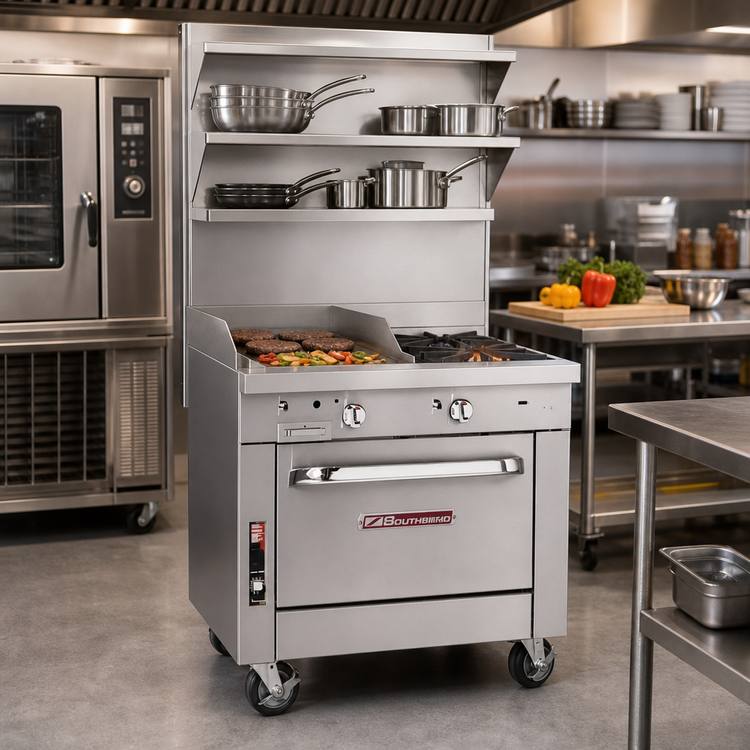

Southbend Platinum Series 32" Modular Hot Top / Griddle Range Top
Model P32-HG • 80,000 BTU GasPut two of the most requested cooking surfaces on a single, heavy-duty platform. The Southbend Platinum P32-HG couples a high-output 16" hot top with a rugged 16" manual griddle, giving chefs the power to sauté, sear, hold and finish in just 32" of line space. Mount it on a counter, refrigerated base or equipment stand and watch productivity soar.
Key Features

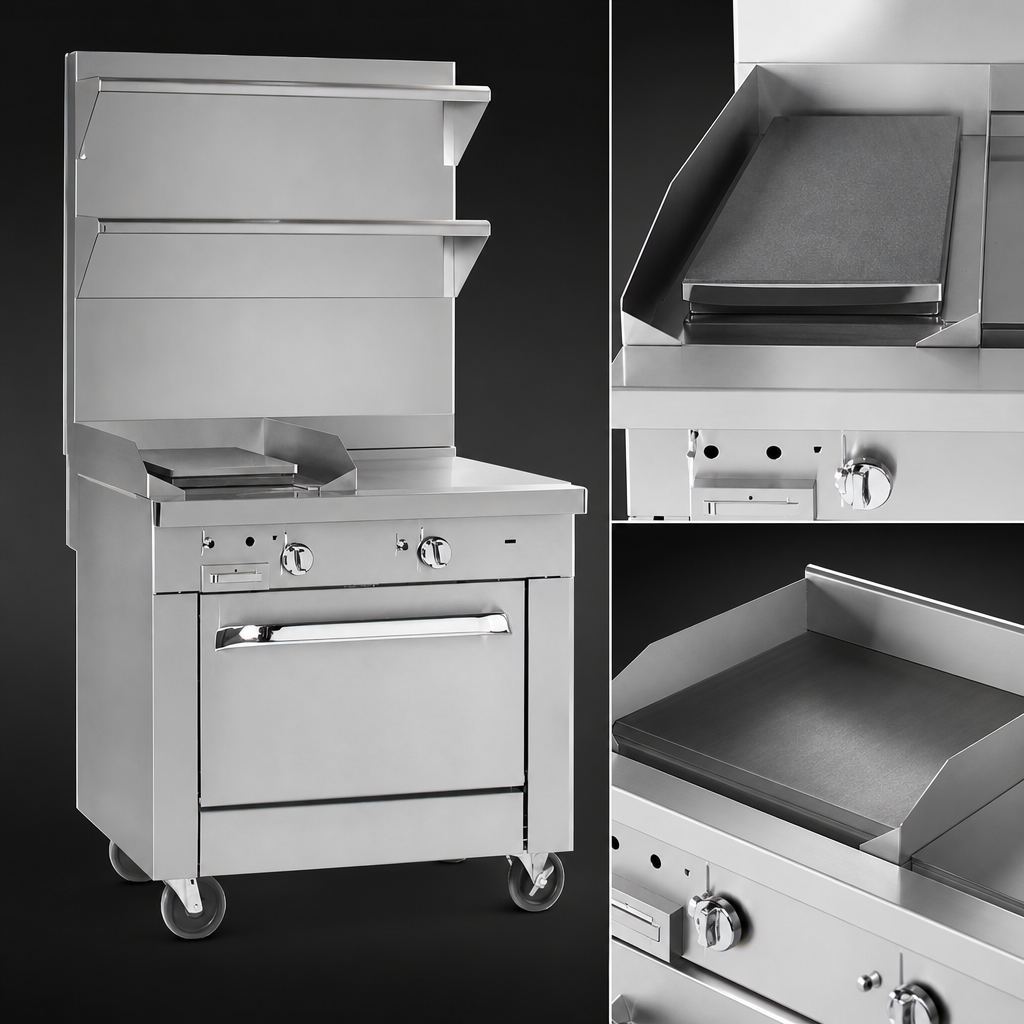

- Combination top: (1) 16" hot top + (1) 16" griddle.
- Total 80,000 BTU (natural gas) from four 20,000 BTU burners.
- Battery spark ignition – lights fast, no standing pilots.
- Manual “G” controls for quick, intuitive flame adjustment.
- Hot top reaches ~700 °F for high-heat sauté or staging.
- 1" thick polished steel griddle plate with side & rear splash guards.
- Removable stainless grease drawer simplifies cleanup.
- Stainless steel front & sides, fully insulated burner box and 9-1/4" deep front rail built for the rush.
- 5" stainless flue riser directs heat and vapors to your hood.
- 1-1/4" front gas manifold couples to other Platinum sectionals; 1" rear NPT for stand-alone install.
- Certified cCSAus, CSA Flame, CSA Star & NSF.
Perfect For
- Steakhouses & chophouses needing intense heat in a compact footprint.
- High-volume restaurants adding extra griddle and holding surface to the line.
- Institutional or hotel kitchens that battery-line heavy-duty equipment.
Specifications
| Model | P32-HG (manual griddle) |
|---|---|
| Cooking Sections | 16" hot top / 16" griddle |
| Plate Thickness | 1" (griddle) |
| Total Input | 80,000 BTU/hr (Natural) | 72,000 BTU/hr (LP) |
| Controls | Manual infinite valves, battery spark ignition |
| Gas Connection | 1-1/4" front manifold & 1" rear male NPT |
| Dimensions (W × D × H) | 32" × 37-1/2" × 15-3/4" (add 5" for flue) |
| Shipping Weight | Approx. 300 lb (136 kg) |
| Construction | Stainless steel front & sides, fully insulated lining & burner box |
| Certifications | cCSAus • CSA Flame • CSA Star • NSF |
| Warranty | 1-year parts & labor |
Popular Factory Options
- 24" or 36" flue riser with single or double shelves
- Grooved or chrome-plated griddle surface
- Open-frame stand with casters & cable restraint kit
- External gas pressure regulator
For best results, keep cookware larger than 12" to the rear of the unit to protect front components. Install under an appropriate commercial vent hood and follow all local gas and fire codes.
