Southbend (Middleby)  |  Platinum  |  SKU: P32N-HC

Southbend (Middleby) P32N-HC Platinum Gas Ranges

$10,409.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation & operation Owner's manual Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

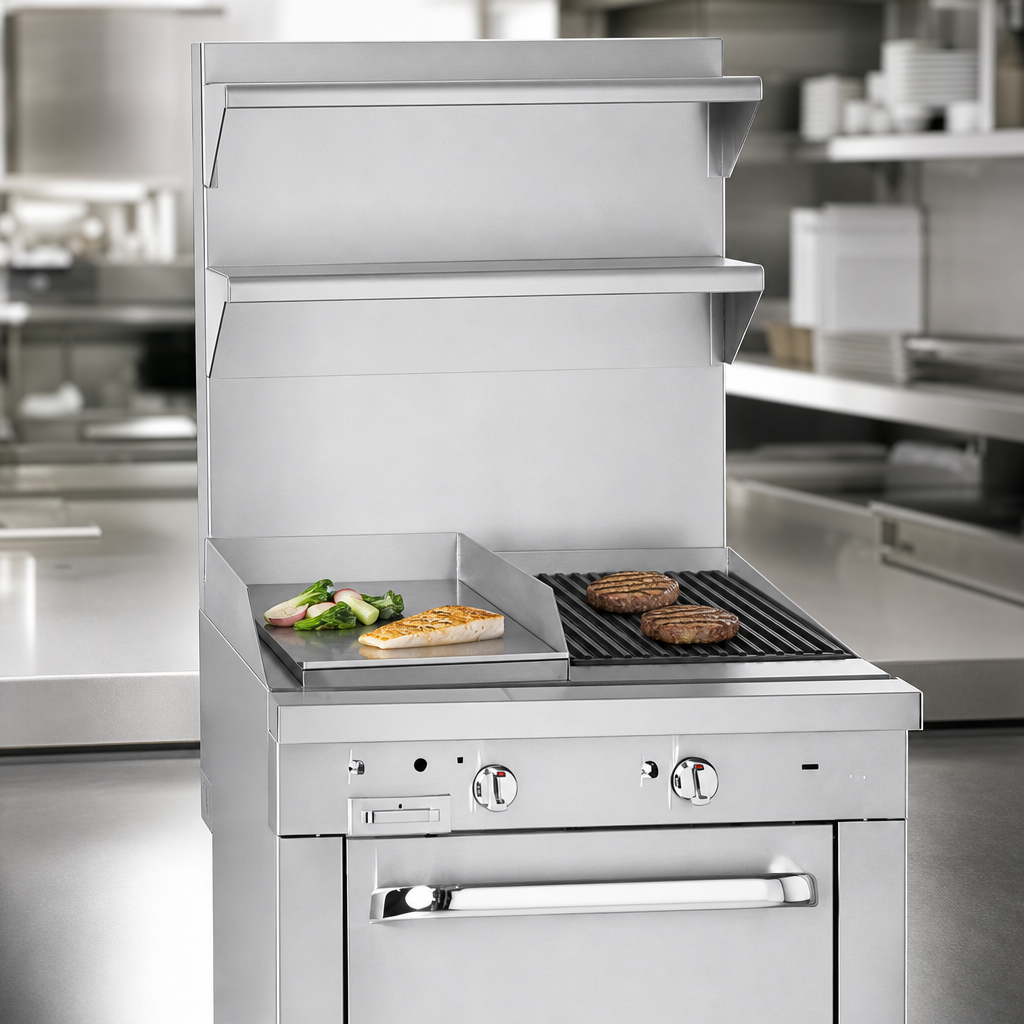

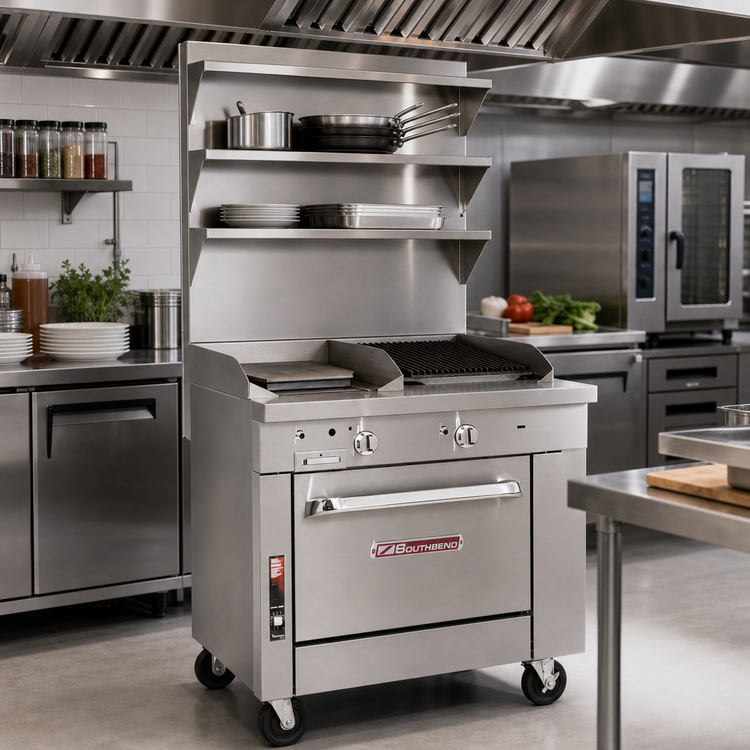

Southbend Platinum Heavy-Duty 32" Modular Range

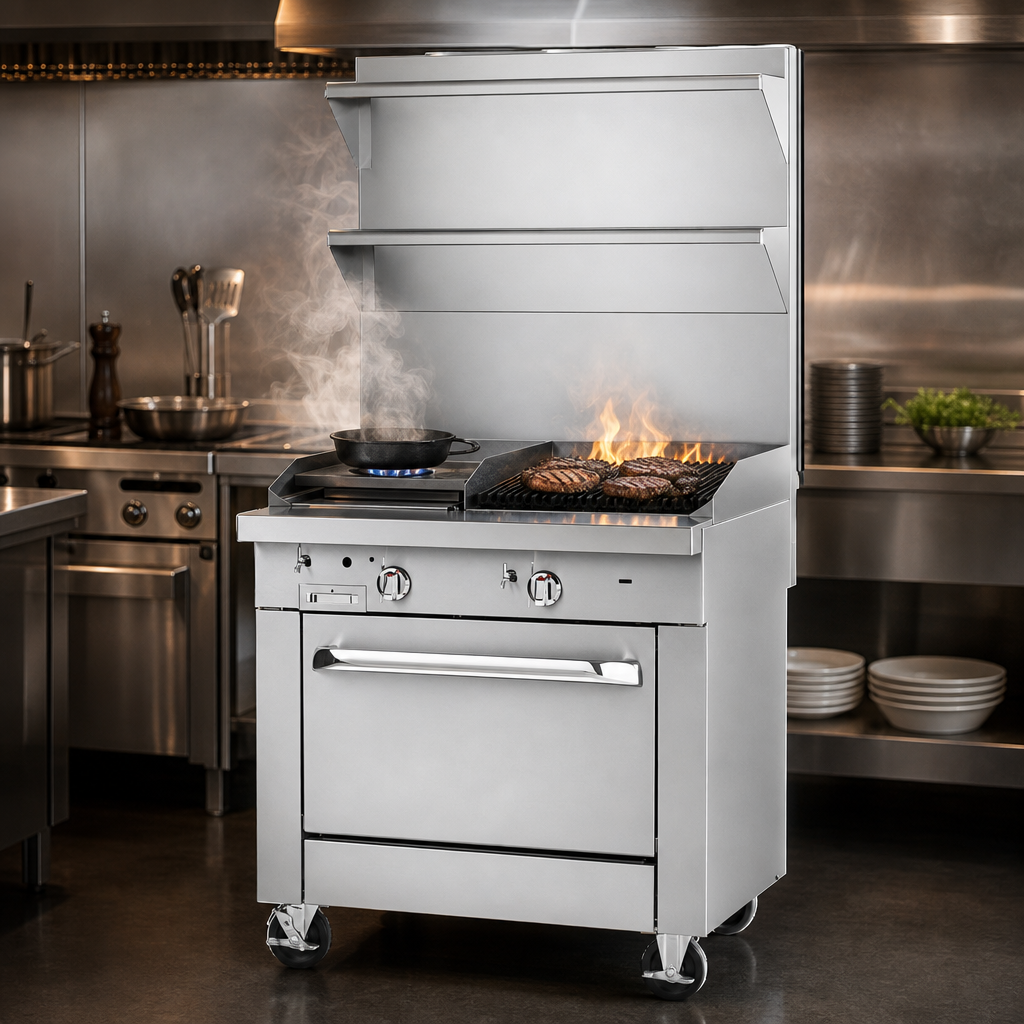

Model P32-HC – Hot Top / Charbroiler Combo, 80,000 BTU

Build the exact cook line your kitchen needs with Southbend’s Platinum Series P32-HC. This 32-inch modular range pairs a high-output hot top with a powerful charbroiler, delivering two work-horse stations in one heavy-duty unit that drops into any Platinum battery or refrigerated base.

Highlights

  • 16" Hot Top
    • (2) 20,000 BTU NAT burners (18,000 BTU LP)
    • Battery spark ignition & high / low control
    • Removable steel plates reach 700 °F on high
  • 16" Charbroiler
    • (2) 20,000 BTU NAT burners (18,000 BTU LP)
    • Stainless steel radiants & manual high / low control
    • Reversible cast-iron grates with adjustable slope (⅛" or ¼" grids)
    • Even 600 °F grilling surface
  • Rugged all-stainless exterior (front, sides & bottom) with fully insulated burner box
  • 9-¼" deep front rail keeps plating area cool
  • 1-¼" front gas manifold couples to adjacent sections; 1" rear NPT connection
  • Removable drip trays and components for fast daily cleanup
  • CSA Gas & NSF sanitation listed

Technical Specifications

Cooking configuration 16" Hot Top + 16" Charbroiler (modular top)
Total input 80,000 BTU/hr (natural gas)
72,000 BTU/hr (propane)
Gas supply 7" W.C. NAT / 11" W.C. LP (regulated)
Connections 1-¼" front manifold | 1" rear male NPT
Unit width 32" (813 mm)
Unit depth 37½" (953 mm)
Cook-surface height ≈14" plus 5" stainless flue riser (standard)
Shipping weight ≈300 lb (136 kg)
Warranty 1-year parts & labor (heavy-duty sectional)
Certifications CSA, NSF

Popular Options & Accessories

  • 5", 24" or 36" stainless flue riser (shelving available on 24"/36" models)
  • External gas pressure regulator
  • Open-frame base or locking casters
  • Cable restraint kit for mobile installations
  • Plated fish grids for the charbroiler
  • Removable cast-iron hot-top plates
Important: Operate the charbroiler under an approved ventilation hood only. Never block the char grates with sheet pans during cleaning—reflected heat can cause damage not covered by warranty.

Need additional burners, griddles, or an oven base? The Platinum Series offers countless combinations. Contact us for a custom quote.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

13.5in

Width

32.0in

Depth

37.5in

Shipping Weight

300.0lbs

Base

modular

Vent

backriser

Exterior Finish

stainless steel front & sides

Top

(1) 16" hot top, (1) 16" charbroiler

Specifications

Platinum Heavy Duty Range, gas, 32", modular, (1) 16" hot top, (1) 16" charbroiler, cast iron grates, manual controls, stainless steel radiants, front, sides & exterior bottom, 80,000 BTU, CSA, NSF
