Description

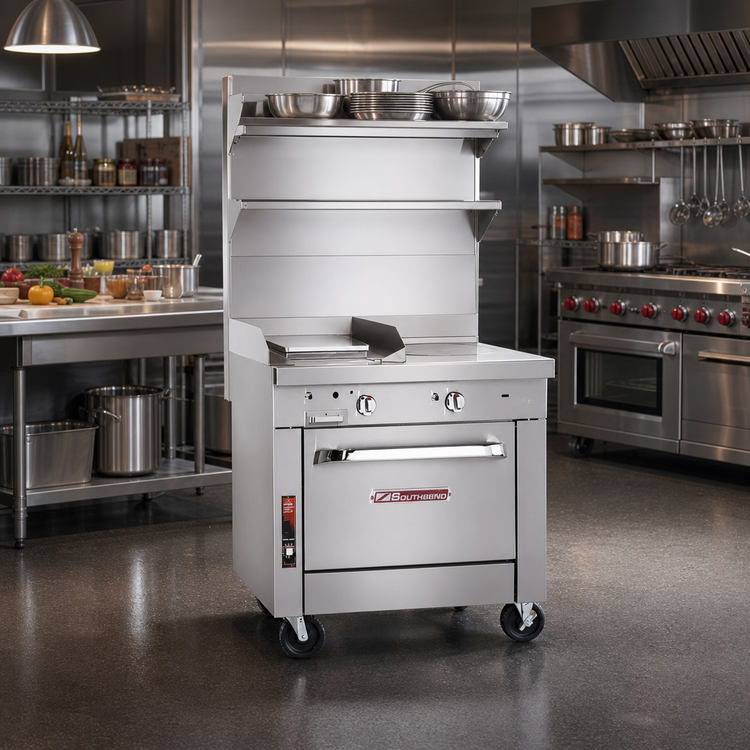

Southbend Platinum Series 32" Modular Graduated Hot Top Range  Model P32N-GRAD

Engineered for high-volume kitchens, the Platinum P32N-GRAD delivers a blazing 62,000 BTU of even, controllable heat across a full-width graduated hot top. Mount it on a refrigerated base, cabinet base, or drop it into a battery of other Platinum sectionals to create a powerful, space-efficient cookline.

Highlights

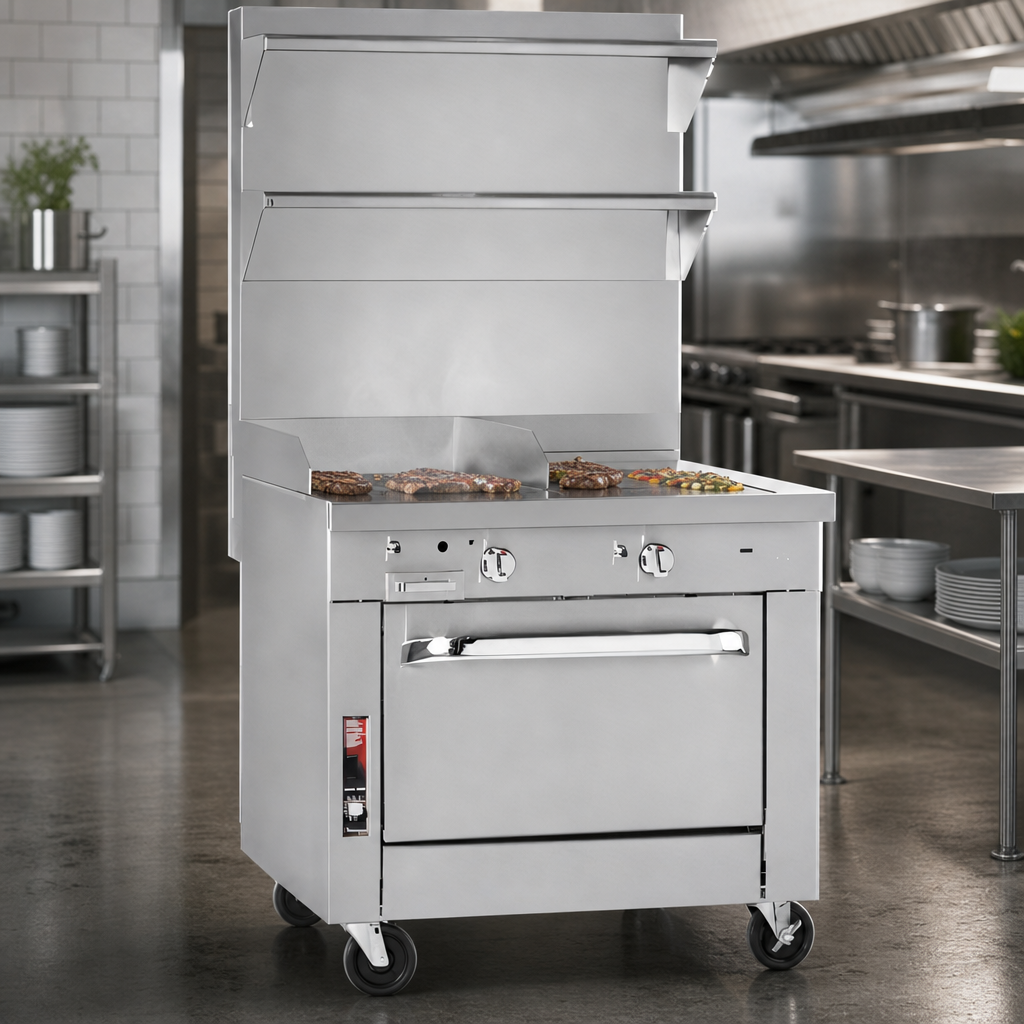

  • Full-width graduated hot top reaches up to 900 °F (center) and tapers to lower holding temps toward the edges.
  • Heavy-duty 62,000 BTU NAT (42,000 BTU LP) burner with reliable battery spark ignition—no electrical hookup required.
  • Manual high / low valve for instant zone control.
  • Removable ¾" thick steel plates simplify cleaning and maintenance.
  • Rugged stainless steel front, sides, rear and exterior bottom stand up to harsh commercial environments.
  • 9-1/4" deep bull-nose rail provides a safe landing zone for pans and utensils.
  • 5" stainless steel flue riser protects the backsplash and improves draft.
  • 1-1/4" front gas manifold mates seamlessly with other Platinum sectional units; 1" rear male NPT for single-unit installs.
  • Fully insulated lining and burner box for cooler kitchen operation.
  • Certified NSF, cCSAus, CSA Flame & CSA Star for gas safety and sanitation.

Perfect For

  • Searing steaks, chops and seafood just before service.
  • Holding sauces, stocks, or braises at precise temperatures.
  • Sauté stations that need rapid temperature changes without open flames.
  • Compact lines where modular flexibility is a must.

Specifications

Model P32N-GRAD (modular mount)
Gas Input Natural 62,000 BTU/hr @ 7" W.C.
Propane 42,000 BTU/hr @ 11" W.C.
Cooking Surface 32" W × 24" D graduated hot top, removable steel plates
Temperature Range Approx. 200 °F – 900 °F (center)
Controls Manual high / low valve, battery spark ignition
Overall Dimensions* 32" W × 37-1/2" D × 34" H (with 5" flue riser)
Shipping Weight Approx. 315 lb / 143 kg
Gas Connections 1-1/4" front manifold (interconnect)
1" rear male NPT (stand-alone)
Construction Stainless steel exterior; fully insulated lining & burner box
Certifications NSF, cCSAus, CSA Flame, CSA Star

*Heights shown to cooking surface. Flue risers up to 36" are available.

Popular Factory Options

  • 24" or 36" high flue riser with single or double shelves
  • Casters with front brakes & rear restraint kit
  • 7-1/4" deep front rail or square belly bar
  • External gas pressure regulator
  • Open-frame base, cabinet base or refrigerated chef base
  • Salamander or cheesemelter mounting brackets
Important: This appliance is intended for commercial use only. Install under a properly sized vent hood and connect to a regulated gas supply.

Warranty

Includes Southbend’s 1-year parts & labor warranty with nationwide authorized service coverage.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

13.5in

Width

32.0in

Depth

37.5in

Shipping Weight

315.0lbs

Base

modular

Vent

backriser

Top

(1) hotplate

Exterior Finish

stainless steel front & sides

Specifications

Platinum Heavy Duty Range, gas, 32", modular, graduated hot top, manual controls, battery spark ignition, stainless steel front, sides & exterior bottom, 62,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
