Southbend (Middleby) P32N-GG Platinum Gas Ranges
Description

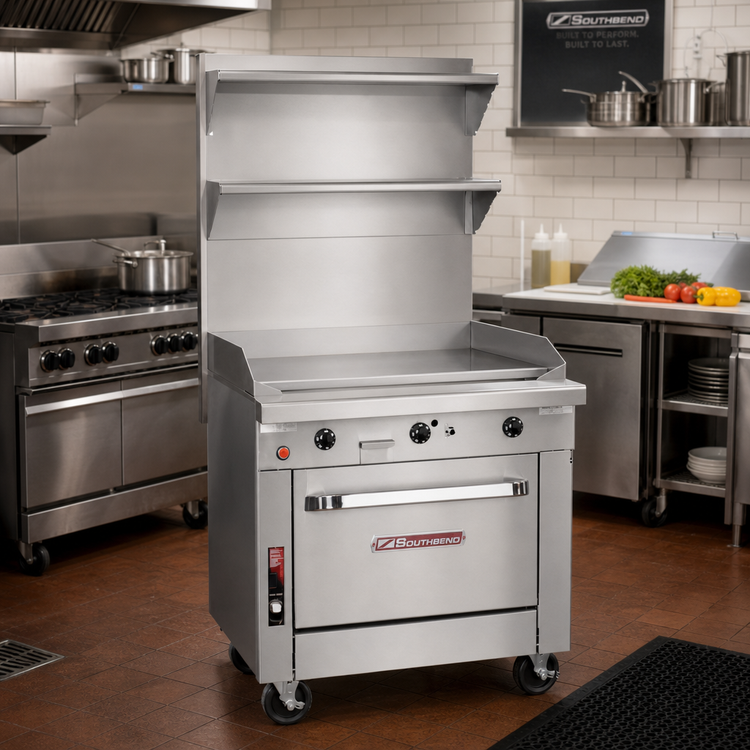

Southbend Platinum 32" Modular Heavy-Duty Gas Griddle Range
Model P32N-GG | 80,000 BTU (Natural Gas)Built for relentless commercial kitchens, the Southbend Platinum Series 32" modular range pairs an ultra-thick 1" griddle plate with bullet-proof stainless construction and simple, dependable manual controls. Drop it onto a refrigerated base, chef stand, or suite it into a battery— the P32N-GG delivers the rock-solid performance chefs expect from Southbend’s flagship heavy-duty line.
Why You’ll Love It
- Full-width 32" griddle, 1" thick steel plate for even heat retention & fast recovery.
- 80,000 BTU NAT (72,000 BTU LP) U-shaped burner with manual infinite valves.
- Battery spark ignition—no standing pilots to waste energy.
- Stainless steel front, sides, rear & bottom; fully insulated burner box.
- 9 ¼" deep front rail stays cool and doubles as a plating shelf.
- Side & rear integrated splashers plus extra-large, removable grease drawer.
- 5" stainless flue riser directs heat into the hood, protecting staff and nearby equipment.
- 1 ¼" front gas manifold allows quick daisy-chaining into a Platinum battery.
- 6" stainless, height-adjustable legs included (modular mount hardware optional).
- cCSAus, CSA Flame, CSA Star & NSF listed for gas safety and sanitation compliance.
- Backed by Southbend’s 1-year parts & labor warranty with nationwide service network.
Technical Specs
| Model | P32N-GG (Platinum Series) |
|---|---|
| Gas Type & Input | Natural Gas – 80,000 BTU / Propane – 72,000 BTU |

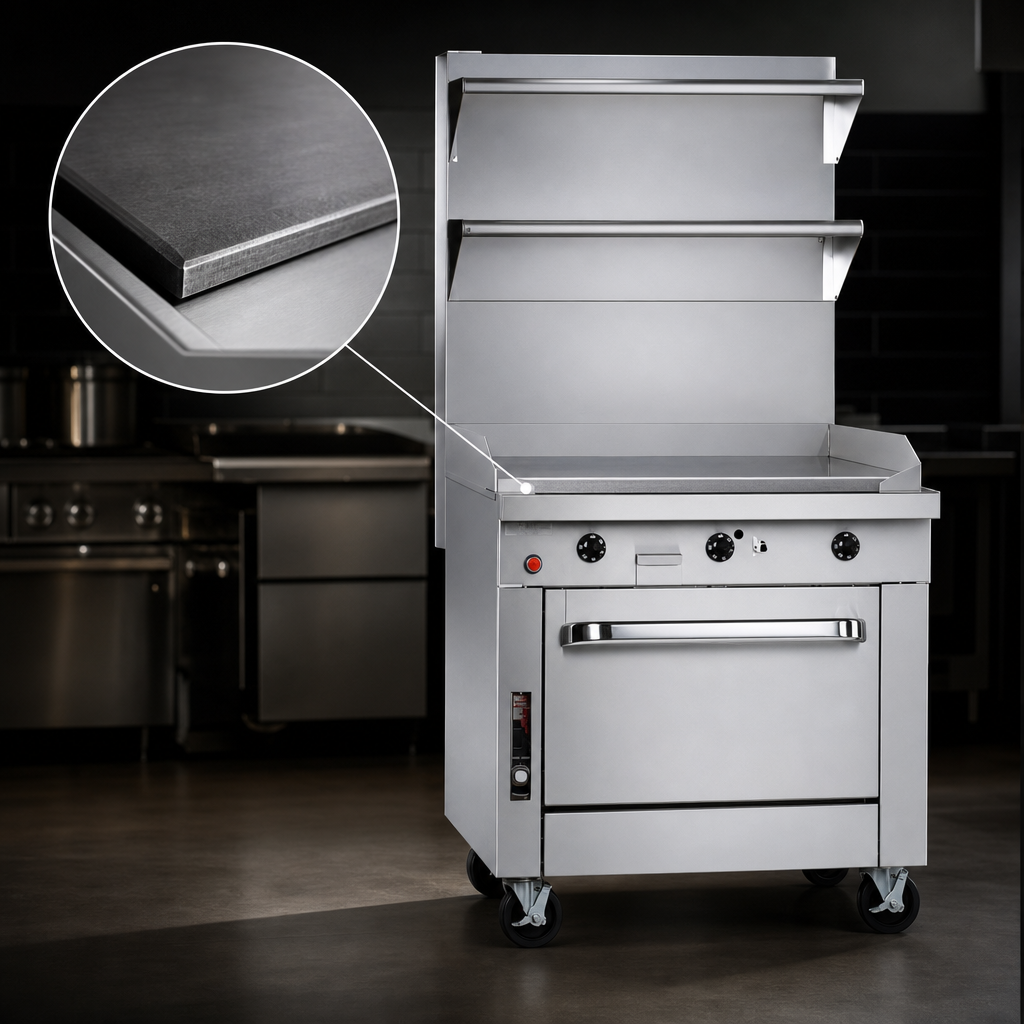

| Plate Thickness | 1" solid steel |

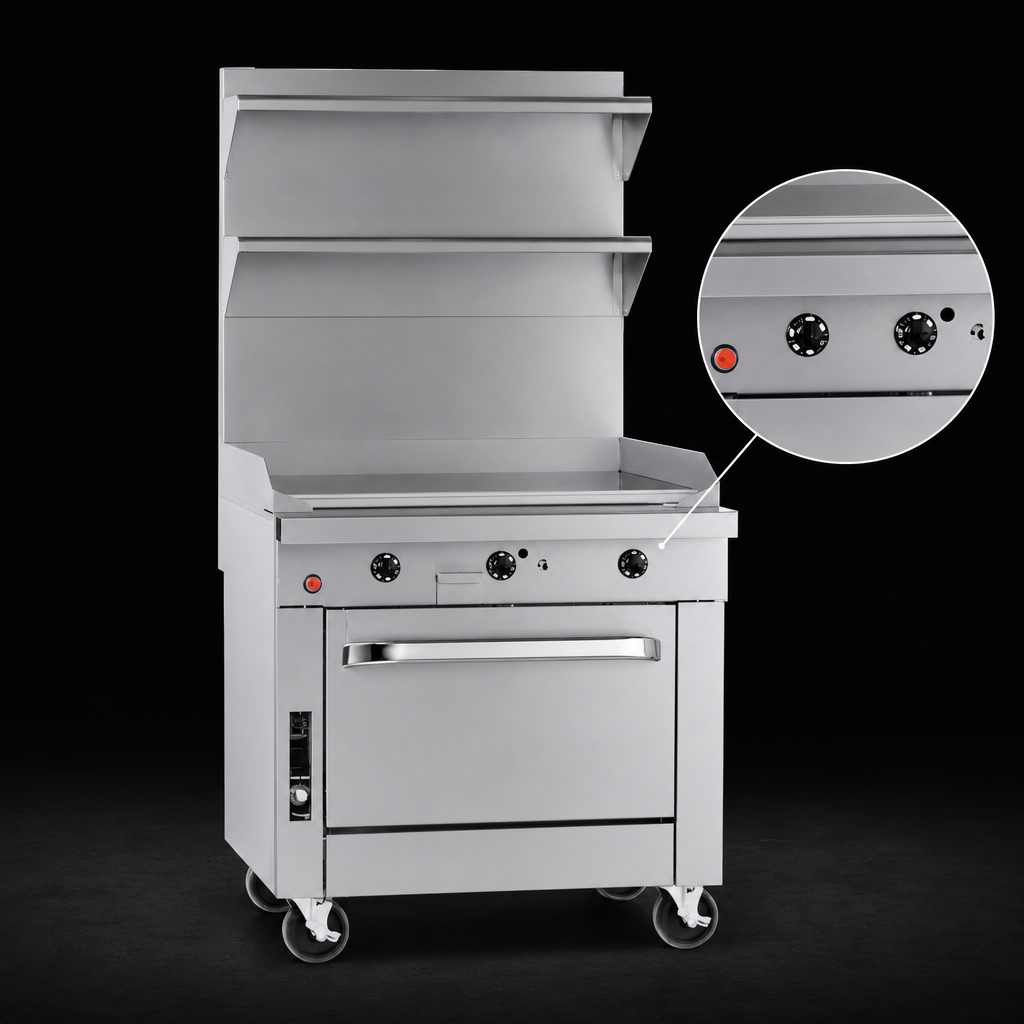

| Controls | Manual infinite valves (2) |
| Ignition | Battery spark (AA battery, alkaline not covered under warranty) |
| Cooking Surface | 32" W × 24" D (full-width griddle) |
| Overall Dimensions* | 32" W × 37.5" D × 34" H to cooking surface (39" H with 5" flue) |
| Shipping Weight | Approx. 400 lb / 181 kg |
| Gas Connections | Front: 1 ¼" NPT manifold | Rear: 1" NPT male |
| Clearances | Combustible: 10" sides / 12" rear | Non-combustible: 0" |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (see Southbend warranty for details) |
*Dimensions include 6" legs; allow for gas connection & ventilation.
Installation Notes
- A regulated gas supply of 7" W.C. (NAT) or 11" W.C. (LP) is required.
- Install under a properly sized, code-compliant ventilation hood.
- When using flexible gas hose, add a restraint cable to prevent strain.
- For best performance, keep oversized cookware toward the rear to avoid excessive heat on the front rail.
