Southbend (Middleby)  |  Platinum  |  SKU: P32N-GC

Southbend (Middleby) P32N-GC Platinum Gas Ranges

$10,770.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Installation & operation Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum Series 32" Modular Range – Griddle / Charbroiler Combo

Model P32-GC • 80,000 BTU Heavy-Duty Gas Sectional Top

Build the ultimate cookline without giving up precious space. Southbend’s Platinum Series 32 inch modular combination top delivers a 16 inch manual steel griddle beside a powerful 16 inch charbroiler, letting you sear steaks, toast buns and knock out short-order favorites on a single, heavy-duty platform built to thrive on the busiest line.

Why You’ll Love It

  • True heavy-duty construction – 430 & 304 stainless front, sides and exterior bottom with fully-insulated burner box.
  • (1) 16" manual griddle with a 1" thick steel plate for fast recovery and even heat.
  • (1) 16" charbroiler featuring reversible cast-iron grates (⅛" or ¼" grid), adjustable front-to-back slope and stainless radiants.
  • Independent manual high/low control knob for each section; simple, durable and easy to service.
  • Total output 80,000 BTU (natural gas) / 72,000 BTU (propane) to crush peak-hour volume.
  • 32" sectional footprint integrates seamlessly into any Platinum battery or mounts on a counter, refrigerated or freezer base.
  • 5" stainless flue riser keeps heat and grease away from your staff and back-wall.
  • Front 1 ¼" gas manifold with 1" rear NPT connection makes installation and future line-ups effortless.

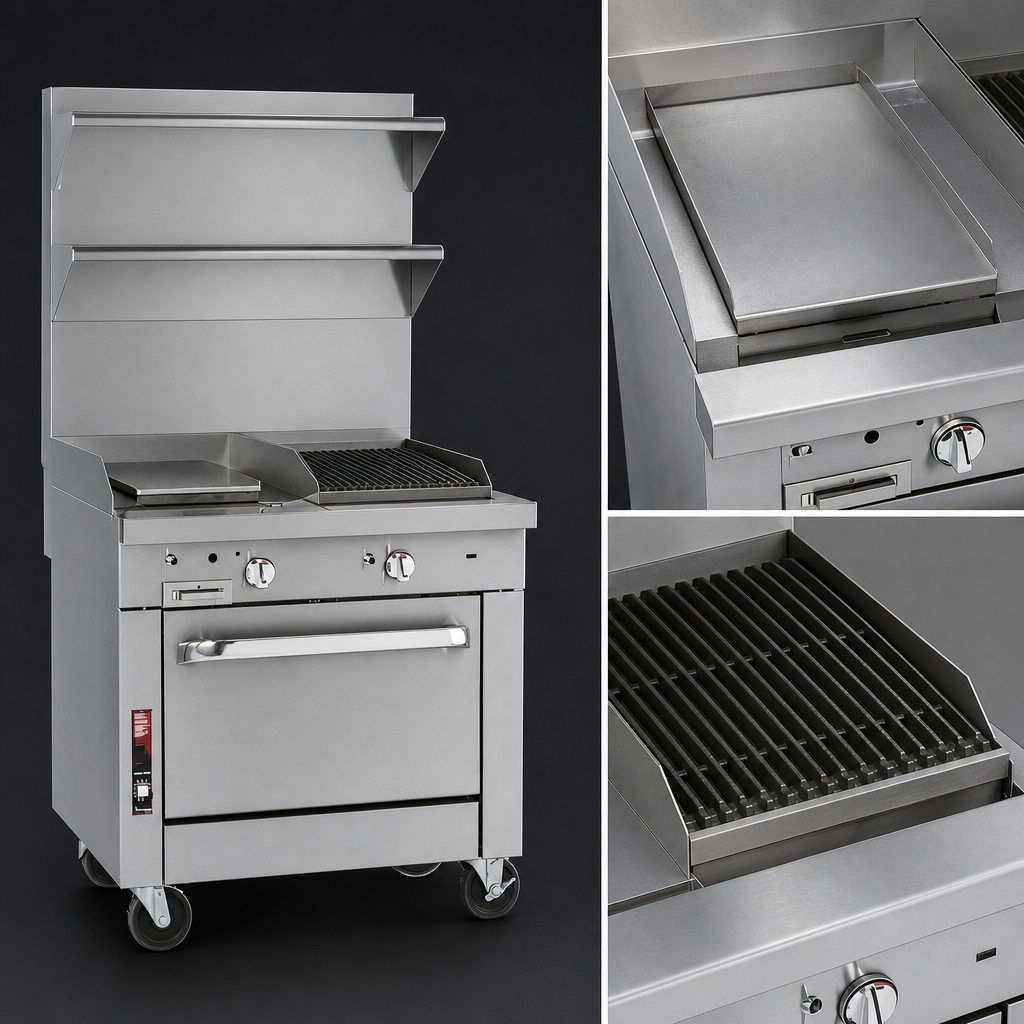

Cooking Surfaces in Detail

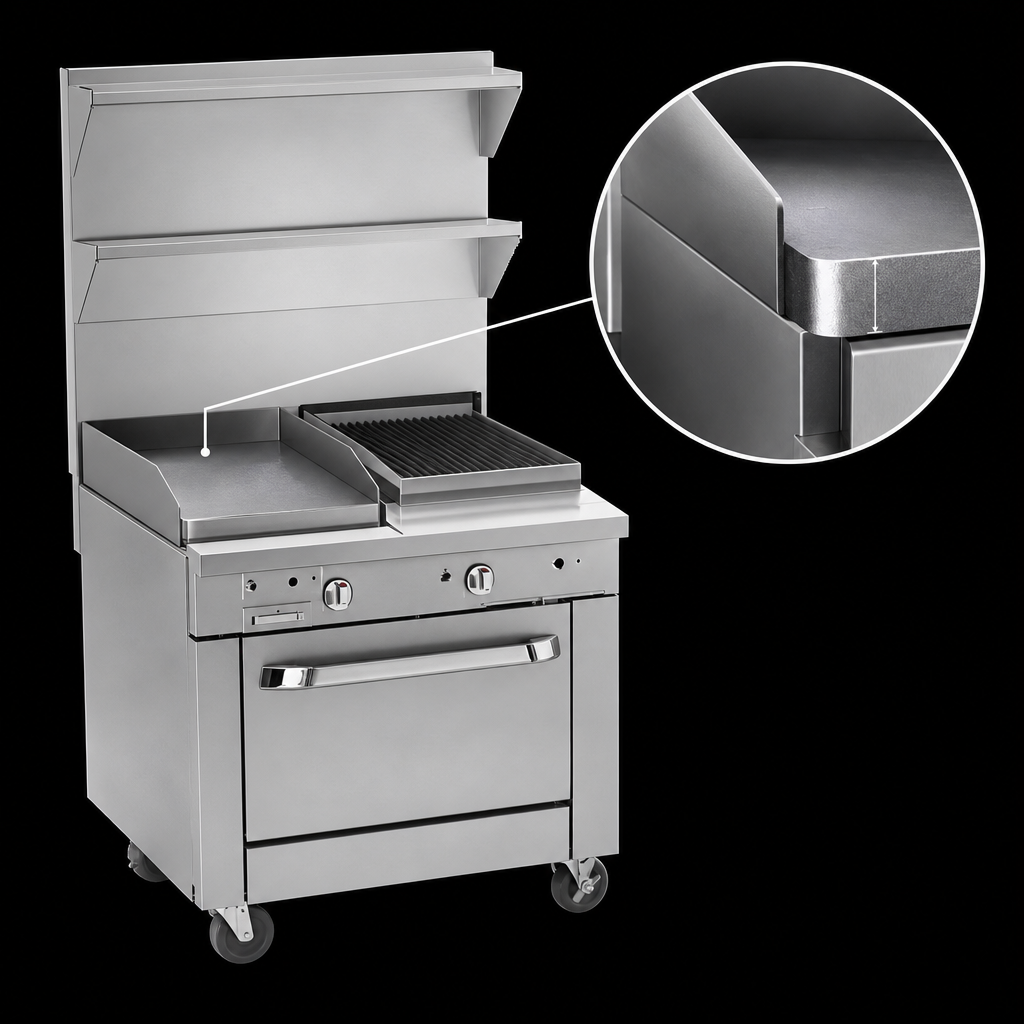

16" Manual Griddle
  • Two 20,000 BTU burners below a 1" polished plate.
  • Manual “G” control – intuitive, no-nonsense temperature management.
  • Removable stainless grease drawer for quick clean-ups.
16" Charbroiler
  • Two 20,000 BTU burners with stainless steel radiants.
  • Cast-iron grates flip to choose ⅛" or ¼" branding marks and adjust slope for delicate fish or juicy steaks.
  • Front-pull drip tray keeps grease away from the flame for a safer work station.

Engineered for the Long Haul

  • Fully welded chassis rated for continuous, high-heat commercial use.
  • Clog-free burner design reduces downtime and maintenance costs.
  • Free Southbend battery-layout assistance and a 1-year parts & labor warranty.

Specifications

Overall width 32" / 813 mm
Overall depth 37 ½" / 953 mm
Height (to cooking surface) 15 ¾" / 400 mm + 5" flue riser
Configuration Modular counter-top combination top
Cooking sections (1) 16" manual griddle, (1) 16" charbroiler
Total output 80,000 BTU (Natural) / 72,000 BTU (LP)
Gas connection 1 ¼" front manifold, 1" rear male NPT
Shipping weight ≈ 390 lb / 177 kg
Construction 430 & 304 stainless steel exterior; cast-iron grates; stainless radiants
Certifications cCSAus, CSA Flame, CSA Star, NSF
Warranty 1-year parts & labor (Heavy Duty Sectional Range)

Popular Factory Options (extra cost)

  • 24" or 36" flue risers with single or double shelving.
  • Chrome-plated or grooved griddle surface.
  • Plated fish grids or removable cast-iron tops for the charbroiler.
  • Casters, open-frame base or refrigerated base mounting kits.
  • External gas pressure regulator and restraining cable kits.
Installation Reminder:
• Charbroiler sections must be installed under a vented hood and in non-combustible locations.
• Maintain at least 10" side and 12" rear clearance from combustibles for the griddle section.
• A properly regulated 7" W.C. (Natural) or 11" W.C. (LP) supply line is required.

Financing available through Middleby Capital – ask your rep for details.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

13.5in

Width

32.0in

Depth

37.5in

Shipping Weight

390.0lbs

Base

modular

Vent

backriser

Plate Thickness

1.000" = 1"

Exterior Finish

stainless steel front & sides

Top

(1) 16" griddle, (1) 16" charbroiler

Specifications

Platinum Heavy Duty Range, gas, 32", modular, (1) 16" griddle, 1" thick plate, (1) 16" charbroiler, cast iron grates, manual controls, stainless steel radiants, front, sides & exterior bottom, 80,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
