Description

Southbend Platinum 32" Heavy-Duty Modular Range — 6 Open Burners (Step-Up)

Model P32N-BBB-SU | Gas | 210,000 BTU

Engineered for relentless commercial workloads, the Platinum Series 32" modular range combines six high-performance open burners with a space-saving step-up design that keeps your cook line fast, organized and ready for anything.

Key Features

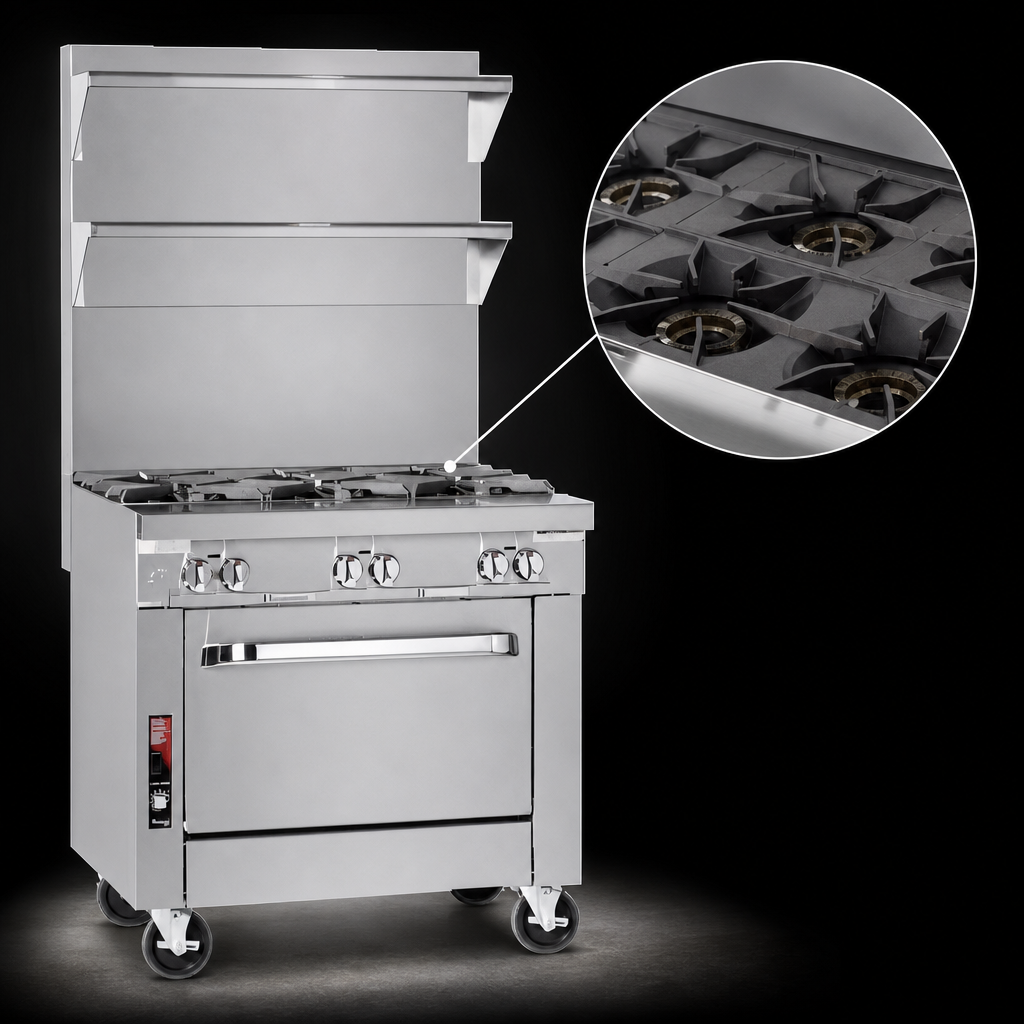

  • Six patented clog-free cast-iron burners at 35,000 BTU each (210,000 BTU total).
  • Step-up rear burners are 4" higher than the front for easier pan transfers and clear visibility.
  • Modular mount — drop onto a countertop, refrigerated base or into a custom battery.
  • Removable welded-steel top grates support heavy stock pots without warping.
  • 9-1/4" deep front rail provides extra plating and landing space.
  • Stainless-steel front, sides, rear and bottom for unmatched corrosion resistance.
  • Full-width drip tray pulls out for quick, tool-free cleanup.
  • 5" stainless flue riser vents heat up and away from the chef.
  • Manual gas valves deliver instant, precise flame control.
  • Certified to CSA, NSF & cCSAus standards.

Specifications

Exterior width 32" (813 mm)
Exterior depth 37-1/2" (953 mm) to front rail
Exterior height Cooking surface height varies by base + 5" flue riser
Total input 210,000 BTU/hr
Burners 3 front & 3 rear step-up open burners — 35,000 BTU each
Gas connection 1-1/4" NPT front manifold & 1" NPT rear; 7" W.C. NAT / 11" W.C. LP min.
Controls Manual individual burner valves
Shipping weight Approx. 260 lb (118 kg)
Warranty 1-year limited parts & labor (commercial use)

Perfect For

  • High-volume restaurants, hotels & resorts
  • Catering facilities and commissary kitchens
  • Institutional & government foodservice operations
  • Operators building custom heavy-duty cooking batteries

Popular Factory Options

  • 24" or 36" flue riser with single or double shelves
  • Casters or open-frame base for mobile installations
  • Front-rail modifications: cut-outs, square belly bar or 7-1/4" deep rail
  • External gas pressure regulator
  • Battery spark ignition for open burners
  • Removable cast-iron grate tops
Oversized cookware policy: Pans 12" or larger should be used on the rear burners to prevent excess heat build-up on the front rail and controls.

For commercial use only. Install under an appropriate ventilation hood and follow all local codes.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA, cCSAus

Height

13.5in

Width

32.0in

Depth

37.5in

Shipping Weight

260.0lbs

Base

modular

Vent

stub back

Top

(3) open burners, (3) step-up open burners

Exterior Finish

stainless steel front & sides

Specifications

Platinum Heavy Duty Range, gas, 32", modular, (3) 35,000 BTU open burners, (3) 35,000 BTU step-up open burners, manual controls, stainless steel front, sides & exterior bottom, 210,000 BTU, CSA, NSF, cCSAus
