Southbend (Middleby)  |  Platinum  |  SKU: P32N-BBB

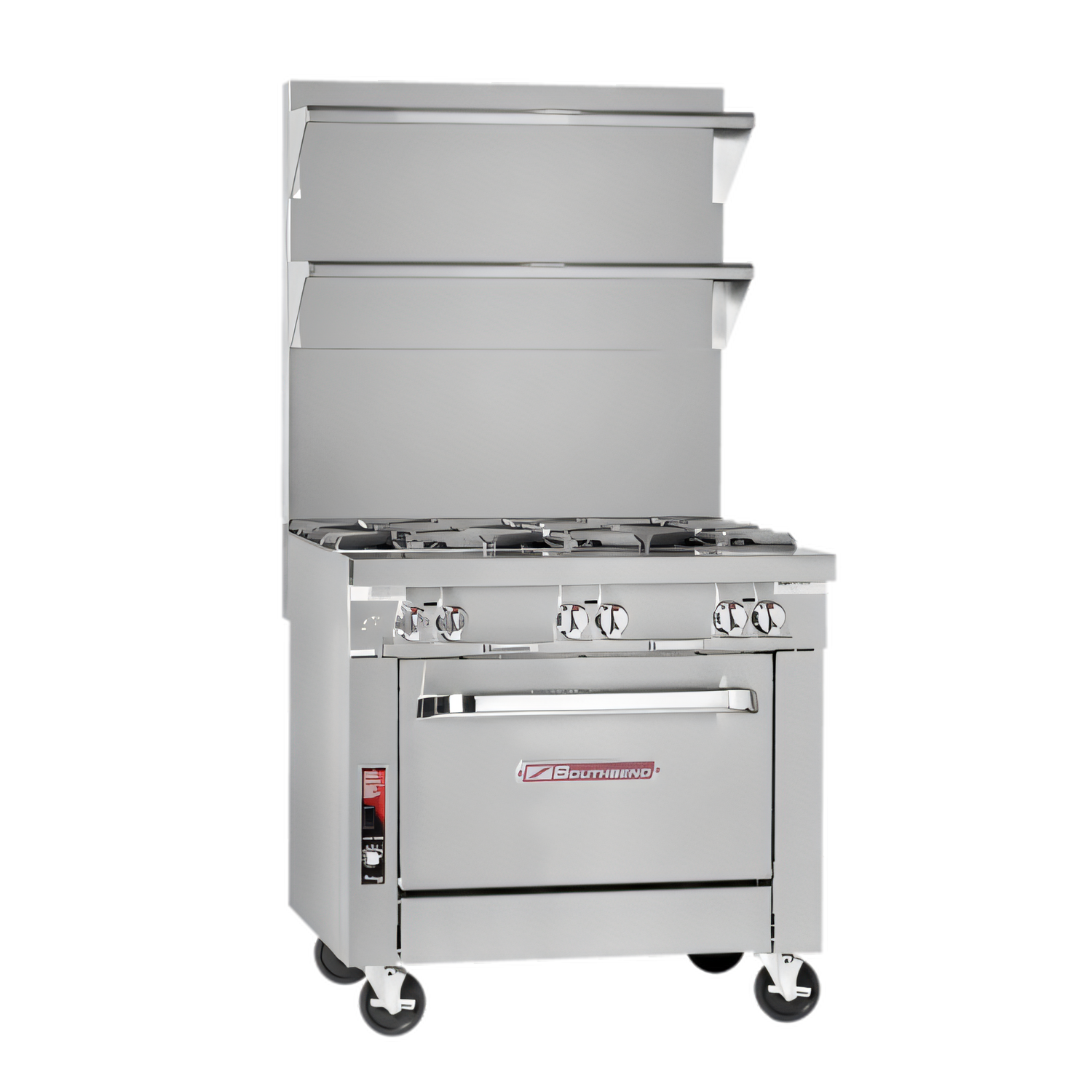

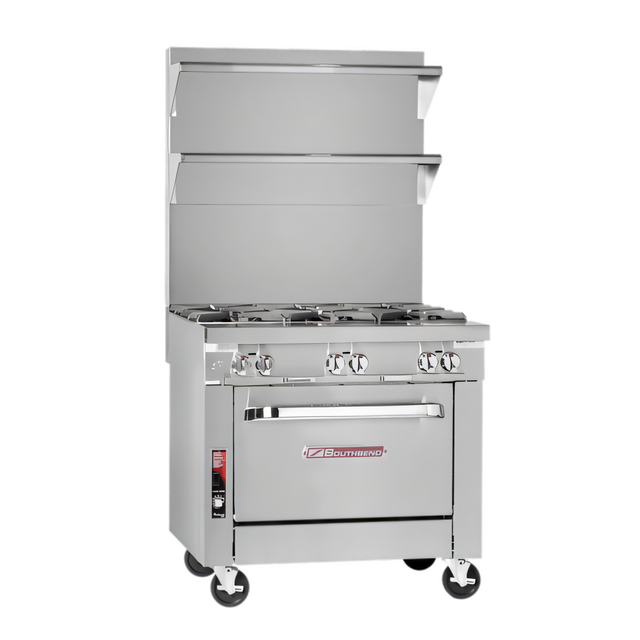

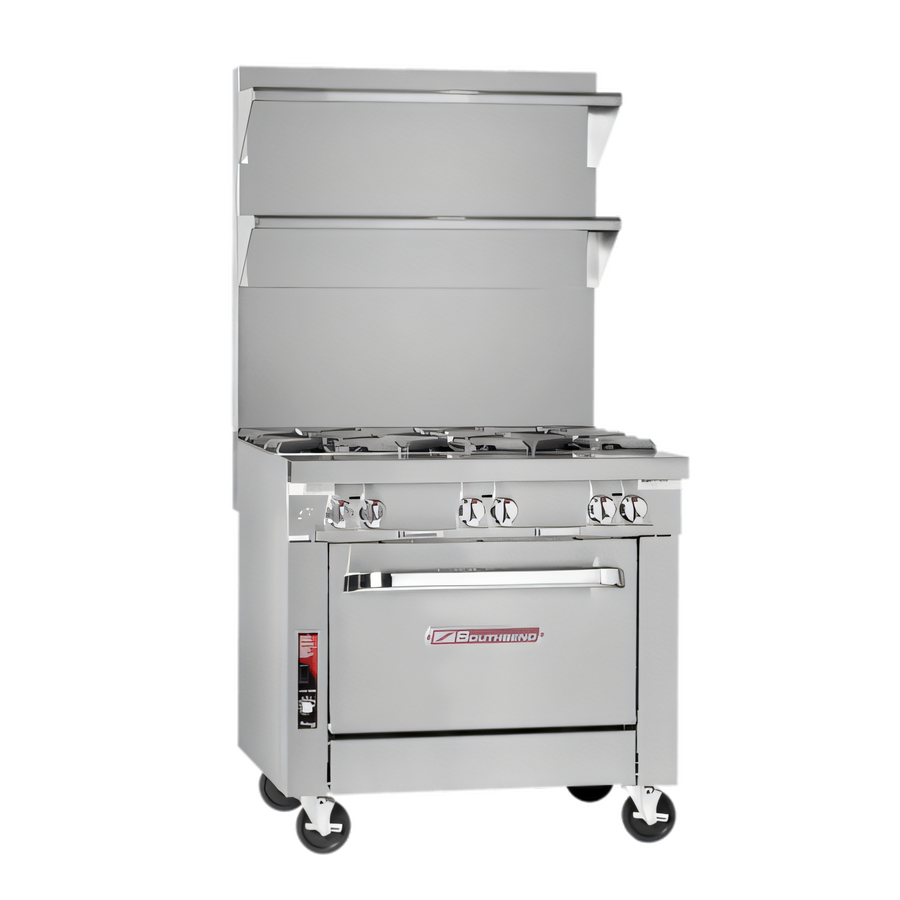

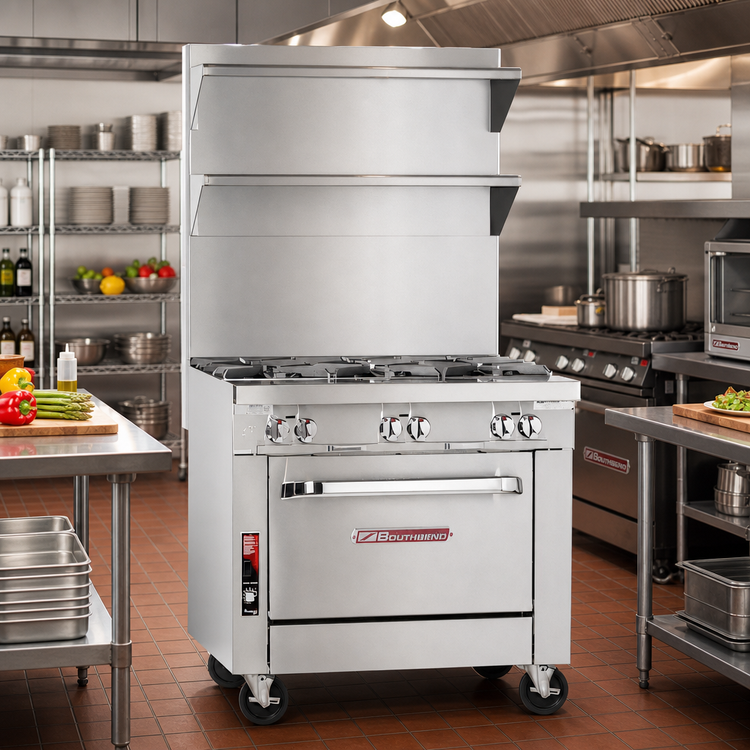

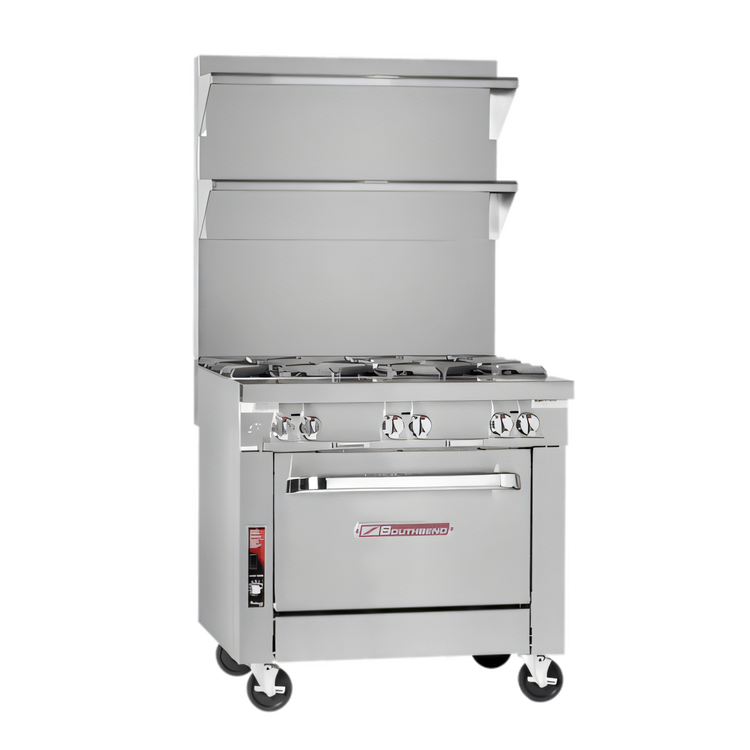

Southbend (Middleby) P32N-BBB Platinum Gas Ranges

$6,677.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum™ 32" Heavy-Duty Modular Gas Range

Model P32N-BBB • Six 35,000 BTU Open Burners • Total 210,000 BTU

Engineered for the most demanding commercial kitchens, the Southbend Platinum™ P32N-BBB delivers uncompromising power and durability in a space-saving 32" footprint. This modular section drops straight onto a refrigerated, freezer or equipment stand— giving you the design flexibility to build a custom cooking battery without sacrificing the rugged performance Southbend is known for.

Why Choose the Platinum P32N-BBB?

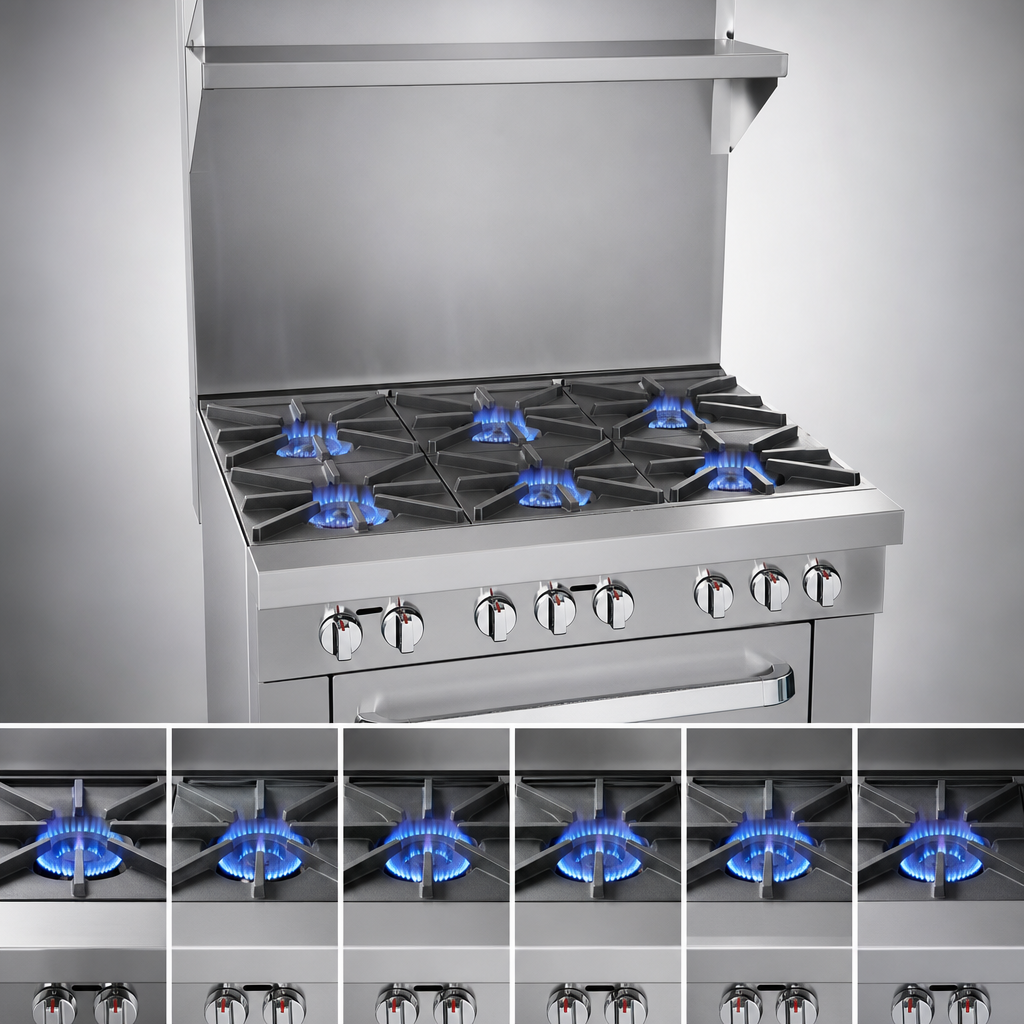

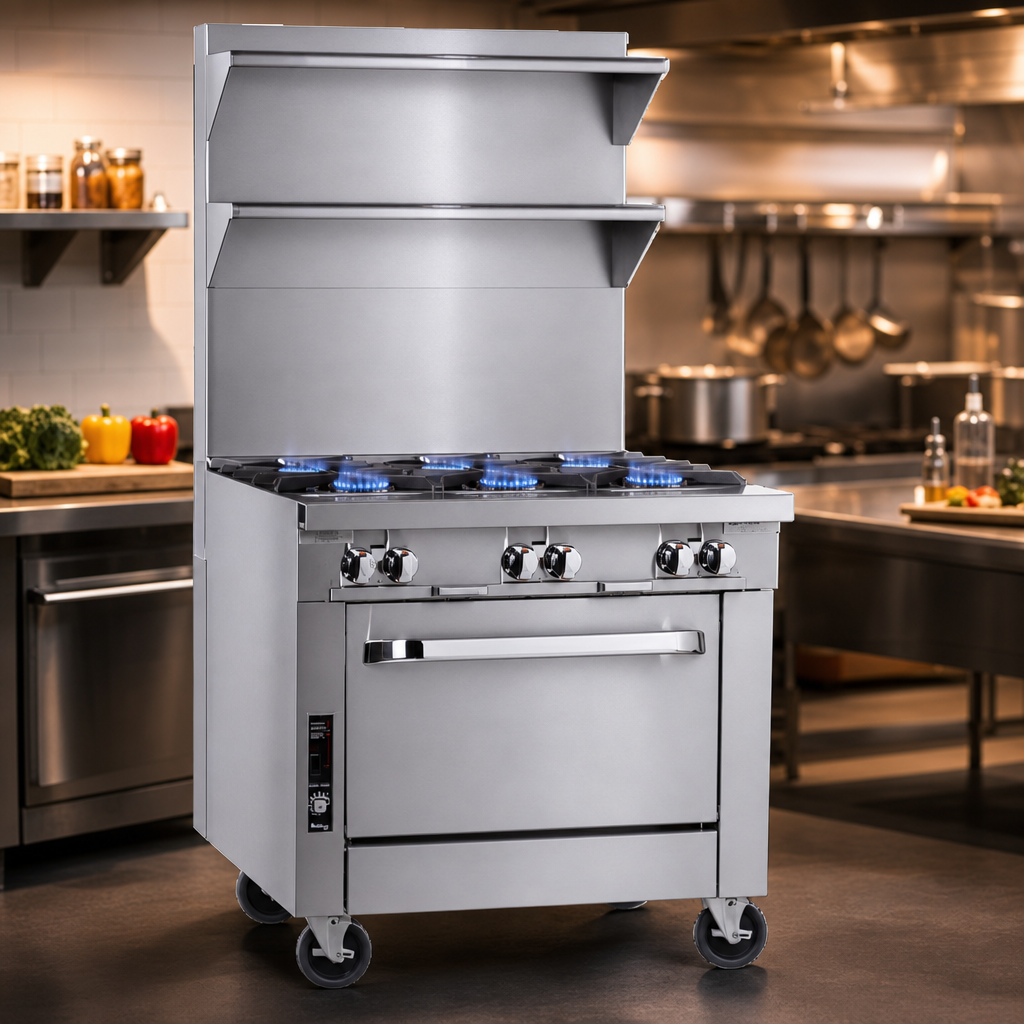

  • Six patented clog-free 35,000 BTU burners for a blazing 210,000 BTU total output.
  • Modular mount—perfect for countertop or custom base installations.
  • Removable welded-steel top grates withstand oversized stock pots.
  • 9-1/4" deep front rail keeps handles cool and pans secure.
  • All-stainless exterior (front, sides, rear & bottom) stands up to daily abuse.
  • Fully insulated burner box improves efficiency and keeps kitchen temps down.
  • 5" stainless flue riser directs heat away from the chef for a more comfortable line.
  • Factory-standard one-year parts & labor warranty backed by Southbend’s nationwide service network.
  • Meets CSA, NSF & cCSAus standards for gas safety and sanitation.
Technical Specifications
Gas Type Natural or Propane  (field convertible)
Total BTU 210,000 BTU/hr (6 × 35,000 BTU open burners)
Manifold / Rear Connection 1-1/4" NPT front manifold  |  1" NPT rear
Min. 7" W.C. Natural / 11" W.C. LP
Required Utilities No electricity required (manual ignition)
Overall Dimensions 32" W × 37-1/2" D × 34" H (to top of 5" flue riser)
Cooking Surface Height Approximately 29" (with 6" adjustable legs supplied by base)
Shipping Weight 260 lb  (crated)
Certifications CSA, NSF, cCSAus
Warranty 1-Year parts & labor (commercial use)
Popular Options & Accessories (sold separately)
  • 24" or 36" flue risers with single or double shelving
  • Battery spark ignition kit
  • Rear step-up burner configuration
  • Front rail cut-outs or square belly bar
  • Open-frame or cabinet bases with casters
  • External gas pressure regulator & flexible hose restraint kit
Oversized Cookware Notice: Pots 12" Ø or larger should be kept on the rear burners to avoid directing excessive heat toward the front rail, which can shorten component life. Always install the range under a properly sized vent hood and use a regulated gas supply.

Need a complete cookline? Southbend’s free battery-design service can help you combine multiple Platinum sections into one seamless suite.

Specifications are subject to change without notice. This appliance is intended for commercial use only.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA, cCSAus

Height

13.5in

Width

32.0in

Depth

37.5in

Shipping Weight

260.0lbs

Base

modular

Top

(6) open burners

Exterior Finish

stainless steel front & sides

Vent

stub back

Specifications

Platinum Heavy Duty Range, gas, 32", modular, (6) 35,000 BTU open burners, manual controls, stainless steel front, sides & exterior bottom, 210,000 BTU, CSA, NSF, cCSAus
