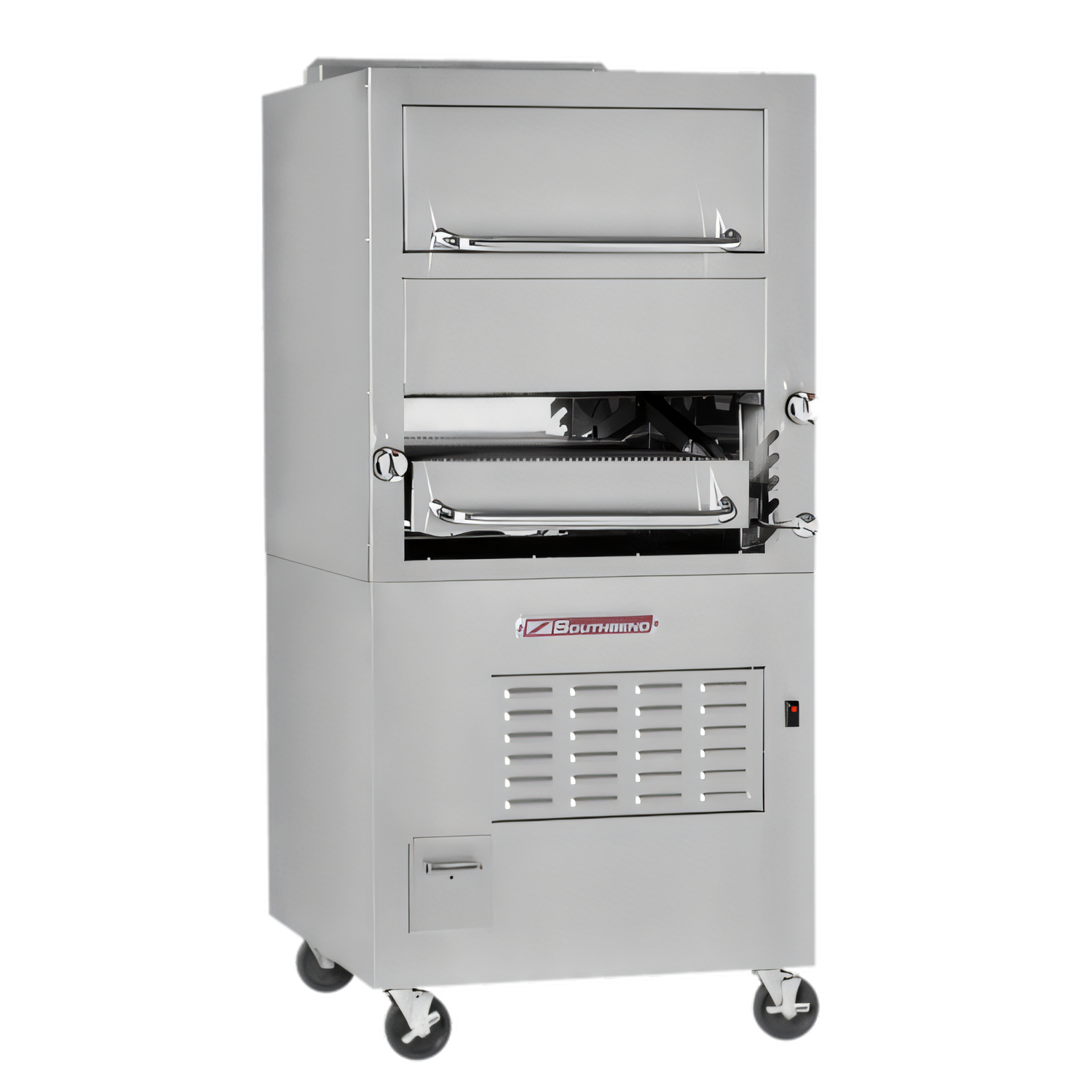

Southbend Platinum Heavy Duty 32-Inch Single-Deck Gas Infrared Upright Broiler with Overhead Warming Oven, Modular Mount
Southbend Platinum Heavy Duty 32-Inch Single-Deck Gas Infrared Upright Broiler with Overhead Warming Oven, Modular Mount
No Base, Range Match, Stainless Steel Front, Sides, and Back, 6-Inch Adjustable Legs
Built for high-volume service, this single-deck infrared broiler delivers fast preheat, an overhead warming oven, and modular-mount flexibility in a rugged stainless steel package.
- 104,000 BTU infrared burners with separate controls provide fast, even broiling.
- Overhead warming oven uses broiler flue gases to help keep food ready for service.
- Modular-mount, no-base design with 6-inch adjustable legs fits range-match installations.
- Roll-out broiler grid measures 24-1/2 inches wide by 28 inches deep and adjusts through four height positions.
- Stainless steel construction and fully insulated burner boxes are built for heavy-duty kitchen use.
- 1-1/4 inch front gas manifold and 1 inch rear gas connection support flexible hookup options.
Overall Dimensions:
45.5"W x 55.0"D x 51.75"HProduct Weight:

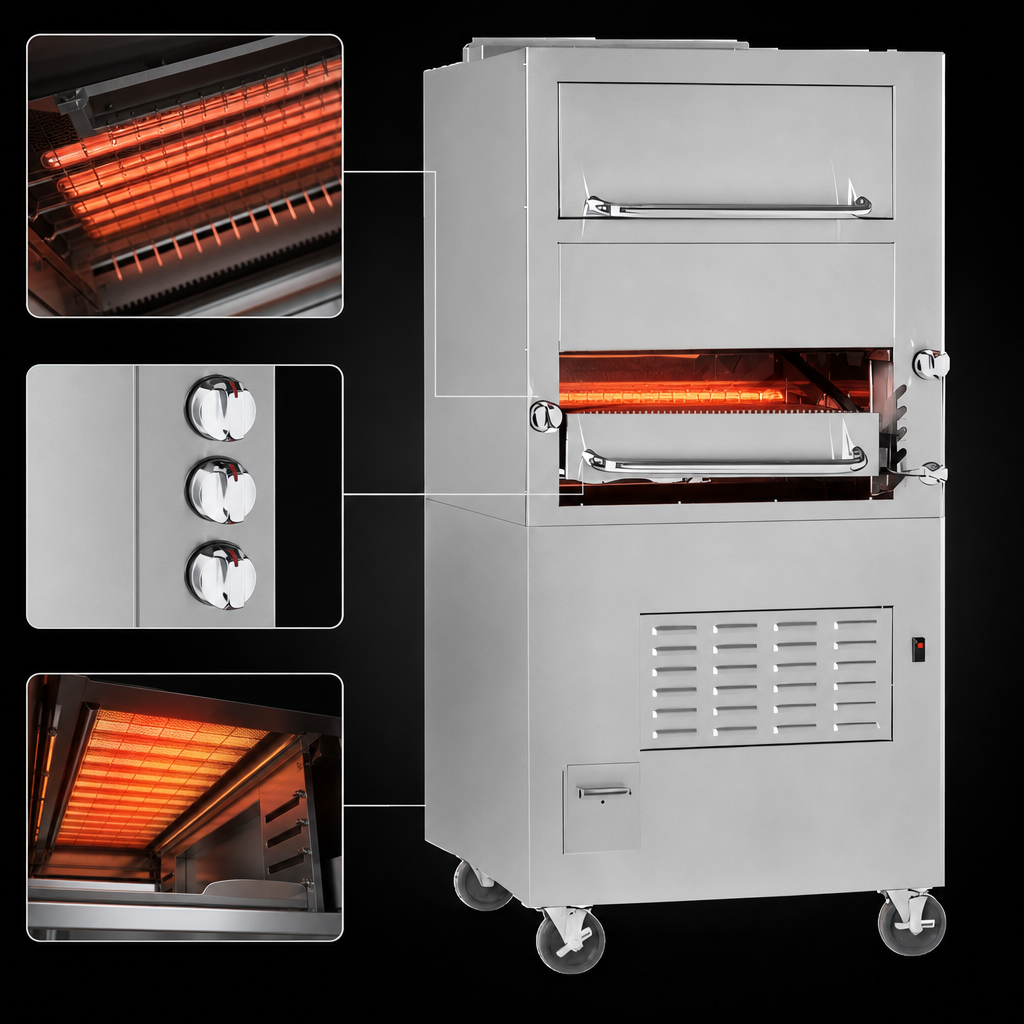

800.0 lbInfrared Broiler Burners
104,000 BTU infrared burners with separate controls and a 90-second preheat for quick service.

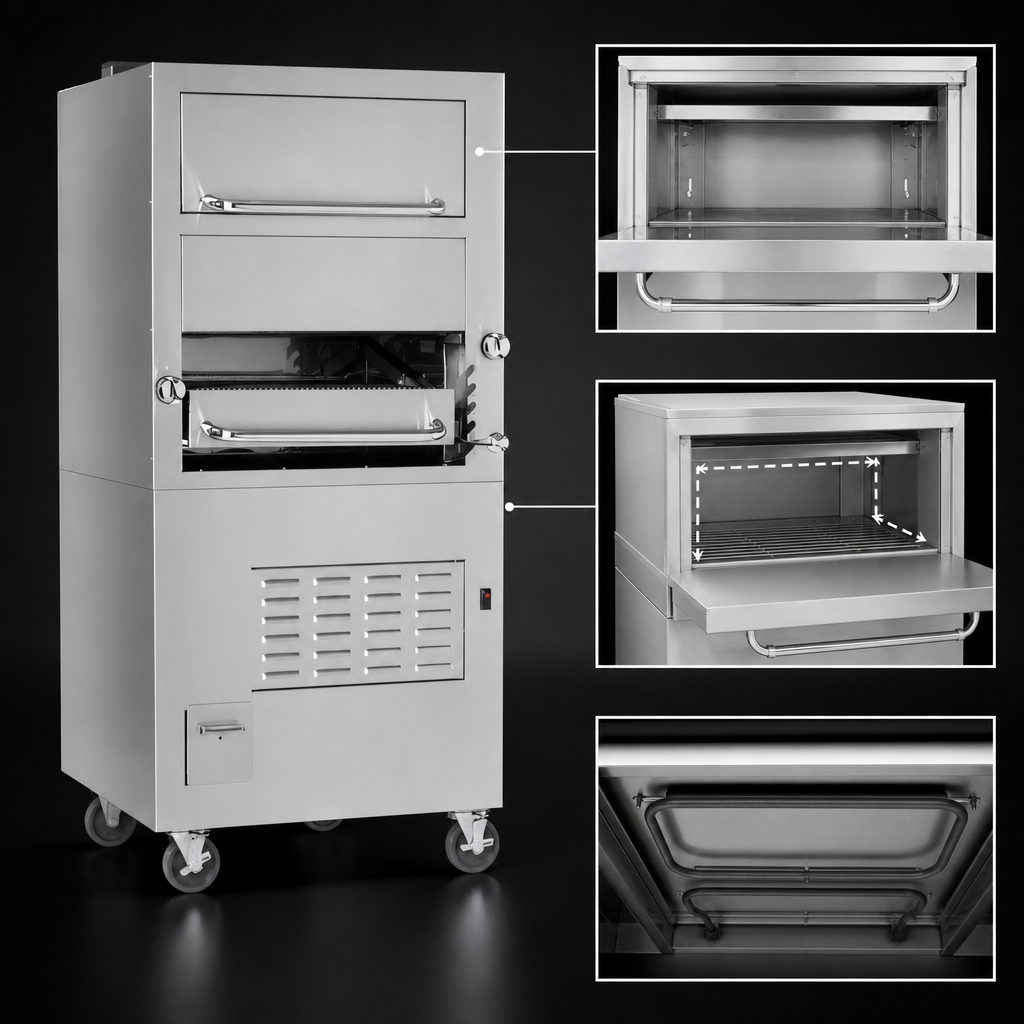

Overhead Warming Oven
Warming oven is heated by broiler flue gases and measures 25 inches wide by 25 inches deep; a 3,000 watt electric element is optional.
Modular Mount, No Base
P32N-171 is the modular-mount version of the platform and includes 6-inch adjustable legs.
Roll-Out Broiler Grid
Broiler grid is 24-1/2 inches wide by 28 inches deep, rolls out 17-1/4 inches, and offers four height positions.
Stainless Steel Construction
Top, front, sides, and back are stainless steel for durability in demanding commercial kitchens.
Gas Hookup
Includes a 1-1/4 inch front gas manifold and a 1 inch rear gas connection; regulated gas supply is required.
Battery Placement Flexibility
Unit can be positioned on the left, right, or end of a battery; the end side is solid.
Insulated Burner Box
Fully insulated lining and burner boxes help retain heat and improve overall performance.
Certifications & Compliance
Warranty & Protection
1 year parts and labor
