Southbend (Middleby) P32D-XT Platinum Gas Ranges
Description

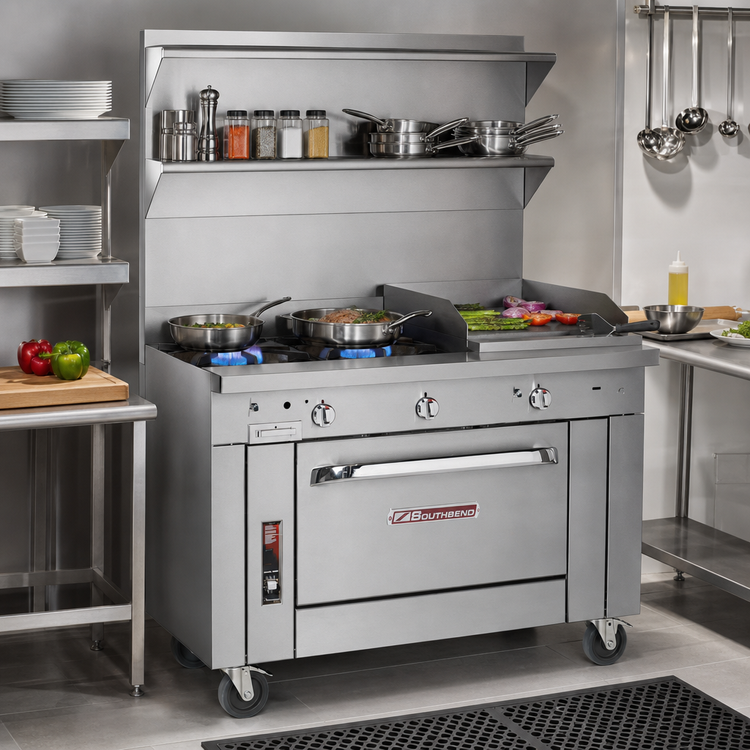

Southbend Platinum 32" Heavy-Duty Gas Range — 2 Pyromax Burners + 16" Thermostatic Griddle
Model P32D-XG/T | 175,000 BTU Total OutputBuilt for kitchens that run at full throttle, the Southbend Platinum 32" Range unites ferocious Pyromax open-top heat, a precision-controlled griddle, and a full-size standard oven in one rock-solid, all-stainless package. From à-la-minute sauté to all-day breakfast service, this single 32" section delivers the muscle and versatility that heavy-volume operations demand.
Why You’ll Love It

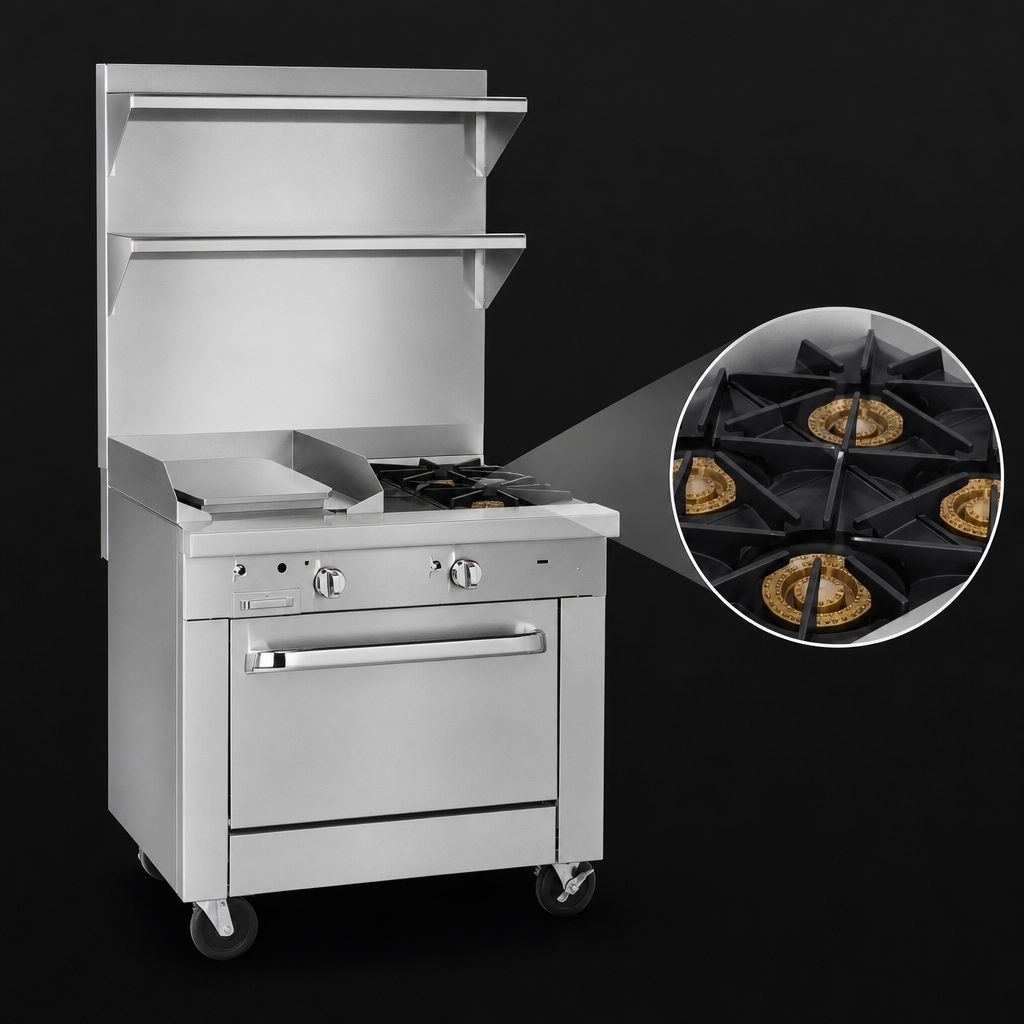

- Dual 45,000 BTU Pyromax Burners – patented clog-free design, removable welded grates, and battery spark ignition for instant lighting.

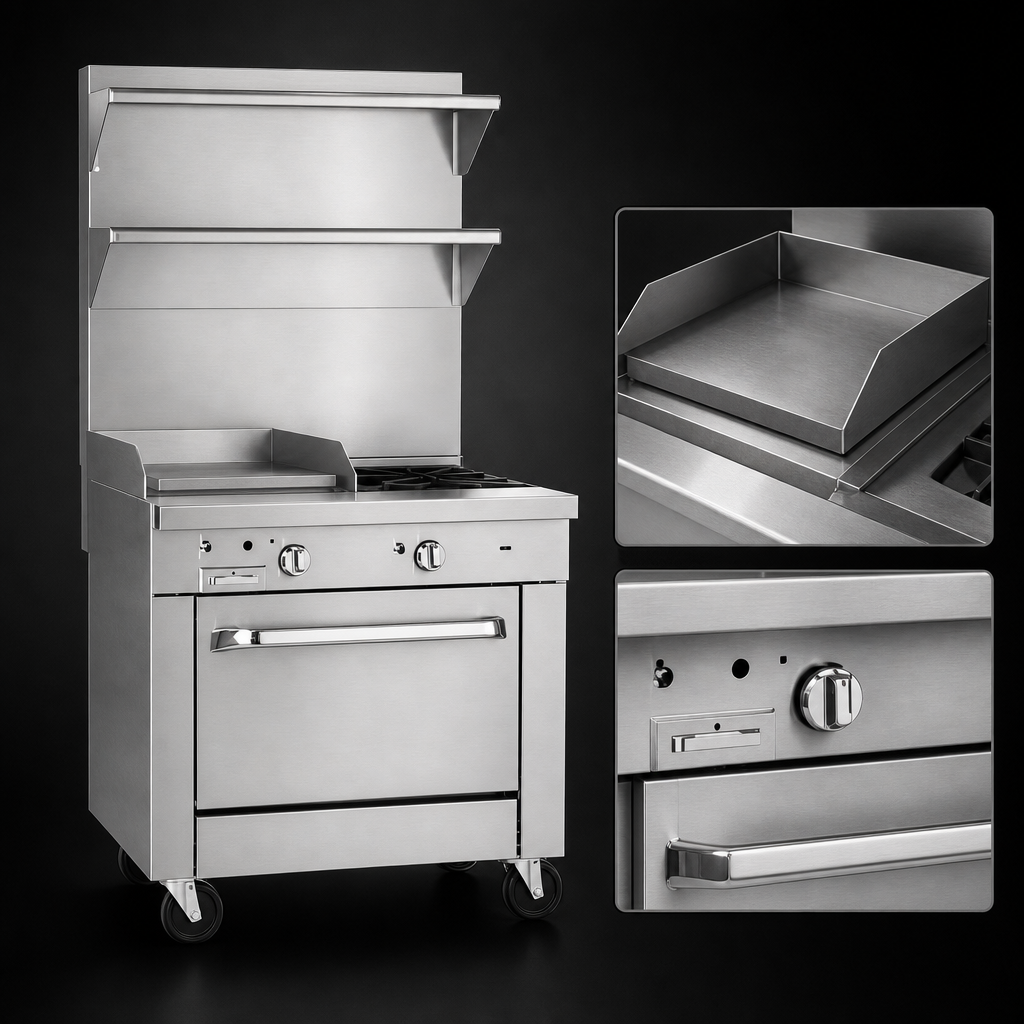

- 16" Thermostatic Griddle – 1" thick polished steel plate with “Insta-On” control (180 °F – 400 °F) and two 20,000 BTU burners for fast recovery.
- 45,000 BTU Standard Oven – porcelain-enameled cavity (14"H × 26"W × 26.5"D), 175 °F – 550 °F thermostat, and two reversible racks with 5 positions.
- 9-¼" deep front rail keeps plating areas cool and spacious.
- 5" stainless flue riser and fully-insulated burner box help contain heat for a cooler kitchen.
- All-stainless front, sides, and 6" adjustable legs withstand years of heavy abuse and simplify cleanup.
- Front 1-¼" manifold couples seamlessly with other Platinum sectional pieces for battery installations.
- Certified: cCSAus, CSA Flame, CSA Star & NSF for gas safety and sanitation compliance.
Technical Specifications
| Overall Width | 32" (813 mm) |
|---|---|
| Depth (to front rail) | 37.5" (953 mm) |
| Cook Surface Height | 36" (914 mm) on 6" adjustable legs |
| Total BTU Input | 175,000 BTU/hr |
| Open Top | 2 × 45,000 BTU Pyromax burners (90,000 BTU) |
| Griddle Section | 16" wide, 1" thick plate | 40,000 BTU | Thermostatic |
| Oven Base | Standard oven, 45,000 BTU | (2) chrome racks included |
| Gas Connection | 1-¼" front manifold & 1" rear male NPT | 7" W.C. NAT or 11" W.C. LP |
| Ignition | Battery spark (top & griddle) / standing pilot (oven) |
| Shipping Weight | ≈ 570 lb (259 kg) |
| Warranty | 1-year parts & labor, Heavy-Duty Sectional range class |
Popular Factory Options (sold separately)
- 24" or 36" high flue riser with single or double shelves
- External gas pressure regulator
- Grooved or chrome-plated griddle surface
- Casters with restraining kit for battery lines
- Stainless steel oven interior
