Southbend (Middleby)  |  Platinum  |  SKU: P32D-XH-RE

Southbend (Middleby) P32D-XH-RE Platinum Gas Ranges

$13,400.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

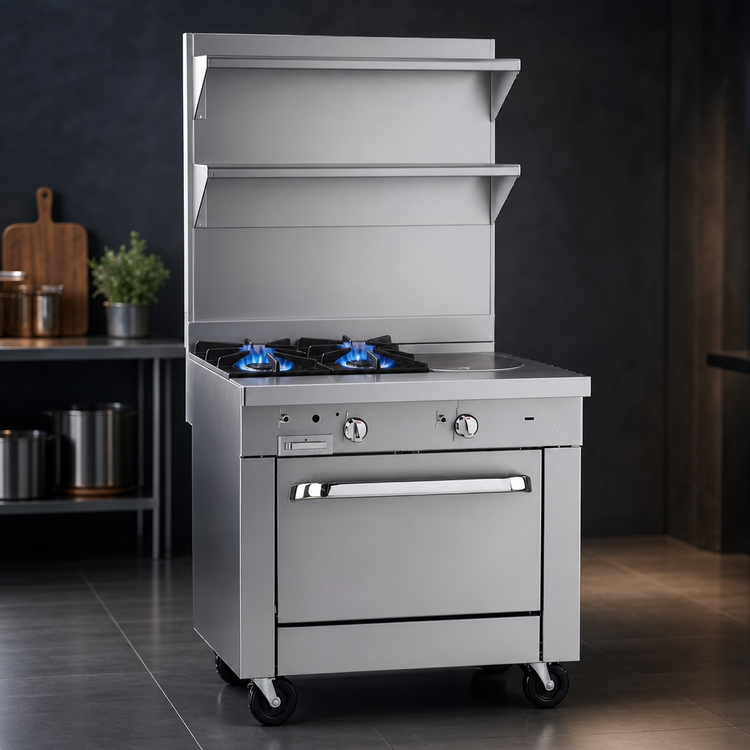

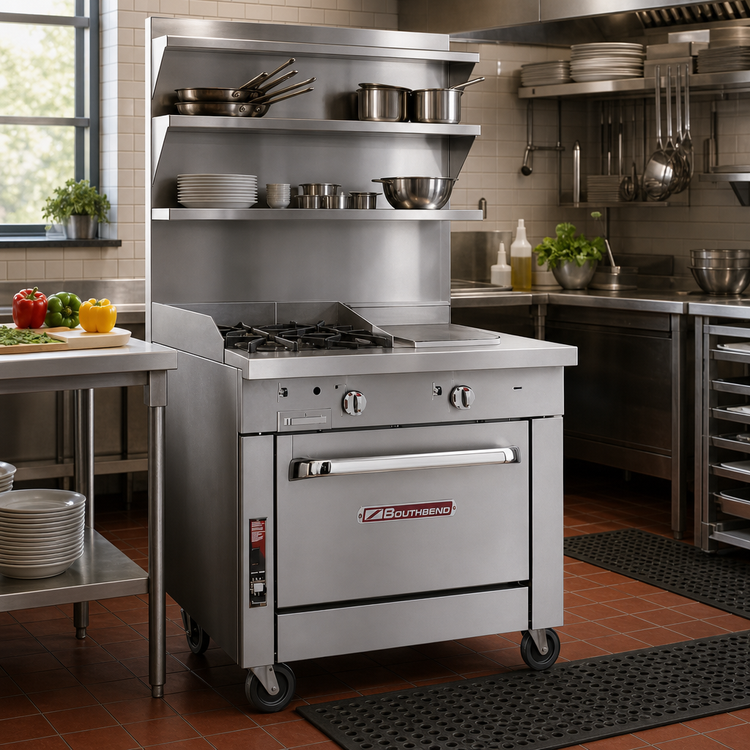

Southbend Platinum Series 32" Heavy-Duty Gas Range

Model P32-XH – 2 Pyromax Open Burners + 16" Rear Hot Top with Standard Oven, 175,000 BTU

Built for the toughest commercial kitchens, the Platinum Series 32" combination-top range delivers searing open-burner power, a 700 °F hot-top surface, and a full-size oven—all in a compact, battery-ready footprint.

Key Features

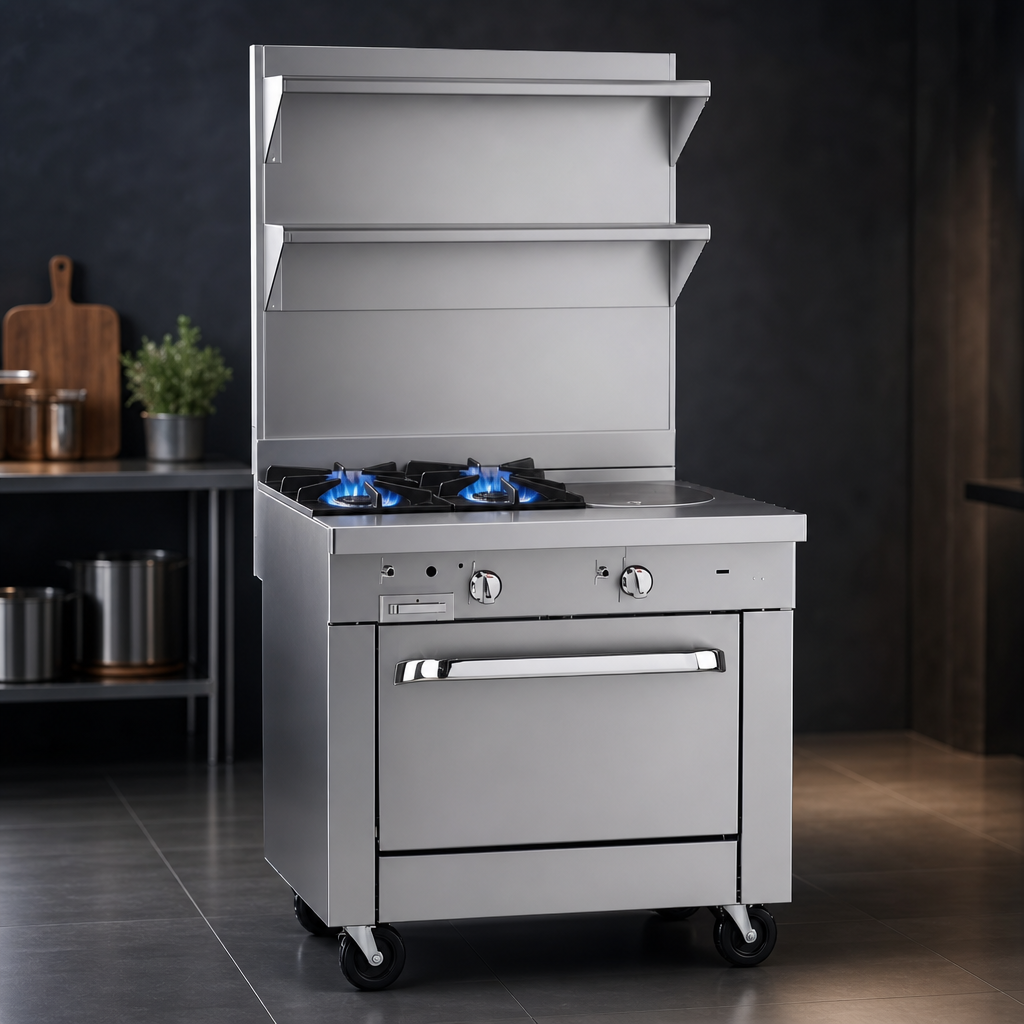

  • (2) 45,000 BTU patented Pyromax clog-free open burners on the front rail

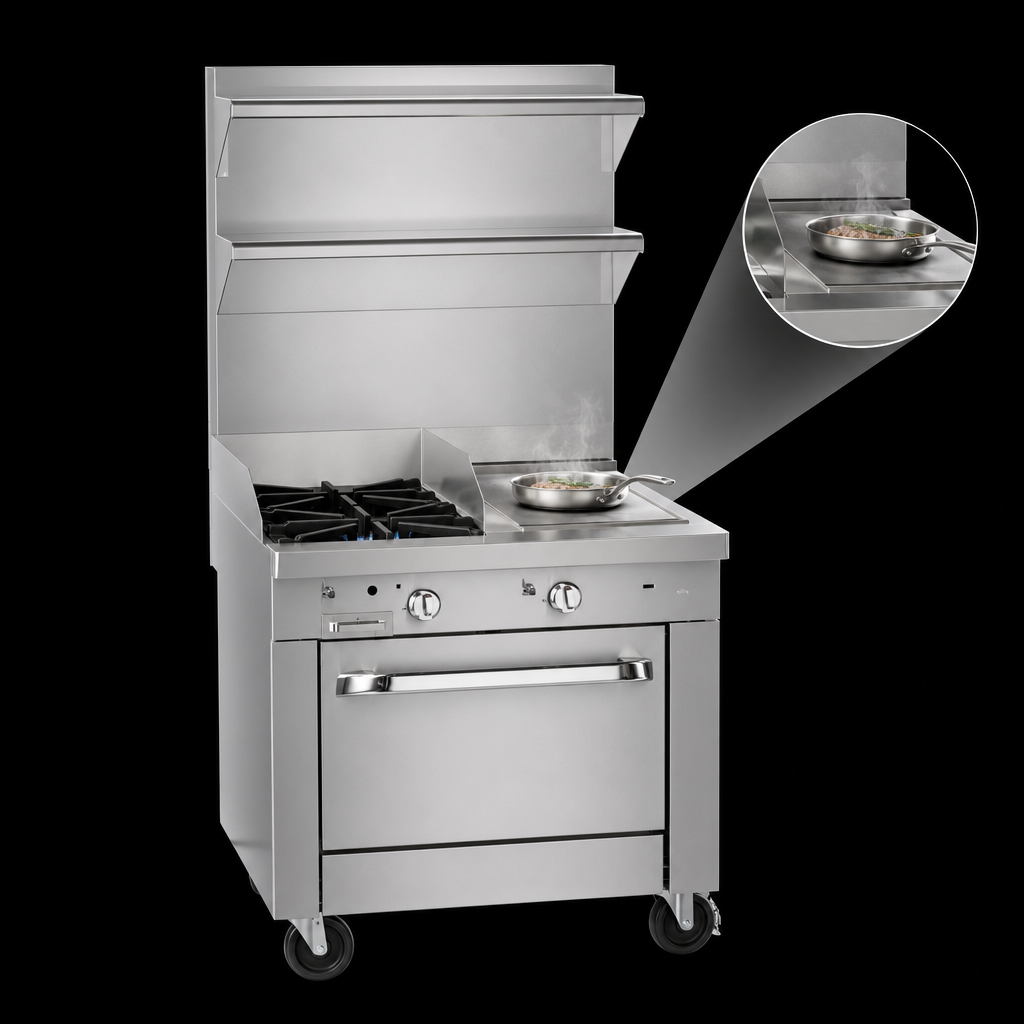

  • 16" rear hot top with (2) 20,000 BTU burners, high/low manual control & battery-spark ignition
  • Standard oven, 45,000 BTU, thermostat adjustable 175 – 550 °F
  • Porcelain-enameled oven cavity; (2) racks included with five rack positions
  • Rugged 9-1/4" deep stainless front rail & fully insulated burner box
  • Stainless steel front, sides, 5" flue riser, and 6" adjustable legs
  • Total input: 175,000 BTU/hr (Natural or LP)
  • CSA & NSF certified for commercial use
  • 1-year limited parts & labor warranty
Why Choose Platinum Series?
  • Heavy-duty construction engineered for 24/7 line cooking
  • Modular “battery” design couples flush with other Platinum sections
  • Free factory design assistance for multi-unit cooklines
  • 1-1/4" front gas manifold & 1" rear connection streamline installation
Technical Specifications
Overall width 32" (813 mm)
Overall depth 37 1/2" (953 mm)
Overall height Cook surface 45" with 5" flue riser
Cooking surface (2) 12" × 12" cast-iron grates + 16" × 24" steel hot top
Total BTU input 175,000 BTU/hr
Gas type Natural or Propane; 7" W.C. (NAT) / 11" W.C. (LP) minimum supply
Gas connections 1-1/4" NPT front manifold, 1" NPT rear inlet
Oven interior 14" H × 26" W × 26.5" D, porcelain enamel
Oven racks 2 (five-position)
Certifications CSA, NSF
Warranty 1-year parts & labor

Need a matching griddle, charbroiler, or convection base? Ask our team about other Platinum sectional configurations.

Optional Upgrades (sold separately)
  • 24" or 36" stainless flue riser with shelves
  • Open-frame base with locking casters
  • Factory-installed external gas pressure regulator
  • Stainless steel oven interior
  • Cable-restraint kit for caster installations
Important: This appliance is intended for commercial use only and must be installed under a properly sized vent hood in accordance with local codes. A regulated gas supply is required.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

41.0in

Width

32.0in

Depth

37.5in

Shipping Weight

570.0lbs

Top

(2) open burners, (1) 16" hot top

Base

(1) standard oven

Exterior Finish

stainless steel front & sides

Vent

backriser

Specifications

Platinum Heavy Duty Range, gas, 32", (2) 45,000 BTU open burners front, (1) 16" hot top rear, manual controls, battery spark ignition, (1) standard oven, includes (2) racks, stainless steel front, sides & 6" adjustable legs, 175,000 BTU, CSA, NSF
