Southbend (Middleby) P32D-XH Platinum Gas Ranges
Description

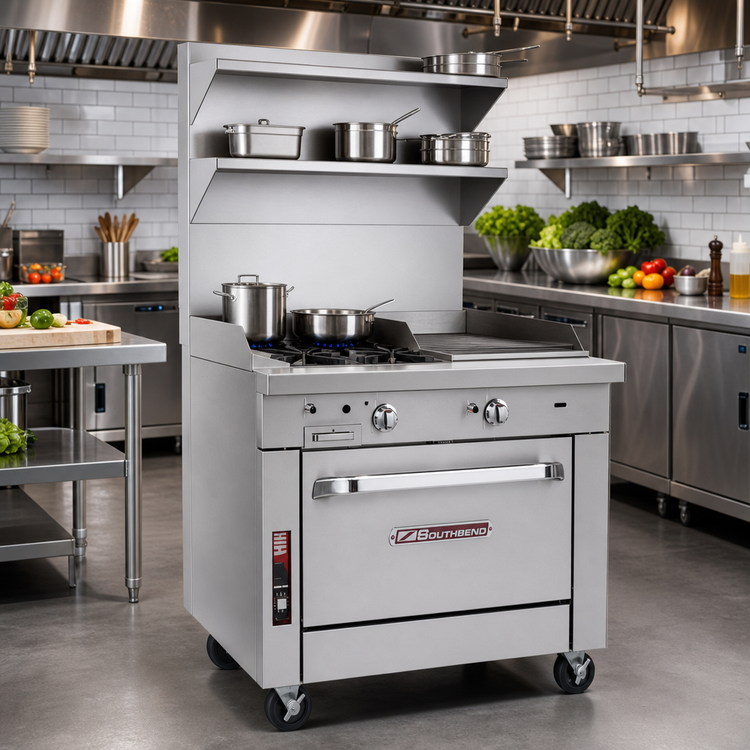

Platinum 32" Heavy-Duty Gas Range
Model P32-XH-D • Southbend / MiddlebyBuilt for high-volume, high-heat kitchens, the Platinum Series 32" sectional range packs 175,000 BTU of dependable cooking power into a compact footprint. Two patented 45,000 BTU Pyromax® open burners, a 16" hot top, and a full 45,000 BTU standard oven give you unmatched menu flexibility while the all-stainless exterior stands up to years of daily punishment.
Key Features

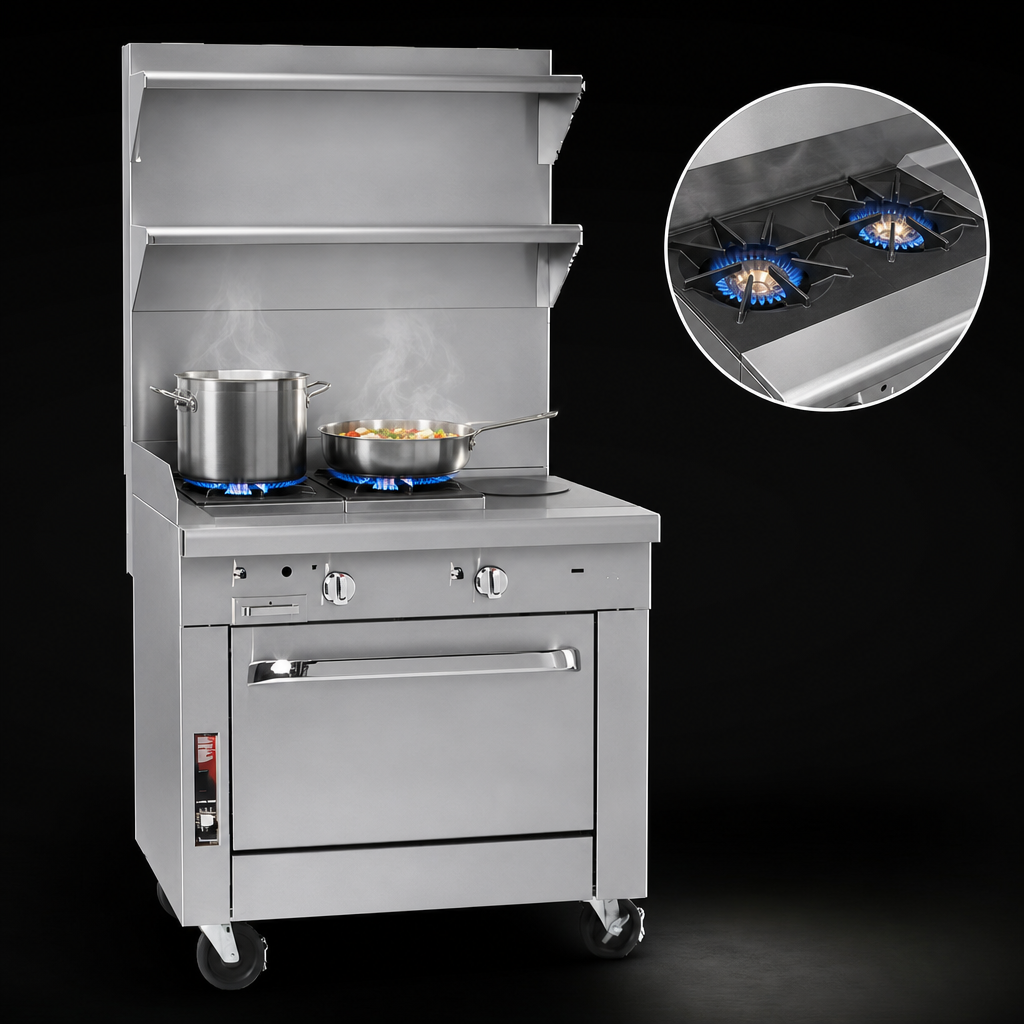

- 2 x 45,000 BTU clog-free Pyromax open burners with removable steel grates

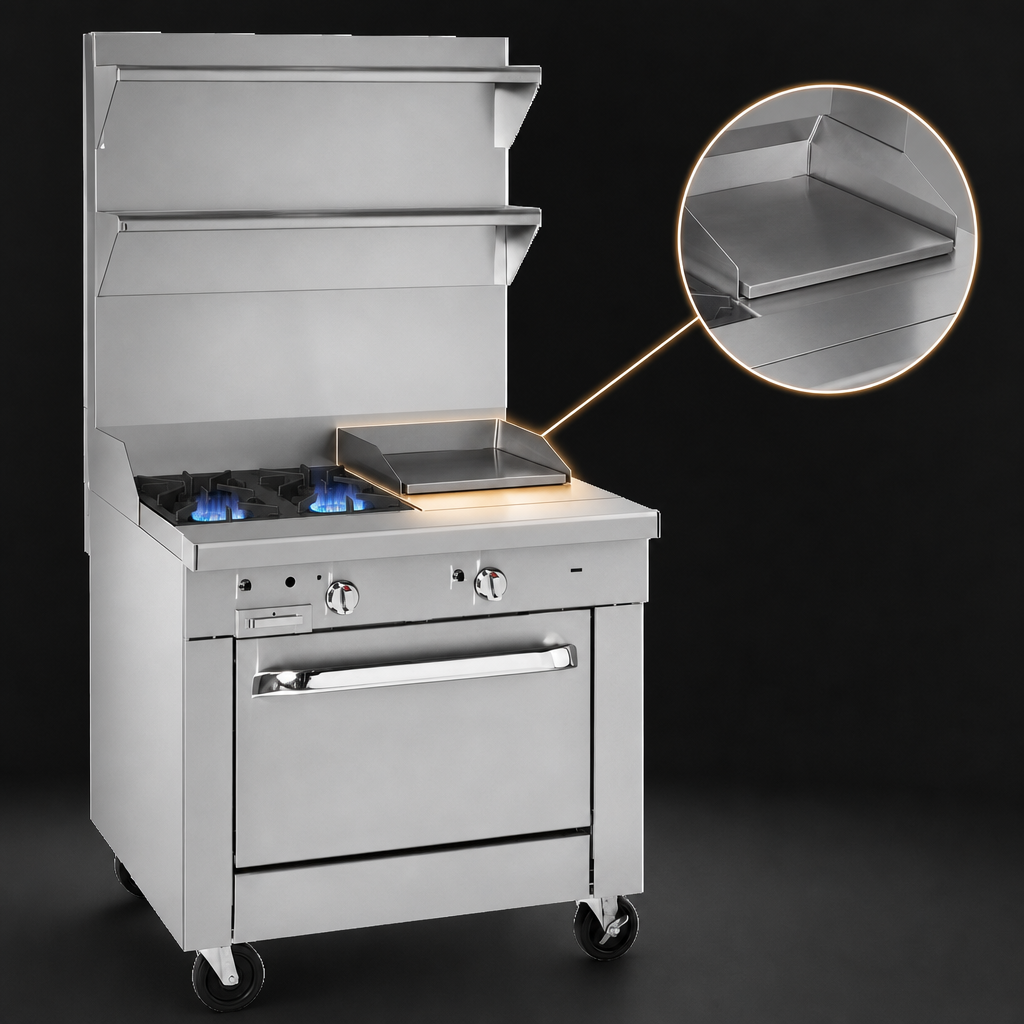

- 16" hot top with two 20,000 BTU burners and one high/low control knob
- Battery spark ignition for all top sections – no standing pilots on the cooktop
- 45,000 BTU standard oven (175 – 550 °F) with 2 racks & 5-position rails
- 5" stainless flue riser and fully-insulated burner box for cooler side panels
- 9-1/4" deep front rail and 6" adjustable stainless steel legs
- All-stainless front, sides, and removable drip trays for fast clean-ups
- Free battery design assistance from Southbend engineers
- Certified NSF & CSA – 100 % commercial kitchen ready
Performance & Utility Specs
| Total BTU Input | 175,000 BTU/hr (natural gas) |
|---|---|
| Open Burners | 2 x 45,000 BTU Pyromax |
| Hot Top | 40,000 BTU (two 20,000 BTU burners) • up to 700 °F surface |
| Oven | 45,000 BTU standard oven • 175 – 550 °F thermostat |
| Gas Connection | 1 ¼" front manifold & 1" rear male NPT |
| Min. Gas Pressure | 7" W.C. Natural • 11" W.C. Propane |
| Ignition | Battery spark (top) • Standing pilot (oven) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Dimensions & Capacities
| Overall Width | 32" (813 mm) |
|---|---|
| Depth (front rail to rear) | 37 ½" (953 mm) |
| Cooking Surface Height | 37 ½" (953 mm) on 6" legs |
| Flue Riser Height | 5" (127 mm) |
| Oven Interior (H x W x D) | 14" × 26" × 26.5" (356 × 660 × 673 mm) |
| Ship Weight | Approx. 570 lb (259 kg) |
What’s Included
- (2) Heavy-duty oven racks
- Removable drip trays & steel hot-top plates
- 5" stainless flue riser
- 6" adjustable stainless steel legs
- Operator’s manual & warranty registration
Popular Options (factory-installed)
- 24" or 36" high flue risers with single or double shelves
- Front locking casters & rear gas-hose restraint kit
- Stainless steel oven interior upgrade
- External gas pressure regulator
