Southbend (Middleby)

Southbend Platinum Heavy Duty 32-Inch Gas Range with 2 Open Burners, 16-Inch Griddle and Standard Oven

SKU: P32D-XG
$12,544.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

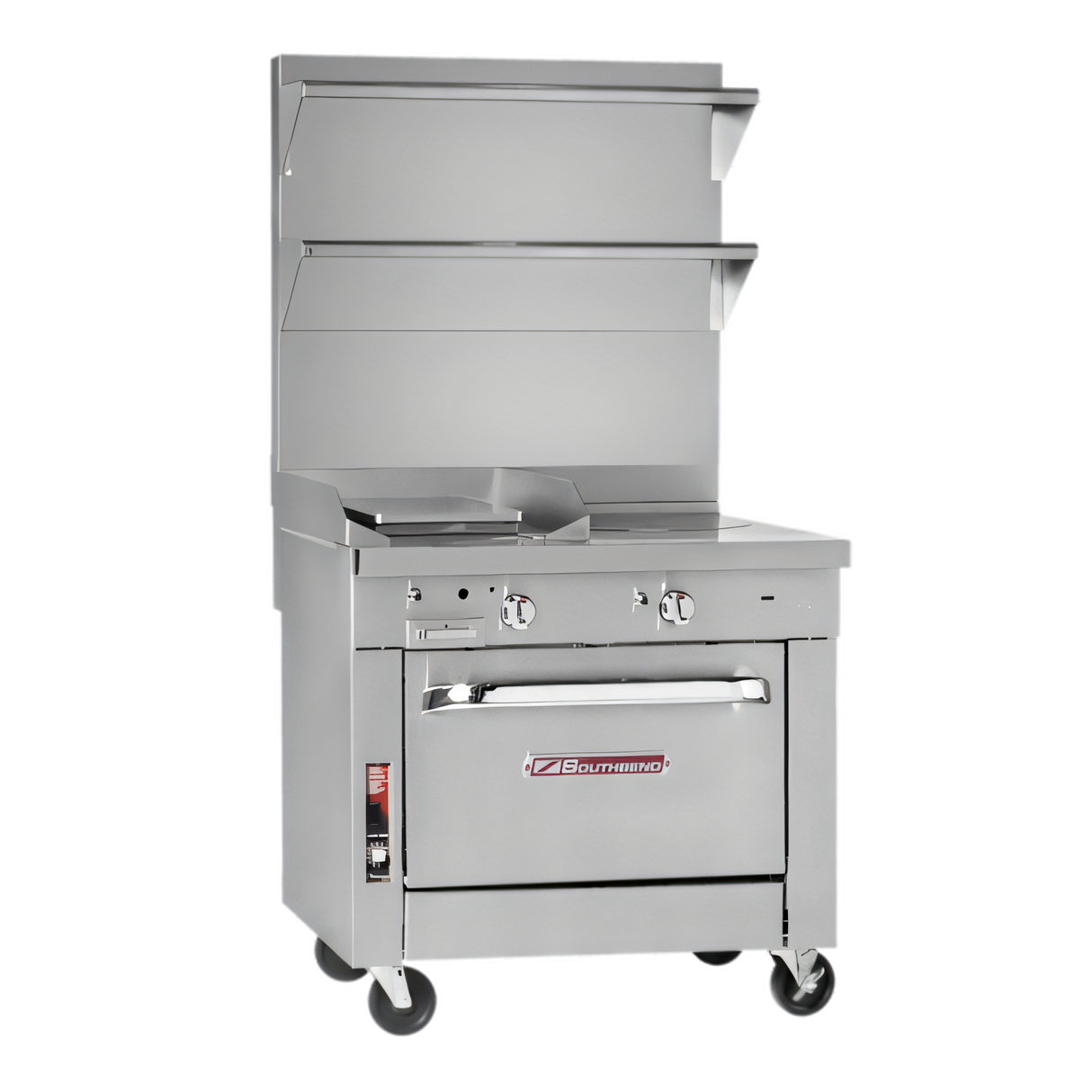

Southbend Platinum Heavy Duty 32-Inch Gas Range with 2 Open Burners, 16-Inch Griddle and Standard Oven

Manual Controls, Battery Spark Ignition, Stainless Steel Front and Sides, 175,000 BTU

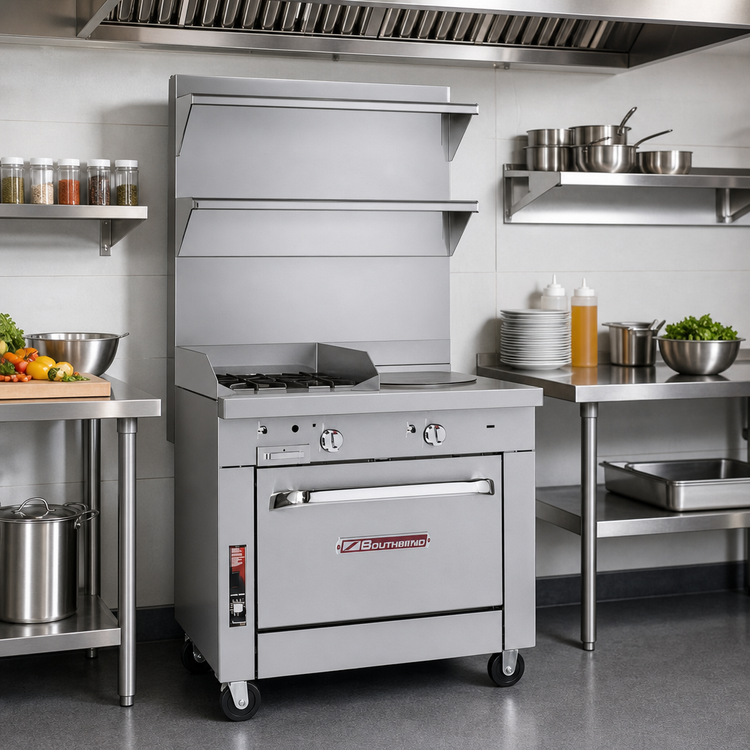

Built for busy commercial kitchens, this 32-inch gas range combines powerful burners, a griddle, and a standard oven in one durable stainless steel platform.

  • 32-inch heavy duty gas range designed for versatile line cooking.
  • Two 45,000 BTU open burners plus a 16-inch griddle with a 1-inch thick plate.
  • Standard oven base includes two oven racks.
  • Manual controls and battery spark ignition support dependable operation.
  • Stainless steel front and sides offer durability and a professional look.
  • 6-inch adjustable legs help with leveling and installation.
  • 175,000 total BTU output is built for demanding service.

Overall Dimensions:

32.0"W x 37.5"D x 41.0"H

Product Weight:

660.0 lb

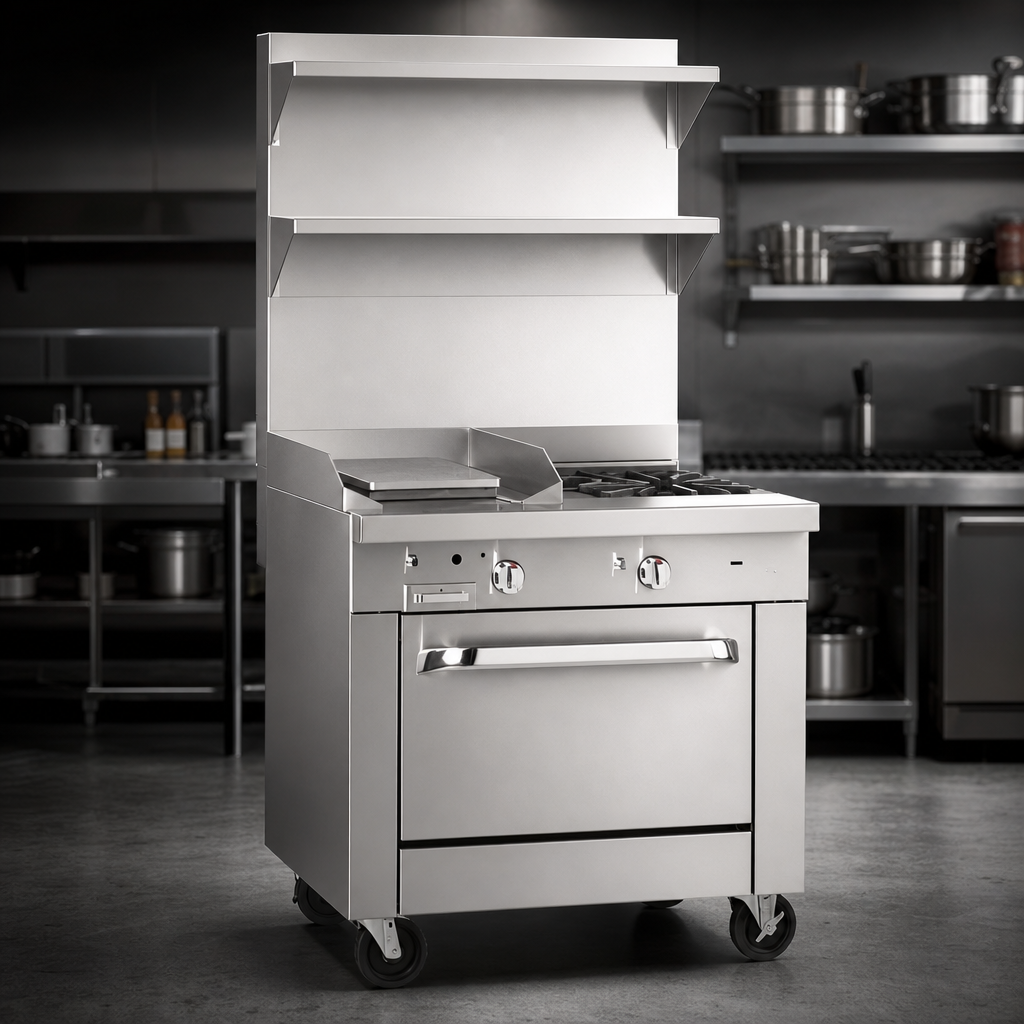

Heavy Duty Range Construction

Commercial gas range combines open burners, griddle, and oven in one rugged unit.

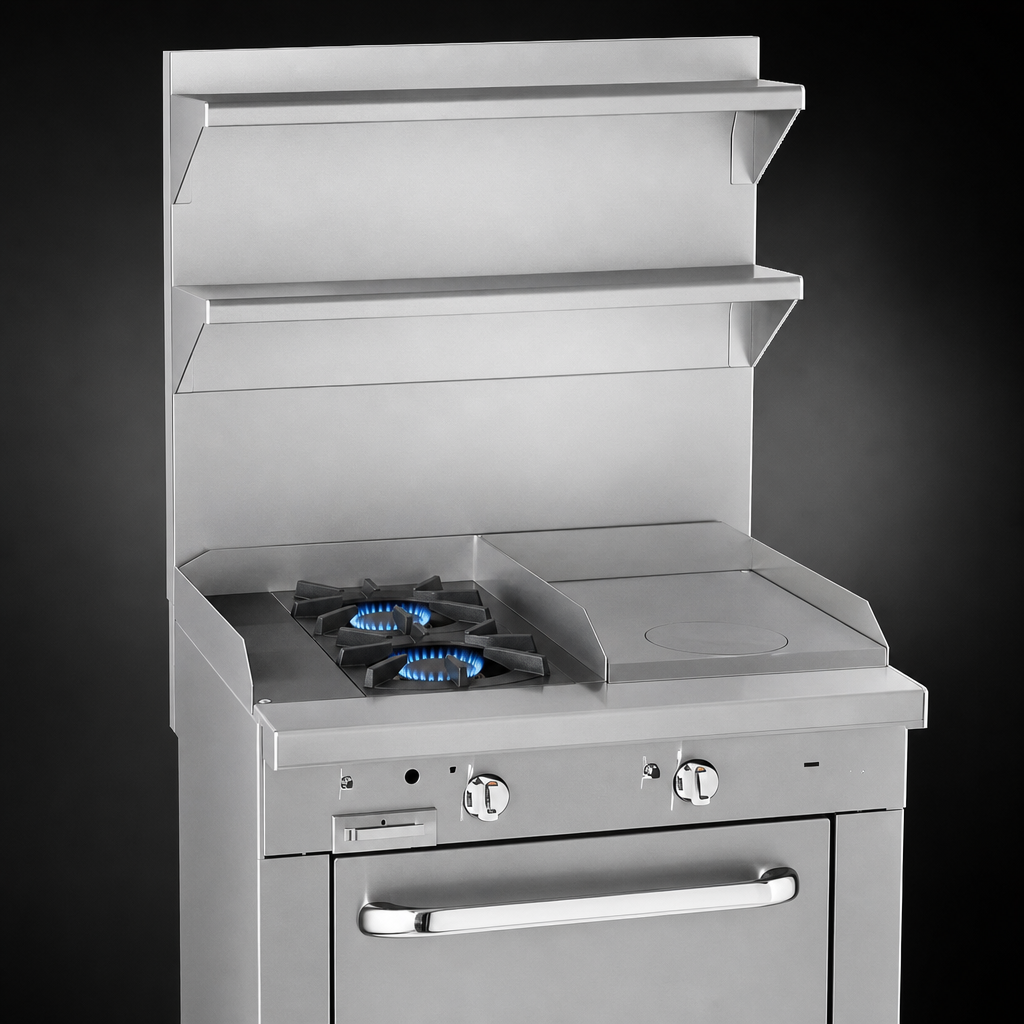

Open Burners

Includes two open burners rated at 45,000 BTU each for high-heat cooking.

16-Inch Griddle

Built-in griddle features a 1-inch thick plate for even heat and solid cooking performance.

Standard Oven Base

Lower oven section includes two racks for added baking and roasting capacity.

Manual Controls

Straightforward control layout for easy heat adjustment.

Battery Spark Ignition

Battery spark ignition helps start the burners without a standing pilot.

Stainless Steel Exterior

Stainless steel front and sides provide durability and easier cleanup.

6-Inch Adjustable Legs

Adjustable legs help level the range during installation.

Backriser

Backriser configuration is specified for the unit.

High Total BTU Output

175,000 BTU total input supports high-demand cooking operations.

Type Heavy Duty Range
Style Open Burner / Griddle / Oven
Installation Type Floor Model
Controls Manual
BTU 175,000 BTU
Material Stainless Steel
Shipping Width 32 Inches
Shipping Depth 38 Inches
Shipping Height 41 Inches
Shipping Weight 660 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor from date of purchase.

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes two open burners, a 16-inch griddle, and a standard oven base.
The range includes two open burners rated at 45,000 BTU each.
Yes, the standard oven includes two racks.
The unit has stainless steel front and sides.
Southbend's limited warranty is 1 year parts and 1 year labor from the date of purchase, with the term not exceeding 18 months from factory shipment.
